1. Introduction
Thank you for choosing the BLANCO NAYA 45 Silgranit kitchen sink. This manual provides essential information for the proper installation, operation, and maintenance of your new sink. Designed for durability and ease of use, the NAYA 45 features a spacious basin, easy-to-clean rounded corners, and a protective rim to prevent water splashes on your countertop. Its high-quality Silgranit material ensures exceptional resistance for daily family use.
2. Important Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage or injury.
- Professional installation by a qualified plumber or installer is highly recommended.
- Handle the sink with care to avoid chipping or scratching during transport and installation.
- Ensure all connections are watertight to prevent leaks.
- Do not use harsh chemicals or abrasive cleaners on the sink surface.
3. Package Contents
Verify that all components are present before beginning installation:
- BLANCO NAYA 45 Silgranit Kitchen Sink
- Drain fitting with space-saving pipe
- 3 ½" basket strainer
- Installation clips and sealing material (may be pre-attached or included separately)
4. Installation Guide
4.1. Preparation
The BLANCO NAYA 45 sink is designed for top-mount installation into a countertop. It requires a minimum base cabinet width of 45 cm.
- Carefully measure and mark the cutout area on your countertop according to the provided template (if included) or the technical drawing dimensions.
- Cut the opening in the countertop using appropriate tools. Ensure clean and precise edges.
- Apply a suitable sealant around the edge of the cutout to prevent water penetration.
4.2. Mounting the Sink
- Carefully lower the sink into the prepared countertop cutout.
- Secure the sink to the countertop using the provided installation clips. Tighten the clips evenly to ensure a snug fit and proper sealing.
4.3. Connecting the Drain
- Assemble the drain fitting and the 3 ½" basket strainer according to the separate instructions provided with the drain kit.
- Connect the space-saving pipe to the drain fitting and then to your household plumbing system. Ensure all connections are tight and leak-free.
- Test for leaks by running water into the sink and checking all connections.
5. Operation
5.1. Daily Use
The BLANCO NAYA 45 sink is designed for optimal daily use. Its spacious basin accommodates various kitchen activities, from washing large pots to preparing food. The integrated basket strainer effectively collects food debris, preventing clogs in your plumbing.
5.2. Water Management
The sink's carefully designed rim helps to contain water within the basin, protecting your countertop from splashes and spills during use. Always ensure the faucet is properly aligned with the basin to minimize splashing.
6. Maintenance and Care
The Silgranit material is highly durable and easy to maintain. Regular cleaning will preserve its appearance and hygiene.
6.1. Cleaning Silgranit
For daily cleaning, use a soft sponge or cloth with a mild dish soap and warm water. The smooth, non-porous surface and gentle corner radii make cleaning effortless.
- For stubborn stains, a non-abrasive cream cleanser or a diluted solution of white vinegar can be used.
- Always rinse the sink thoroughly with clean water after cleaning and dry it with a soft cloth to prevent water spots.
- Avoid using abrasive pads, steel wool, strong acids, alkalis, or chemical drain cleaners, as these can damage the Silgranit surface.
6.2. Preventing Stains and Damage
- Rinse the sink after each use to remove food residues and liquids.
- Avoid leaving highly pigmented foods (e.g., coffee grounds, tea bags, red wine) in contact with the surface for extended periods.
- Do not place hot pots or pans directly on the sink surface; use a trivet or protective mat.
- Avoid dropping heavy or sharp objects into the sink, which could cause chipping.
7. Troubleshooting
This section addresses common issues you might encounter with your BLANCO NAYA 45 sink.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow drainage | Food debris or grease buildup in the drain. | Clean the basket strainer. Use a mild drain cleaner or a mixture of baking soda and vinegar followed by hot water. |
| Water spots or mineral deposits | Hard water residue. | Wipe the sink dry after each use. For existing spots, use a diluted vinegar solution or a specialized descaler for kitchen surfaces. |
| Discoloration or stubborn stains | Pigmented substances left on the surface. | Use a non-abrasive cream cleanser or a paste of baking soda and water. For very tough stains, BLANCO offers specific cleaning products for Silgranit. |
| Sink appears dull | Accumulation of soap film or grease. | Clean thoroughly with a mild detergent and rinse well. Consider using a Silgranit care product to restore luster. |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | BLANCO |
| Model Number | 526577 |
| Product Dimensions (L x W x H) | 46.5 x 51 x 21.2 cm |
| Weight | 8.04 Kilograms |

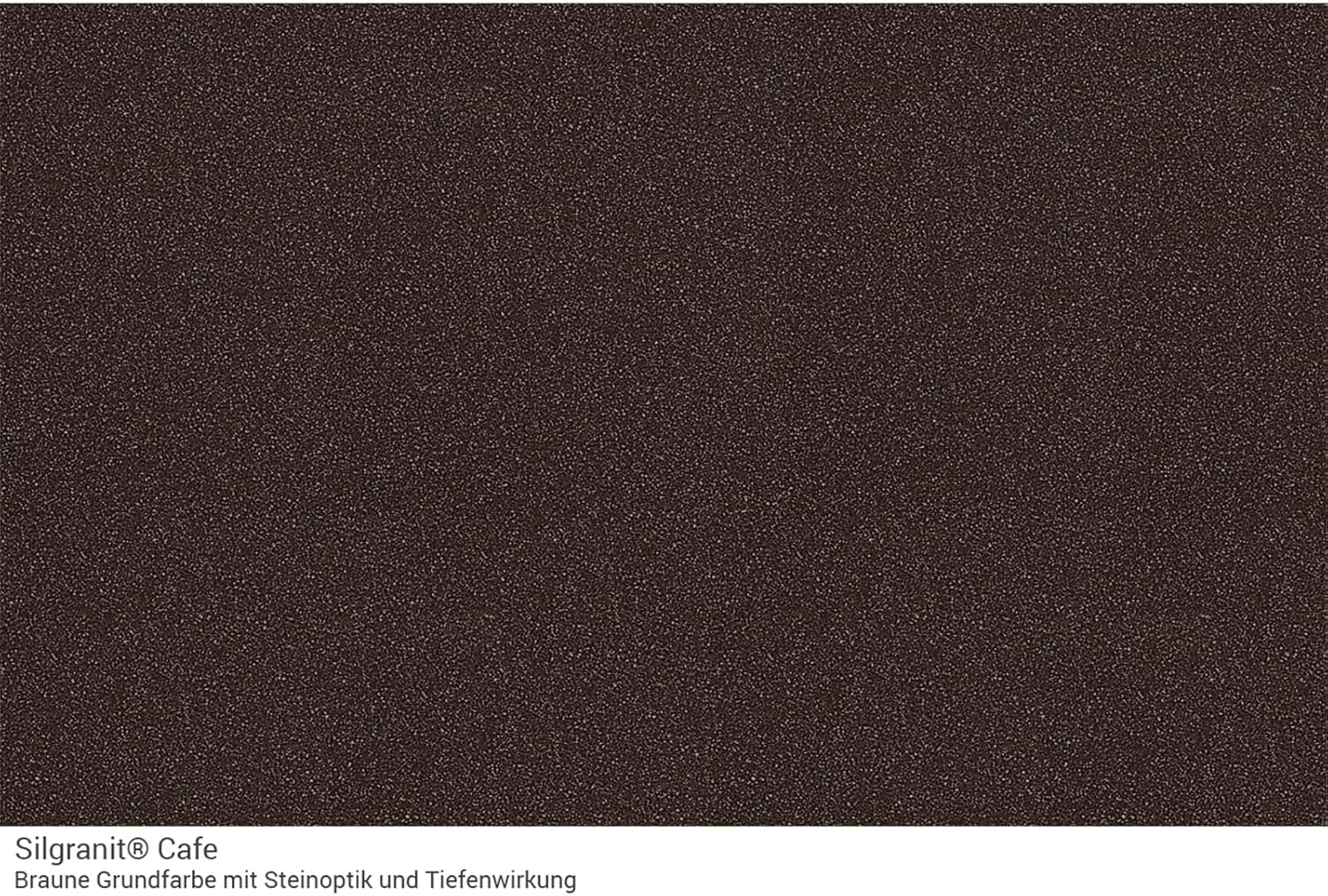

| Material | Granite (Silgranit) |
| Color | Café |
| Installation Type | Top-mount (Comptoir) |
| Minimum Base Cabinet Size | 45 cm |
| Shape | Rectangular |
| Included Components | Drain fitting with space-saving pipe, 3 ½" basket strainer |
| Finish | Powder coating (Thermolaquage) |
| Drain Type | Grid |
9. Warranty and Support
BLANCO products are manufactured to high-quality standards. For specific warranty information regarding your BLANCO NAYA 45 sink, please refer to the warranty card included with your purchase or visit the official BLANCO website. Information on spare parts availability is not provided in this document.
For technical support, product inquiries, or to purchase replacement parts, please contact BLANCO customer service directly or visit their official website for contact details and support resources.
BLANCO Official Website: www.blanco.com
