SEVERIN MW 7761 Analog Microwave Oven User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your SEVERIN MW 7761 Analog Microwave Oven. Please read these instructions carefully before using the appliance and keep them for future reference. This microwave is designed for heating and defrosting food using its intuitive analog controls and innovative glass base.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the door (bent), hinges and latches (broken or loosened), or door seals and sealing surfaces.
• Only qualified service personnel should adjust or repair the oven.
• Do not heat liquids or other foods in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

3. Product Overview

The SEVERIN MW 7761 microwave oven features a sleek design with user-friendly analog controls. Its innovative glass base provides 33% more usable surface area compared to traditional turntables, accommodating larger or square dishes.

Figure 1: Front view of the SEVERIN MW 7761 Microwave Oven.

Components:

• Microwave Unit
• Glass Base (fixed, non-rotating)

Figure 2: Interior of the microwave with its flat glass base.

Control Panel:

The microwave features two rotary dials for easy operation:

• Upper Dial: Power Level Selector (settings for various wattage outputs).
• Lower Dial: Timer/Weight Selector (sets cooking time in minutes or defrosting time/weight).

Figure 3: Analog control panel with power and timer dials.

4. Installation and Setup

Placement:

• Place the microwave on a flat, stable surface that can support its weight.
• Ensure adequate ventilation by leaving at least 10 cm of space at the back, 20 cm at the top, and 5 cm on each side. Do not block any ventilation openings.
• Keep the microwave away from heat sources, strong magnetic fields, and areas with high humidity.

Figure 4: Rear view of the microwave, highlighting ventilation and power connection.

Power Connection:

• Ensure the voltage indicated on the rating label matches your household power supply.
• Plug the power cord into a properly grounded wall outlet.

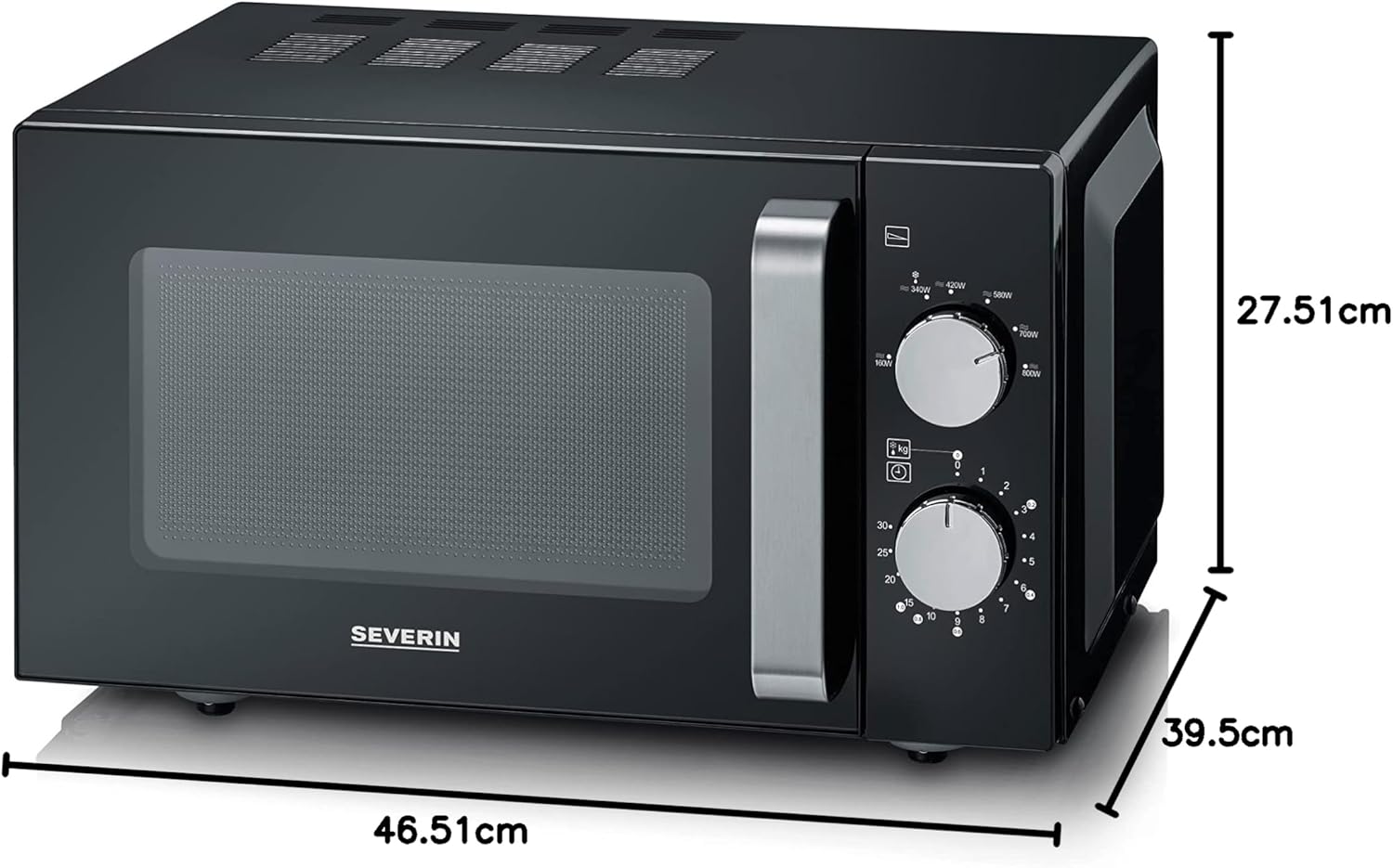

Figure 5: Microwave dimensions for proper placement.

5. Operating Instructions

General Operation:

1. Place the food in a microwave-safe container on the glass base inside the oven.
2. Close the oven door securely.

Setting Power Level:

Use the upper dial to select the desired power level. The MW 7761 offers 6 power settings:

• 150 W (Low)
• 300 W (Medium-Low)
• 500 W (Medium)
• 700 W (Medium-High)
• 800 W (High)
• Defrost (specific defrost settings)

Setting Cooking Time:

Use the lower dial to set the cooking time. Turn the dial clockwise to increase the time. The maximum cooking time is 35 minutes.

Defrosting:

The lower dial also includes settings for defrosting by weight or time. Select the defrost function on the upper dial, then use the lower dial to set the appropriate time or weight for defrosting.

Figure 6: Control panel for setting power and time.

6. Care and Cleaning

Regular cleaning of your microwave oven will ensure its longevity and hygienic operation. The flat glass base makes cleaning particularly easy.

• Interior: Wipe the interior surfaces, including the glass base, with a damp cloth and mild detergent after each use. For stubborn stains, a microwave-safe cleaner can be used. Ensure no water enters the ventilation openings.
• Exterior: Clean the exterior with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
• Door Seals: Keep the door seals and adjacent parts clean to ensure proper door closure.
• Always unplug the microwave before cleaning.

7. Troubleshooting

If you encounter any issues with your microwave, please refer to the following common problems and solutions:

8. Technical Specifications

9. Warranty and Customer Support

Your SEVERIN MW 7761 Microwave Oven comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical assistance, spare parts, or any other inquiries, please contact Severin customer support through their official website or the contact information provided in your product packaging.
