HART 40-Volt Cordless Brushless 20-inch Push Mower Kit User Manual

1. Product Overview

This manual provides essential information for the safe and efficient operation, maintenance, and care of your HART 40-Volt Cordless Brushless 20-inch Push Mower Kit. Designed for yards up to 1/2 acre, this mower offers powerful, consistent performance without the need for gasoline.

Figure 1: HART 40-Volt Cordless Brushless 20-inch Push Mower.

Key Features:

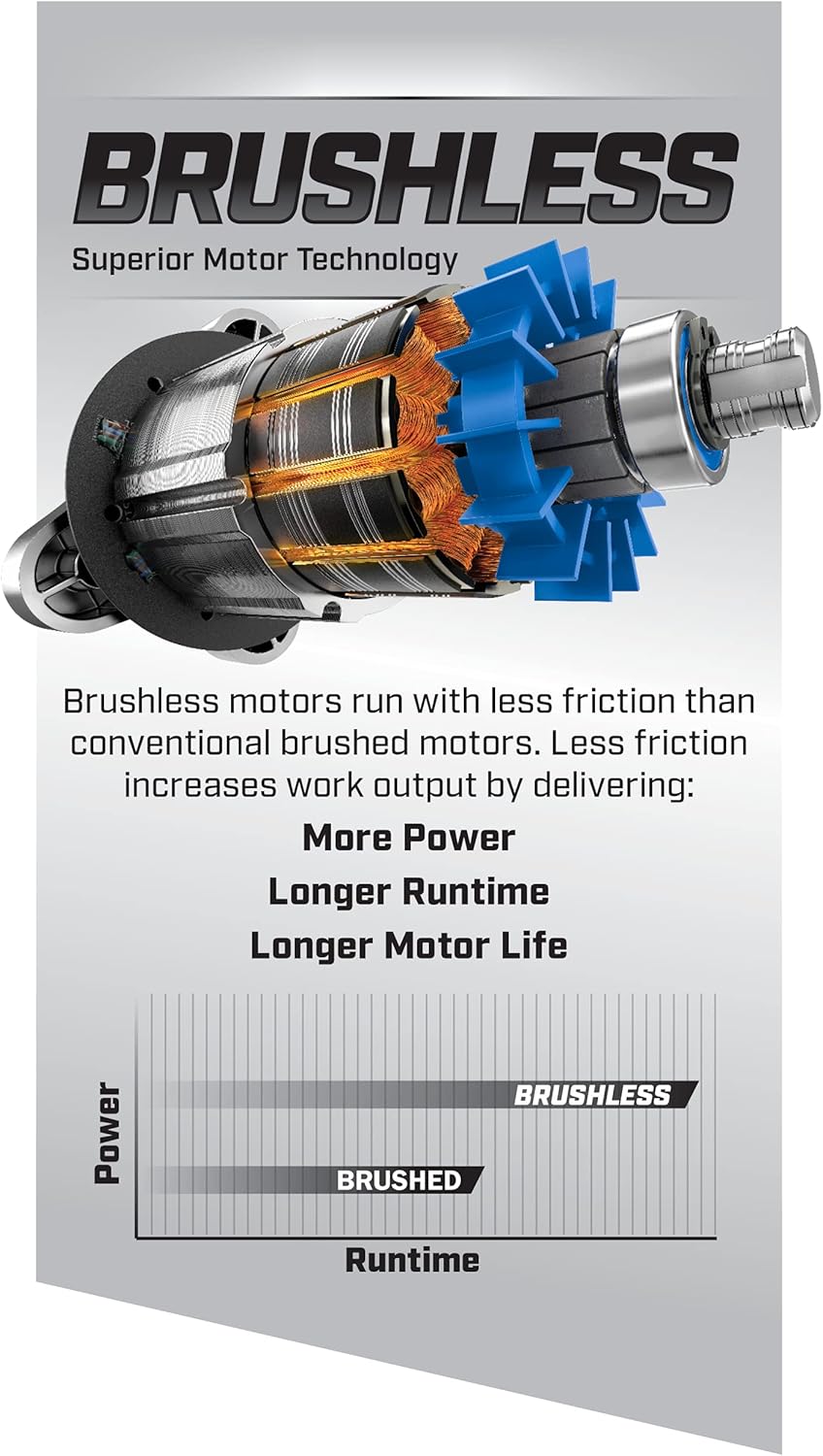

• Brushless Technology: Provides consistent power, extended motor life, and efficient operation.
• Cordless Convenience: Powered by a 40V Lithium-Ion battery, eliminating the need for cords or gasoline.
• 20-inch Cutting Deck: Ideal for medium-sized lawns up to 1/2 acre.
• Single-Point Height Adjustment: Easily adjust cutting height from 1.5 inches to 4 inches with one lever.
• Dual Battery Storage: On-board storage for a second battery (sold separately) to extend runtime.
• Compact Storage: Features telescoping and folding handles for convenient storage.
• 2-in-1 Functionality: Capable of both mulching and bagging grass clippings.

2. Components Included

Your HART 40-Volt Cordless Brushless 20-inch Push Mower Kit includes the following items:

• 20-inch Lawn Mower
• Grass Catcher Bag
• Start Key
• Mulch Plug
• 5.0Ah 40V Lithium-Ion Battery
• Battery Charger
• Operator's Manuals (this document)

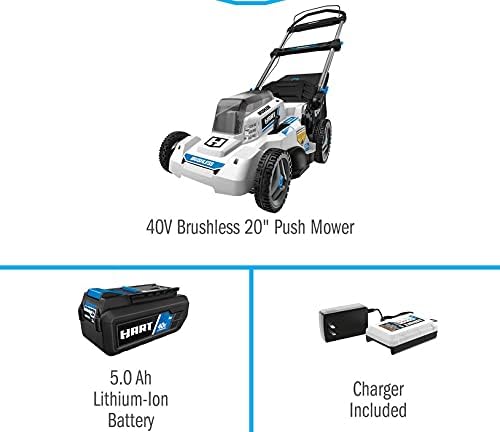

Figure 2: Mower, 5.0Ah Lithium-Ion Battery, and Charger.

Figure 3: The 40V 5.0Ah Lithium-Ion Battery.

Figure 4: The 40V Battery Charger.

3. Setup Guide

3.1 Handle Assembly

1. Carefully remove the mower and all components from the packaging.
2. Unfold the telescoping handles until they lock into place. Ensure all locking mechanisms are securely fastened.

3.2 Battery Charging and Installation

1. Connect the battery charger to a standard electrical outlet.
2. Insert the 5.0Ah 40V Lithium-Ion Battery into the charger. Allow the battery to fully charge before first use. Refer to the charger's indicator lights for charging status.
3. Once charged, open the battery compartment cover on the mower.
4. Insert the charged battery into the active battery slot until it clicks securely into place.
5. If using a second battery for extended runtime, place it in the secondary storage slot.

Figure 5: Battery compartment with two batteries.

3.3 Grass Catcher Bag / Mulch Plug Installation

1. To use the grass catcher bag, lift the rear discharge door and hook the bag onto the mower's frame.
2. To mulch, ensure the mulch plug is securely inserted into the rear discharge opening.

3.4 Adjusting Cutting Height

1. Locate the single-point height adjustment lever on the mower.
2. Pull the lever outwards and move it to the desired cutting height setting (1.5 inches to 4 inches). Ensure the lever locks into position.

4. Operating Instructions

4.1 Starting the Mower

1. Ensure the start key is fully inserted into its slot.
2. Pull the bail handle towards the main handle.
3. Press and hold the power button. The blades will begin to spin.

4.2 Engaging Self-Propelled Feature

1. While holding the bail handle and with the blades spinning, pull up on the self-propel engagement levers located on the handles.
2. Adjust the self-propelled speed using the speed control dial on the handle to match your walking pace and grass conditions.

Figure 6: Self-propelled speed control on the handle.

4.3 Mowing Tips

• For best results, mow dry grass.
• Overlap cutting swaths slightly to ensure an even cut.
• Avoid cutting more than one-third of the grass blade length at a time.
• The 5.0Ah battery can typically cover a 1/2 acre residential lot twice on a single charge, depending on grass conditions and self-propel usage.

5. Maintenance

5.1 Cleaning

• After each use, disconnect the battery and remove the start key.
• Clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance. Use a brush or cloth; avoid direct water spray.
• Wipe down the exterior of the mower with a damp cloth.

Figure 7: Underside of the mower with cutting blade.

5.2 Blade Care

• Regularly inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
• If necessary, have the blade sharpened or replaced by a qualified service technician.

5.3 Battery Care and Storage

• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• For long-term storage, charge the battery to approximately 50% capacity.
• The battery charger typically takes overnight to fully charge a depleted battery.

5.4 Storage

• For compact storage, fold the telescoping handles down.
• Store the mower in a clean, dry area, protected from weather elements.

Figure 8: Mower in compact, folded storage position.

6. Troubleshooting

If you encounter issues with your mower, refer to the following common troubleshooting steps:

If issues persist, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation included with your product or visit the official HART website. For customer support, you may contact the manufacturer directly or refer to the customer support options provided by your retailer.

Online Resources:

• For additional product information and support, visit the product page on Amazon.
