1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech Full Bed Frame (Model: YT-00109375-001). Please read all instructions carefully before beginning assembly and retain this manual for future reference.
1.1 Safety Information
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Tighten all bolts and screws securely. Periodically check and re-tighten fasteners to maintain stability.
- Do not exceed the maximum weight capacity of 800 lb (approximately 363 kg).
- Keep small parts away from children during assembly.
- This bed frame is designed for use with a full-size mattress. No box spring is required.

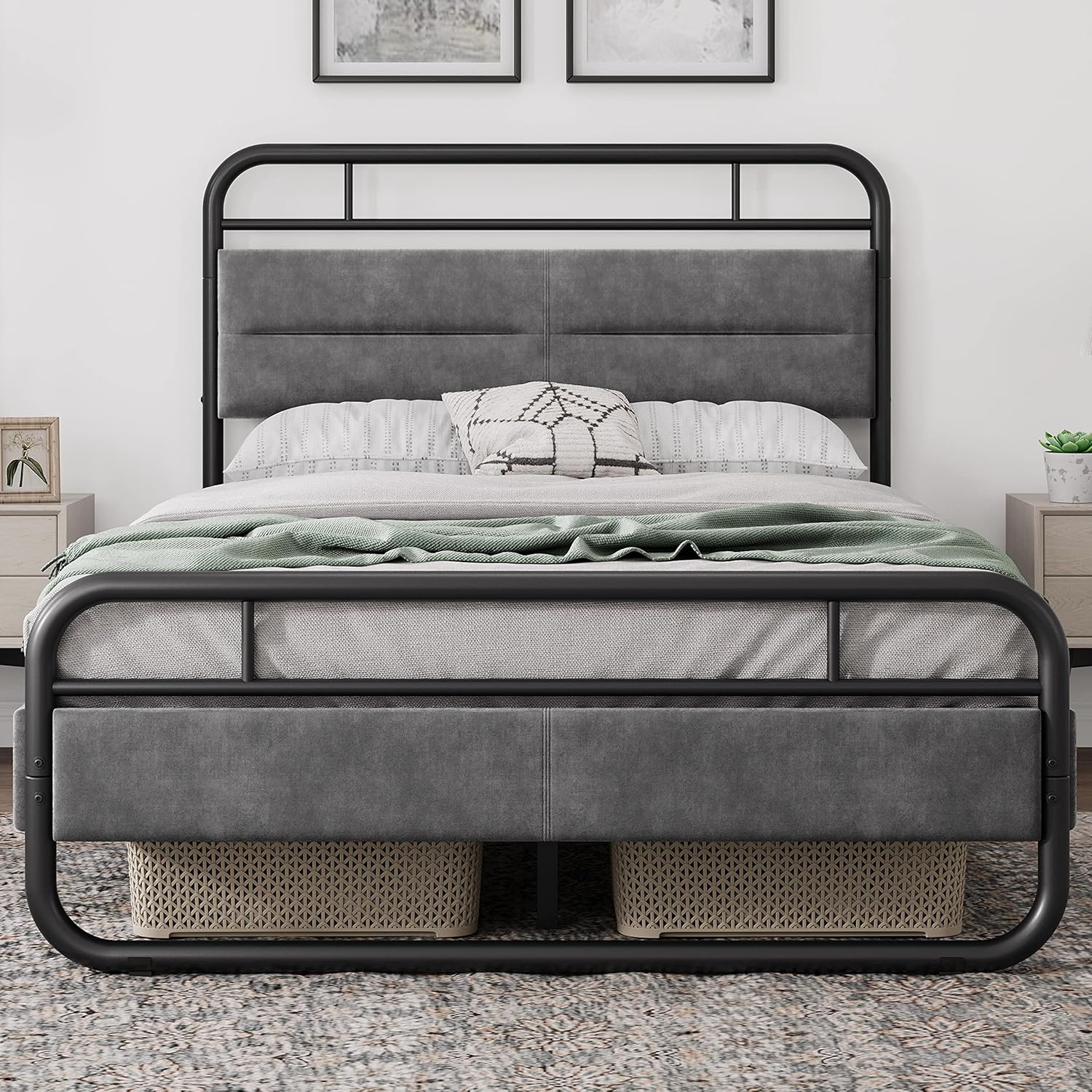

Image 1.1: Yaheetech Full Bed Frame in a bedroom setting. This image shows the assembled bed frame with a mattress, bedding, and two storage baskets underneath, highlighting its dark grey upholstered headboard and metal frame.
2. Package Contents
Verify that all parts listed below are included in your package. If any parts are missing or damaged, please contact customer support.
- Upholstered Headboard (1)
- Upholstered Footboard (1)
- Side Rails (2)
- Center Support Rail (1)
- Metal Slats (12)
- Support Legs (various, including U-shape foot pads)
- Hardware Pack (bolts, washers, nuts, Allen wrench)
- Installation Manual (this document)
Image 2.1: Detailed view of key components including the plush upholstered headboard, durable metal slats, and strong rounded legs with U-shape foot pads.
3. Setup and Assembly
Assembly typically requires two people and an estimated time of 1-2 hours. Follow the steps below carefully.
3.1 Tools Required
- Included Allen Wrench
- (Optional) Phillips Head Screwdriver
3.2 Assembly Steps
- Unpack and Identify Parts: Lay out all components on a soft, clean surface. Refer to the parts list to ensure everything is present.
- Assemble Headboard and Footboard: Attach the upholstered panels to the metal frames of the headboard and footboard using the provided bolts and Allen wrench. Ensure all connections are secure.
- Attach Side Rails: Connect the side rails to the headboard and footboard using the appropriate hardware. Do not fully tighten bolts until all major components are connected.
- Install Center Support Rail: Place the center support rail in position and secure it to the headboard and footboard. Attach any central support legs if included.
- Insert Metal Slats: Lay the metal slats across the side rails. Secure them in place according to the design (some may clip in, others may bolt). Ensure even spacing.
- Final Tightening: Once all components are in place and aligned, fully tighten all bolts and screws.
- Place Mattress: Position your full-size mattress directly onto the metal slats. No box spring is needed.
Image 3.1: An exploded view diagram illustrating the dimensions of the Yaheetech Full Bed Frame, including length, width, height, and under-bed clearance. This image is helpful for understanding the overall structure and component placement during assembly.
4. Operation
4.1 Mattress Placement
This bed frame is designed to be used without a box spring. Place your full-size mattress directly onto the metal slat support system. The embedded design of the frame helps prevent the mattress from sliding.

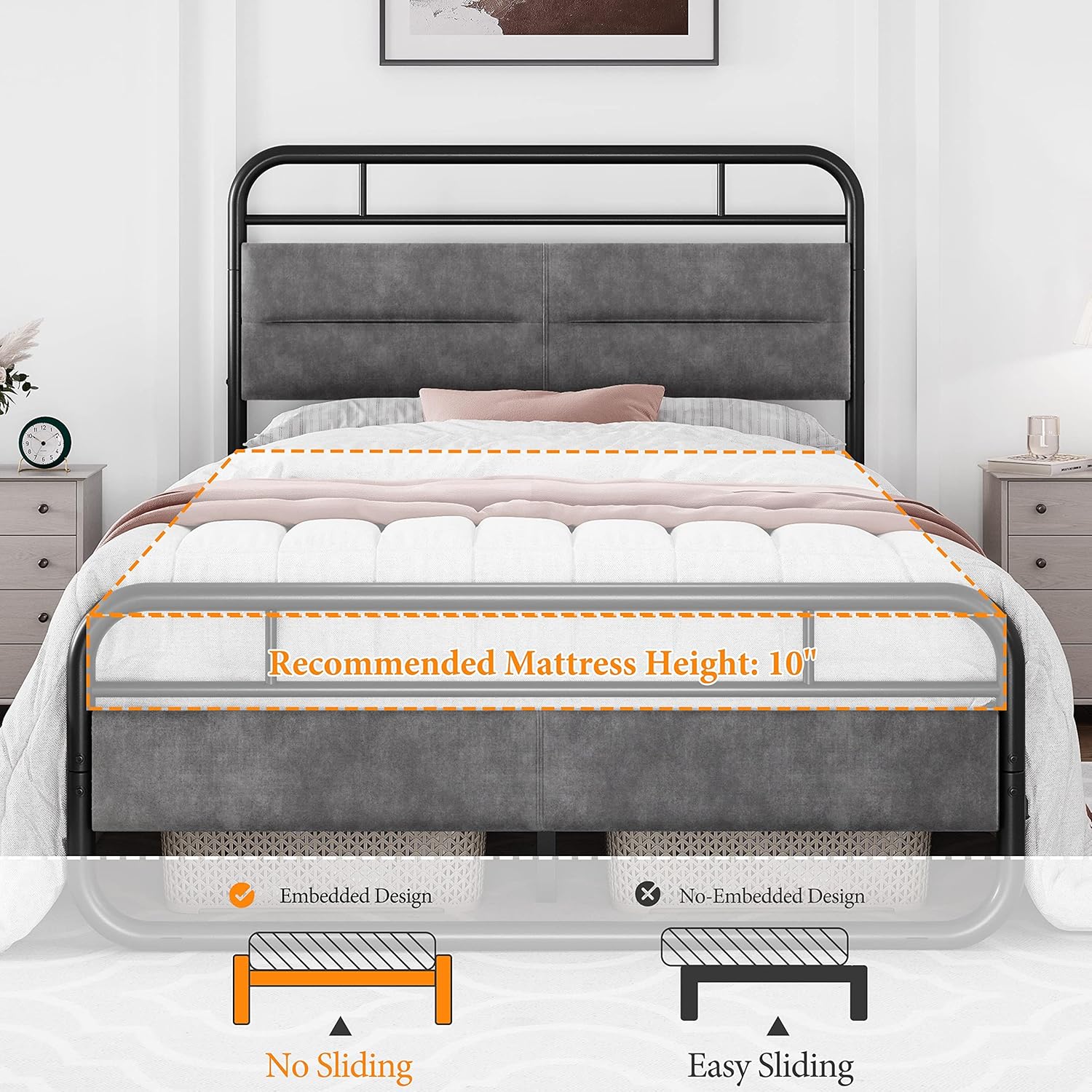

Image 4.1: This graphic illustrates the embedded design of the bed frame, showing how the mattress sits within the frame to prevent sliding, compared to a non-embedded design where the mattress can easily shift.
4.2 Weight Capacity
The Yaheetech Full Bed Frame has a maximum weight capacity of 800 lb (approximately 363 kg), including the mattress and occupants. Do not exceed this limit to ensure safety and product longevity.
4.3 Under-Bed Storage
The frame provides 8.7 inches (22 cm) of ground clearance, offering valuable space for under-bed storage. This clearance also allows for easy cleaning underneath the bed, including access for robotic vacuum cleaners.
Image 4.2: A close-up view of the footboard area, demonstrating the ample 8.7-inch under-bed storage space, with two storage baskets placed beneath the frame.
5. Maintenance
5.1 Cleaning Instructions
- Upholstered Parts: The upholstered headboard and footboard should be dry cleaned only. Do not use liquid cleaners or abrasive materials, as this may damage the fabric.
- Metal Frame: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals.
Image 5.1: A detailed image showcasing the ultra-soft, deluxe velvet fabric and the plump, bouncy foam cushion used in the upholstered sections of the bed frame, emphasizing its texture and comfort features.
5.2 General Care
- Periodically check all bolts and connections to ensure they remain tight. Re-tighten as necessary to maintain the bed frame's stability and prevent squeaking.
- Avoid dragging the bed frame when moving it. Lift it to prevent damage to the frame and your flooring.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or incorrect assembly. | Ensure all bolts are fully tightened. Review assembly steps to confirm correct installation of all parts. |
| Squeaking noises. | Loose connections or friction between metal parts. | Re-tighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to connection points if necessary. |
| Mattress slides on the frame. | Mattress not properly seated or frame not fully assembled. | Ensure the mattress is centered and fully within the embedded frame design. Verify all frame components are correctly installed. |
| Missing parts or damaged components. | Manufacturing defect or shipping damage. | Do not proceed with assembly. Contact Yaheetech customer support immediately for replacement parts. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Yaheetech |
| Model Number | YT-00109375-001 |
| Size | Full |
| Product Dimensions (L x W x H) | 78" x 55" x 44.5" (198 cm x 140 cm x 113 cm) |
| Compatible Mattress Size | Full (75" L x 54" W) |
| Color | Dark Gray |
| Material | Metal frame, Upholstered headboard/footboard (Velvet fabric, Foam filling) |
| Finish Type | Powder Coated (metal) |
| Weight Capacity | 800 lb (363 kg) |
| Under-Bed Clearance | 8.7 inches (22 cm) |
| Box Spring Required | No |
| Assembly Required | Yes |
| Item Weight | 64.8 pounds (29.4 kg) |
Image 7.1: A visual representation of the bed frame's dimensions, including overall length (78"), width (55"), and headboard height (44.5"), along with under-bed clearance (8.7").
8. Warranty and Customer Support
For any questions, missing parts, or concerns regarding your Yaheetech Full Bed Frame, please contact Yaheetech customer support. Refer to your purchase documentation for specific warranty details, as warranty terms may vary.
Contact Information: Please refer to the contact details provided with your purchase or visit the official Yaheetech website for support.
