PowerSmart PS4005
PowerSmart 5.8 Amp 4-1/2 Inch Mini Circular Saw User Manual
Model: PS4005 | Brand: PowerSmart
1. Product Overview
The PowerSmart 5.8 Amp 4-1/2 Inch Mini Circular Saw is a versatile and compact power tool designed for efficient cutting of various materials including wood, tile, soft metal, and plastic. Its lightweight design and powerful motor make it suitable for a range of household and DIY projects.
Figure 1: PowerSmart Mini Circular Saw with accessories.
Key Features:
- Powerful Motor: Equipped with a 5.8 Amp motor, delivering 3500 RPM for efficient cutting.
- Adjustable Cutting Performance: Features angle adjustment for bevel cuts up to 45° and cutting depth up to 1-11/16" (42.8mm) at 90°, and 1-1/8" (28mm) at 45°.
- Multi-Material Capability: Includes 4 blades for cutting wood, tile, soft metal, and plastic.
- Portable & Convenient: Weighs approximately 6.0 lbs, featuring a laser guide, scale ruler, and dust port for precise and clean operation.
2. Package Contents
Verify that all items listed below are included in your package:
- 1x PowerSmart Mini Circular Saw
- 2x 4-1/2" 24T Carbide-tipped blade (for wood)
- 1x 4-1/2" Diamond Blade (for tile)
- 1x 4-1/2" 60T Soft-metal blade
- 1x Hex Wrench
- 1x Scale Ruler
- 1x Dust Exhaust Pipe
- 1x User Manual (this document)
- 1x Storage Bag
3. Setup and Assembly
3.1 Identifying Components
Figure 2: Key components of the Mini Circular Saw.
3.2 Blade Installation
To install or replace a blade, ensure the saw is unplugged from the power source. Use the provided hex wrench to loosen the blade retaining screw while pressing the spindle lock button. Carefully remove the old blade (if any) and install the new blade, ensuring the teeth are oriented correctly for cutting. Securely tighten the retaining screw.

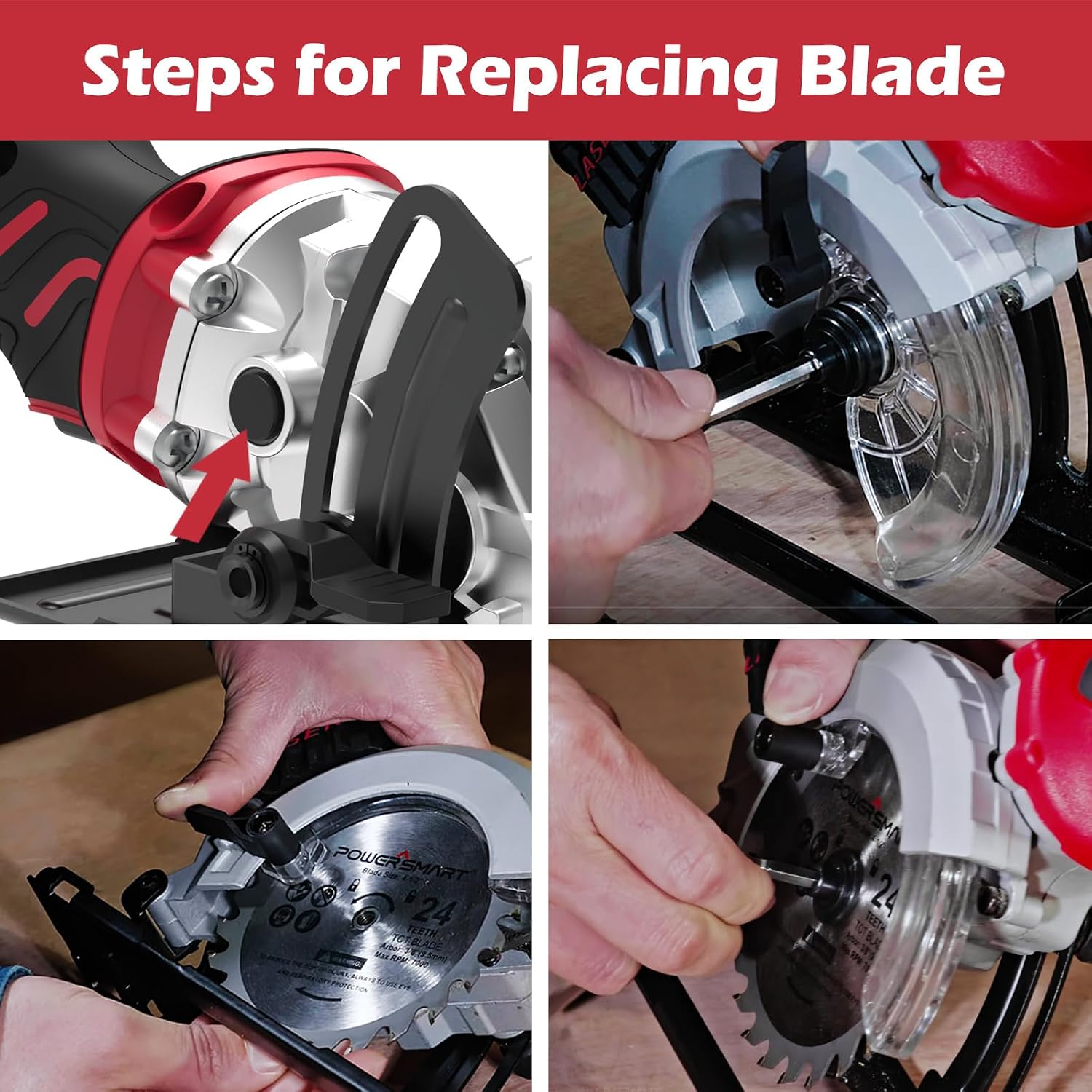

Figure 3: Steps for replacing the saw blade.
3.3 Attaching Dust Exhaust Pipe
For a cleaner working environment, attach the dust exhaust pipe to the dust port on the saw. This can be connected to a vacuum system to minimize sawdust and debris.
4. Operating Instructions
4.1 Adjusting Cutting Depth and Angle
The saw allows for precise adjustments to cutting depth and angle. Use the depth clamp button to set the desired cutting depth. For bevel cuts, adjust the angle lock button to set the base plate up to 45 degrees.
Figure 4: Adjusting cutting depth and bevel angle.
4.2 Using the Laser Guide and Scale Ruler
The integrated laser guide provides a visual line for accurate and straight cuts. Activate the laser before cutting. The 5-inch scale ruler helps in measuring and guiding your cuts precisely.
Figure 5: Laser guide and scale ruler for precision.
4.3 Cutting Different Materials
Select the appropriate blade for the material you are cutting. The saw is designed for effective cutting of:
- Wood (using 24T Carbide-tipped blade)
- Tile (using Diamond Blade)
- Soft Metal (using 60T Soft-metal blade)
- Plastic
- Composite Decking
- Laminates
Figure 6: Saw in action cutting various materials.
Figure 7: Multi-purpose cutting capabilities.
4.4 Safety Features
The saw is equipped with a safety button and an adjustable blade guard to ensure safe operation. Always engage the safety features before and after use, and wear appropriate personal protective equipment (PPE).
Video 1: Demonstration of the PowerSmart Mini Circular Saw in use, highlighting its compact size and ease of handling for various cutting tasks.
Video 2: Overview of the 5.8 Amp 4-1/2 Inch Mini Circular Saw, showcasing its features and capabilities for different applications.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your PowerSmart Mini Circular Saw.
- Cleaning: After each use, disconnect the saw from power and clean off sawdust and debris from the blade, guard, and motor vents. Use a soft brush or compressed air.
- Blade Inspection: Regularly inspect blades for sharpness and damage. Replace dull or damaged blades promptly to ensure efficient and safe cutting.
- Cord Inspection: Check the power cord for any signs of damage, cuts, or fraying. Do not use the saw if the cord is damaged.
- Storage: Store the saw in its provided storage bag in a dry, secure location, away from moisture and extreme temperatures.
6. Troubleshooting
If you encounter issues with your PowerSmart Mini Circular Saw, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Saw does not start | No power supply; Safety switch not engaged; Damaged cord. | Ensure saw is plugged in; Fully engage safety switch and trigger; Inspect and replace damaged cord. |
| Blade not cutting efficiently | Dull or incorrect blade; Improper cutting depth/angle. | Replace blade or use correct blade for material; Adjust cutting depth and angle as needed. |
| Excessive dust during operation | Dust exhaust pipe not attached or clogged. | Attach dust exhaust pipe; Clear any blockages in the pipe. |
For issues not covered here, please contact PowerSmart customer support.
7. Specifications
| Specification | Value |
|---|---|
| Brand | PowerSmart |
| Model Number | PS4005 |
| Power Source | Corded Electric |
| Current Rating | 5.8 Amps |
| Voltage | 122 Volts (AC) |
| Speed | 3500 RPM |
| Blade Length | 4.5 Inches |
| Cutting Angle | 45 Degrees (max) |
| Cutting Depth (90°) | 1-11/16" (42.8mm) |
| Cutting Depth (45°) | 1-1/8" (28mm) |
| Item Weight | 5.9 Pounds |
| Product Dimensions | 16.9"L x 4.7"W x 5.5"H |
| Blade Material | High Speed Steel |
| Handle Material | Plastic |
| Manufacturer | Amerisun Inc. |
8. Warranty and Support
The PowerSmart Mini Circular Saw comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
For detailed warranty information, technical support, or to order replacement parts, please refer to the official user manual PDF or visit the PowerSmart website.
Official User Manual (PDF): Download Here
PowerSmart Store: Visit PowerSmart on Amazon
