Bushnell Golf iON Edge GPS Watch User Manual

1. Introduction

The Bushnell Golf iON Edge GPS Watch is designed to provide accurate golf course distances and features to enhance your game. This manual will guide you through the setup, operation, and maintenance of your device, ensuring you get the most out of its capabilities.

2. Package Contents

Please verify that all items are present in your package:

• Bushnell iON Edge Golf GPS Device
• Magnetic USB Charging Cable
• Quick Start Guide

3. Product Overview

Familiarize yourself with the physical components of your Bushnell iON Edge GPS Watch.

Figure 3.1: Front view of the Bushnell iON Edge GPS watch, showing the display with golf distances (183, 167, 151 yards) and hole information (Hole 4, Par 4).

Figure 3.2: Full front view of the watch, illustrating the gray silicone strap and the watch face.

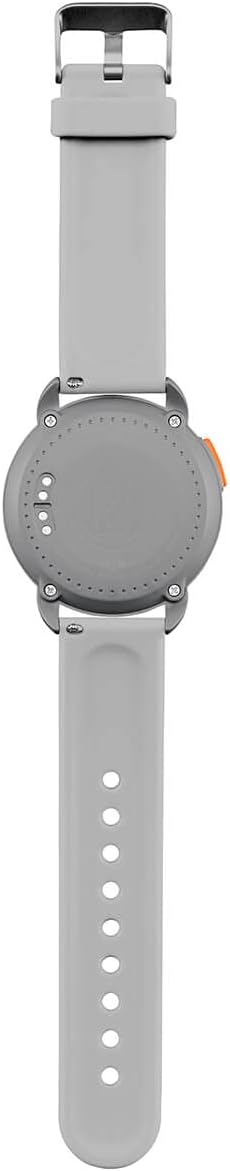

Figure 3.3: Full back view of the watch, highlighting the charging contacts and the strap attachment points.

Figure 3.4: Side view of the watch, showing the prominent orange power/function button.

Figure 3.5: Opposite side view of the watch, featuring the 'Bushnell' branding engraved on the casing.

Figure 3.6: Close-up of the watch's rear, displaying the model number (362131), serial number, and various regulatory marks.

4. Setup

4.1 Charging the Device

Before first use, fully charge your iON Edge watch using the included magnetic USB charging cable. Connect the cable to the charging contacts on the back of the watch and to a USB power source (e.g., computer USB port, wall adapter). A full charge provides over 15 hours of battery life.

4.2 Power On/Off

• To Power On: Press and hold the power button (the orange button on the side) until the screen illuminates.
• To Power Off: Press and hold the power button until the power-off option appears on the screen, then confirm your selection.

4.3 Initial Setup

Upon first power-on, the watch may prompt you to set language, time, and unit preferences (yards/meters). Follow the on-screen instructions. Ensure the watch has a clear, unobstructed view of the sky to acquire a GPS signal for accurate course data.

5. Operating Instructions

5.1 Golf Mode

From the main screen, select 'Play Golf'. The watch will automatically search for nearby golf courses. Select your desired course from the list. The watch will then display front, center, and back distances to the green.

5.2 GreenView with Movable Pin Placement

Access the GreenView feature to see the shape of the green. Use the touchscreen to drag and drop the pin to its current location for more precise distances to the hole.

5.3 Front/Center/Back Distances

These distances are continuously updated as you move around the course. The large numbers on the display indicate the distance to the center of the green, with smaller numbers typically showing distances to the front and back of the green.

5.4 Hazards

The iON Edge displays distances to up to 6 hazards per hole. Tap the screen or navigate through the display to view distances to various hazards such as bunkers and water features.

5.5 Dynamic Green Mapping

This feature automatically adjusts the green shape and distances based on your angle of approach, providing more accurate information from any position on the course.

5.6 Settings

Access the settings menu to customize preferences such as units of measure (yards/meters), time format, display brightness, and other device configurations.

6. Maintenance

6.1 Cleaning

Wipe the watch and strap with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the device. Ensure charging contacts are clean and dry before charging.

6.2 Storage

Store the watch in a cool, dry place when not in use. Avoid exposing the device to extreme temperatures, direct sunlight for prolonged periods, or high humidity.

6.3 Battery Care

To prolong the overall lifespan of the battery, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use for extended periods, to maintain battery health.

7. Troubleshooting

• No GPS Signal: Ensure you are outdoors with a clear view of the sky. Wait a few minutes for the watch to acquire satellites. If issues persist, try restarting the device.
• Incorrect Distances: Verify that the correct course and hole are selected. Use the GreenView feature to confirm pin placement. Ensure the watch has a strong GPS signal.
• Battery Not Charging: Check that the magnetic charging cable is securely connected to both the watch and a functional USB power source. Ensure the charging contacts on the watch are clean and free of debris.
• Touchscreen Unresponsive: Try restarting the device. If the issue continues, ensure the screen is clean and dry.

8. Specifications

9. Warranty and Support

For detailed warranty information, product registration, or technical assistance, please visit the official Bushnell Golf website or contact Bushnell customer support directly. Please retain your proof of purchase for any warranty claims.
