Indesit BWE 71283X WS EE N Washing Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Indesit BWE 71283X WS EE N washing machine. Please read these instructions carefully before using the appliance and retain them for future reference. This appliance is designed for domestic use only.

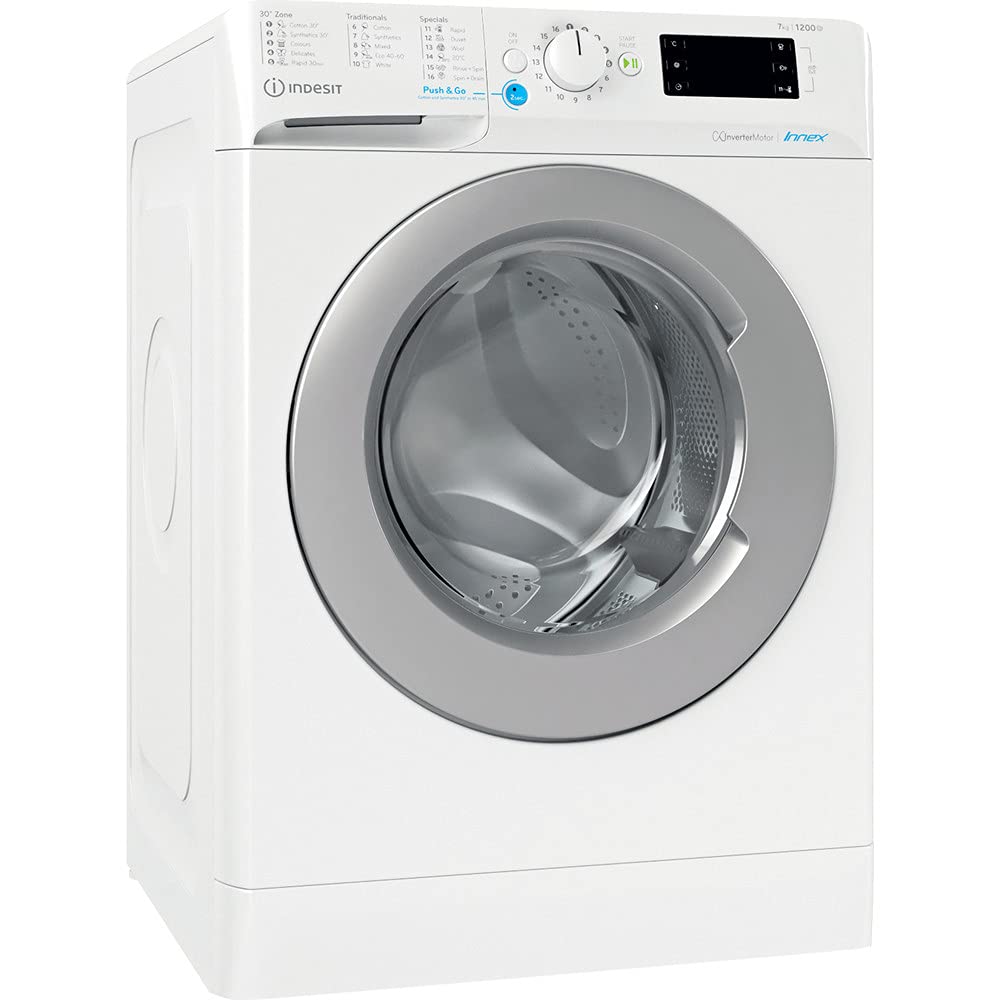

Image 1.1: Front view of the Indesit BWE 71283X WS EE N washing machine. This image shows the control panel at the top, the detergent dispenser on the left, and the main door with a clear window to the drum.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Ensure the appliance is properly grounded.
• Do not allow children to play with or operate the appliance.
• Do not touch the appliance with wet hands or bare feet.
• Unplug the appliance before performing any cleaning or maintenance.
• Do not use flammable liquids near the appliance.
• Ensure all transit bolts are removed before first use.

3. Setup and Installation

3.1 Unpacking and Transit Bolts

Before using the washing machine, remove all packaging materials and the transit bolts located at the rear of the appliance. These bolts secure the drum during transport and must be removed to prevent damage during operation. Keep the transit bolts for future transport of the machine.

3.2 Positioning and Leveling

Place the washing machine on a flat, stable floor. Adjust the adjustable feet to ensure the appliance is perfectly level. Proper leveling reduces vibration and noise during operation.

3.3 Water Connection

Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the hose is securely fastened to prevent leaks. The drain hose should be hooked into a standpipe or connected to a suitable drain, ensuring it is not kinked or obstructed.

3.4 Electrical Connection

Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency match the specifications of the appliance (220 Volts). Do not use extension cords or adapters.

3.5 First Use

Before washing laundry, run an empty wash cycle at 60°C with a small amount of detergent to clean the drum and remove any manufacturing residues.

4. Operating Instructions

4.1 Control Panel Overview

The control panel features a program selector dial, function buttons, and a display. The dial is used to select the desired wash program, while buttons allow for additional options such as temperature, spin speed, and delay start.

4.2 Loading Laundry

Open the washing machine door and load laundry into the drum. Do not overload the machine; refer to the program chart for maximum load capacities. Close the door firmly.

Image 4.1: Side view of the Indesit BWE 71283X WS EE N washing machine with the door open, showing the drum interior. This view is useful for understanding how to load laundry.

4.3 Adding Detergent

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to the designated compartments. Refer to the detergent packaging for dosage recommendations.

4.4 Program Selection

Turn the program selector dial to choose the desired wash program. The available programs include:

• 30° Zone: Programs designed for specific fabric types at 30°C.
• Traditionals: Standard programs for cottons, synthetics, etc.
Specials: Programs for delicate items or specific needs.
• Push & Go: A quick, convenient program for mixed daily loads.

Once a program is selected, the display will show the default temperature and spin speed, which can be adjusted using the corresponding buttons.

4.5 Starting a Cycle

Press the 'Start/Pause' button to begin the wash cycle. The indicator light will illuminate, and the machine will start filling with water.

5. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.

5.1 Cleaning the Detergent Dispenser

Remove the dispenser drawer and rinse it under running water to remove any detergent residue. Clean the housing of the dispenser with a brush if necessary.

5.2 Cleaning the Drain Pump Filter

Periodically clean the drain pump filter, usually located at the bottom front of the machine. Place a shallow container underneath to catch any residual water. Unscrew the filter, remove any lint or foreign objects, and then screw it back in securely.

5.3 Cleaning the Door Seal

Wipe the rubber door seal after each wash to prevent mold and mildew buildup. Ensure no small items are trapped in the seal.

5.4 Cleaning the Exterior

Wipe the exterior surfaces of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6. Troubleshooting

Before contacting customer service, refer to the following common issues and their solutions:

• Machine does not start: Ensure the power cord is plugged in, the door is closed properly, and the 'Start/Pause' button has been pressed. Check if the water tap is open.
• Water not filling: Check if the water tap is open and the water inlet hose is not kinked. Ensure the water supply is not interrupted.
• Water not draining: Check the drain hose for kinks or blockages. Clean the drain pump filter.
• Excessive vibration/noise: Ensure the machine is level and all transit bolts have been removed. Check that the load is balanced inside the drum.
• Poor washing results: Ensure the correct amount of detergent is used for the load size and water hardness. Do not overload the machine. Select an appropriate wash program for the fabric type.

7. Technical Specifications

8. Customer Support

For further assistance, technical support, or warranty information, please refer to the warranty card included with your appliance or visit the official Indesit website. When contacting support, please have your model number (BWE 71283X WS EE N) and serial number ready.
