1. Introduction
This manual provides essential information for the safe and effective assembly, operation, and maintenance of your ADVANCE OUTDOOR 8x14 ft Steel Metal Peak Roof Portable Garage Shelter. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and longevity of your product.
Figure 1: ADVANCE OUTDOOR 8x14 ft Portable Garage Shelter
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Always ensure the shelter is properly anchored to the ground to prevent it from tipping over in strong winds. Use the provided L-Type pegs and consider additional heavy-duty anchors in high-wind areas.
- Avoid placing the shelter near heat sources or under direct sunlight for extended periods to minimize the risk of fire.
- Always follow the manufacturer's instructions for safe setup, use, and dismantling.
- Do not use the shelter as a permanent structure. It is designed for portable and temporary storage.
- Clear snow accumulation from the roof promptly to prevent structural damage.
3. Package Contents
Verify that all components are present before beginning assembly. The shelter is shipped in two separate boxes, which may arrive at different times.
Figure 2: Package Contents and Specifications Overview
- 1 x Heavy Duty Steel Frame (Poles and Connectors)
- 1 x Roof & Sidewall Cover
- 2 x Zipper Doors with Vents
- 8 x 300mm L-Type Pegs
- 2 Pairs of Gloves
- 1 x Instruction Manual
Note: This storage shelter is packed in two boxes. If you only receive one box, please wait for the other one patiently.
4. Specifications
| Feature | Detail |
|---|---|
| Dimensions | 8 ft (W) x 14 ft (L) x 7.6 ft (Peak Height) x 6 ft (Sidewall Height) |
| Number of Legs | 6 |
| Door Type | Removable Double Zippered Front & Back |
| Cover Material | Triple Layer 240g Polyethylene (PE), Anti-UV, Waterproof, Tear-proof |
| Pole Material | 1.5 inch (38mm) Updated Rust-free Galvanized Steel |
| Connector Material | 1.65 inch (42mm) Updated Rust-free Galvanized Steel |
| Item Weight | 97 Pounds |
| UV Protection | 98% |
5. Setup and Assembly
The ADVANCE OUTDOOR portable garage shelter features a tool-free frame design for quick and easy assembly. It is recommended to have at least two people for assembly.
5.1 Frame Assembly
- Unpack all components and lay them out. Identify all poles and connectors according to the parts list in the instruction manual.
- Begin by assembling the base frame. Connect the horizontal and vertical poles using the provided connectors. The steel pipes are designed to easily connect to each other.
- Assemble the roof structure, ensuring all connections are secure. The frame is designed with reinforcement structures for stability.
- Attach the roof structure to the sidewall frames. Ensure all screws (no tools required) are tightened by hand for a stable roof.
Figure 3: All Metal Frame Structure

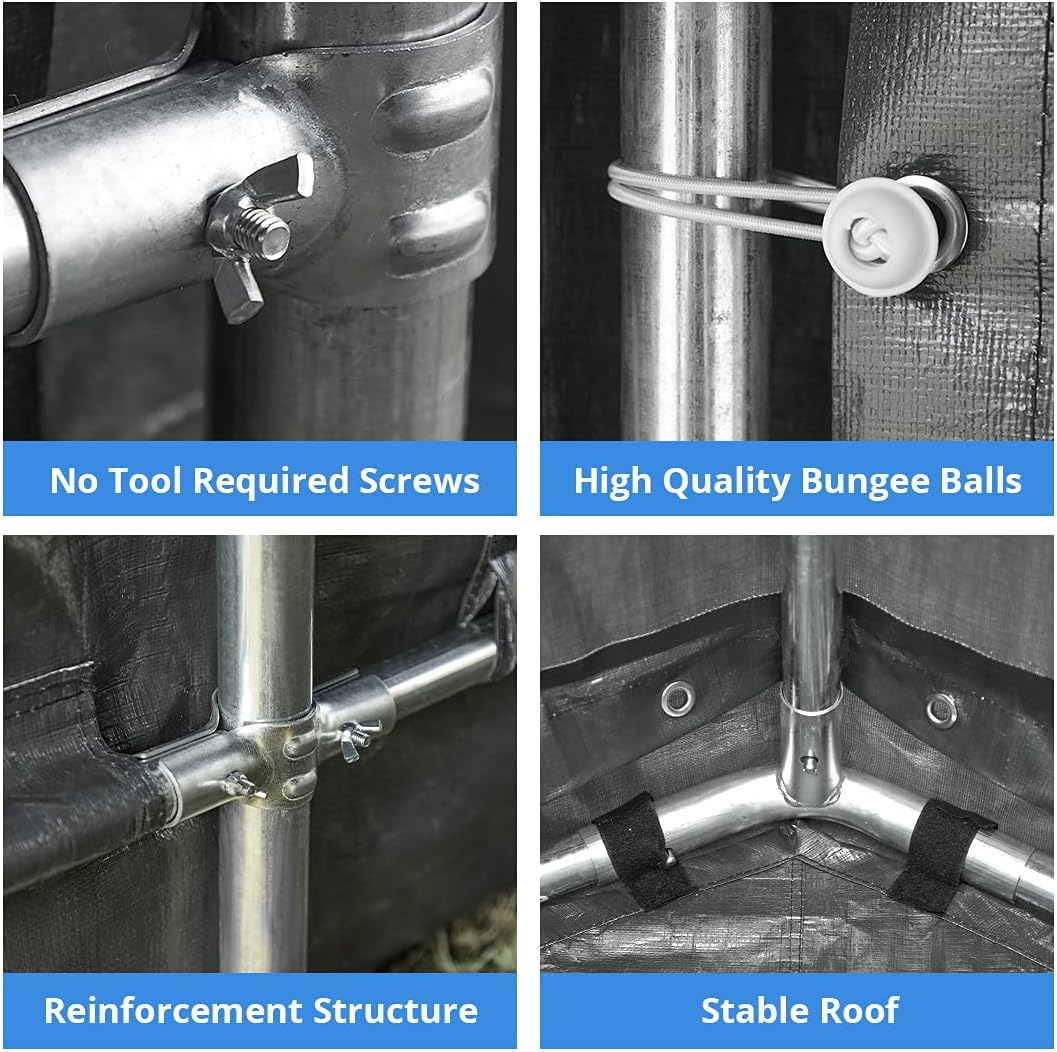

Figure 4: Detailed Frame Connections
5.2 Cover Installation
- Carefully drape the one-piece cover over the assembled frame, ensuring it is centered and aligned.
- Secure the cover to the frame using the provided high-quality bungee balls. Ensure the cover is taut to prevent water pooling and wind damage.
- Install the two removable zipper doors at the front and back openings. These doors feature double zippers and buckles for secure closure.
- Anchor the shelter to the ground using the upgraded 0.32x11.81 inch (8x300mm) L-Type pegs. Ensure all anchor points are firmly secured.
6. Operation and Usage
Your ADVANCE OUTDOOR shelter is versatile and can be adapted for various uses and weather conditions.
6.1 Door Operation
- The doors can be fully closed using the double zippers for complete enclosure.
- For easy entry/exit or increased airflow, the doors can be rolled up and secured with the integrated buckles.
- The doors are fully removable if desired, allowing for an open-ended shelter configuration.
Figure 5: Removable Zipper Door Features
Figure 6: Multi-Usage Configurations
6.2 Ventilation
Each door is equipped with a double-layer vent. These vents facilitate air circulation, help prevent moisture buildup, and reduce condensation caused by temperature differences.
Figure 7: Unique Vents Design
6.3 Versatile Applications
This portable storage shelter is suitable for a variety of uses, including:
- Motorcycle storage
- ATV storage
- Bike storage
- Small vehicle garage
- Storage for lawnmowers, firewood, or other gardening tools

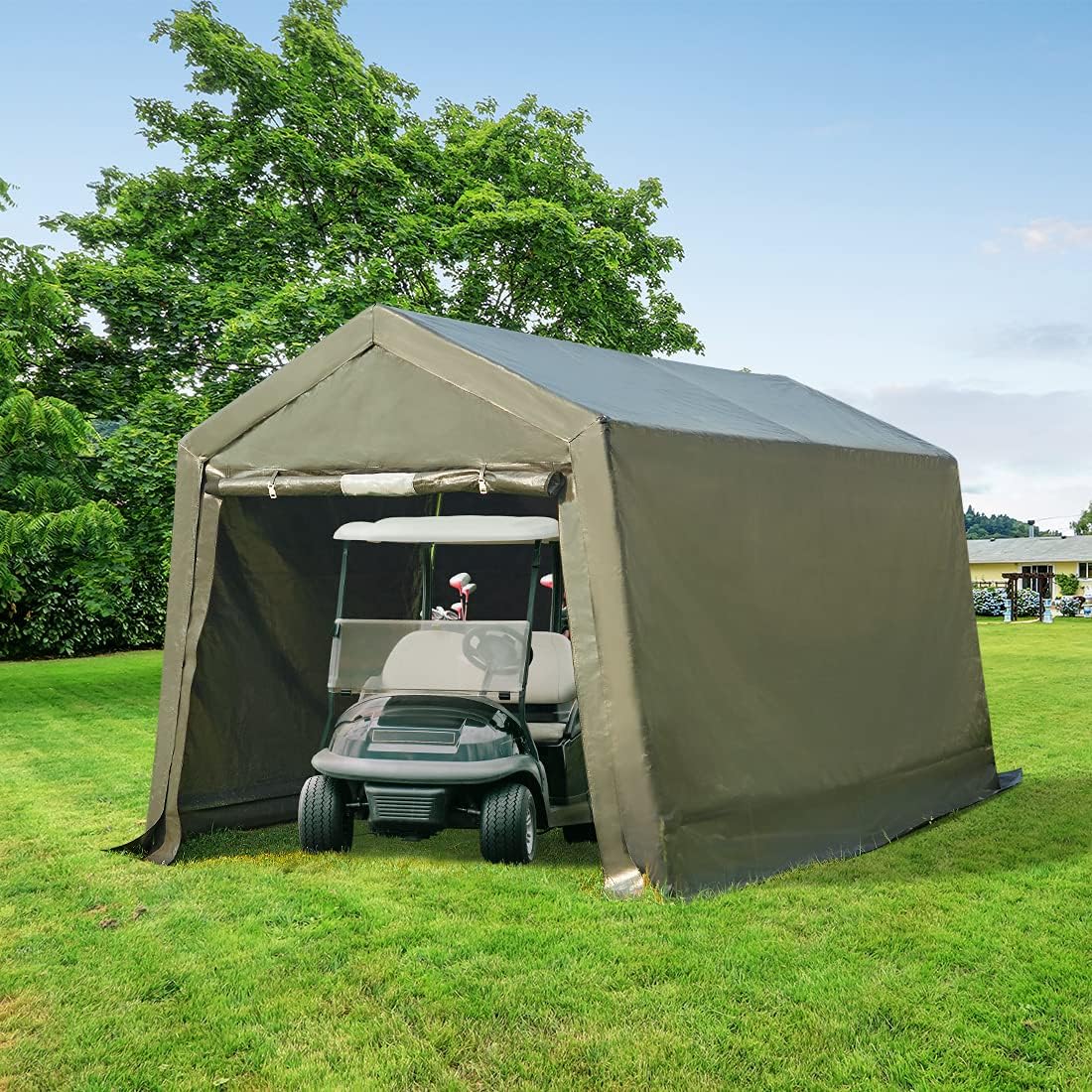

Figure 8: Shelter used for golf cart storage
Figure 9: Shelter used for firewood storage
7. Maintenance
Regular maintenance will extend the life of your portable garage shelter.
- Cover Care: The triple-layer 240g PE cover is UV-treated, waterproof, and tear-proof. Clean the cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners.
- Frame Inspection: Periodically check all frame connections and bungee balls to ensure they are secure and in good condition. Tighten any loose connections.
- Anchoring: Regularly inspect the ground pegs and anchoring system, especially after strong winds or heavy precipitation, to ensure the shelter remains firmly secured.
- Snow Removal: In snowy conditions, promptly remove snow accumulation from the roof to prevent excessive weight and potential damage to the frame and cover.
- Ventilation: Ensure vents are clear of debris to maintain proper airflow and prevent condensation.
Figure 10: Triple-Layer PE Cover Protection
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelter unstable or swaying in wind | Insufficient anchoring; loose frame connections | Ensure all L-Type pegs are fully inserted and secure. Consider additional heavy-duty anchors. Check and tighten all frame connections. |
| Water pooling on roof | Cover not taut; improper assembly | Re-adjust the cover to ensure it is stretched tightly over the frame. Verify all bungee balls are properly secured. Check frame for correct assembly. |
| Condensation inside shelter | Lack of ventilation; temperature difference | Ensure the double-layer vents on the doors are open to allow for air circulation. If possible, slightly roll up a door for increased airflow. |
| Difficulty with zipper operation | Dirt/debris in zipper; misalignment | Clean the zipper teeth. Ensure the cover is not overly stretched or misaligned, causing tension on the zipper. |
9. Warranty and Support
ADVANCE OUTDOOR stands behind the quality of its products.
9.1 Coverage
We provide a one-year coverage for the poles and canopy covers from the date of purchase. For other accessories, such as connectors, foot pads, pegs, anchors, or elastic bungees, we always provide replacements.
9.2 Customer Support
If you encounter any issues with your product, require replacement parts, or have questions not covered in this manual, please contact ADVANCE OUTDOOR customer service. Please have your model number (03GY-01) and purchase information ready when contacting support.
For further assistance, please visit the ADVANCE OUTDOOR Store on Amazon or refer to your purchase documentation for specific contact details.
Thank you for choosing ADVANCE OUTDOOR.
