1. Introduction
Thank you for choosing the FLGAN 19V Laptop Charger. This manual provides essential information for the safe and efficient use of your new power adapter. Please read these instructions carefully before use and retain them for future reference.
2. Safety Information
- Ensure the charger is used with compatible devices only. Refer to the 'Compatibility' section.
- Do not expose the charger to water, moisture, or extreme temperatures.
- Avoid dropping or subjecting the charger to strong impacts.
- Do not attempt to disassemble or repair the charger. Contact qualified personnel for service.
- Unplug the charger from the power outlet when not in use for extended periods.
- Keep out of reach of children.
- This charger features short circuit protection. However, discontinue use if any damage is observed.
3. Package Contents
Verify that all items are present in your package:
- 1 x AC Power Adapter
- 1 x US Power Cable
Image 3.1: Overview of the FLGAN 19V Laptop Charger components, including the AC adapter, detachable power cable, and the DC output cable with its connector.
4. Setup Instructions
- Verify Compatibility: Before connecting, ensure your laptop requires a 19V input and has a compatible DC input jack. The FLGAN charger features a 3.5mm * 1.35mm connector.
- Connect Power Cable: Insert the US power cable into the AC input port of the power adapter.
- Connect to Wall Outlet: Plug the US power cable into a standard 100-240V AC wall outlet.
- Connect to Laptop: Carefully insert the DC output connector into your laptop's charging port. Ensure a snug fit.
Image 4.1: Detailed view of the charger's DC connector tip, illustrating its dimensions (3.5mm outer diameter, 1.35mm inner diameter) and highlighting compatibility with this specific size.
5. Operating Instructions
Once connected, the charger will automatically begin supplying power to your laptop and charging its battery. The charger is designed for efficient and safe operation, incorporating features like fast charging and temperature control.
Image 5.1: The FLGAN charger connected to a laptop, illustrating its function as a fast charger with integrated temperature control for safe and efficient power delivery.
The power interface is treated with a copper-nickel process for strong conductivity and prolonged service life.
Image 5.2: Close-up views highlighting the copper-nickel treated power interface for enhanced conductivity, the robust craftsmanship of the adapter's design, and the included magic tape strap for convenient cable organization.
6. Maintenance and Care
- Cleaning: Use a soft, dry cloth to clean the charger. Do not use liquid cleaners or aerosols.
- Storage: When not in use, store the charger in a cool, dry place. Use the included magic tape strap to bundle the power cord neatly, preventing tangles and damage.
- Cable Integrity: Regularly inspect the power cable and adapter for any signs of wear, cuts, or damage. If damaged, discontinue use immediately.
- Ventilation: Ensure the adapter is placed in a well-ventilated area during operation to prevent overheating.
7. Troubleshooting
If you encounter issues with your FLGAN charger, please refer to the following common solutions:
- Charger Not Powering On:
- Ensure both the AC power cable and the DC output connector are securely plugged into the adapter and laptop, respectively.
- Verify that the wall outlet is functional by plugging in another device.
- Check for any visible damage to the cables or adapter.
- Laptop Not Charging:
- Confirm that the charger's connector size (3.5mm * 1.35mm) matches your laptop's charging port. Incompatible connectors will not work or may cause damage.
- Ensure your laptop's charging port is clean and free of debris.
- Restart your laptop.
- Interference with Peripherals (e.g., Mouse):
- If you experience issues with a wired mouse or other USB peripherals while the charger is connected, try using a different USB port on your laptop.
- Ensure the charger is not placed directly on top of or too close to sensitive electronic devices.
- Charger Overheating:
- Ensure the charger is in a well-ventilated area and not covered by objects.
- If overheating persists, discontinue use and contact support.
8. Specifications
Detailed technical specifications for the FLGAN 19V Laptop Charger:
| Input Voltage | 100-240V AC, 50-60Hz |
| Output Voltage | 19V DC |
| Output Current | 3.42A |
| Output Wattage | 65W |
| Connector Size | 3.5mm * 1.35mm (Proprietary) |
| Model Number | MU65W-A1706 |
| Item Weight | 12.3 ounces (approximately 348 grams) |
| Dimensions (Adapter) | Approximately 9.6cm x 5.15cm x 2.55cm (3.77in x 2.02in x 1.00in) |
Image 8.1: Visual representation of the adapter's physical dimensions, indicating its length, width, and height.

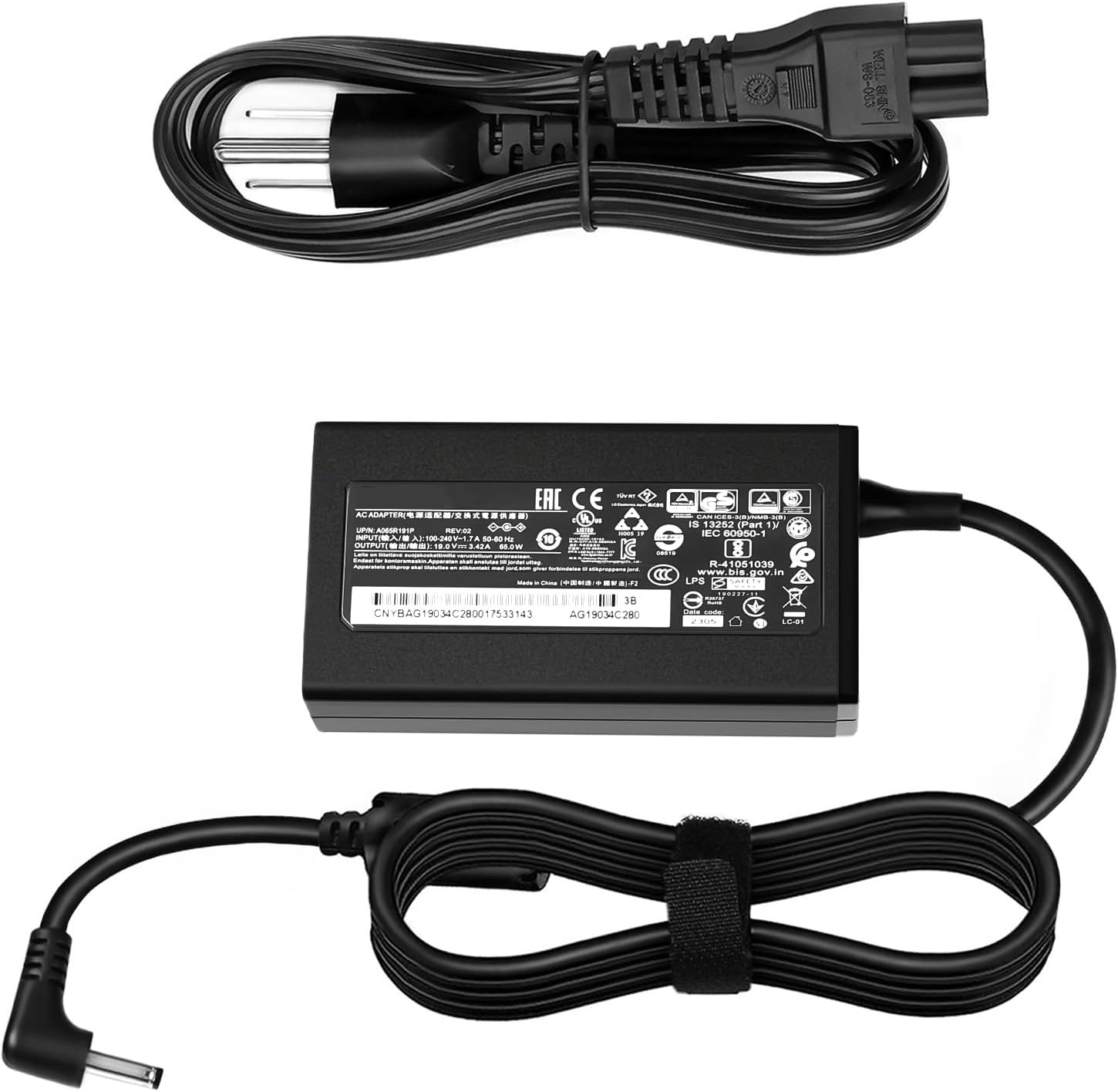

Image 8.2: The FLGAN 19V Laptop Charger, displaying its regulatory compliance labels and the attached power cable.
9. Compatibility
This 19V laptop charger is compatible with a range of laptops requiring 19V input and featuring a 3.5mm * 1.35mm DC connector. Compatible models include, but are not limited to:
- Gateway: GWTN156-5, GWTN156-4, GWTN141-2, GWTN141-10 (including GWTN141-10BK, GWTN141-10BL, GWTN141-10GR, GWTN141-10RG, GWTN141-10SL), GWTN156-7, GWNC31514-BK, GWNC31514-BL, TYPE60-190-31501, TYPE60-190-3150u, GWTN156-12
- Evoo: EVC156-1, EVC156-2, cgsw65-190-3000i
- CHUWI: CoreBook X 14
- Other: BSY BSY065T2003003, Davita ads-45sn-19-3
Note: This charger is not compatible with Gateway 12V chargers.
10. Warranty and Support
This product is manufactured by DONGGUAN ANJU ELECTRONIC TECHNOLOGY CO LTD under the FLGAN brand. For any support inquiries, technical assistance, or warranty information, please contact your retailer or refer to the FLGAN brand store for further details.
Please retain your proof of purchase for warranty claims.
