1. Introduction
Thank you for choosing the LEDVANCE Endura Garden Spot Solar Flood Light. This manual provides essential information for the safe and efficient operation of your new solar-powered outdoor LED light fixture. Please read this manual thoroughly before installation and retain it for future reference.
This product is designed for outdoor lighting in gardens or other outdoor areas, offering energy-efficient illumination with its integrated solar panel and LED technology.
2. Safety Information
- Always ensure the product is installed in a location that receives adequate direct sunlight for optimal charging.
- Do not attempt to disassemble, repair, or modify the product. This may void the warranty and pose safety risks.
- Keep the product away from open flames, extreme heat, and corrosive substances.
- Ensure the installation surface is stable and can support the weight of the fixture.
- This product is rated IP44 for water resistance, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. It is not designed for submersion.
- Dispose of batteries according to local regulations.
3. Package Contents
Verify that all components are present in the package:
- 1 x LEDVANCE Endura Garden Spot Solar Flood Light
- Mounting hardware (screws, wall plugs)
- User Manual
- 3 x AA Lithium Ion batteries (pre-installed or included)
Image: The product packaging, showing the LEDVANCE Endura Garden Spot Solar Flood Light box with product features and branding.
4. Setup
4.1 Choosing an Installation Location
Select a location that receives at least 6-8 hours of direct sunlight daily to ensure optimal battery charging. Avoid areas under trees, eaves, or other obstructions that may block sunlight.
4.2 Mounting the Fixture
The LEDVANCE Endura Garden Spot can be wall-mounted or used with a ground spike (if included with your specific model). For wall mounting:
- Mark the desired drilling points on the wall using the fixture's mounting bracket as a template.
- Drill holes appropriate for the provided wall plugs and screws.
- Insert the wall plugs into the drilled holes.
- Secure the mounting bracket to the wall using the screws.
- Attach the light fixture to the mounted bracket, ensuring it is securely fastened.

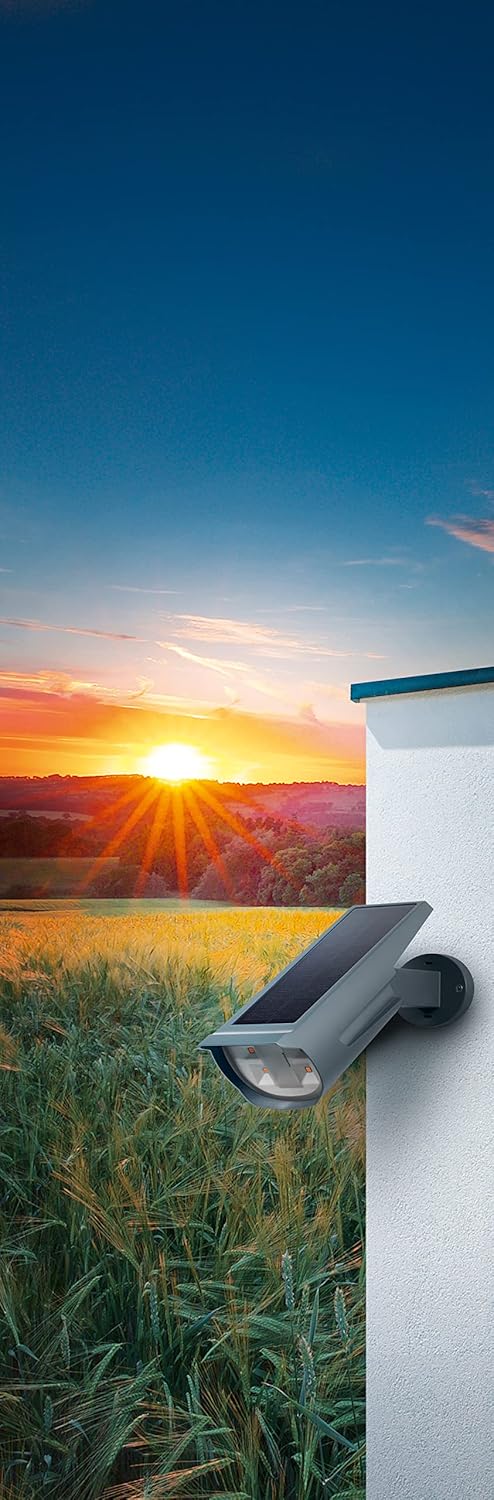

Image: The LEDVANCE Endura Garden Spot Solar Flood Light mounted on an exterior wall, demonstrating its typical outdoor installation and appearance.
4.3 Initial Charging
Before first use, allow the solar light to charge for at least 24-48 hours in direct sunlight with the unit turned OFF. This ensures the battery reaches its full capacity for optimal performance.
5. Operating Instructions
The LEDVANCE Endura Garden Spot features 3 selectable operating modes. Locate the control button, typically on the underside or back of the unit.
Image: A close-up view of the LEDVANCE Endura Garden Spot Solar Flood Light, highlighting its solar panel and light elements.
5.1 Powering On/Off
- To turn the light ON or OFF, press and hold the control button for approximately 3 seconds.
5.2 Selecting Operating Modes
Once the light is ON, short press the control button (approximately 1 second) to cycle through the available modes:
- Mode 1 (Continuous Light): The light stays on continuously at a lower brightness (e.g., 200 lumens) for a limited duration (e.g., up to 2.5 hours).
- Mode 2 (Dim + Motion Sensor): The light stays on continuously at a dim brightness (e.g., 75 lumens) and brightens to a higher level (e.g., 300 lumens) when motion is detected. This mode typically offers longer operating times (e.g., up to 8 hours).
- Mode 3 (Motion Sensor Only): The light remains off and only turns on to full brightness (e.g., 400 lumens) when motion is detected. This mode conserves battery and allows for many activations (e.g., up to 100 activations).
The light will automatically turn off during the day as the solar panel detects light, and resume operation in the selected mode at dusk.
6. Maintenance
- Cleaning: Regularly wipe the solar panel and light surface with a soft, damp cloth to remove dust, dirt, and debris. A clean solar panel ensures efficient charging. Do not use abrasive cleaners or solvents.
- Battery Care: The integrated Lithium Ion batteries are designed for long life. If the light's performance significantly degrades over time, ensure the solar panel is clean and receiving adequate sunlight. Battery replacement should only be performed by qualified personnel if necessary.
- Seasonal Adjustment: In winter months or periods of reduced sunlight, the light's performance may be reduced due to less charging time. Consider adjusting the operating mode to conserve battery life if needed.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | Insufficient solar charge. | Ensure the solar panel is clean and receives 6-8 hours of direct sunlight daily. Allow 24-48 hours for initial charge. |
| Light duration is shorter than expected. | Insufficient charge; cloudy weather; solar panel obstruction. | Relocate the light to a sunnier spot. Clean the solar panel. Select a lower power operating mode. |
| Motion sensor not working. | Incorrect mode selected; sensor obstructed; battery low. | Ensure Mode 2 or 3 is selected. Clear any obstructions from the sensor. Allow for full battery charge. |
| Light flickers or is dim. | Low battery charge; faulty connection. | Allow the light to charge fully in direct sunlight. If issues persist, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | LEDVANCE |
| Model Number | 4058075564169 |
| Light Source Type | LED |
| Brightness | 55 Lumen (typical, varies by mode) |
| Light Color | Warm White (3000 K) |
| Voltage | 3.6 Volts |
| Power Source | Solar Powered (DC) |
| Housing Material | Plastic (Stainless steel housing mentioned in features, but plastic in specs. Sticking to specs.) |
| Water Resistance Level | IP44 |
| Product Dimensions (L x W x H) | 68.9" x 36.22" x 116.14" |
| Item Weight | 377 Grams (approx. 13.3 ounces) |
| Batteries | 3 AA Lithium Ion (included) |
| Special Feature | Dimmable, Motion Sensor |
9. Warranty and Support
LEDVANCE products are manufactured to high quality standards. This product comes with a limited warranty. Please refer to the warranty information provided with your purchase or visit the official LEDVANCE website for details regarding warranty terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact LEDVANCE customer service through their official website or the retailer where the product was purchased. Please have your model number (4058075564169) and proof of purchase ready when contacting support.
