IWISS 3/4 Inch PEX-a Expansion Ring Instruction Manual

Introduction

IWISS PEX-a expansion rings are essential components for creating secure and leak-free connections in PEX-a plumbing systems. These rings are designed to work with PEX-a pipe and F1960 brass or poly fittings, ensuring a robust and reliable plumbing installation.

This manual provides detailed instructions for the proper installation and use of your IWISS 3/4 inch PEX-a expansion rings.

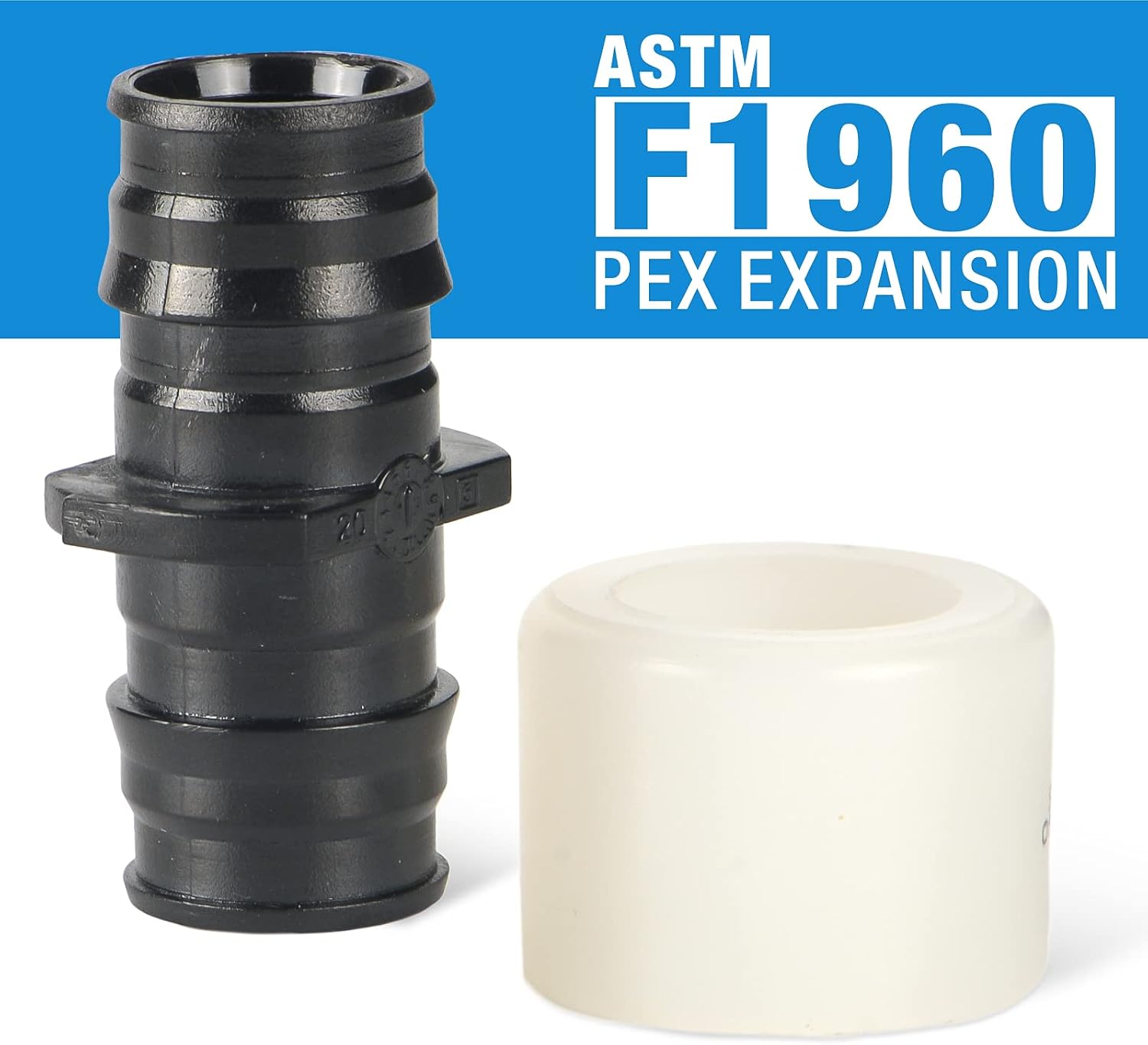

IWISS 3/4 inch PEX-a expansion ring and a PEX-a barb fitting.

Safety Information

• Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when working with plumbing tools and materials.
• Ensure all connections are properly expanded and seated to prevent leaks.
• Consult local plumbing codes and regulations before beginning any plumbing project.

Product Overview

The IWISS 3/4 inch PEX-a expansion rings are manufactured from durable PEX-a material, designed for compatibility with ASTM F1960 standards. They feature a leading edge chamfer and a stop edge for correct placement.

Key Features:

• Designed for 3/4 inch PEX-a pipe and F1960 barb fittings.
• Material: PEX-a (Polyethylene) with 70% to 89% crosslinking.
• Lab & Field Approved: ASTM F1960/CSA B137.5-2019a/2017 - per NSF/ANSI 14.
• Expansion Ring with Stop for proper placement.

ASTM F1960 PEX Expansion Ring Connection Guide, highlighting material properties and quick installation steps.

Installation Instructions

Proper installation is critical for a leak-free PEX-a system. Follow these steps carefully.

Tools Required: PEX-a expansion tool, PEX pipe cutter.

1. Cut the PEX Tubing: Using a PEX pipe cutter, make a square cut perpendicular to the length of the PEX-a tubing. Ensure the cut is clean and free of burrs.


   Making a square cut on PEX-a tubing with a PEX cutter.

2. Slide the Expansion Ring: Slide the IWISS PEX-a expansion ring over the end of the cut tubing. Push it until it reaches the stop edge on the ring. The chamfered edge should face the end of the pipe.


   Sliding the expansion ring onto the PEX-a pipe.

3. Expand the Tubing: Insert the PEX-a expansion tool into the end of the tubing with the ring. Hold the tubing and tool firmly in place while expanding the tubing. Rotate the tool slightly between expansions to ensure even expansion. Refer to the "Recommended Number of Expansions" table below.


   Using a PEX-a expansion tool to expand the tubing.

4. Insert the Fitting: Immediately after the final expansion, remove the tool and quickly insert the PEX-a barb fitting into the expanded tubing. The PEX-a material will naturally shrink back, creating a tight seal around the fitting.


   A completed PEX-a connection with a brass fitting and expansion rings.

Recommended Number of Expansions

The number of expansions required can vary based on tubing size, ambient temperature, and tool type. The following table provides general guidelines:

Recommended expansions for various PEX-a tubing sizes.

Note: Experience, technique, and weather conditions influence the actual number of expansions. The correct number of expansions is the amount necessary for the tubing and the shoulder of the fitting to fit snugly together.

Operating Principles

Once installed, the IWISS PEX-a expansion rings, in conjunction with PEX-a tubing and F1960 fittings, form a permanent, robust connection. The PEX-a material's "shape memory" property allows the expanded pipe to shrink back tightly onto the fitting, creating a secure seal without the need for crimping or clamping.

Maintenance

PEX-a systems are known for their durability and low maintenance. Periodically inspect visible PEX-a connections for any signs of leaks or damage. In the event of accidental kinks in PEX-a piping, the material's "thermal memory" allows for repair using a controlled heat source, restoring its original durability.

Troubleshooting

Issue: Leaks at connections.

Possible Causes:

• Insufficient expansion of the PEX-a tubing.
• Improper seating of the fitting before the tubing shrinks back.
• Damaged PEX-a tubing or fitting.
• Incorrect size of expansion ring or fitting for the tubing.

Solutions:

• Ensure the PEX-a tubing is expanded sufficiently to allow the fitting to be fully inserted. The tubing should be expanded enough so that the fitting shoulder meets the expansion ring.
• Insert the fitting immediately after the final expansion, before the tubing begins to shrink.
• Inspect tubing and fittings for any defects before installation.
• Verify that the expansion rings and fittings match the PEX-a tubing size (e.g., 3/4 inch ring for 3/4 inch pipe).

Specifications

Warranty and Support

For warranty information or technical support regarding IWISS PEX-a expansion rings, please contact IWISS customer service directly. Refer to the product packaging or the official IWISS website for the most current contact details.
