PARKSIDE® PRRS 15 A3 Pipe Unblocking Set

Instruction Manual

Product Overview

The PARKSIDE® PRRS 15 A3 Pipe Unblocking Set is designed for clearing blockages in pipes and drains without the need for chemical agents or detergents. It is an accessory for compatible high-pressure cleaners.

Intended Use

This set is intended for unblocking and cleaning pipes and drainage systems using the high-pressure water stream from a compatible pressure washer. It is suitable for domestic use.

Package Contents

  • Flexible hose with protective sleeve and high-quality brass injection head (15 m length)
  • Adapter for various high-pressure cleaners
  • Protective sleeve
  • Marking ring

Safety Instructions

WARNING: Always read and understand all safety warnings and instructions provided with your high-pressure cleaner before using this accessory. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

  • Ensure the pipe unblocking set is correctly assembled and securely connected to the high-pressure cleaner before operation.
  • Never direct the water jet at people, animals, or electrical equipment.
  • Wear appropriate personal protective equipment, including eye protection and gloves.
  • Do not use the set if the hose or any part is damaged.
  • Always turn off the high-pressure cleaner and release residual pressure before disconnecting the hose or performing any maintenance.
  • This product is designed for cold water use up to 60 °C. Do not exceed this temperature.
  • Keep children and bystanders away during operation.

Setup

  1. Compatibility Check: Ensure your high-pressure cleaner is compatible. This set is suitable for Parkside high-pressure cleaners in the PHD 110, PHD 135, PHD 150, and PHD 170 series. An adapter is included for other common high-pressure cleaners (max. 115 bar working/nominal pressure), such as Kärcher models.
  2. Connect the Hose: Attach the pipe unblocking hose to the high-pressure cleaner's spray gun or outlet. Ensure a secure, leak-free connection. If using the adapter, connect the adapter first, then the hose to the adapter.
  3. Prepare the Drain: Clear any visible debris from the drain opening.

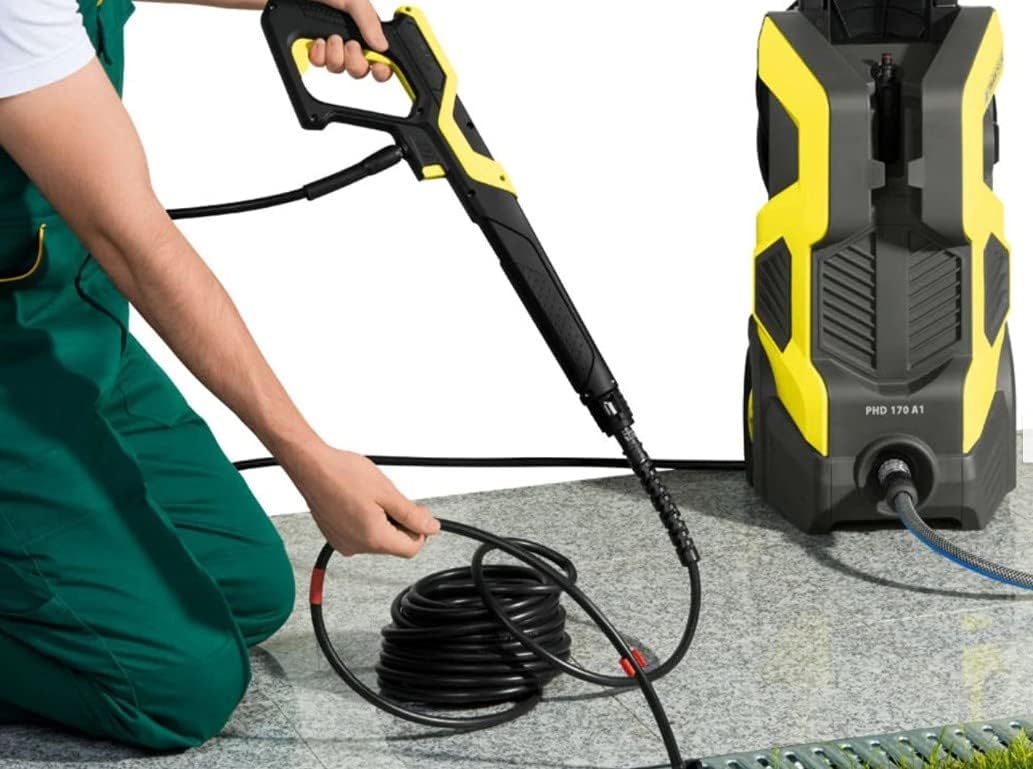

Person connecting the Parkside pipe unblocking hose to a high-pressure cleaner.

Figure 1: Connecting the pipe unblocking hose to a high-pressure cleaner. The hose is designed for easy attachment to compatible units.

Close-up of the adapter for connecting the pipe unblocking set to various high-pressure cleaners.

Figure 2: The included adapter ensures compatibility with a wider range of high-pressure cleaner brands, including Kärcher.

Operating Instructions

  1. Insert the Hose: Carefully feed the injection head of the hose into the pipe or drain opening. The continuous marking and marking ring on the hose indicate its progression into the pipe.
  2. Activate Pressure: Once the injection head is sufficiently inside the pipe, turn on the high-pressure cleaner. The rearward-facing pressure from the injector head will automatically propel the hose further into the pipe, clearing blockages as it advances.
  3. Advance and Retreat: Guide the hose slowly into the pipe. If resistance is met, gently move the hose back and forth to help dislodge the blockage. Do not force the hose.
  4. Monitor Progress: Use the markings on the hose to track how far it has entered the pipe.
  5. Completion: Once the blockage is cleared and water flows freely, turn off the high-pressure cleaner and release any residual pressure before slowly pulling the hose out of the pipe.

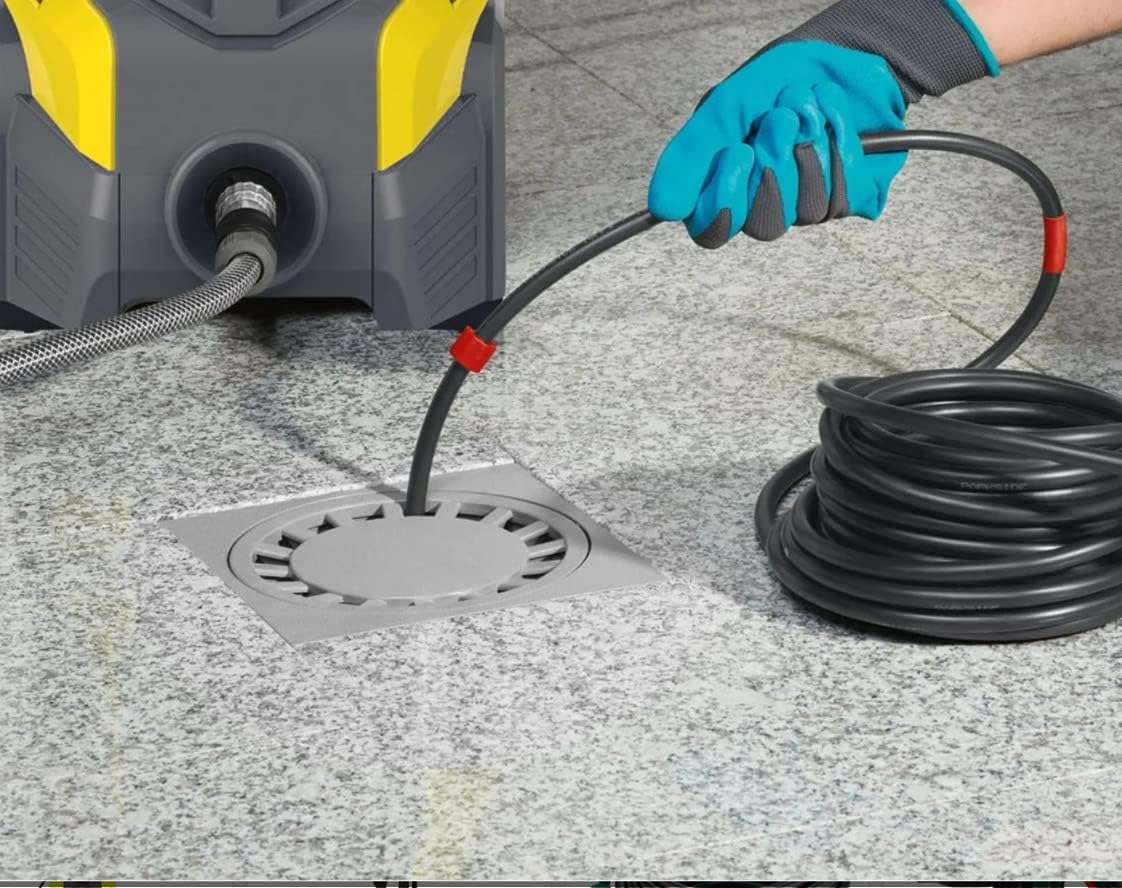

Person feeding the pipe unblocking hose into a floor drain.

Figure 3: Inserting the flexible hose into a drain. The hose's design allows it to navigate bends and clear obstructions effectively.

Maintenance and Storage

  • Cleaning: After each use, thoroughly rinse the hose and injection head with clean water to remove any debris or residue.
  • Inspection: Regularly inspect the hose, connections, and injection head for any signs of wear, damage, or blockages. Do not use if damaged.
  • Storage: Coil the hose neatly and store it in a dry, frost-free location, away from direct sunlight and extreme temperatures. Ensure it is protected from kinks or sharp bends.
The Parkside pipe unblocking hose coiled neatly, showing the nozzle and connection end.

Figure 4: The pipe unblocking hose coiled for storage. Proper coiling prevents kinks and extends product life.

The Parkside pipe unblocking hose coiled, showing the brass nozzle and adapter.

Figure 5: A closer view of the coiled hose, highlighting the durable brass injection head and the adapter for various pressure washer models.

Troubleshooting

ProblemPossible CauseSolution
Hose does not advance into the pipe.Severe blockage; insufficient water pressure; kink in the hose.Ensure high-pressure cleaner is operating at full power. Gently move the hose back and forth. If blockage persists, consider alternative methods or professional help. Check for kinks in the hose.
Water leaks from connections.Loose connection; damaged O-ring or seal.Tighten all connections. Inspect and replace any damaged O-rings or seals.
No water coming from the injection head.No water supply to the pressure washer; pressure washer not turned on; nozzle blocked.Check water supply and pressure washer operation. Turn off the unit, release pressure, and inspect the injection head for blockages.

Technical Specifications

  • Model: PRRS 15 A3
  • Model Number (IAN): IAN-100385944
  • Length: 15 m
  • Maximum Pressure: 180 bar
  • Maximum Working/Nominal Pressure: Approx. 150 bar
  • Maximum Inlet Temperature: 60 °C
  • Material: Brass (injection head), Flexible hose
  • Product Dimensions (L x W x H): 30 x 30 x 0.1 cm (packaged/coiled)
  • Item Weight: 1.49 kg
  • Compatibility: Parkside PHD 110, PHD 135, PHD 150, PHD 170 series. Adapter for other common high-pressure cleaners (max. 115 bar working/nominal pressure, e.g., Kärcher).

Warranty and Customer Support

Information regarding the warranty period and specific customer support contacts for the PARKSIDE® PRRS 15 A3 Pipe Unblocking Set is not available in the provided product data. Please refer to the documentation included with your purchase or contact your retailer for details.
