1. Product Overview
The chiphy LED Floor Lamp is a versatile and modern lighting solution designed for various indoor spaces. Featuring an all-metal construction, this lamp offers adjustable brightness levels and flexible height options to suit your specific lighting needs. Its eye-caring LED panel provides uniform, glare-free illumination, making it ideal for reading, working, or creating a comfortable ambiance.
Image: The chiphy LED Floor Lamp positioned next to a plant stand and sofa, showcasing its sleek black design and upward-facing light.
2. Safety Instructions
- Ensure the lamp is placed on a stable, level surface to prevent tipping.
- Do not expose the lamp to water or excessive moisture. This product is for indoor use only.
- Avoid looking directly into the LED light source for extended periods.
- Do not attempt to disassemble or modify the lamp. Refer all servicing to qualified personnel.
- Keep the power cord away from heat sources, sharp edges, and heavy objects.
- Unplug the lamp from the power outlet before cleaning or performing any maintenance.
3. Package Contents
Verify that all components are present before assembly:
- LED Lamp Head with integrated electronics
- Adjustable Pole Sections (multiple pieces for height adjustment)
- Heavy Steel Base
- Power Cable
- Instruction Manual
Image: All components of the lamp, including the base, pole sections, lamp head, power cable, and instruction manual, are neatly arranged on a carpet.
4. Setup and Assembly
Follow these steps to assemble your chiphy LED Floor Lamp:
- Attach the Base: Screw the lowest pole section into the heavy steel base. Ensure it is tightened securely for stability.
- Connect Pole Sections: Connect the remaining pole sections by screwing them together clockwise. The pole section with the integrated electronics (touch control panel) should be positioned at your desired height for easy access.
- Attach Lamp Head: Connect the lamp head to the top pole section. Ensure the small plug from the lamp head is securely inserted into the corresponding port on the top pole section.
- Secure Power Cord: Use the provided velcro straps to secure the power cord neatly along the back of the lamp pole, leading down to the base.

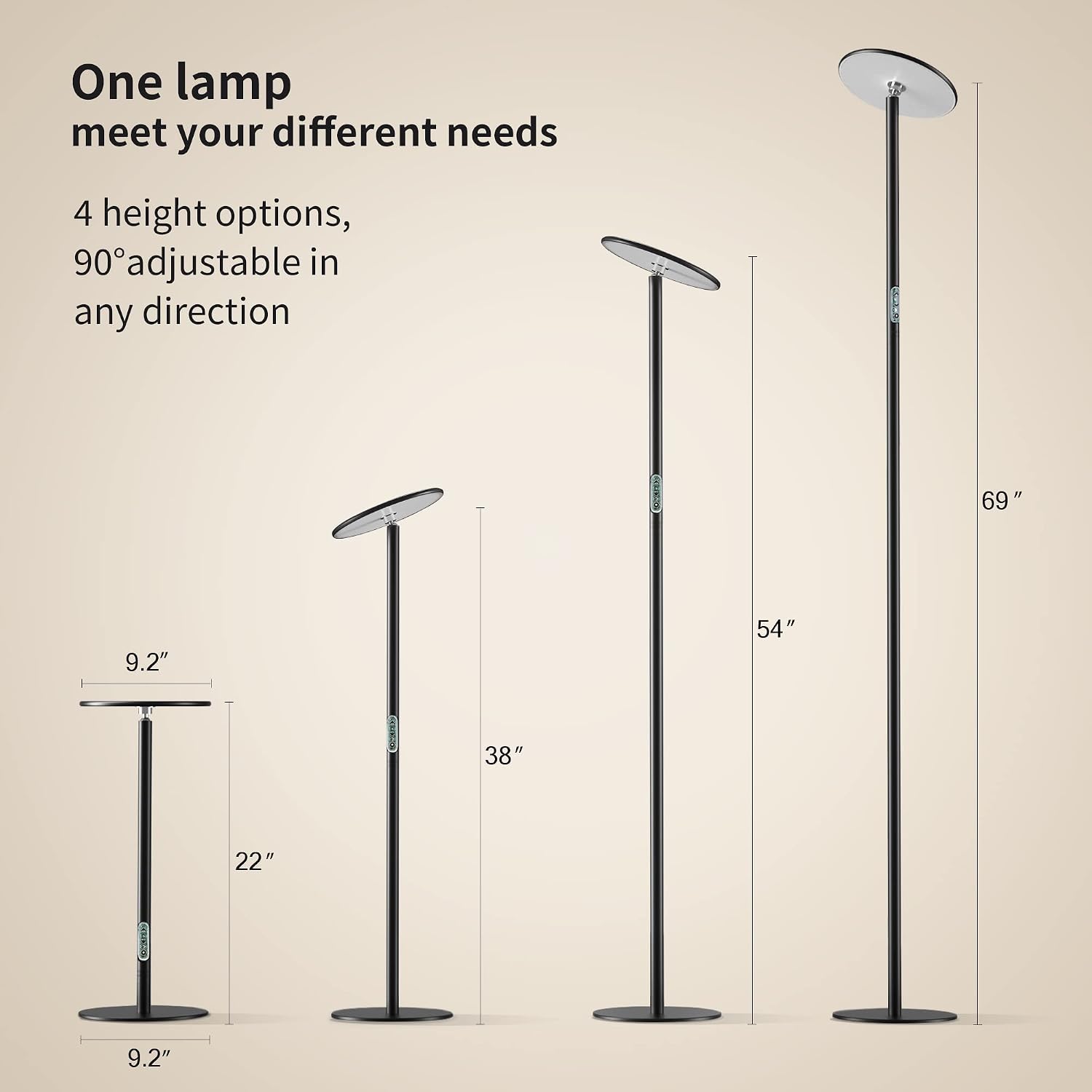

- Adjust Height (Optional): The lamp features multiple detachable pole sections, allowing for four different height configurations (22", 38", 54", 69"). Adjust the height by adding or removing pole sections as needed.
Image: The lamp's features are highlighted, including its super bright 40W/2600 Lumen output, larger lighting area, and 10-level brightness adjustment.
5. Operating Instructions
The chiphy LED Floor Lamp is designed for intuitive operation via its touch control panel.
- Power On/Off: Locate the touch control panel on the lamp pole. Press the power button (circular icon) once to turn the lamp on or off. The power button illuminates with a soft glow when the lamp is off, making it easy to find in the dark.
- Adjust Brightness: Use the "Up" and "Down" arrow buttons on the control panel to adjust the brightness. The lamp offers 10 levels of brightness, from 1% (night light) to 100% (super bright).
- Adjust Lamp Head Angle: The lamp head is designed with a universal joint, allowing it to be adjusted 90 degrees in any direction. Gently tilt the lamp head to direct light where needed.
- Timer Function: The lamp includes a built-in timer. A long press on the power button will activate the timer. The light will flash twice to indicate the timer is set for 45 minutes, after which it will automatically turn off.
- Memory Mode: The lamp features a memory mode that remembers the last brightness setting used when it was turned off.
Image: The lamp's features are highlighted, including its super bright 40W/2600 Lumen output, larger lighting area, and 10-level brightness adjustment.
Image: A mother and child reading under the lamp, illustrating its quadruple eye protection features: 9.2in LED panel for uniform light, 4000K color temperature, glare-free softer light, and CRI above 95 for true color representation.
6. Maintenance
To ensure the longevity and optimal performance of your chiphy LED Floor Lamp, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe down the lamp's surfaces. Avoid abrasive cleaners or solvents that could damage the finish.
- Dust Removal: Regularly dust the LED panel and pole to maintain optimal light output.
- Inspection: Periodically check the power cord for any signs of damage or fraying. If damage is found, discontinue use and contact customer support.
- Heat Dissipation: Ensure the lamp's LED panel is not obstructed to allow for proper heat dissipation, which extends the product's lifespan.
Image: The lamp's high-quality features are emphasized, including its durable and firm construction, excellent heat dissipation, anti-rust properties, sensitive touch switch, upgraded aluminum tube, and integrated steel base.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Power cord not properly connected; Power outlet not working; Lamp head not securely connected to pole. | Ensure power cord is fully plugged into both the lamp and a working outlet. Check the connection between the lamp head and the top pole section. |
| Light flickers or is unstable. | Loose connection; Power supply issue. | Check all pole connections and ensure the power cord is secure. Try plugging into a different outlet. |
| Brightness adjustment not working. | Control panel malfunction. | Ensure you are pressing the correct "Up" or "Down" arrow buttons. If the issue persists, contact customer support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | chiphy |
| Model Number | RF01-001-BK(A) |
| Product Dimensions | 9.2"D x 9.2"W x 69"H (Max) |
| Item Weight | 4 Pounds |
| Light Source Type | LED |
| Wattage | 40 watts |
| Brightness | 3350 Lumen |
| Color Temperature | 4000 Kelvin |
| Color Rendering Index (CRI) | 95.00 |
| Average Life | 100000 Hours |
| Material | Aluminum |
| Switch Type | Touch |
| Adjustable Height | 22'' to 69'' |
| Lamp Head Adjustment | 90 degrees in any direction |
9. Warranty and Support
chiphy provides a 5-year after-sales warranty from the date of purchase for this LED Floor Lamp.
If you encounter any issues or have questions regarding your lamp, please feel free to contact chiphy customer support via Amazon message. Our team is dedicated to providing high-quality products and excellent service.
For additional resources, you may refer to the User Guide (PDF).
