1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Evotech Performance Tail Tidy, designed specifically for the Triumph Speed Triple 1200RS and RR models from 2021 onwards. This product is engineered to integrate seamlessly with your motorcycle's existing mountings, offering a clean and streamlined aesthetic.
The Evotech Performance Tail Tidy (Model PRN015492) is CNC machined from lightweight aircraft-grade aluminum and finished with a black powder coating for durability. It incorporates standard signal lights and the license plate light, featuring a plug-and-play wiring system for straightforward installation.
2. Safety Information
- Always ensure the motorcycle is stable and securely supported before beginning any installation or maintenance.
- Disconnect the motorcycle's battery before performing any electrical work to prevent short circuits or damage.
- Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- If you are unsure about any step of the installation process, consult a qualified motorcycle technician.
- Ensure all fasteners are tightened to the manufacturer's recommended torque specifications. Over-tightening or under-tightening can lead to component failure.
- After installation, verify that all lights (tail light, brake light, turn signals, license plate light) are functioning correctly.
3. Package Contents
Please verify that all components are present before beginning installation:
- Evotech Performance Tail Tidy assembly (Model PRN015492)
- All necessary fixings and fasteners
- License plate adapters (if required for specific plate hole alignment)
Note: Pictorial instructions are available for download from the manufacturer's website.
4. Setup and Installation
The Evotech Performance Tail Tidy is designed for a direct fit, utilizing the motorcycle's existing mounting points. The installation process typically takes less than two hours and requires basic hand tools.
- Preparation: Park the motorcycle on a stable, level surface. Ensure the engine is cool. Disconnect the battery.
- Removal of OEM Components: Carefully remove the original tail assembly, including the fender, license plate holder, and any associated wiring. Refer to your motorcycle's service manual for specific instructions on removing these components.
- Mounting the Tail Tidy: Position the Evotech Performance Tail Tidy onto the motorcycle's existing mounting points. Secure it using the provided fixings. Ensure a snug fit without over-tightening.
- Wiring: The Tail Tidy features a plug-and-play wiring system. Connect the integrated signal lights and license plate light wiring harness to the motorcycle's corresponding connectors. Carefully route the license plate light wire to prevent pinching or damage.
- License Plate Installation: Attach your license plate to the Tail Tidy. If the plate's mounting holes do not align, use the provided license plate adapters.
- Final Checks: Reconnect the motorcycle's battery. Turn on the ignition and test all lighting functions: tail light, brake light, and turn signals. Ensure all components are securely fastened and there is no interference with moving parts.
Image 1: The Evotech Performance Tail Tidy component, showcasing its black powder-coated aluminum construction and integrated design.
Image 2: Rear view of the Triumph Speed Triple 1200RS with the Evotech Performance Tail Tidy installed, highlighting the integrated signal lights and license plate position.
Image 3: Side view of the Triumph Speed Triple 1200RS featuring the Evotech Performance Tail Tidy, demonstrating its compact and integrated design.
5. Operating
The Evotech Performance Tail Tidy is a static accessory that functions as a license plate holder and integrates the motorcycle's rear lighting. Once installed, its operation is passive, working in conjunction with your motorcycle's electrical system for tail, brake, and turn signal functions.
- Ensure all lights are visible and unobstructed.
- Regularly check that the license plate is securely attached and clearly visible.

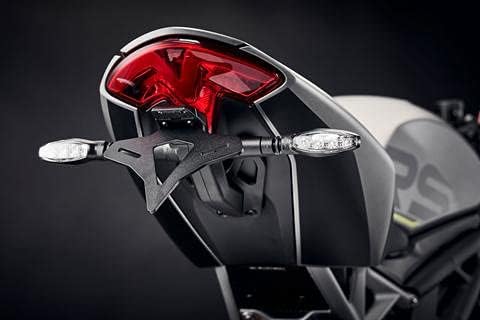

Image 4: A close-up rear view of the Evotech Performance Tail Tidy on a Triumph Speed Triple 1200RS, showing the clean integration of the lighting.
Image 5: A full rear-side view of the Triumph Speed Triple 1200RS, illustrating the overall aesthetic improvement with the Evotech Performance Tail Tidy installed.
6. Maintenance
To ensure the longevity and proper function of your Evotech Performance Tail Tidy, follow these maintenance guidelines:
- Regular Cleaning: Clean the Tail Tidy regularly with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the powder-coated finish.
- Fastener Inspection: Periodically check all mounting bolts and fasteners for tightness. Vibrations from riding can cause fasteners to loosen over time.
- Wiring Inspection: Inspect the wiring for any signs of wear, fraying, or damage. Ensure all connections remain secure and free from corrosion.
- Light Functionality: Routinely check that all integrated lights (tail, brake, turn signals, license plate) are functioning correctly. Replace any non-functional bulbs or LEDs as necessary.
7. Troubleshooting
If you encounter issues with your Evotech Performance Tail Tidy, consider the following:
- Lights Not Working:
- Check all electrical connections to ensure they are fully seated and free from corrosion.
- Verify that the motorcycle's battery is properly connected and charged.
- Inspect the motorcycle's fuses related to lighting.
- Ensure the wiring is not pinched or damaged.
- Loose Fitment:
- Re-check all mounting bolts and ensure they are tightened to the correct specifications.
- Verify that the Tail Tidy is correctly aligned with the motorcycle's mounting points.
- License Plate Alignment:
- If your license plate holes do not align, ensure you have utilized the provided license plate adapters.
For further assistance, refer to the manufacturer's website for detailed pictorial instructions or contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Evotech Performance |
| Model Number | PRN015492 |
| Compatibility | Triumph Speed Triple 1200RS & RR (2021 Onwards) |
| Material | Aircraft Grade Aluminum |
| Finish | Powder Coated Black |
| Fit Type | Vehicle Specific Fit |
| Wiring | Plug and Play (No wiring modifications required) |
9. Warranty and Support
Evotech Performance products are manufactured to high standards. For information regarding warranty coverage, terms, and conditions, please refer to the official Evotech Performance website or contact their customer support directly.
For technical support, installation queries, or to report any issues, please visit the Evotech Performance website or contact their customer service department. Ensure you have your product model number (PRN015492) and purchase details available when seeking support.
