Introduction
Welcome to the Deenkee Robot Vacuum DK600 user manual. This guide provides detailed instructions for setting up, operating, and maintaining your new robot vacuum cleaner. The Deenkee DK600 is designed to simplify your cleaning routine with its powerful suction, intelligent navigation, and multiple cleaning modes.
Figure 1: Deenkee Robot Vacuum DK600. This image shows the top view of the sleek, black robot vacuum with its central control button.
Safety Information
Please read all safety instructions carefully before using the Deenkee DK600. Keep this manual for future reference.
- Ensure the charging dock is placed against a wall on a hard, level surface, free from obstacles.
- Keep loose cables, curtains, and other objects that could entangle the robot out of its path.
- The robot vacuum is equipped with anti-drop sensors to prevent falls from stairs. However, always exercise caution.
- Do not allow children or pets to play with the robot vacuum.
- Do not use the robot vacuum to pick up large debris, liquids, or burning objects.
Figure 2: The robot vacuum demonstrating its anti-collision and anti-drop capabilities. The top panel shows the robot avoiding furniture, while the bottom panel shows it detecting a stair edge.
Video 1: Demonstrates the robot vacuum automatically adjusting its cleaning trajectory when encountering obstacles, ensuring smooth navigation around furniture.
Video 2: Illustrates the anti-drop feature of the DK600 Max Robot Vacuum Cleaner, showing it safely navigating near edges without falling.
Package Contents
Verify that all components are present in the package:
- Deenkee Robot Vacuum DK600
- Charging Dock
- Power Adapter
- Remote Control
- Side Brushes (2 pairs)
- High-Performance Filter
- Cleaning Tool
- User Manual
Product Overview
Familiarize yourself with the main components of your Deenkee DK600 robot vacuum.
Top View
- Clean Button: Press to start/pause cleaning.
- Dustbin Release Button: Press to remove the dustbin.
- Indicator Light: Shows battery status and error codes.
Bottom View
- Side Brushes: Collect dust and debris from edges and corners.
- Main Brush: Deep cleans carpets and hard floors.
- Driving Wheels: Allow the robot to move across various surfaces.
- Charging Contacts: Connect with the charging dock for recharging.
- Drop Sensors: Detect edges and prevent falls.
Setup
1. Charging Dock Placement
Place the charging dock on a hard, level surface against a wall. Ensure there is at least 3 feet (1 meter) of clear space to the front and 1.5 feet (0.5 meters) to each side of the charging dock to allow the robot to return easily.
Figure 3: The robot vacuum automatically returning to its charging dock. This image illustrates the logical route planning for docking and recharging, highlighting the 2600mAh battery's 100-minute continuous cleaning capability.
2. Initial Charging
Connect the power adapter to the charging dock and plug it into a wall outlet. Place the robot vacuum on the charging dock, ensuring the charging contacts align. The indicator light will show charging status. Fully charge the robot before first use (approximately 4-5 hours).
Video 3: Demonstrates the automatic recharge function and the use of the remote control for a simpler cleaning experience. The robot vacuum is shown returning to its charging base.
3. Side Brush Installation
Attach the side brushes to the square posts on the bottom of the robot by pressing them down until they click into place. Ensure they are securely fastened.
4. Dustbin Installation
Ensure the dustbin is properly inserted into the robot vacuum until it clicks into place. A full dustbin can reduce suction power.
Operating Instructions
1. Power On/Off
- Power On: Press and hold the "Clean" button on the robot or the power button on the remote control until the indicator light illuminates.
- Power Off: Press and hold the "Clean" button on the robot or the power button on the remote control until the indicator light turns off.
2. Cleaning Modes
The Deenkee DK600 offers various cleaning modes to suit your needs:
- AUTO Cleaning: The robot automatically cleans in a systematic pattern, adjusting to different floor types.
- SPOT Cleaning: Focuses on a specific dirty area, cleaning in a spiral pattern.
- EDGE Cleaning: Cleans along walls and furniture edges.
- SINGLE ROOM Cleaning: Cleans one room thoroughly before stopping.
- MAX CLEANING: Increases suction power for deeper cleaning.
- SCHEDULE CLEANING: Set a specific time for the robot to start cleaning automatically.

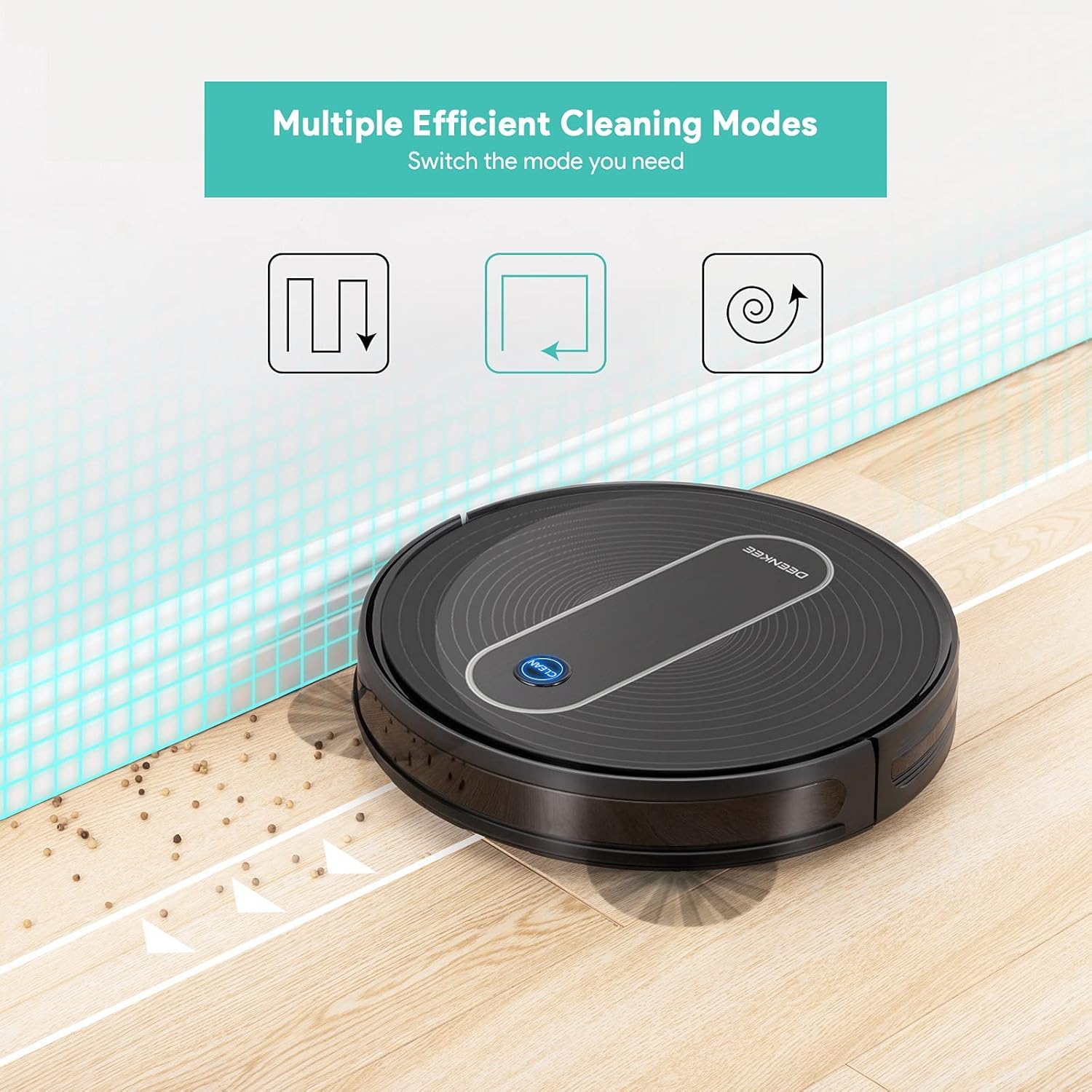

Figure 4: Illustration of the multiple efficient cleaning modes available on the Deenkee robot vacuum, including auto, spot, and edge cleaning patterns.
Figure 5: Demonstrates the 1500Pa super-strong suction of the Deenkee robot vacuum, effectively removing dust, dirt, and pet hair from floors and carpets.
Figure 6: Shows the Deenkee robot vacuum operating quietly with low noise (≤55dB), ensuring it does not disturb your family during cleaning.
Figure 7: Illustrates the robot vacuum's ability to easily cross thresholds up to 0.63 inches, allowing it to transition smoothly between different floor types like hard floor and carpet.
Video 4: Shows the powerful suction of the Deenkee robot vacuum, demonstrating its effectiveness on carpets by picking up small debris.
Video 5: Highlights the ultra-thin body design of the robot vacuum, allowing it to easily pass through and clean under most furniture.
3. Using the Remote Control
The remote control allows you to conveniently manage your robot vacuum. Functions include:
- Start/Pause Cleaning
- Select Cleaning Modes
- Manual Direction Control
- Send Robot to Charging Dock
- Set Schedule
4. Automatic Recharging
When the battery level is low, the Deenkee DK600 will automatically return to its charging dock. Ensure the charging dock is accessible and free from obstructions.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Deenkee DK600.
1. Emptying the Dustbin
Empty the dustbin after each cleaning cycle. Press the dustbin release button, pull out the dustbin, open its lid, and discard the collected debris.
2. Cleaning Brushes
- Main Brush: Remove the main brush cover and lift out the main brush. Use the cleaning tool to remove hair and debris tangled around the brush. Clean the brush bearings.
- Side Brushes: Periodically check side brushes for wear or damage. Remove any tangled hair or debris. Replace worn brushes as needed.
3. Cleaning Sensors
Wipe the drop sensors and charging contacts on the bottom of the robot with a clean, dry cloth to ensure proper function.
4. Battery Care
To maintain battery health, always return the robot to the charging dock after use. If the robot will not be used for an extended period, fully charge it and store it in a cool, dry place, recharging every 3 months.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not turn on. | Low battery; Power switch off. | Charge the robot; Ensure power switch is on. |
| Robot gets stuck frequently. | Obstacles (cables, rugs); Dirty sensors. | Clear obstacles; Clean drop sensors. |
| Poor cleaning performance. | Full dustbin; Tangled brushes; Clogged filter. | Empty dustbin; Clean main/side brushes; Clean/replace filter. |
| Robot does not return to charging dock. | Charging dock obstructed; Robot too far from dock. | Clear area around dock; Manually place robot on dock. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Deenkee |
| Model | DK600 |
| Suction Power | 1500Pa |
| Battery Life | Up to 100 minutes |
| Body Height | 2.75 inches (Ultra-thin) |
| Cleaning Modes | AUTO, SPOT, EDGE, SINGLE ROOM, MAX CLEANING, SCHEDULE CLEANING |
| Navigation | Intelligent Navigation with Anti-drop Sensor |
| Control Method | Remote Control |
| Filter Type | Cartridge |
| Item Weight | 8.93 pounds |
| Product Dimensions | 2.75"L x 2.75"W x 2.75"H |
Warranty and Support
Deenkee products come with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the official Deenkee website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
