1. Introduction
This manual provides essential information for the safe and effective use of your vhbw replacement power cable. This high-quality, flexible power cable is designed to provide a reliable power supply for compatible vacuum cleaners, offering extended reach for convenient operation.
The cable features a practical length of 15 meters, allowing you to perform household tasks efficiently without frequently changing power outlets. Its robust construction ensures stability and durability, with precisely manufactured connectors for a secure fit.
2. Safety Information
- Warning: Power cables should only be replaced by a qualified electrician to ensure safety and proper functionality. Improper installation can lead to electrical hazards, damage to the appliance, or personal injury.
- Ensure the vacuum cleaner is disconnected from the power supply before any installation or maintenance.
- Do not use the cable if it shows any signs of damage, such as cuts, fraying, or exposed wires.
- This cable is suitable only for vacuum cleaners with a power output of up to 4000 watts. Exceeding this limit may cause overheating or damage.
- Keep the cable away from water, heat sources, and sharp objects.
3. Product Overview

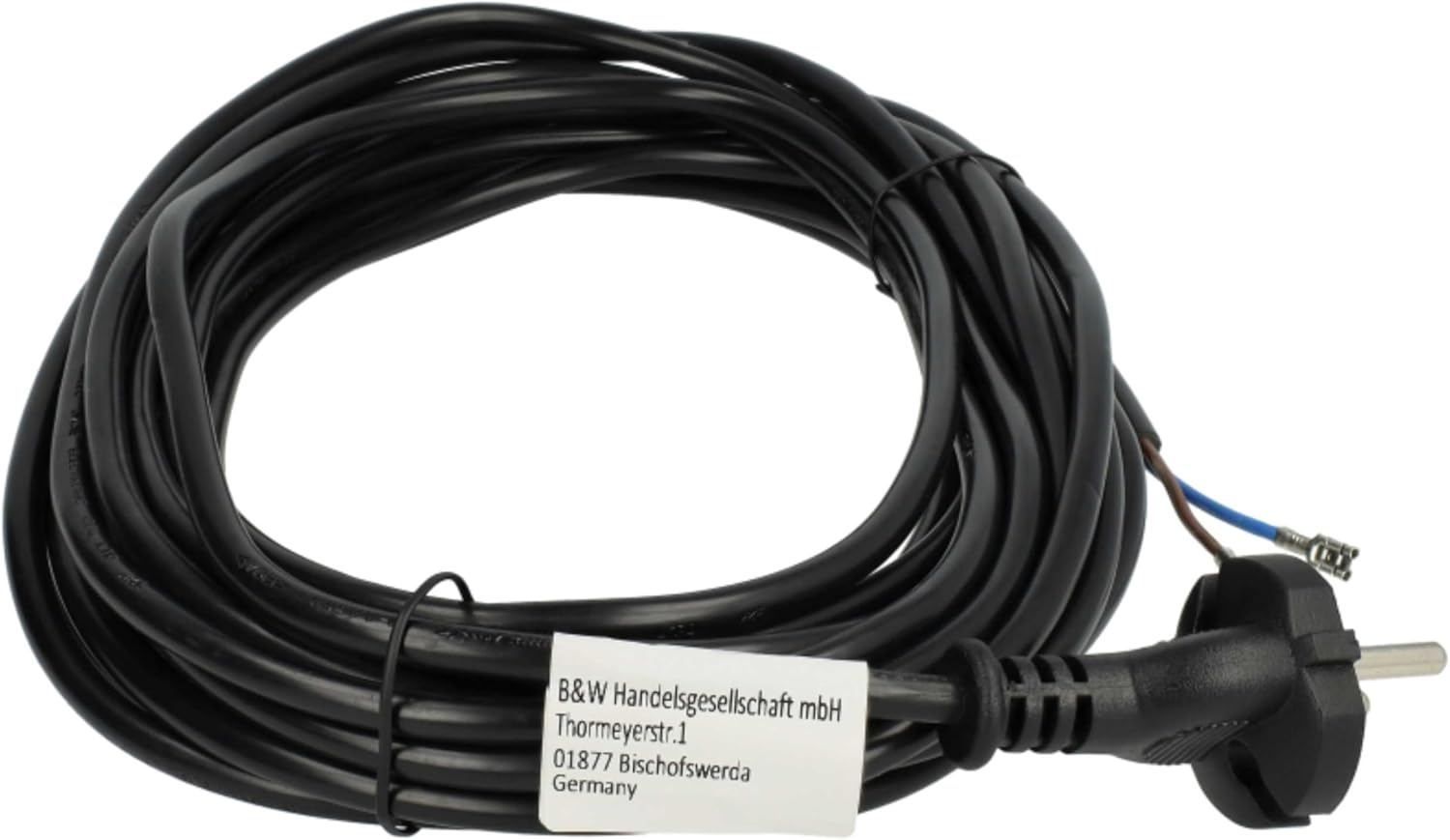

The vhbw power cable is a durable and flexible replacement designed for specific vacuum cleaner models. It features a standard contour plug on one end and two crimp cable lugs on the other for internal connection to the vacuum cleaner.
4. Setup / Installation
Important: As stated in the safety information, installation of this power cable must be performed by a qualified electrician. Attempting to install the cable without proper electrical knowledge can result in serious injury or damage.
Installation Steps (for Qualified Electricians):
- Disconnect Power: Ensure the vacuum cleaner is completely disconnected from any power source.
- Access Internal Wiring: Open the vacuum cleaner's housing to access the internal power connection points where the old cable was attached.
- Remove Old Cable: Carefully disconnect and remove the existing power cable, noting the wiring configuration.
- Connect New Cable: Connect the two crimp cable lugs (4.8 x 0.5 mm each) of the new vhbw cable to the corresponding internal terminals of the vacuum cleaner. Ensure a secure and correct connection. No soldering is required for these connectors.
- Secure Cable: Route the new cable through the designated cable entry point and secure it to prevent strain or accidental disconnection.
- Reassemble: Carefully reassemble the vacuum cleaner's housing.
- Test: Once fully reassembled, plug the contour plug into a suitable power outlet and test the vacuum cleaner's functionality.
5. Operating Instructions
Once the vhbw power cable is correctly installed by a qualified electrician, operating your vacuum cleaner remains unchanged. Simply plug the cable's contour plug into a compatible wall socket and use your vacuum cleaner as intended by its manufacturer.
- Ensure the power outlet matches the voltage and current requirements of your vacuum cleaner.
- Utilize the 15-meter length to reach desired areas without overstretching the cable or using extension cords unnecessarily.
- Avoid kinking or sharply bending the cable during use.
6. Maintenance
Proper maintenance extends the life of your power cable and ensures safe operation.
- Regular Inspection: Periodically inspect the entire length of the cable, especially near the plug and where it enters the vacuum cleaner, for any signs of wear, damage, or fraying.
- Cleaning: Wipe the cable with a dry or slightly damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners. Ensure the cable is dry before plugging it in.
- Storage: When not in use, coil the cable loosely. Avoid tight coiling or wrapping it around sharp objects, which can stress the insulation and conductors.
- Avoid Overloading: Do not use the cable with appliances that exceed its maximum rated power of 4000 watts.
7. Troubleshooting
If you experience issues after installing the vhbw power cable, consider the following:
- No Power:
- Check if the plug is fully inserted into the wall socket.
- Verify that the wall socket is functional by testing it with another appliance.
- Ensure the vacuum cleaner's power switch is in the 'ON' position.
- If the issue persists, there might be an internal wiring problem or a fault with the vacuum cleaner itself. Consult a qualified electrician or appliance repair technician.
- Intermittent Power:
- This could indicate a loose connection. Immediately disconnect the power and have a qualified electrician inspect the internal connections.
- Inspect the cable for any visible damage that might cause intermittent contact.
Do not attempt to repair the cable or internal wiring yourself if you are not a qualified electrician.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | vhbw |
| Model Number | VHBW4065705299902 |
| Cable Length | 15 meters |
| Color | Black |
| Max Current Strength | 16 A |
| Max Voltage (AC) | 250 V |
| Max Power Output | 4000 W |
| Wire Cross-section | 2 x 0.75 mm² |
| Cable Diameter | 6.5 mm |
| Plug Type | Contour plug (straight design) |
| Internal Connectors | 2 x crimp cable lugs (4.8 x 0.5 mm each) |
| Cable Sheath Material | Plastic |
| Number of Pins | 3 |
| Recommended Uses | Vacuum cleaner maintenance, replacement of damaged cable |
9. Compatibility
This vhbw power cable is compatible with the following vacuum cleaner series and models:
- Nilfisk AERO series
- Nilfisk ALTO series
- Nilfisk GD710
- Nilfisk GD930
Additionally, the cable is listed as compatible with:
- Kärcher WD3 200
- Kärcher T7/1
- Kärcher T9/1
- Kärcher WD5.600
Always verify the power requirements of your specific vacuum cleaner model against the cable's specifications before installation.
10. Warranty and Support
For warranty information or technical support regarding your vhbw power cable, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
