1. Introduction
Thank you for choosing the FLEXISPOT EB2 Electric Standing Desk. This manual provides essential information for the safe and efficient operation of your new height-adjustable desk. The EB2 is designed to enhance your workspace with its dual-motor lifting system, smart memory panel, and robust construction, promoting a healthier and more productive work environment.
2. Safety Information
2.1 General Safety Guidelines
- Ensure all connections are secure before operating the desk.
- Keep children and pets away from the desk during height adjustments.
- Do not overload the desk beyond its maximum weight capacity of 100 kg.
- Avoid placing liquids directly on the control panel or near electrical components.
- Only use the desk for its intended purpose as a workstation.
2.2 Anti-Collision Technology
The EB2 desk is equipped with an integrated anti-collision system. If the desk encounters an obstacle (soft or hard) during height adjustment, it will automatically stop and reverse slightly to prevent damage to the desk or objects. This feature enhances user safety and protects your belongings.
FLEXISPOT EB2 standing desk with a dark desktop, laptop, and plant in a modern office setting, demonstrating a typical setup.
An illustration comparing the desk's behavior with and without the anti-collision system, clearly showing how the integrated technology prevents damage by stopping and reversing upon contact with an obstacle.
3. Setup and Assembly
The FLEXISPOT EB2 desk frame is designed for straightforward assembly, typically taking less than one hour. A detailed instruction manual is included to guide you through each step. Ensure all components are present before beginning assembly. Refer to the included diagram for part identification.
An overview of the FLEXISPOT EB2 electric standing desk frame, showcasing its dual-leg design, integrated control panel, and included casters for mobility.

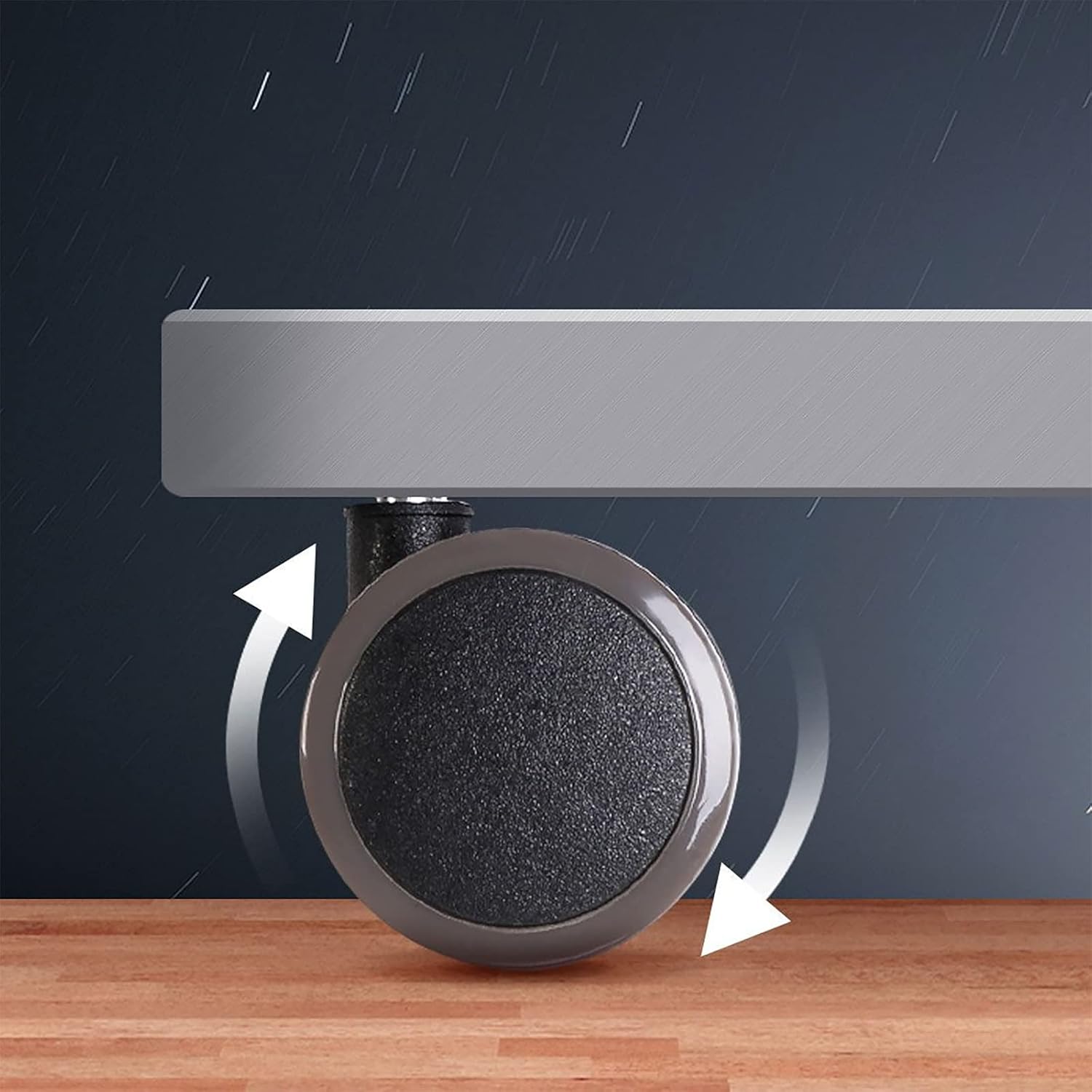

A detailed view of one of the desk's casters, highlighting its design for easy movement and stability.
An illustrative diagram detailing the adjustable dimensions of the FLEXISPOT EB2 desk frame, including its height range and the compatible desktop sizes it can accommodate.
4. Operating Instructions
4.1 Height Adjustment
The electric lifting system allows for smooth height adjustments from 70 cm to 119 cm (without casters). Use the up (^) and down (v) buttons on the control panel to adjust the desk to your desired height. The desk operates with a low noise level of less than 50 dB during movement.
4.2 Smart Memory Panel
The advanced all-in-one keypad features an LED screen and four programmable memory presets (1, 2, 3, 4). To save a preferred height:
- Adjust the desk to your desired height using the up/down buttons.
- Press and hold one of the memory buttons (1, 2, 3, or 4) until you hear a beep or see the display confirm the setting. The height is now saved.
- To recall a saved height, simply press the corresponding memory button.
A detailed image of the desk's control panel, featuring an LED display, up and down adjustment buttons, and four programmable memory settings for personalized height preferences.
A visual representation of the desk's dual-motor system, explaining how it provides enhanced stability, balance, and a robust 100 kg weight capacity for your workspace.
5. Maintenance
To maintain your FLEXISPOT EB2 desk, regularly wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Periodically check all screws and bolts to ensure they are tight. Do not overtighten. Keep the electrical components dry and free from dust.
6. Troubleshooting
- Desk not moving: Check all power connections. Ensure the power cord is securely plugged into both the desk and the wall outlet.
- Uneven movement: If the desk moves unevenly, check for any obstructions beneath the desk or ensure the weight is evenly distributed on the desktop.
- Error codes on display: Refer to the full instruction manual for specific error code meanings and solutions. Often, unplugging the desk for 10 seconds and plugging it back in can reset minor issues.
- Anti-collision system activating unexpectedly: Ensure there are no objects near the desk's path during adjustment. If the issue persists, contact customer support.
7. Specifications
| Brand | FLEXISPOT |
| Model | EB2 |
| Desk Design | Computer Desk |
| Shape | Rectangular |
| Height Adjustment Range | 70 cm to 119 cm (without casters) |
| Compatible Desktop Sizes | 120-180 cm (length) x 60-80 cm (width) |
| Maximum Load Capacity | 100 kg |
| Base Material | Alloy Steel |
| Color | Grey (frame) + Casters |
| Special Features | Ergonomic, Height Adjustable, Robust, Casters, Adjustable, Stable, Electric, Anti-collision Technology, Smart Memory Panel |
| Noise Level | < 50 dB |
The FLEXISPOT EB2 desk in a functional setup, featuring a dark desktop, a laptop, and a small plant, demonstrating its use as a complete workstation.
Another view of the FLEXISPOT EB2 desk with a dark desktop, showcasing its sleek design and ample workspace.
A technical diagram providing precise measurements for the desk's casters, including their diameter and stem dimensions, useful for understanding compatibility and replacement.
8. Warranty and Support
FLEXISPOT stands behind the quality of its products. The EB2 desk frame is covered by a 5-year warranty for the frame, motor, and other mechanical components. The controller, switch, and electronics are covered by a 2-year warranty.
For technical assistance, warranty claims, or further inquiries, please contact FLEXISPOT customer support. FLEXISPOT has over 20 years of expertise in height-adjustable technology, ensuring reliable product support.
A certificate from the IGR Institute, verifying that FLEXISPOT height-adjustable desks meet ergonomic standards and have passed usability tests, ensuring a high-quality and comfortable user experience.
