Midea MFD60S200X.1-IT Dishwasher Instruction Manual

1. Product Overview

The Midea MFD60S200X.1-IT is a freestanding dishwasher designed for efficient and thorough cleaning of your dishes. It features a spacious interior with a capacity for 14 place settings, offering flexibility for various load sizes. Equipped with an intuitive LED display and multiple wash programs, this appliance simplifies your daily dishwashing routine.

2. Installation

Proper installation is crucial for the safe and efficient operation of your dishwasher. This model is designed for freestanding installation, allowing flexibility in placement within your kitchen.

2.1 Dimensions and Placement

Ensure adequate space for the dishwasher, considering its dimensions. The appliance measures approximately 60 cm (width) x 59.8 cm (depth) x 84.5 cm (height). Allow sufficient clearance for water inlet, drain hoses, and electrical connections.

The dishwasher requires a standard 220V electrical connection. Ensure the water inlet and drain pipes are securely connected to the appropriate plumbing. The included components are the machine body, inlet pipe, drain pipe, screws, and a salt funnel.

2.2 Initial Setup

Before first use, it is recommended to add dishwasher salt and rinse aid according to the instructions in the full user manual to optimize washing and drying performance. Run an empty cycle to clean the interior before loading dishes.

3. Operating Instructions

The Midea MFD60S200X.1-IT dishwasher offers a range of programs and functions to suit various cleaning needs.

3.1 Control Panel and Programs

The dishwasher features an intuitive LED display and push-button controls for easy program selection and function activation. There are 8 wash programs available:

• Hygiene: Cleans and sanitizes heavily soiled dishes and kitchen utensils effectively with high-temperature water (approx. 70 ℃).
• Intensive: For heavily soiled items like pots, pans, and dishes with dried-on food.
• ECO: An energy-efficient program for normally soiled daily loads.
• Universal: A standard program for everyday mixed loads.
• Glass: Gentle program for delicate glassware.
• Silence: Operates at a lower noise level for quiet environments.
• 1 Hour: A quick program for lightly soiled dishes.
• Rapid: The fastest program for very lightly soiled items.

3.2 Special Functions

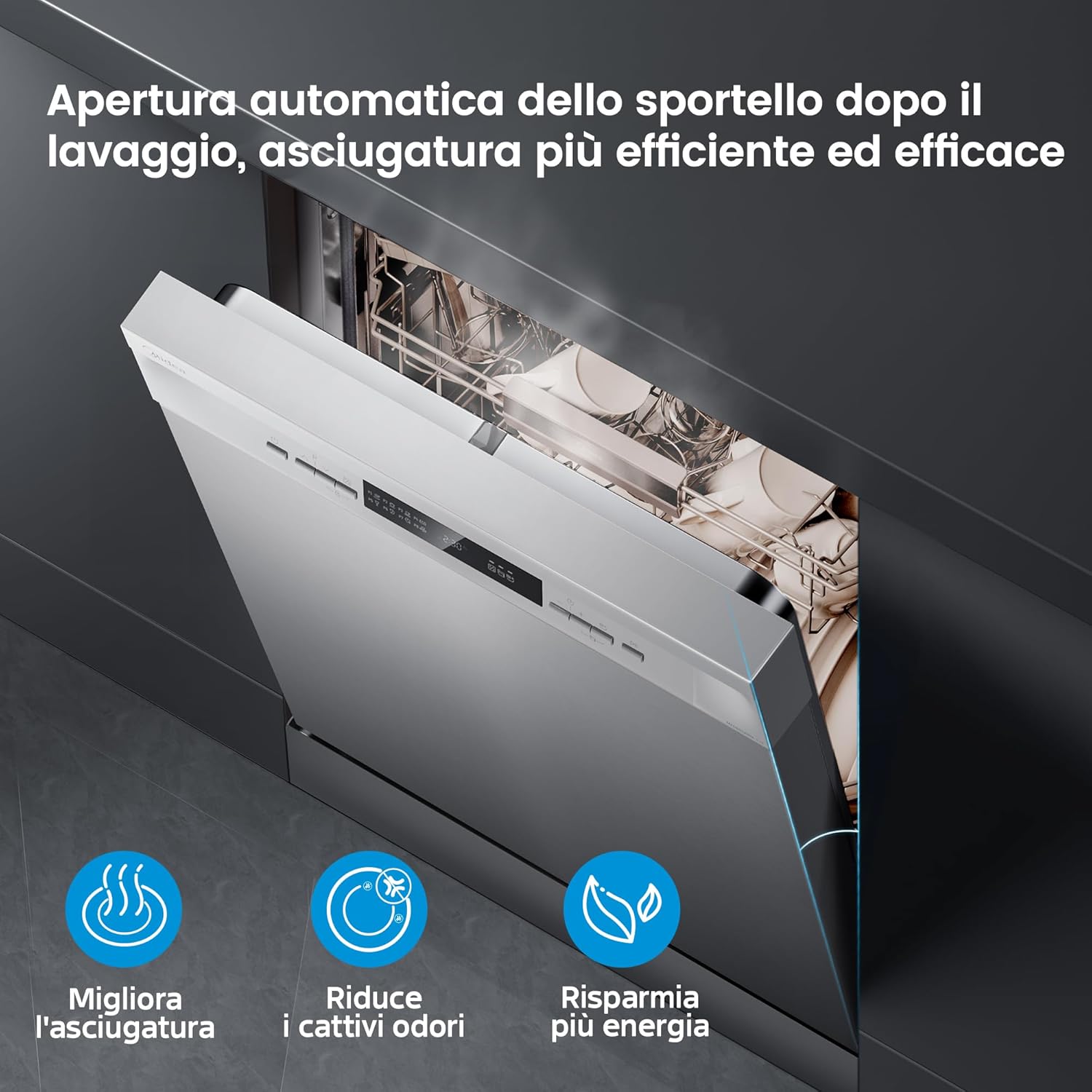

• Auto Door Open: This function automatically opens the dishwasher door at the end of the cycle to optimize drying performance and reduce odors. It can be deactivated if preferred.



• Delay Start: Allows you to set a timer to delay the start of the wash cycle from 1 to 24 hours, enabling you to run the dishwasher at off-peak hours or when convenient.
• Child Lock: This function protects children from unexpected accidents, such as scalding from steam during unintended openings.
• Half-Load Function: Optimizes water and energy consumption when washing smaller loads, ensuring efficient cleaning without wasting resources.
• Extra Drying: Provides additional drying time for dishes, ensuring more complete and spotless results.

3.3 Loading the Dishwasher

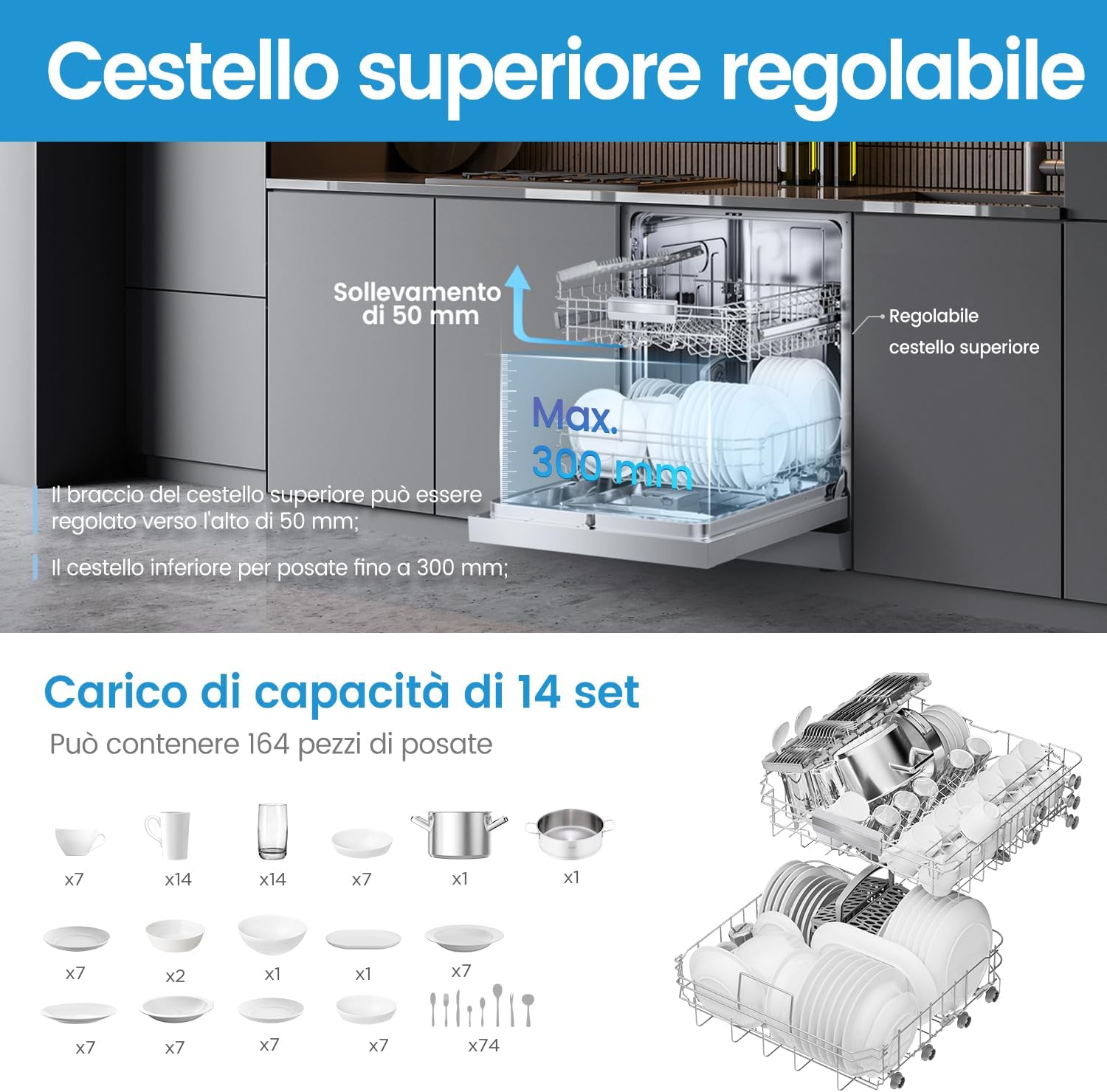

Proper loading ensures optimal cleaning results. The dishwasher features an adjustable upper basket and a lower basket designed for various dish sizes.

The upper basket can be adjusted to accommodate taller items in the lower basket. The lower basket is suitable for larger items like plates and pots, with space for cutlery up to 300mm.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Midea dishwasher.

4.1 Cleaning the Filter

The dishwasher is equipped with an ABT (Antibacterial) filter, which prevents the accumulation of microorganisms and bacteria inside the tub, ensuring a high level of health protection. Regularly clean the filter system to prevent blockages and ensure efficient washing.

4.2 Adding Salt and Rinse Aid

Monitor the indicator lights for dishwasher salt and rinse aid. Refill as necessary to ensure proper water softening and streak-free drying results.

5. Troubleshooting

If you encounter issues with your dishwasher, refer to the following general troubleshooting tips. For detailed solutions, consult the comprehensive user manual or contact customer support.

• Dishwasher not starting: Check power supply, ensure the door is fully closed, and verify that a program has been selected.
• Poor cleaning results: Ensure dishes are loaded correctly, spray arms are not blocked, and detergent dispenser is not obstructed. Check salt and rinse aid levels.
• Water not draining: Inspect the drain hose for kinks or blockages, and clean the filter system.
• Unusual noises: Check for foreign objects in the pump area or spray arms.

6. Specifications

Key technical specifications for the Midea MFD60S200X.1-IT Dishwasher:

7. Warranty and Support

Midea provides a warranty for this product. For specific details regarding warranty coverage, returns, and repairs, please refer to the terms and conditions provided at the time of purchase or visit the official Midea website.

For customer support, technical assistance, or to inquire about service, please contact Midea customer service. You can also find more information and support resources on the official Midea website: www.midea.com/it/.
