KRUPS Essential EA8105 Automatic Espresso Machine User Manual

1. Introduction

Thank you for choosing the KRUPS Essential EA8105 Automatic Espresso Machine. This appliance is designed to deliver a perfectly balanced coffee experience, from bean to cup. Equipped with advanced KRUPS Thermoblock technology, it ensures optimal temperature control for exceptional coffee flavor. This manual provides essential information for the safe and efficient use, setup, operation, and maintenance of your machine.

2. Safety Instructions

• Read all instructions carefully before using the appliance.
• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Ensure the voltage indicated on the appliance corresponds to your mains voltage.
• Keep the appliance out of reach of children.
• Unplug the appliance from the power outlet when not in use and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only original KRUPS accessories and spare parts.
• This appliance is for household use only.

3. Product Components

Figure 3.1: Front view of the KRUPS Essential EA8105 Automatic Espresso Machine, showing the bean hopper, control panel, coffee spouts, and steam nozzle.

• Bean Hopper: For whole coffee beans.
• Control Panel: Buttons and dial for various functions (on/off, coffee volume, steam).
• Water Tank: Removable tank for water.
• Coffee Spouts: Dispenses brewed coffee.
• Steam Nozzle: For frothing milk.
• Drip Tray: Collects excess liquid.
• Coffee Grounds Container: Collects used coffee grounds.
• Aqua Filter Claris Cartridge: Water filter for improved water quality.

Figure 3.2: Close-up view of the coffee spouts and steam nozzle, highlighting the dispensing area.

4. Setup

4.1 Unpacking

1. Carefully remove the machine and all accessories from the packaging.
2. Remove all protective films and packaging materials.
3. Place the machine on a stable, flat, heat-resistant surface, away from water splashes.

4.2 Water Tank and Aqua Filter Claris

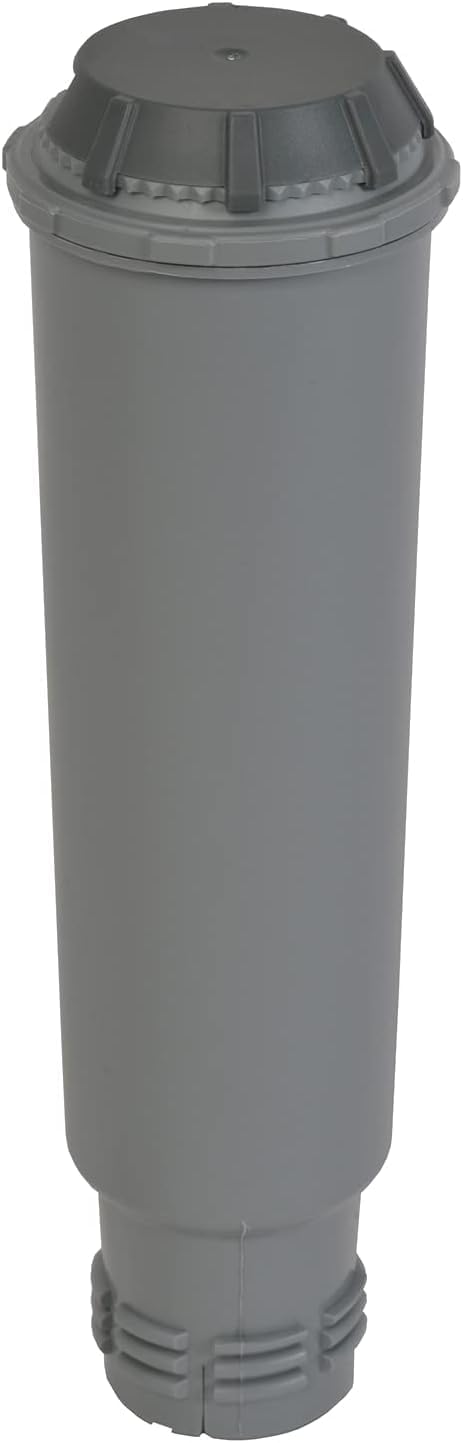

Figure 4.1: The Aqua Filter Claris water filter cartridge, designed to reduce chlorine and limescale.

1. Remove the water tank from the back of the machine.
2. If using the Aqua Filter Claris cartridge (included), prepare it according to its separate instructions (usually involves rinsing).
3. Insert the prepared filter into the water tank.
4. Fill the water tank with fresh, cold water up to the MAX level.
5. Place the water tank back into the machine, ensuring it is securely seated.

4.3 Bean Hopper

1. Open the lid of the bean hopper located on top of the machine.
2. Fill the hopper with whole coffee beans. Do not use ground coffee, instant coffee, or caramelized beans, as this can damage the grinder.
3. Close the lid securely.

4.4 First Use / Priming

1. Plug the machine into a grounded power outlet.
2. Turn on the machine using the power button.
3. The machine will perform an initial rinse cycle. Follow any on-screen prompts or indicator lights.
4. Place a container under the coffee spouts to collect the water.
5. Once the rinse cycle is complete, the machine is ready for use.

5. Operating Instructions

5.1 Making Espresso/Coffee

1. Ensure the water tank is filled and the bean hopper contains coffee beans.
2. Place one or two cups under the coffee spouts.
3. Use the central dial to select your desired coffee volume (e.g., 20ml to 220ml).
4. Press the coffee button (single or double cup, depending on model) to start brewing.
5. The machine will grind the beans, tamp, and extract the coffee. Brewing will stop automatically.

5.2 Adjusting Coffee Strength

The coffee strength can typically be adjusted by changing the grinding fineness (if available on your model) or by selecting a smaller coffee volume for a more concentrated shot.

5.3 Steam Nozzle / Milk Frothing

1. Fill a pitcher with cold milk (dairy or non-dairy).
2. Position the steam nozzle into the milk, just below the surface.
3. Activate the steam function (refer to your machine's specific button/dial for steam).
4. Move the pitcher up and down to create foam.
5. Once desired texture is achieved, turn off the steam function.
6. Important: Immediately clean the steam nozzle after each use to prevent milk residue buildup.

6. Maintenance

6.1 Daily Cleaning

• Empty and rinse the drip tray and coffee grounds container.
• Wipe down the exterior of the machine with a damp cloth.
• Clean the steam nozzle thoroughly after each use.

6.2 Descaling

The machine features an automatic cleaning and descaling program. The 'CALC' indicator light will illuminate when descaling is required. Follow the instructions provided by the machine's display or indicator lights for the descaling process. Use only KRUPS descaling solution.

6.3 Aqua Filter Claris Replacement

The Aqua Filter Claris cartridge should be replaced approximately every 2-3 months, or as indicated by the machine. Regular filter replacement helps maintain water quality and reduces limescale buildup.

7. Troubleshooting

• No coffee dispensed: Check water tank level, ensure beans are in the hopper, check for blockages in coffee spouts.
• Weak coffee: Adjust coffee volume to a smaller setting, check bean freshness, ensure grinder is not clogged.
• Machine not turning on: Check power connection, ensure plug is fully inserted into the outlet.
• Leaking: Ensure water tank is correctly seated, check drip tray for overflow.
• Error messages: Refer to the machine's display or indicator lights for specific error codes and consult the full manual or KRUPS support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official KRUPS website. For technical support, spare parts, or service, please contact KRUPS customer service in your region. Keep your proof of purchase for warranty claims.
