1. Introduction
This manual provides essential instructions for the safe and effective use of your MAXDONE 100W Hot Glue Gun Kit. Please read this manual thoroughly before operation and retain it for future reference. This hot glue gun is designed for various applications including DIY projects, craft creations, and general repairs.
2. Safety Instructions
Your safety is paramount. Please observe the following precautions:
- Always wear appropriate safety gear, such as gloves and eye protection, when operating the glue gun.
- The nozzle and melted glue reach high temperatures (approximately 248°F to 320°F / 120°C to 160°C). Avoid direct contact with skin to prevent severe burns. Do not touch the hot glue with bare hands.
- Ensure the glue gun is placed on its stable stand when not in use to prevent accidental contact with hot surfaces or tipping.
- Do not leave the hot glue gun unattended while powered on.
- Keep out of reach of children and pets.
- Use only compatible glue sticks (0.43 inches / 11mm diameter) to prevent damage to the tool and ensure proper operation.
- Do not attempt to remove a partially melted glue stick from the rear of the gun.
- Unplug the glue gun from the power outlet when not in use or before performing any maintenance.
- The glue gun features a heat and fire-resistant body, an insulated cap on the nozzle, and a built-in fuse for enhanced safety. However, these features do not eliminate the need for careful handling.
3. Product Overview
The MAXDONE 100W Hot Glue Gun is a full-size, heavy-duty tool designed for efficient and precise adhesive application. It features a powerful 100W heating element for rapid preheating and high glue output.
Image: Overview of the MAXDONE 100W Hot Glue Gun components and features.
Key Components:
- Nozzle: Dispenses melted glue. Features an anti-scald silicone cover.
- Trigger: Controls the flow of glue. Designed with an extended, ergonomic grip for comfort.
- Power Switch: ON/OFF button for safe operation without unplugging.
- Stable Stand: Integrated metal stand to safely rest the hot glue gun.
- Glue Stick Inlet: Located at the rear for inserting glue sticks.
- Power Cord: 55-inch cord for electrical connection.
Features:
- 100W Power: Ensures fast heating (approximately 3 minutes) and high glue output.
- Compatibility: Uses 0.43-inch (11mm) diameter glue sticks.
- Safety Design: Constructed from heat and fire-resistant materials, includes an insulated nozzle cap and a built-in fuse.
- Ergonomic Trigger: Extended design reduces hand fatigue during prolonged use.
- Replaceable Nozzle: The nozzle can be replaced with various copper nozzles (sold separately) for different application needs.
Image: Comparison of heating and glue output performance for different wattage glue guns.
4. Setup
Follow these steps to prepare your glue gun for use:
- Insert a 0.43-inch (11mm) diameter glue stick into the circular opening at the rear of the glue gun. Push it gently until it stops.
- Unfold the metal stand and position the glue gun on a flat, heat-resistant surface, ensuring the nozzle is not touching the surface.
- Plug the power cord into a standard 110V electrical outlet.
- Flip the ON/OFF switch to the 'ON' position. The indicator light will illuminate, signifying that the glue gun is heating up.
Image: MAXDONE Hot Glue Gun with compatible glue sticks.

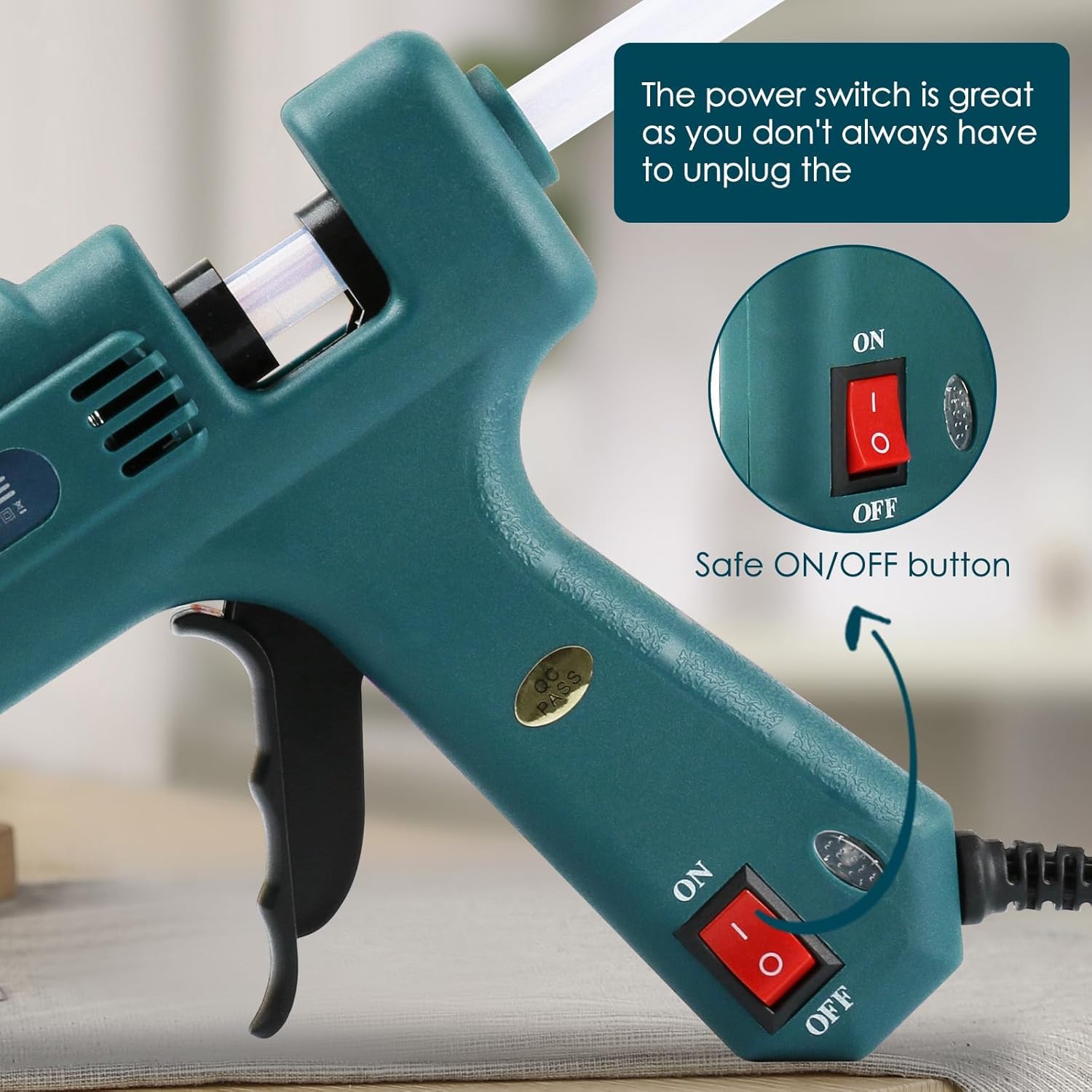

Image: Detail of the ON/OFF power switch.
5. Operating Instructions
Once the glue gun is set up and heated, you can begin your project:
- Allow approximately 3 minutes for the glue gun to reach its operating temperature. The 100W heating element ensures quick readiness.
- Gently squeeze the trigger to advance the glue stick and dispense melted glue from the nozzle. Apply glue to the desired surface.
- Release the trigger to stop the glue flow. The extended trigger design allows for precise control.
- Immediately press the two surfaces together firmly for several seconds to ensure a strong bond. Hot glue sets quickly.
- When taking a break or finishing your work, place the glue gun on its stand. For longer breaks or when finished, switch the power button to 'OFF' and unplug the unit.
Image: Examples of wide application for the hot glue gun in crafts and DIY.
Image: Detail of the ergonomic extended trigger.
6. Maintenance
Proper maintenance ensures the longevity and performance of your glue gun:
- Cleaning the Nozzle: After the glue gun has cooled completely, any excess dried glue around the nozzle can be carefully removed. Do not attempt to clean the nozzle while the gun is hot.
- Replacing Nozzles: If you wish to replace the standard nozzle with a specialized copper nozzle (not included), ensure the glue gun is unplugged and completely cool. Carefully remove the silicone sleeve, loosen the existing nozzle with a screw, remove it, and then tighten the replacement nozzle. Reattach the silicone sleeve.
- Storage: Store the cooled glue gun in a dry, safe place, away from direct sunlight and extreme temperatures. Ensure no glue sticks are left partially melted in the gun during storage if it will not be used for an extended period.
- Glue Sticks: Always use high-quality, non-toxic, crystal clear, odorless glue sticks of 0.43-inch (11mm) diameter for optimal performance and to prevent clogging.
Image: Instructions for replacing the glue gun nozzle.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
- Glue not dispensing or slow flow:
- Ensure the glue gun is fully heated. Allow the full 3 minutes for preheating.
- Check if the glue stick is fully inserted and not jammed.
- Verify the power connection and that the ON/OFF switch is in the 'ON' position.
- Glue gun not heating:
- Confirm the power cord is securely plugged into a working outlet.
- Check the ON/OFF switch is in the 'ON' position.
- If the issue persists, the internal fuse may have tripped. Contact customer support.
- Excessive dripping:
- Ensure the glue gun is at its optimal operating temperature. Sometimes slight dripping occurs during initial heating or if the gun is overheated.
- Use the stable stand to catch any minor drips.
- If dripping is continuous and excessive, ensure you are using compatible glue sticks.
8. Specifications
Detailed specifications for the MAXDONE 100W Hot Glue Gun Kit (Model GGC00144):
- Brand: MAXDONE
- Model Number: GGC00144
- Power Source: Corded Electric
- Wattage: 100W
- Voltage: 110V
- Compatible Glue Stick Diameter: 0.43 inches (11mm)
- Warm-up Time: Approximately 3 minutes
- Operating Temperature: 248°F to 320°F (120°C to 160°C)
- Product Dimensions: 7.6"L x 1.18"W x 7.1"H
- Item Weight: 1.26 pounds
- Material: Aluminum (nozzle), Heat and fire-resistant plastic (body)
- Cord Length: 55 inches

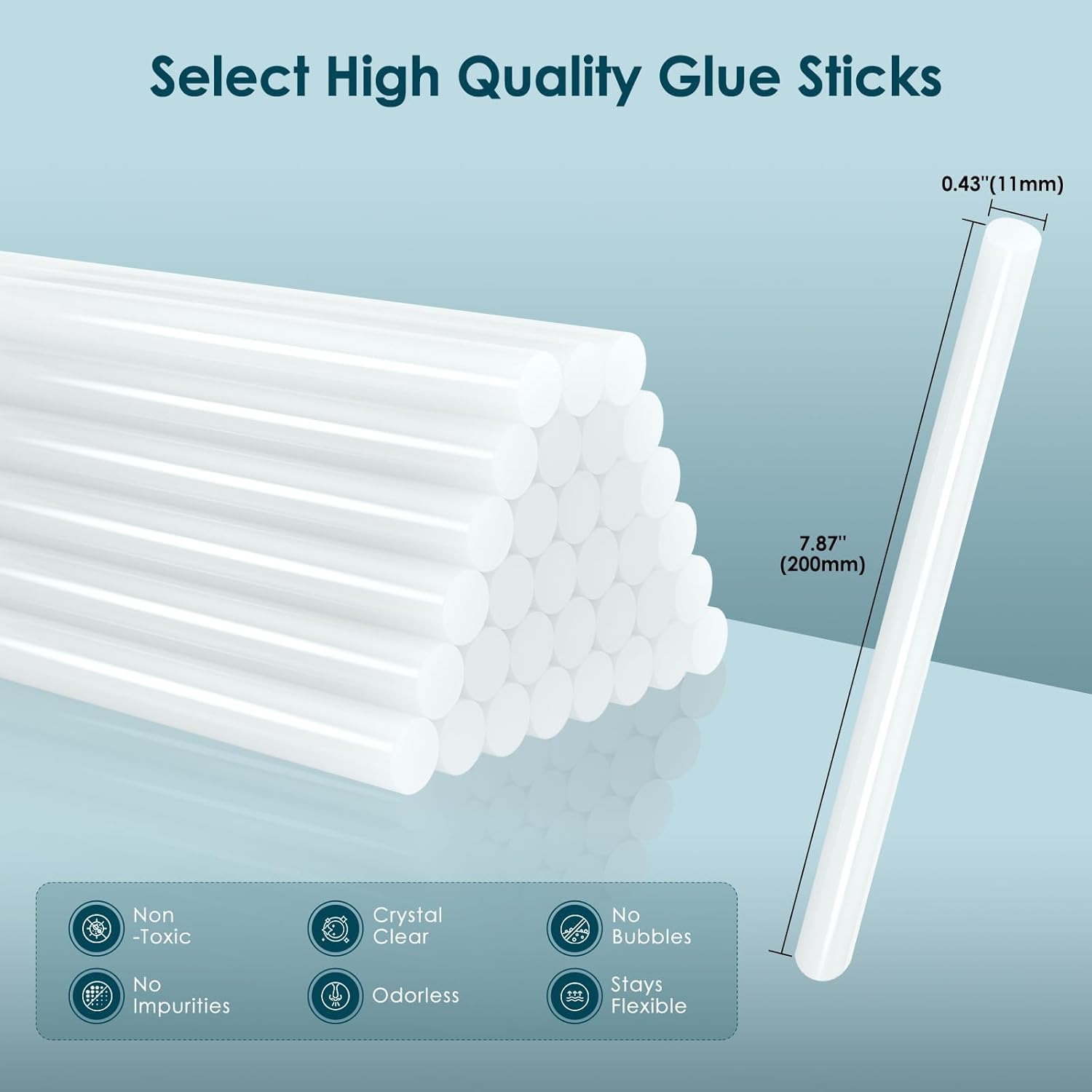

Image: Specifications of compatible glue sticks.
9. Warranty and Support
MAXDONE is committed to providing high-quality products. This MAXDONE 100W Hot Glue Gun Kit is covered by a 2-year warranty. We also offer lifetime technical support for our products. For warranty claims, technical assistance, or any questions, please contact MAXDONE customer service through the retailer's platform or refer to the contact information provided with your purchase.
