ZAFRO 6-Quart 1500W Electric Air Fryer Instruction Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Please read all instructions carefully before operating this appliance.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the air fryer is placed on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation from the rear vent.

Product Overview

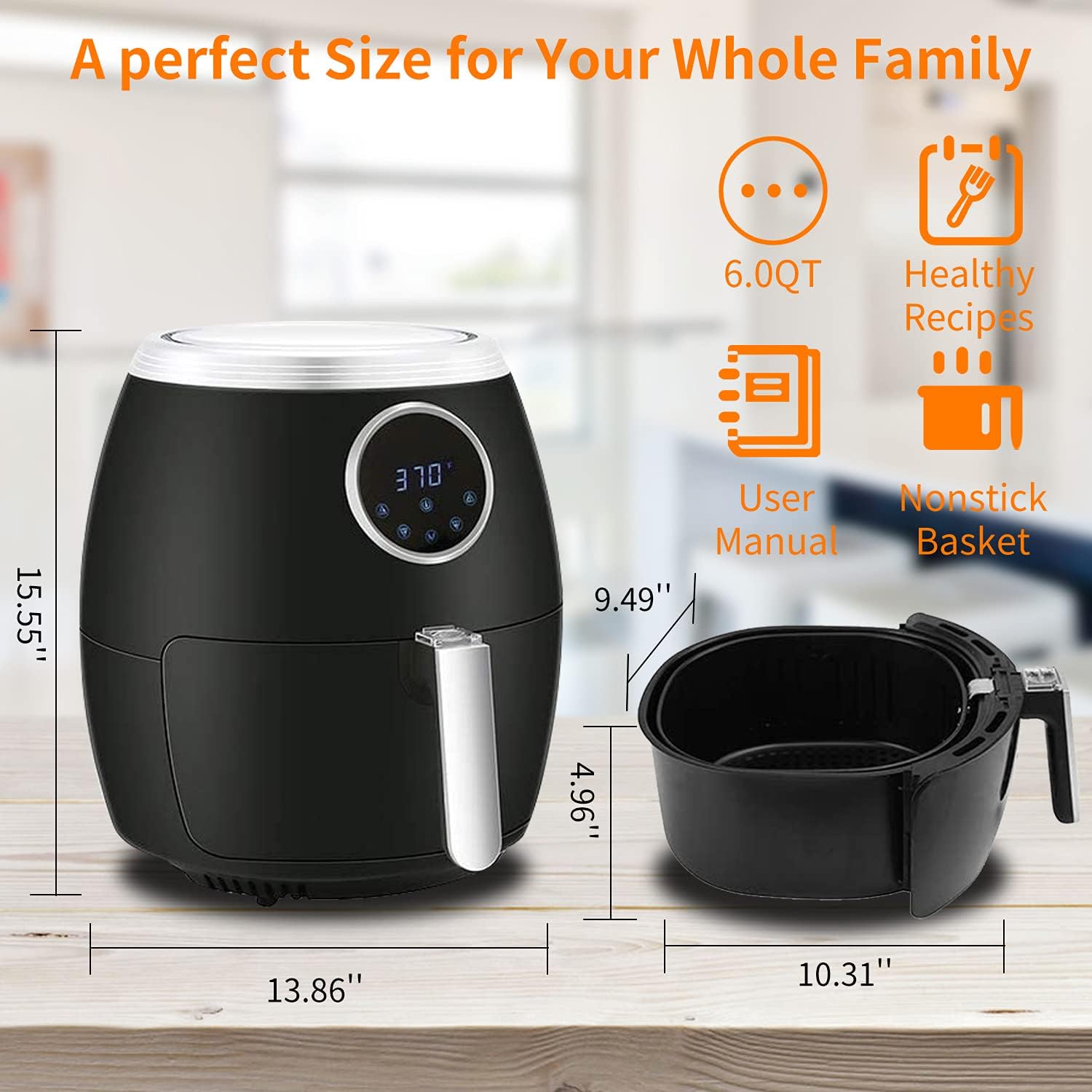

The ZAFRO 6-Quart Electric Air Fryer is designed for efficient and healthy cooking, utilizing 360° air circulation technology. It features a spacious 6-quart capacity, suitable for serving 3-6 people, and operates at 1500 Watts.

Key components include:

• Main Unit: Houses the heating element and fan.
• Control Panel: LED display with touch controls for time, temperature, and presets.
• Frying Basket: A removable, nonstick basket for holding food during cooking.
• Crisper Plate: Sits inside the frying basket to allow air circulation around food.

Setup

1. Unpack: Remove all packaging materials, stickers, and labels from the air fryer.
2. Clean: Wash the frying basket and crisper plate with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 6 inches (15 cm) of clear space around the back and sides of the appliance to allow for proper ventilation.
4. Preheat (Optional): For best results, it is recommended to preheat the air fryer for 3-5 minutes before adding food.

Operating Instructions

The ZAFRO Air Fryer features an intuitive LED touch control panel for easy operation.

1. Power On: Plug the air fryer into a grounded electrical outlet. The display will illuminate. Press the Power Button (2) to turn the unit on.
2. Set Temperature and Time: Use the Temperature controls (3) to adjust the cooking temperature and the Time controls (5) to set the cooking duration. The current settings will be shown on the Time/Temperature Display (1).
3. Use Presets: The air fryer comes with 7 built-in presets for common foods. Press the Menu button (4) to cycle through the available presets. Each preset has a default time and temperature, which can be adjusted manually if needed.
4. Start Cooking: Once the desired settings are selected, press the Power Button (2) again to start the cooking cycle.
5. Pause/Resume: To pause cooking, pull out the frying basket. The air fryer will automatically pause. Insert the basket back into the unit to resume cooking.
6. End Cooking: The air fryer will beep when the cooking cycle is complete. You can also press and hold the Power Button (2) to manually stop cooking at any time.

7-in-1 Multiple Cooking Presets

The ZAFRO Air Fryer offers convenient presets for various dishes, simplifying your cooking process.

These presets are designed to provide optimal results for specific food types. You can always adjust the time and temperature to suit your personal preferences or specific recipe requirements.

Cooking Tips

The 360° air circulation technology ensures even cooking and a crispy finish with significantly less oil.

• For best results, shake the basket halfway through the cooking time for foods like fries, chicken nuggets, or other small items to ensure even browning.
• Lightly spray or brush food with oil for extra crispiness, especially for fresh vegetables or homemade fries.
• Do not overfill the basket. Overfilling can prevent food from cooking evenly and becoming crispy.
• Smaller food items generally require shorter cooking times than larger items.

Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your ZAFRO Air Fryer and ensure optimal performance.

1. Unplug and Cool: Always unplug the air fryer and allow it to cool completely before cleaning.
2. Clean Basket and Crisper Plate: The nonstick frying basket and crisper plate are dishwasher safe. Alternatively, they can be washed by hand with hot water, dish soap, and a non-abrasive sponge. Avoid using metal utensils or abrasive cleaning materials, as this can damage the nonstick coating.
3. Clean Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh or abrasive cleaners.
5. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

Troubleshooting

If you encounter any issues with your ZAFRO Air Fryer, refer to the following common problems and solutions:

• Appliance does not turn on: Ensure the power cord is securely plugged into a grounded outlet. Check if the power button has been pressed.
• Food is not cooked evenly: Do not overfill the basket. Shake or flip food items halfway through cooking. Ensure the crisper plate is correctly inserted.
• Food is not crispy: Ensure the temperature is set correctly. Lightly brush or spray food with oil. Cook in smaller batches if necessary.
• White smoke coming from the appliance: This is usually caused by grease residue from previous use. Clean the basket and crisper plate thoroughly after each use. If cooking fatty foods, excess oil may drip into the drawer.
• Appliance emits a burning smell: Unplug immediately. Check for any food debris stuck in the heating element or basket. Clean thoroughly.

If the problem persists after checking these points, please contact customer support.

Product Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your product at the time of purchase. You may also visit the official ZAFRO website for further assistance, FAQs, and contact details.
