Product Overview
The Hyper Tough Tape Measure provides accurate measurements for any project. The large print includes a fractional read and a continuous scale with foot-inch markings for quick and easy measurements. This features 16-inch markings for framing and 19.2-inch markings for truss layout. A durable blade lock keeps the blade where you want it and keeps your tape measure handy. The Zero-Read tip ensures accurate measurements for both inside and outside situations. It should be your go to measuring device.
Figure 1: Front view of the Hyper Tough 25' Tape Measure.
Key Features
- Nylon Blade for Smooth Operation and Improved Life
- Integrated Belt Clip
- Push Down Blade Lock
- Fractional and Continuous Read Scales for Quick, Accurate Measurements

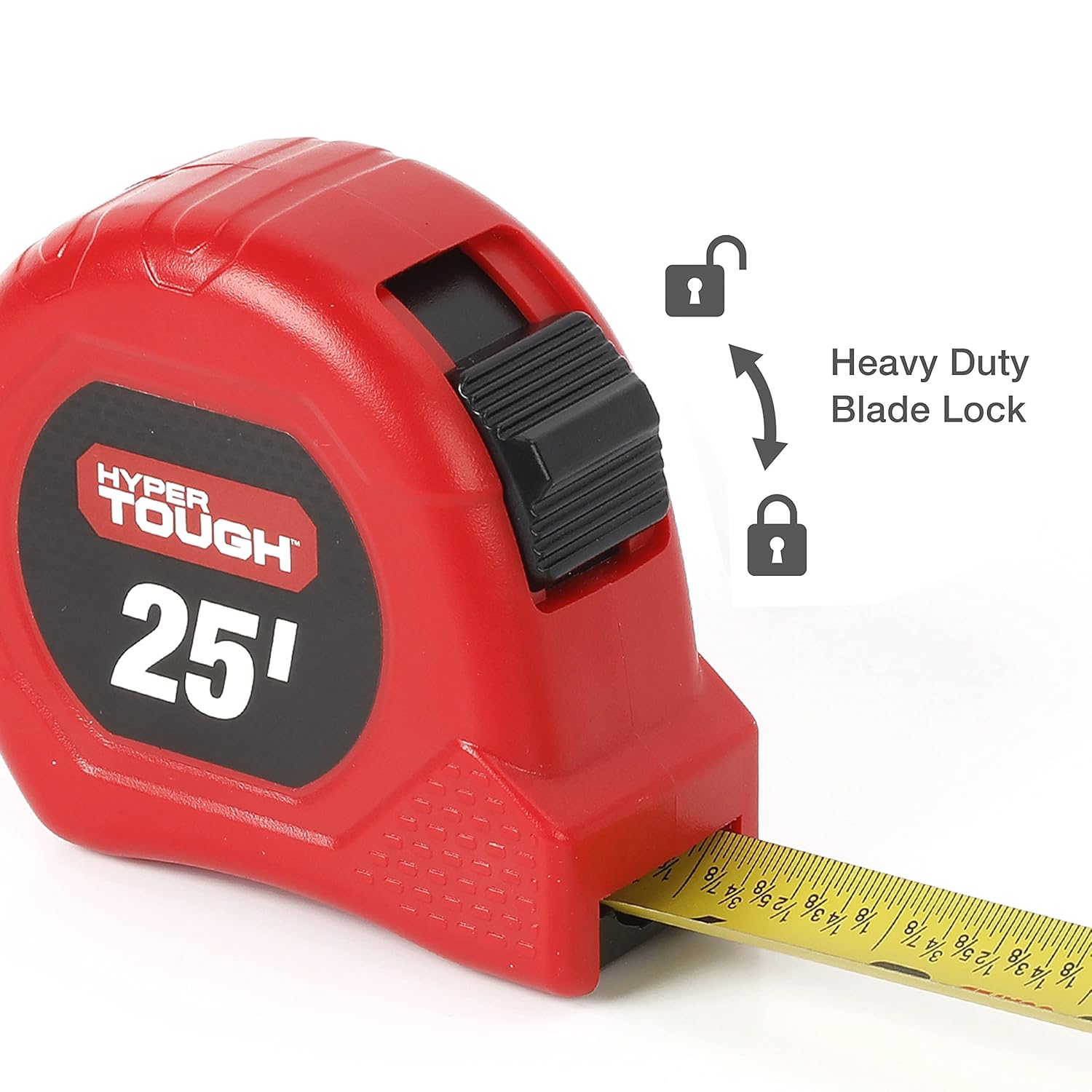

Figure 2: Detail of the heavy-duty blade lock mechanism.
Figure 3: Integrated spring steel belt clip for convenient carrying.
Figure 4: Blade with clear fractional markings for precise measurements.
Setup
The Hyper Tough 25' Tape Measure requires no assembly. Upon unboxing, inspect the tape measure for any visible damage. Ensure the blade extends and retracts smoothly and that the blade lock engages properly. The belt clip is pre-attached and ready for use.
Operating Instructions
Extending and Retracting the Blade
- To extend the blade, simply pull the end of the tape measure from the casing. The blade will extend freely.
- To retract the blade, release your grip on the blade. The internal spring mechanism will automatically pull the blade back into the casing.
Using the Blade Lock
- Extend the blade to the desired length.
- Push the black locking switch located on the top of the casing forward to engage the blade lock. This will hold the blade firmly in place.
- To release the lock, pull the black locking switch backward. The blade will then retract.
Figure 5: Engaging the blade lock to secure measurements.
Reading Measurements
- The blade features both continuous scale and fractional markings for easy reading.
- Foot-inch markings are clearly indicated.
- Special 16-inch markings are provided for framing, and 19.2-inch markings for truss layout.
- The Zero-Read tip allows for accurate inside and outside measurements. For inside measurements, butt the tip against the surface. For outside measurements, hook the tip over the edge of the object.
Figure 6: Clear and easy-to-read measurement markings on the blade.
Figure 7: Using the tape measure for accurate marking.
Figure 8: Applying the tape measure for wall measurements, highlighting special markings.
Care and Maintenance
- Keep the tape measure clean and free of debris. Wipe the blade with a dry cloth after use.
- Avoid exposing the tape measure to excessive moisture or extreme temperatures, as this can affect its accuracy and durability.
- Store the tape measure in a dry place when not in use.
- Do not force the blade if it becomes stuck; gently pull it out and retract it to clear any obstructions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Blade does not retract fully. | Debris inside the casing or a kink in the blade. | Gently extend the blade fully and retract it several times. Ensure the blade is clean. Do not attempt to open the casing. |
| Blade lock does not engage. | Debris obstructing the locking mechanism. | Ensure the locking switch is clear of obstructions. Gently operate the switch back and forth. |
| Inaccurate measurements. | Damaged blade tip or improper use of the Zero-Read tip. | Check the blade tip for bends or damage. Ensure the Zero-Read tip is correctly hooked or butted against the surface for measurements. |
Product Specifications
| Specification | Detail |
|---|---|
| Brand | Hyper Tough |
| Model Number | 20408 |
| Blade Length | 25 Feet |
| Blade Material | Nylon-Coated |
| Features | Belt Clip, Push Down Blade Lock, Fractional Read, Continuous Scale |
| Color | Black, Red |
| Item Weight | 0.34 Kilograms (11.85 ounces) |
| Package Dimensions | 5.87 x 3.94 x 1.61 inches |
Warranty and Support
For information regarding warranty coverage or technical support for your Hyper Tough 25' Tape Measure, please refer to the product packaging or contact Hyper Tough customer service directly. Contact details are typically available on the manufacturer's official website or included with the product documentation.
