Blutoget WE12M29 Dryer Drum Drive Belt Instruction Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the Blutoget WE12M29 Dryer Drum Drive Belt. This component is essential for the proper functioning of your dryer, ensuring the drum rotates to tumble clothes effectively.

The drive belt is a long, slender belt that wraps around the dryer drum, a tension pulley, and then around the drive motor pulley. Its primary function is to transmit power from the motor to the drum, allowing it to spin.

2. Product Specifications

• Part Numbers: WE12M29, WE03X29897, WE12X21574 (replaces 137292700, WE12M22, 4975431, AP7012633, PS16542496, EAP16542496, WE12M0022, WE12M33, WE21M29, 559C197P005, 559C197P004, 4 PH 2275 SH210T, 254C1413P002)
• Length: Approximately 89.5 inches (227.3 cm)
• Width: Approximately 0.23 inches
• Ribs: 4 ribs
• Grooves: 3 grooves
• Material: Durable Rubber

Package Includes: 1 x WE12M29 Dryer Drum Drive Belt.

3. Compatibility

The Blutoget WE12M29 Dryer Drum Drive Belt is compatible with a wide range of GE, Hotpoint, and Kenmore dryer models. Please verify your dryer's model number against the list below or consult your dryer's original manual to ensure compatibility.

Compatible GE Dryer Models:

• GFD40ESCM1WW, VTD52EASR0WB, NTX62G8ST0WW, PTD60EBPR1DG, PTD60GBSR1WS, GTD45GASJ3WS, GTX42GASJ3WW, GTX33GASK1WW, GTDP301EL0WS, GFV40ESCM1WW, GFD45ESSM1WW, GHDP490GF1WW, GTD48GASW0WB, GTD38GASW0WS, GTD38EASW0WS, GTD48EASW0WB, GTX38GASW0WS, GTX38EASW0WS, ETD48GASW0WB, ETD48EASW0WB, GTD58EBSV1WS, VTD52EASR1WB, 5TX62E9ST1WS, XTD72E8ST1WS, PTD60EBPR2DG, VTD56EASV1WB, NTX62E8ST1WW, PTD60EBSR2WS, GTD58GBSV0WS, GTD58EBSV0WS, BWXR473ET0WW, BWXR473ET2WW, BWXR473ET3WW, BWXR473GT0WW, BWXR473GT2WW, BWXR473GT3WW, BWXR473GT5WW, DBB3300EA0AA, DBB3300EA0WW, DBB3300EA1AA, DBB3300EA1WW, DBB3300GA0AA, DBB3300GA0WW, DBB3300GA1AA, DBB3300GA1WW
• DBB3300GA2AA, GTD42GASJ1WW, GTD45EASJ0WS, GTD45EASJ2WS, GTD45GASJ2WS, GTD65EBSJ2WS, GTD65EBSJ3WS, GTD65EBSJ4WS, GTD65GBSJ0WS, GTD65GBSJ3WS, GTD75ECPL1DG, GTDP180ED2WW, GTDP180GD0WW, GTDP200EF1WS, GTDP200EF2WS, GTDP200EF4WS, GTDP220EF1WW, GTDP220EF3WW, GTDP220EF4WW, GTDP220EF5WW, GTDP280GD0WW, GTDP300EM1WS, GTDP490ED0WS, GTDP490ED2WS, GTDP490ED5WS, GTDP490GD1WS, GTDP490GD2WS, GTDP490GD4WS, DBB3300GA2WW, DBB5000EF0GG, DBB5000GF0GG, DBB5000GF1GG, DBLR333EE0CC, DBLR333EE0WW, DBLR333EE1CC, DBLR333EE1WW, DBLR333EE2CC, DBLR333EE2WW, DBLR333EG0CC, DBLR333EG0WW, DBLR333EG1CC, DBLR333EG1WW, DBLR333EG2CC, DBLR333EG2WW, DBLR333EG3CC, DBLR333EG3WW, DBLR333EG4CC, DBLR333EG4WW
• DBB3300GA2AA, DBB3300GA2WW, DBB5000EF0GG, DBB5000GF0GG, DBB5000GF1GG, DBLR333EE0CC, DBLR333EE0WW, DBLR333EE1CC, DBLR333EE1WW, DBLR333EE2CC, DBLR333EE2WW, DBLR333EG0CC, DBLR333EG0WW, DBLR333EG1CC, DBLR333EG1WW, DBLR333EG2CC, DBLR333EG2WW, DBLR333EG3CC, DBLR333EG3WW, DBLR333EG4CC, DBLR333EG4WW, DBLR333EG5CC, DBLR333EG5WW, DBLR333EG6CC, DBLR333EG6WW

Compatible Hotpoint Dryer Models:

• HTDP120ED0WW, HTDP120ED3WW, HTDP120ED4WW, HTDP120ED5WW, HTDP120ED6WW, HTDP120GD0WW, HTDP120GD2WW, HTDP120GD3WW, HTDX050PM1WW

Compatible Kenmore Dryer Models:

• 2661532110, 2661532210, 2661532211, 2661532513, 26715321, 2671532110, 2671532210, 2671532212, 2671532311, 2661532312, 2661532412, 2661532413, 363.6153241, 36361532110, 36361532412, 36361542, 36361542211, 36361542310, 36361542410, 36361542411, 36371532110, 36371542, 36371542211, 36371542310, 36371542410

4. Installation Instructions

Safety First: Before attempting any repair or installation, always unplug the dryer from its power source to prevent electrical shock.

1. Access the Dryer Interior: Depending on your dryer model, you may need to remove the top panel, front panel, or rear panel to access the drum and belt assembly. Refer to your specific dryer's service manual for detailed disassembly instructions.
2. Remove the Old Belt: Locate the old dryer drum drive belt. It typically wraps around the drum, a tension pulley (also known as an idler pulley), and the motor pulley. Carefully remove the old belt. Note its routing for reference during new belt installation.
3. Position the New Belt: Place the new WE12M29 belt around the dryer drum. Ensure it is centered and flat on the drum's surface.
4. Route the Belt: Route the belt around the motor pulley and the tension pulley. The tension pulley often has a locking position that allows you to pre-position the arm locked and loaded before installing the drum and belt.
5. Apply Tension: Once the belt is correctly routed around the drum, motor pulley, and tension pulley, release the tension arm from its locked position (if applicable). This will apply the necessary tension to the belt. Ensure the belt is taut and properly seated in the grooves of the pulleys. If the tension arm is not released, the belt may slip.
6. Verify Rotation: Manually rotate the dryer drum a few times to ensure the belt is properly aligned and moves smoothly without slipping or binding.
7. Reassemble the Dryer: Reattach any panels or components that were removed during disassembly. Ensure all screws and fasteners are securely tightened.
8. Test the Dryer: Plug the dryer back into the power source and run a short cycle to confirm proper operation. Listen for any unusual noises and observe if the drum tumbles correctly.

For visual guidance, you may find installation videos on platforms like YouTube by searching for "dryer belt replacement [your dryer model number]".

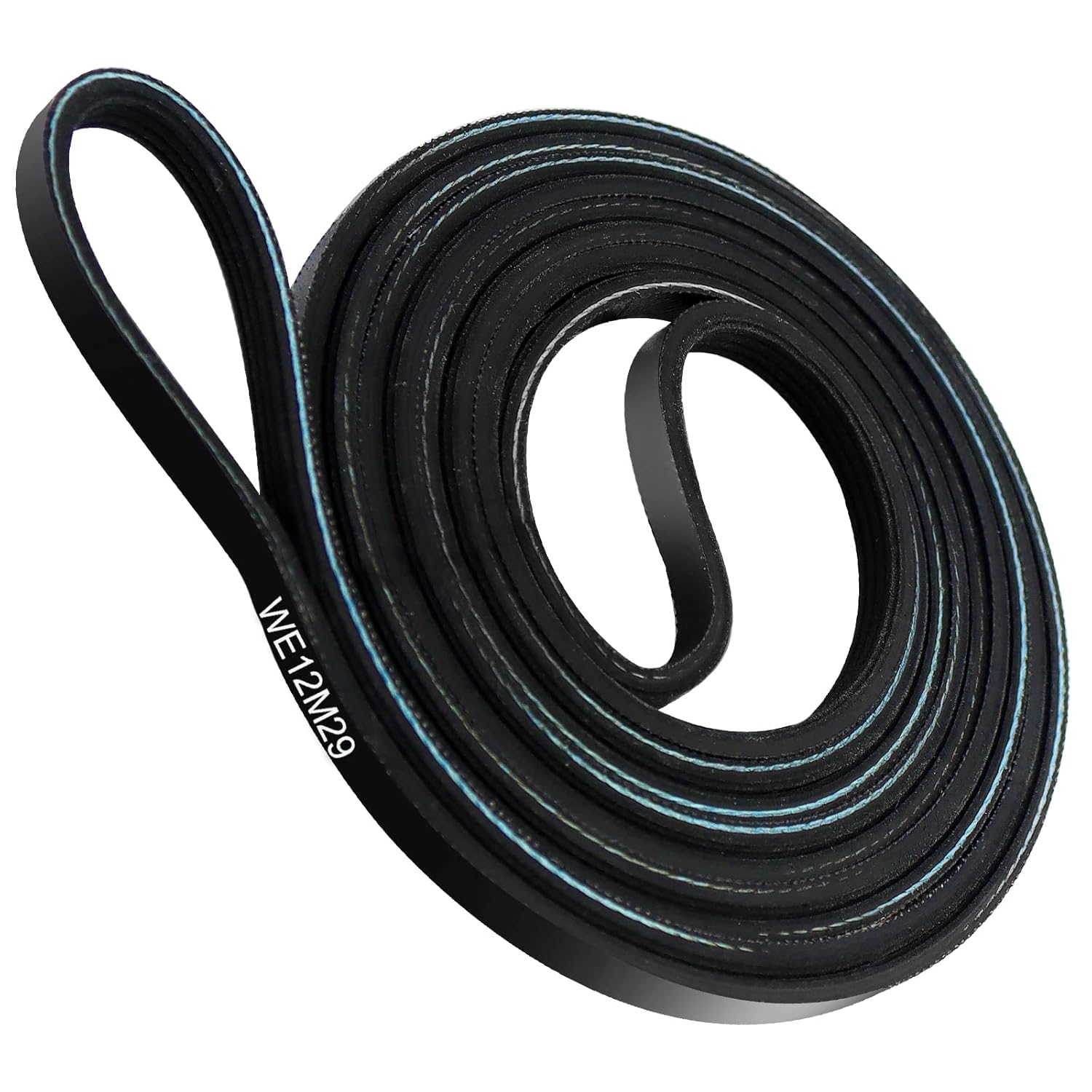

Image 1: The Blutoget WE12M29 Dryer Drum Drive Belt, coiled. This image shows the overall appearance of the belt.

Image 2: Diagram illustrating the features of the WE12M29 belt, including its 4 ribs and 3 grooves, 89.5-inch length, and upgraded rubber material.

Image 3: A hand holding the WE12M29 dryer belt, demonstrating its flexibility and size. This image also highlights the compatibility with various dryer brands.

Image 4: A diagram showing the routing of a dryer belt around the drum, tension pulley, and motor pulley. This visual aid helps in understanding the installation process.

5. Troubleshooting Common Issues

A faulty dryer drum drive belt can cause several operational problems. Here are common issues and how they relate to the drive belt:

• Dryer Drum Not Tumbling: If the dryer motor runs but the drum does not spin, the drive belt is likely broken or has slipped off the pulleys.
• Loud Noise During Operation: A worn, frayed, or misaligned belt can produce squealing, thumping, or grinding noises as the dryer operates.
• Dryer Will Not Start: In some models, a broken belt can trigger a safety switch, preventing the dryer from starting at all.
• Takes Too Long to Dry: If the drum is not tumbling efficiently, clothes will not be exposed to heat evenly, leading to longer drying times.
• Burning Smell: A slipping or rubbing belt can generate friction and heat, leading to a burning rubber smell.

If you experience any of these symptoms, inspect the drive belt for signs of wear, cracks, or breakage. Replacement with a new belt, such as the Blutoget WE12M29, is typically the solution.

6. Maintenance

The dryer drum drive belt is a wear-and-tear component. While it does not require regular maintenance, periodic inspection can help prevent unexpected failures:

• Visual Inspection: Approximately once a year, or if you notice any performance issues, inspect the belt for cracks, fraying, or signs of stretching.
• Cleanliness: Ensure that no lint or debris accumulates around the belt or pulleys, as this can cause premature wear or slippage.
• Proper Loading: Avoid overloading your dryer, as excessive weight can put undue stress on the drive belt and motor.

7. Warranty and Support

The Blutoget WE12M29 Dryer Drum Drive Belt comes with a 365-day guarantee. If you encounter any quality issues with the product, please contact Blutoget customer service for assistance. Customer satisfaction is a priority, and support is available to help resolve any problems.

For further support or inquiries, please refer to the contact information provided with your purchase or visit the official Blutoget store page.
