1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your ViewSonic VP2768a-4K professional monitor. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The ViewSonic VP2768a-4K is a 27-inch 4K UHD (3840x2160p) IPS monitor designed for professionals requiring exceptional color accuracy and versatile connectivity. It features 100% sRGB, EBU, SMPTE-C, Rec. 709, and DICOM-SIM color spaces, Delta E<2 accuracy, and hardware calibration capabilities.
2. Package Contents
Verify that all items listed below are present in your product packaging. If any items are missing or damaged, please contact your retailer or ViewSonic customer support.
Image: Contents of the ViewSonic VP2768a-4K monitor box, showing the monitor, power cable, HDMI cable, USB Type-A/Type-B cable, USB Type-C cable, and QuickStart Guide.
- ViewSonic VP2768a-4K Monitor
- Power Cable (varies by region)
- HDMI Cable
- USB Type-A / Type-B Cable
- USB Type-C Cable
- QuickStart Guide
3. Setup
3.1 Physical Setup
Follow these steps to assemble and position your monitor:
Image: Front view of the ViewSonic VP2768a-4K monitor on its stand, displaying a vibrant image.
- Carefully remove the monitor and stand components from the packaging.
- Attach the stand base to the stand column, securing it with the provided screw.
- Mount the monitor panel onto the assembled stand column. Ensure it clicks securely into place.
- Place the monitor on a stable, flat surface.
3.2 Connectivity
The VP2768a-4K offers a variety of input and output ports for flexible connectivity with your devices.
Image: Rear view of the ViewSonic VP2768a-4K monitor, highlighting various connectivity ports including VESA mount, HDMI, DisplayPort, USB Type-A, USB Type-B, and USB Type-C.
- HDMI 2.0: Connect to devices supporting HDMI output.
- DisplayPort (In): Connect to devices supporting DisplayPort output.
- USB Type-C: Provides video, audio, data transfer, and up to 90W power delivery over a single cable. This reduces cable clutter for compatible laptops and devices.
- USB Type-A (x2): For connecting peripherals such as keyboards, mice, or external storage.
- USB Type-B: Upstream port for enabling the monitor's USB hub functionality.
- Ethernet (RJ45): For network connectivity directly through the monitor.
- VESA Compatible Wall Mount (100x100mm): For alternative mounting solutions.
Image: Diagram illustrating the 'Less Clutter. More Efficiency.' concept with a laptop connected to the monitor via a single USB Type-C cable, providing audio, data, video, and 90W charging.
Connect the appropriate cables from your computer or video source to the corresponding input ports on the monitor. Connect the power cable to the monitor and a power outlet.
4. Operating the Monitor
4.1 Power On/Off
Press the power button located on the monitor to turn it on or off. The power indicator light will illuminate when the monitor is active.
4.2 Ergonomic Adjustments
The VP2768a-4K features an advanced ergonomic stand designed for user comfort and productivity. Adjust the monitor to your preferred viewing position.

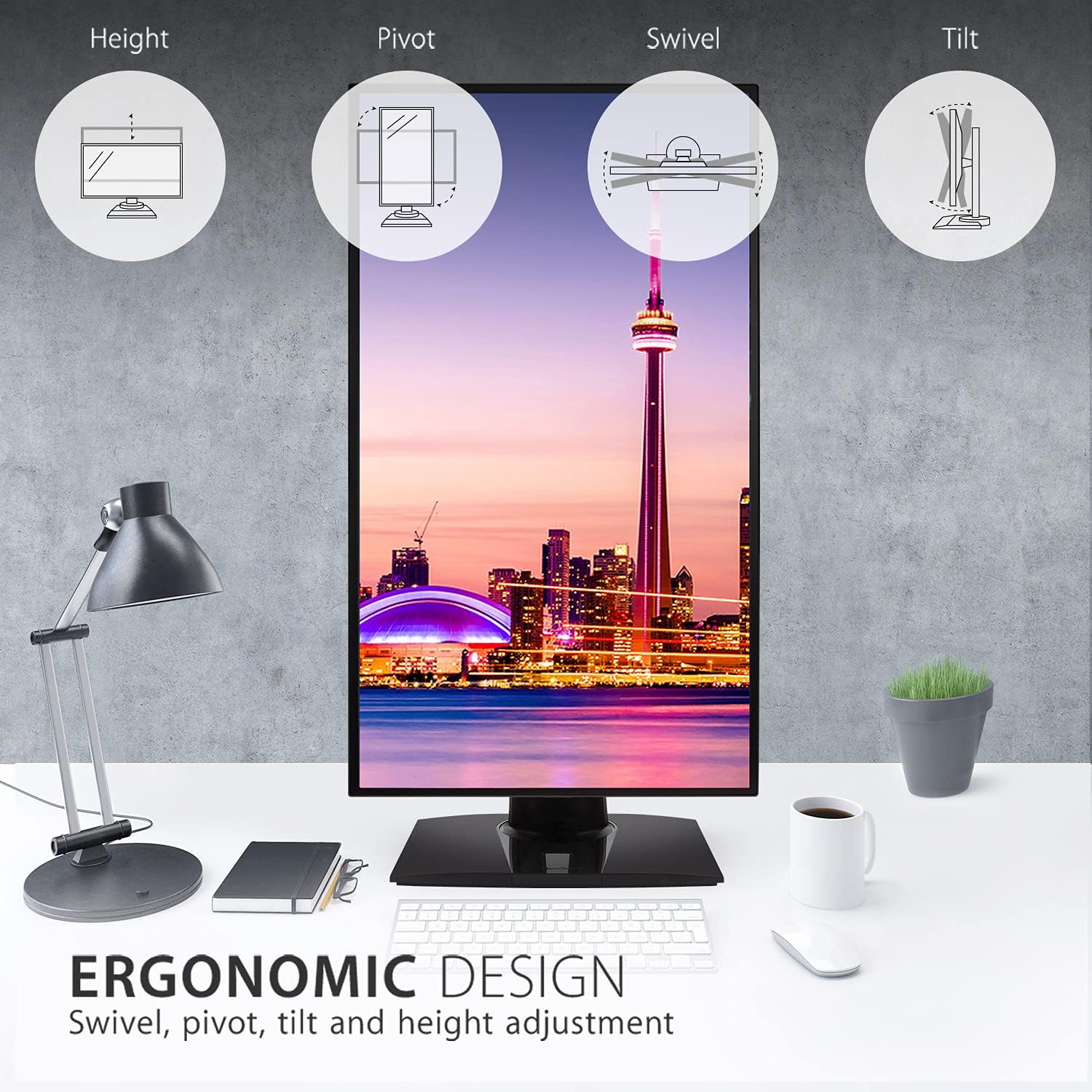

Image: Diagram showing the ergonomic adjustments of the monitor: Height, Pivot (portrait mode), Swivel, and Tilt.
- Height Adjustment: Raise or lower the monitor to eye level.
- Pivot: Rotate the screen 90 degrees for portrait viewing.
- Swivel: Rotate the monitor horizontally left or right.
- Tilt: Adjust the vertical viewing angle of the screen.
4.3 Color Accuracy and Calibration
This monitor is factory calibrated to deliver exceptional color accuracy (Delta E<2) and supports various professional color spaces. It is Pantone Validated, ensuring accurate reproduction of Pantone Matching System colors.
Image: A person holding a DSLR camera in front of the ViewSonic VP2768a-4K monitor, which displays vibrant, color-accurate images, illustrating 'Color at Your Command'.
Hardware calibration is available to maintain precise color performance over time. Refer to the QuickStart Guide or ViewSonic's official website for detailed instructions on hardware calibration procedures.
4.4 Enhanced Viewing Comfort
The monitor incorporates Flicker-Free technology and a Blue Light Filter to reduce eye fatigue during extended use.
5. Maintenance
To ensure the longevity and optimal performance of your monitor, follow these maintenance guidelines:
- Cleaning the Screen: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, lightly dampen the cloth with water or a mild, non-abrasive screen cleaner. Do not spray liquid directly onto the screen.
- Cleaning the Casing: Use a soft, dry cloth to wipe the monitor casing. Avoid using strong detergents or abrasive cleaners.
- Ventilation: Ensure the ventilation openings on the monitor are not blocked to prevent overheating.
- Power Off: Always turn off the monitor and unplug it from the power outlet before cleaning or if it will not be used for an extended period.
6. Troubleshooting
If you encounter issues with your monitor, refer to the following common troubleshooting steps:
- No Power: Ensure the power cable is securely connected to both the monitor and a working power outlet. Check if the power indicator light is on.
- No Signal: Verify that the video cable (HDMI, DisplayPort, or USB-C) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected on the monitor (usually via the OSD menu).
- Flickering or Distorted Image: Check the video cable for damage. Ensure your graphics card drivers are up to date. Try a different resolution or refresh rate.
- Incorrect Colors: Perform a factory reset of the monitor settings. If available, run the hardware calibration utility.
- USB Ports Not Working: Ensure the USB Type-B upstream cable is connected from the monitor to your computer.
For more detailed troubleshooting or persistent issues, please consult the full user manual available on the ViewSonic website or contact ViewSonic customer support.
7. Specifications
Key technical specifications for the ViewSonic VP2768a-4K monitor:
Image: Diagram showing the ViewSonic VP2768a-4K monitor with its physical dimensions: 27 inches diagonal, 61.3 cm (24.1 in) width, 21.5 cm (8.5 in) depth, and 54.3 cm (21.4 in) adjustable height.
| Feature | Specification |
|---|---|
| Screen Size | 27 Inches |
| Resolution | 4K UHD (3840 x 2160 Pixels) |
| Panel Type | IPS |
| Refresh Rate | 60Hz |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² |
| Color Accuracy | 100% sRGB, Delta E<2, Pantone Validated |
| Connectivity | 1x HDMI 2.0, 1x DisplayPort (In), 1x USB Type-C (90W PD), 2x USB Type-A, 1x USB Type-B, 1x Ethernet (RJ45) |
| Ergonomics | Height, Pivot, Swivel, Tilt |
| VESA Mount | 100x100mm |
| Product Dimensions (with stand) | 8.5 x 24.1 x 21.38 inches (21.5 x 61.3 x 54.3 cm) |
| Item Weight | 15.2 pounds |
| Voltage | 240 Volts (AC) |
8. Warranty and Support
This product is a manufacturer refurbished item. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official ViewSonic website. Warranty coverage may vary for refurbished products.
For technical assistance, product registration, or to download the latest drivers and full user manual, please visit the official ViewSonic support website or contact their customer service department.
ViewSonic Support: www.viewsonic.com/us/support
