1. Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your i-box Epoca Portable Radio. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your listening experience.
Figure 1: i-box Epoca Portable Radio
2. Key Features
- DAB/DAB+ and FM Radio: Access a wide range of digital and analog radio stations.
- Bluetooth 5.0 Connectivity: Wirelessly stream audio from compatible devices.
- Rechargeable Battery: Provides up to 15 hours of portable playback.
- USB Charging: Convenient charging via a standard USB connection.
- Stereo Speakers: Equipped with a bass reflex port for enhanced sound performance.
- Premium Design: Features a retro-inspired leather effect finish, wooden housing, and anodised aluminium speaker grille.
- Auxiliary Input: 3.5mm AUX-IN port for wired audio connections.
- Headphone Output: 3.5mm headphone socket for private listening.
Figure 2: Overview of Key Features
3. Package Contents
Please ensure all items are present and in good condition upon unboxing:
- i-box Epoca Portable Radio
- USB Charging Cable
- Power Adapter
- User Guide (this manual)
Figure 3: Product Components and Ports
4. Setup
4.1 Charging the Battery
The i-box Epoca radio includes a built-in rechargeable Lithium Ion battery. Before first use, it is recommended to fully charge the battery.
- Connect the supplied USB charging cable to the Micro USB port on the back of the radio.
- Connect the other end of the USB cable to the supplied power adapter.
- Plug the power adapter into a standard wall outlet.
- The charging indicator on the radio's display will show charging status. A full charge may take several hours.
Once fully charged, the radio provides up to 15 hours of playback, depending on usage and volume levels.

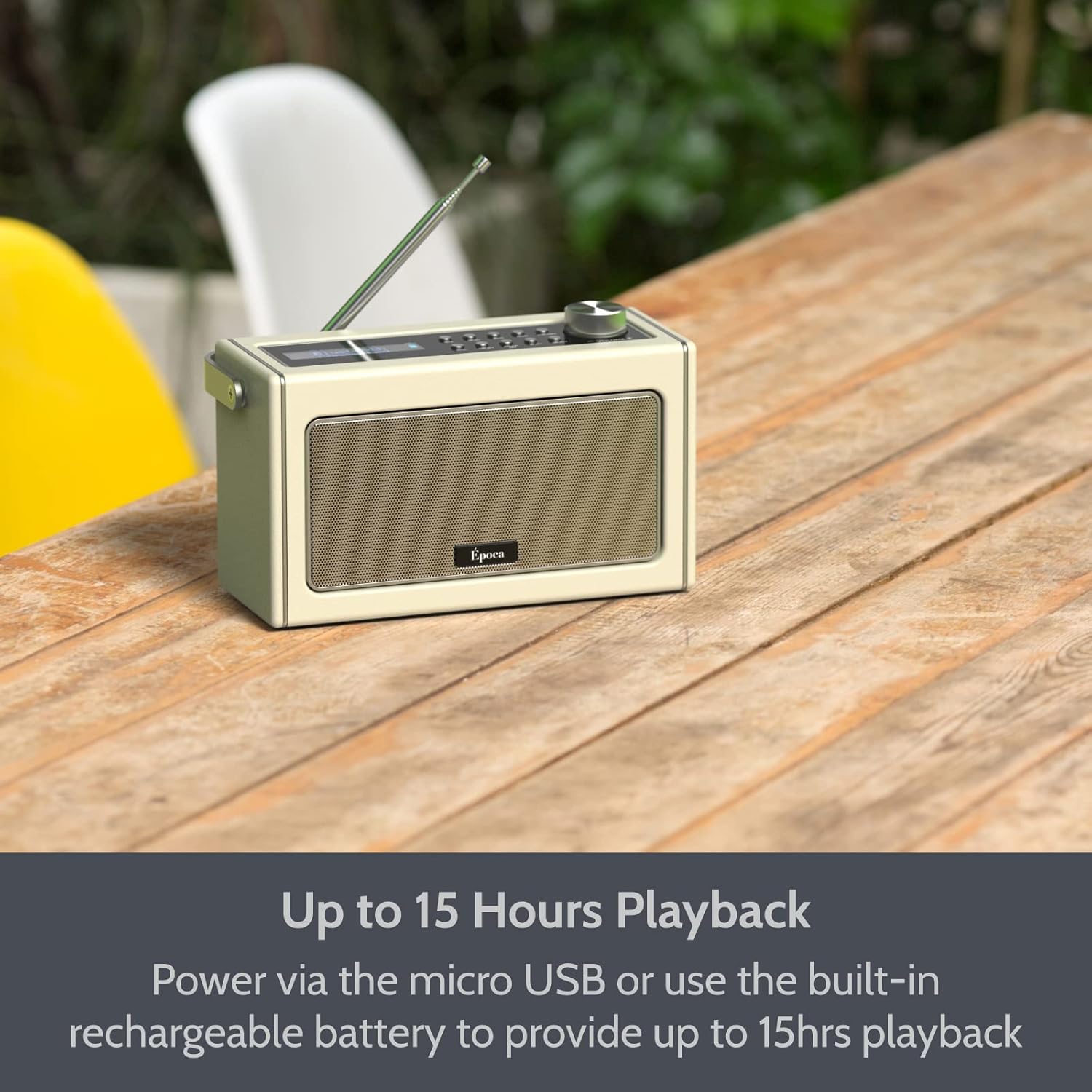

Figure 4: Portable Playback with Rechargeable Battery
4.2 Powering On/Off
- To power on the radio, press and hold the Power button located on the control panel.
- To power off the radio, press and hold the Power button again.
5. Operating Modes
5.1 FM Radio Operation
- Extend the telescopic antenna for optimal reception.
- Press the Mode button to select FM radio mode.
- To automatically scan and save available FM stations, press the Scan button. The radio will scan and store stations in presets.
- To manually tune, use the Tune +/- buttons or the rotary dial.
- To recall a saved preset, press the Preset button and use the Tune +/- buttons to navigate through presets.
Figure 5: FM Tuner in Use
5.2 Bluetooth Operation
- Press the Mode button to select Bluetooth mode. The display will show "BT" and the Bluetooth indicator will flash, indicating it's ready for pairing.
- On your Bluetooth-enabled device (e.g., smartphone, tablet), enable Bluetooth and search for available devices.
- Select "i-box Epoca" from the list of devices.
- Once paired, the Bluetooth indicator on the radio will stop flashing and remain solid. You can now play audio from your device through the radio.
- Use the radio's volume control or your device's volume control to adjust the audio level.
Figure 6: Bluetooth Setup Steps
Video: Overview of i-box Epoca Portable Radio features, including DAB/DAB+ and FM tuners, Bluetooth 5.0 connectivity, built-in rechargeable battery, AUX-IN port, 3.5mm headphone socket, and included accessories.
5.3 AUX-IN Operation
- Connect one end of a 3.5mm audio cable (not supplied) to the AUX-IN port on the back of the radio.
- Connect the other end of the audio cable to the headphone jack or audio output of your external audio device (e.g., MP3 player, CD player).
- Press the Mode button to select AUX-IN mode.
- Play audio from your external device. The sound will be output through the radio's speakers.
- Adjust the volume using the radio's volume control or your external device's volume control.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the surface of the radio. Do not use abrasive cleaners or solvents.
- Storage: When not in use for extended periods, store the radio in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the radio regularly, even if not in constant use.
- Antenna: Handle the telescopic antenna carefully to prevent damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Radio does not power on. | Battery is depleted or power adapter is not connected. | Connect the radio to the power adapter and allow it to charge. Ensure the power adapter is securely plugged into a working outlet. |
| Poor FM radio reception. | Antenna not fully extended or weak signal area. | Fully extend the telescopic antenna. Try repositioning the radio to improve signal reception. |
| Bluetooth device cannot pair. | Radio not in pairing mode, device too far, or already paired with another device. | Ensure the radio is in Bluetooth mode and the indicator is flashing. Move your device closer to the radio. Disconnect from any other Bluetooth devices. |
| No sound from speakers. | Volume too low, muted, or incorrect mode selected. | Increase the volume on the radio and your connected device. Check if the radio is muted. Ensure the correct operating mode (FM, Bluetooth, AUX-IN) is selected. |
8. Specifications
- Model: 79272PI/17
- Power Source: Battery Powered (1 Lithium Ion battery included) / USB (5V-1A)
- Playback Time: Up to 15 hours (battery)
- Tuner Technology: FM
- Connectivity: Bluetooth 5.0, USB, AUX-IN
- Audio Output: 3.5mm Headphone Socket
- Speaker Output: 2x 5W Speakers (10W Stereo Sound)
- Dimensions: Approximately 10.12 x 6.18 x 5.12 inches
- Weight: Approximately 3.34 pounds
- Manufacturer: Philex Electronic Ltd.
- Country of Origin: China
9. Warranty and Support
The i-box Epoca Portable Radio comes with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects and faulty materials under normal use.
For technical support, warranty claims, or further assistance, please contact Philex Electronic Ltd. customer service. Contact details can typically be found on the product packaging or the manufacturer's official website.
Please retain your proof of purchase for warranty purposes.
