Introduction
This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your Royal Gourmet ZH3002SC Dual Fuel Grill Combo. This grill features both propane gas and charcoal cooking options, offering versatility for your outdoor cooking needs. It includes three stainless-steel gas burners, a charcoal firebox with an adjustable pan, and a total cooking area of 761 square inches, complemented by a protective grill cover.
Image: The Royal Gourmet ZH3002SC Dual Fuel Grill Combo, showcasing its dual cooking zones with food being prepared on both the gas and charcoal sides. Side tables are visible with cooking accessories and ingredients.
Important Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or property damage.
- Always operate the grill outdoors in a well-ventilated area. Never use in an enclosed space.
- Keep children and pets away from the grill at all times.
- Maintain a minimum distance of 10 feet (3 meters) from combustible materials (e.g., wooden decks, fences, overhanging branches).
- Ensure the grill is on a stable, level, non-combustible surface.
- Before each use, check all gas connections for leaks using a soapy water solution.
- Do not store a spare propane cylinder under or near the grill.
- Always wear protective gloves when handling hot components or charcoal.
- Refer to the complete safety manual provided with your grill for detailed warnings and precautions.
Assembly and Setup
Assembly of the Royal Gourmet ZH3002SC grill is required. It is recommended that two people perform the assembly to ensure safety and ease of construction. Please refer to the detailed assembly guide included in the product packaging for step-by-step instructions and a complete list of parts.
Initial Placement
Place the grill on a firm, level surface away from any flammable materials. Ensure adequate clearance around the grill for safe operation and ventilation.
Propane Tank Connection
Connect the propane regulator hose to a standard 20 lb (9 kg) propane cylinder. Ensure the connection is tight and check for leaks before operating the gas burners.
Image: A diagram illustrating the dimensions of the Royal Gourmet ZH3002SC grill, showing a length of 63.8 inches, a width of 22 inches, and a height of 43.7 inches.
Operating Instructions
Gas Grill Operation
The gas side of your grill features three main burners, providing 25,500 BTU of heat for efficient cooking. The porcelain-coated cast iron cooking grates ensure even heat distribution and easy cleaning.

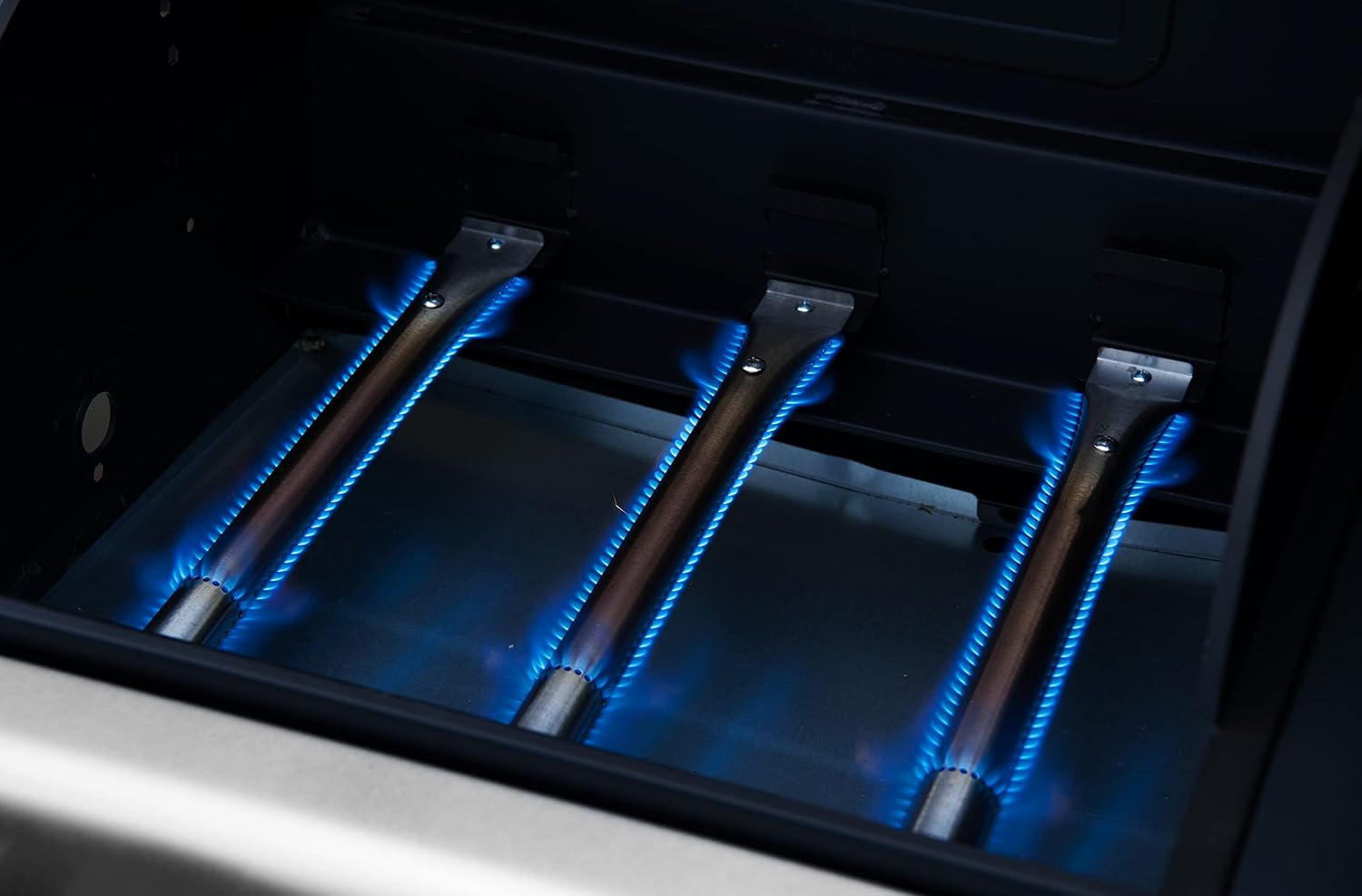

Image: A view inside the gas grill firebox, showing the three main burners actively producing blue flames, indicating proper gas flow and ignition.
Gas Burner Lighting Instructions:
- Open the grill lid before attempting to light any burner.
- Ensure all control knobs are in the "OFF" position.
- Connect the regulator to the propane tank and turn on the propane tank valve.
- Push down and turn a control knob to the "HI" position while simultaneously pressing the ignitor button. You should hear a click and see the burner ignite.
- If the burner does not light within 5 seconds, turn the control knob to "OFF", wait 5 minutes, and then repeat the lighting procedure.
- Repeat for other burners as needed.
Image: The control panel of the gas grill, featuring three burner control knobs and an integrated bottle opener. The lighting instructions are visible on the panel.
Charcoal Grill Operation
The charcoal side allows for traditional charcoal grilling. The height-adjustable charcoal pan provides control over the heat intensity reaching your food.
Using the Charcoal Pan:
- Open the charcoal grill lid.
- Place charcoal briquettes or lump charcoal onto the charcoal pan.
- Ignite the charcoal using appropriate methods (e.g., chimney starter, lighter fluid).
- Once the charcoal is ready, use the crank handle on the front panel to adjust the height of the charcoal pan. Raising the pan increases heat, lowering it reduces heat.
- Utilize the air vents to further regulate airflow and temperature within the charcoal firebox.

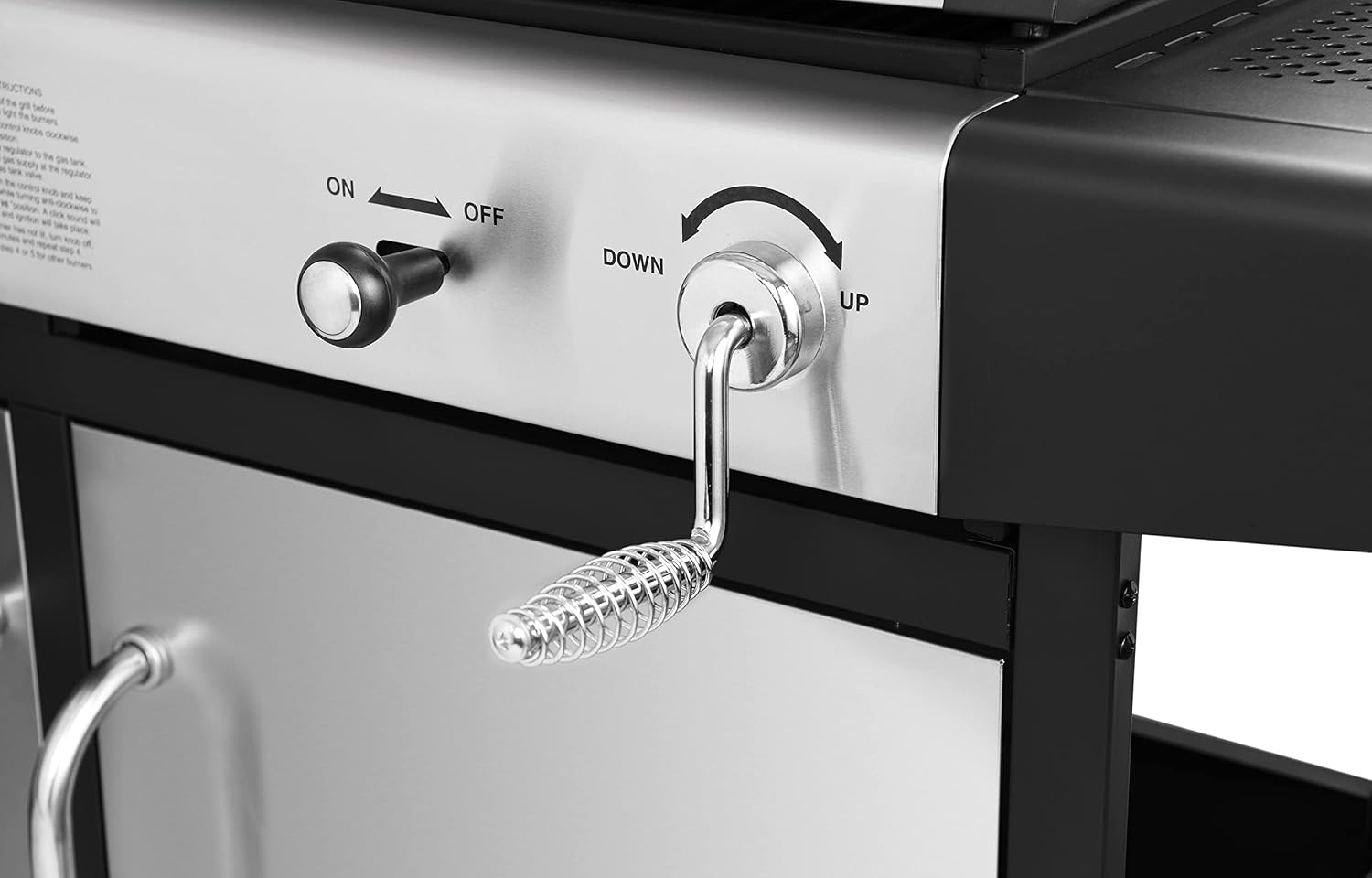

Image: A close-up of the crank handle located on the front panel of the grill, used to raise or lower the charcoal pan for temperature control.
Cooking Surfaces
Both the gas and charcoal sides are equipped with porcelain-coated cast iron cooking grates and stainless-steel warming racks. The total cooking area is 592 square inches on the main grates and 169 square inches on the warming racks.
Image: An interior view of both the gas and charcoal cooking chambers, highlighting the porcelain-coated cast iron cooking grates and upper stainless-steel warming racks, with measurements indicating their dimensions.
Maintenance and Care
Regular cleaning and maintenance will extend the life of your grill and ensure optimal performance.
- Cleaning Cooking Grates: After each use, once the grates have cooled, brush off any food residue with a grill brush. For deeper cleaning, wash with warm soapy water.
- Ash Pan Cleaning: The full-size ash pan located beneath the charcoal firebox can be easily drawn out for convenient ash disposal. Ensure the grill is completely cool before removing and cleaning the ash pan.
- Exterior Cleaning: Wipe down exterior surfaces with a damp cloth and mild detergent. For stainless steel parts, use a stainless steel cleaner to maintain shine.
- Grill Cover: Use the included heavy-duty fabric grill cover to protect your grill from weather elements when not in use.
Image: A close-up of the removable ash pan, designed for easy cleaning and maintenance of the charcoal grilling section.
Image: An illustration detailing the protective layers of the grill cover, highlighting its windproof, UV-protective, and waterproof properties, made from 300D Polyester Oxford fabric.
Troubleshooting
If you encounter issues with your grill, refer to the following common troubleshooting tips:
- Gas Burners Not Lighting: Check if the propane tank is open and has sufficient fuel. Ensure all gas connections are secure. Verify that the ignitor is sparking by listening for a click and observing for a spark. Clean any clogged burner ports.
- Uneven Heat: For gas burners, ensure burner tubes are clean and free of debris. For charcoal, ensure charcoal is evenly distributed and air vents are properly adjusted.
- Low Flame: This may indicate a low propane level or a tripped safety device in the regulator. Turn off the grill and propane tank, disconnect the regulator, wait 5 minutes, then reconnect and slowly open the propane tank valve.
For persistent issues, consult the full user manual or contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Royal Gourmet |
| Model Name | ZH3002SC |
| Product Dimensions (D x W x H) | 64.17" x 27.76" x 45.28" |
| Item Weight | 112.4 Pounds |
| Cooking Surface Area | 761 Square Inches (592 sq. in. main, 169 sq. in. warming) |
| Fuel Type | Charcoal, Gas (Propane) |
| Main Burner Count | 3 |
| Heating Power (Gas) | 25,500 BTU (7.47 Kilowatts) |
| Material Type | Alloy Steel, Stainless Steel, Porcelain-enameled Cast Iron (cooking grates) |
| Special Features | Enclosed Cabinet, Locking Casters, Warming Rack, Adjustable Charcoal Pan |
| Included Components | Grill Cover, Grill Parts |
Warranty Information
The Royal Gourmet ZH3002SC Dual Fuel Grill Combo comes with a one-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
Customer Support
For further assistance, parts, or service, please contact Royal Gourmet customer support. Refer to the contact information provided in your product packaging or visit the official Royal Gourmet website.
