caresvas Foot Spa Bath User Manual

1. Introduction

Thank you for choosing the caresvas Foot Spa Bath. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new foot spa. Please read this manual thoroughly before first use and retain it for future reference.

The caresvas Foot Spa Bath is designed to provide a relaxing and therapeutic foot massage experience, featuring heating, bubble, and massage functions to help relieve stress and promote well-being.

2. Safety Information

To reduce the risk of burns, electrocution, fire, or injury to persons, observe the following important safety precautions:

• Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
• Do not reach for an appliance that has fallen into water. Unplug it immediately.
• Do not use while bathing or showering.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Never use pins or other metallic fasteners with this appliance.
• Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
• Keep the cord away from heated surfaces.
• Never use while sleeping or drowsy.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use on bare skin directly.
• Do not stand on or in the foot spa. Use only while seated.
• Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
• Do not use this product if you have any skin conditions, open wounds, or swelling on your feet or legs. Consult a physician before use if you have any medical concerns.

3. Product Overview

The caresvas Foot Spa Bath is designed for comprehensive foot relaxation. Below are the key components and features:

Figure 3.1: caresvas Foot Spa Bath - Main Unit

This image shows the overall design of the foot spa, featuring its blue and white casing, control panel, and the basin filled with bubbling water.

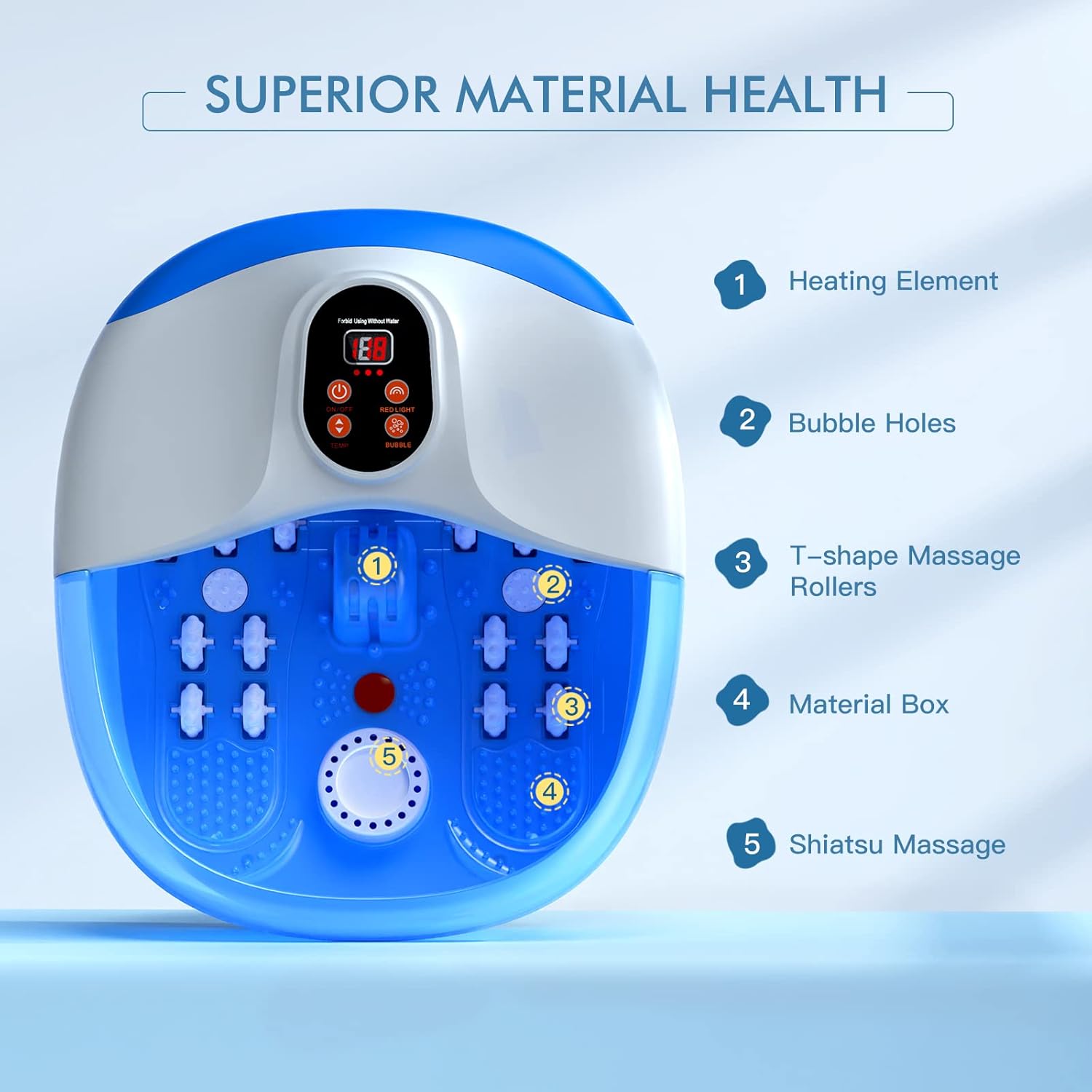

Figure 3.2: Key Components

This diagram highlights the internal components of the foot spa, including the heating element, bubble holes, T-shape massage rollers, material box, and shiatsu massage nodes.

Figure 3.3: Feature Overview

This image visually represents the main functions: smoothing bubbles, red light therapy, massage rollers, adjustable temperature, and the material box for additives.

Features:

• Heating Function & Temperature Control: Maintains water temperature between 95°F (35°C) and 118°F (48°C) with 500W power and overheat protection.
• 14 Removable Massage Rollers: Ergonomically distributed rollers (3-2-2 pattern) stimulate acupoints. Rollers are non-electric and can be removed if not desired.
• Oxygen Bubbles: Two air bubble holes provide oxygen bubbles, aiding water circulation and enhancing relaxation.
• Infrared Lights: Integrated infrared lights assist in foot sterilization and hygiene.
• Removable Material Box: A dedicated compartment for bath salts, essential oils, or other spa materials to enhance the foot bath experience.

4. Setup

1. Unpacking: Carefully remove the foot spa from its packaging. Inspect the unit for any signs of damage. Ensure all components are present.
2. Placement: Place the foot spa on a flat, stable, and waterproof surface. Ensure it is near an electrical outlet and away from any objects that could be damaged by water splashes.
3. Filling with Water: Fill the foot spa with warm or cold water, depending on your preference, up to the maximum fill line indicated inside the basin. Do not overfill.
4. Optional Additives: If desired, place bath salts, essential oils, or other foot spa materials into the removable material box located inside the basin. Do not add these directly into the water without using the material box, as it may clog the internal mechanisms.
5. Power Connection: Plug the power cord into a standard electrical outlet. Ensure your hands are dry before handling the plug.

5. Operating Instructions

Once set up, you can begin using your caresvas Foot Spa Bath. The control panel is located on the top of the unit.

Figure 5.1: Professional Foot Spa at Home

This image demonstrates the foot spa in use, providing a relaxing experience in a home setting.

Figure 5.2: Soothing Feet with Heat and Bubbles

This image illustrates the soothing effect of the foot spa's heat and bubble functions on tired feet.

Control Panel Functions:

• Power Button (⏻): Press to turn the unit ON or OFF. The digital display will illuminate upon activation.
• Temperature Control Buttons (+ / -): Use these buttons to adjust the desired water temperature. The temperature range is 95°F (35°C) to 118°F (48°C). The unit will automatically heat the water to the set temperature and maintain it.
• Bubble Button (🫧): Press to activate or deactivate the oxygen bubble function.
• Infrared Light Button (💡): Press to turn the infrared lights ON or OFF.

Using the Massage Rollers:

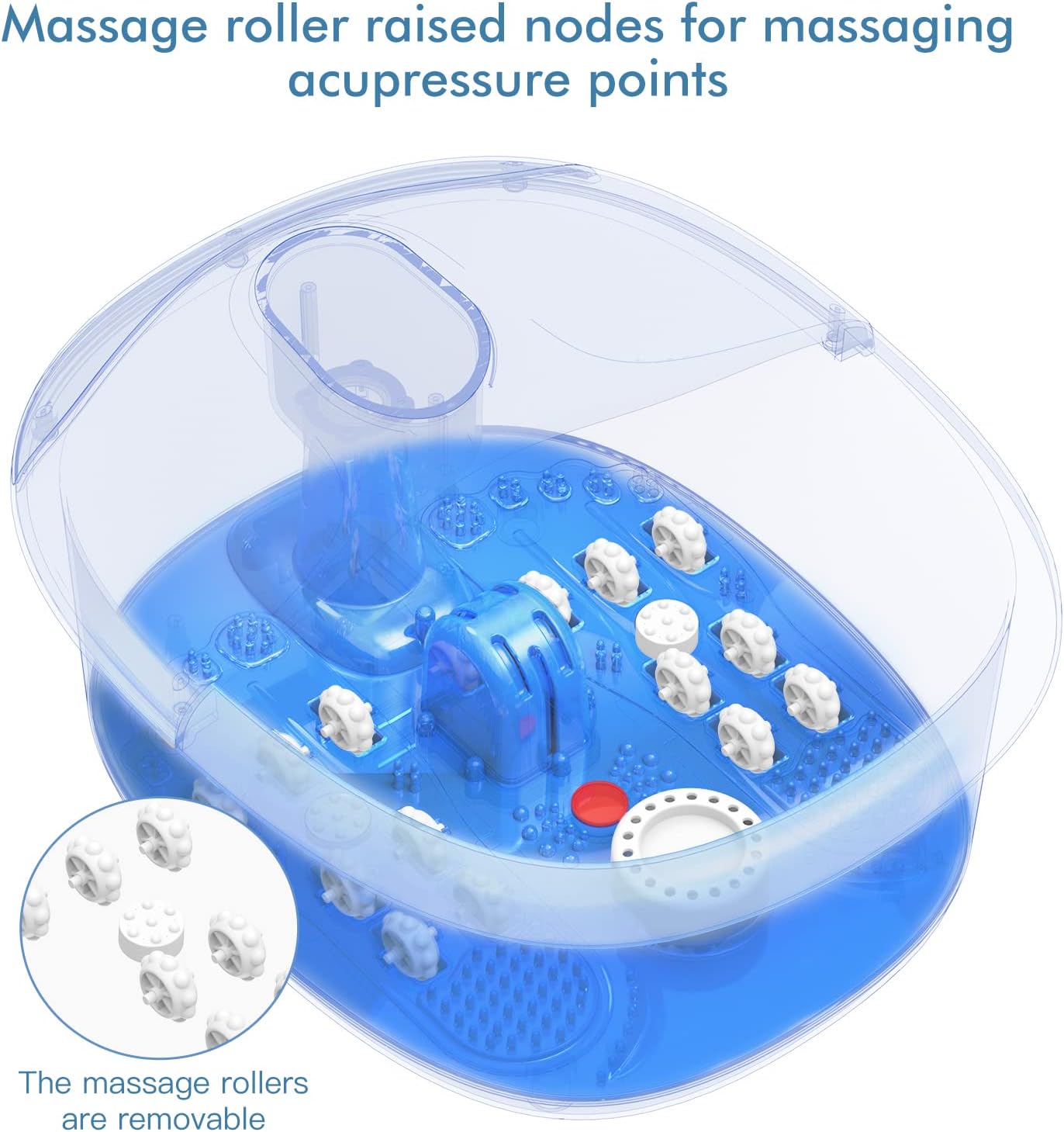

Figure 5.3: Massage Rollers

This image illustrates the design of the massage rollers and their raised nodes, which are intended to target acupressure points on the feet. It also shows that the rollers are removable.

The foot spa includes 14 non-electric massage rollers. To utilize them, gently move your feet back and forth over the rollers. Apply light pressure to stimulate the acupoints on the soles of your feet. The rollers can be removed if you prefer a flat basin for soaking.

Recommended Usage Time: For optimal results and safety, limit your foot spa session to 20-30 minutes. Prolonged use may lead to discomfort or overheating.

6. Maintenance

Proper maintenance ensures the longevity and hygiene of your caresvas Foot Spa Bath.

1. Draining Water: After each use, unplug the unit and carefully pour out the water from the basin. Avoid tilting the unit excessively to prevent water from entering the control panel or electrical components.
2. Cleaning the Basin: Wipe the interior of the basin with a soft cloth and mild, non-abrasive detergent. Rinse thoroughly with clean water. Do not use harsh chemicals or abrasive cleaners, as they may damage the surface.
3. Cleaning Rollers and Material Box: Remove the massage rollers and the material box. Clean them separately with soap and water, then rinse and dry completely before reassembling.
4. Exterior Cleaning: Wipe the exterior of the unit with a damp cloth. Do not immerse the unit in water or allow water to enter the control panel.
5. Storage: Ensure the unit is completely dry before storing. Store in a cool, dry place, away from direct sunlight and out of reach of children. Do not wrap the power cord tightly around the unit, as this can damage the cord.

7. Troubleshooting

If you encounter issues with your foot spa, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Detailed specifications for the caresvas Foot Spa Bath, Model MM-19C:

Figure 8.1: Product Dimensions

This image provides a visual representation of the foot spa's dimensions, including length, width, and height.

• Model Number: MM-19C
• Product Dimensions: 15.75 x 13.39 x 7.8 inches (40 x 34 x 19.8 cm)
• Item Weight: 4.19 Pounds (1.9 kg)
• Power Source: Corded Electric
• Rated Power: 500W
• Temperature Range: 95°F - 118°F (35°C - 48°C)
• Special Features: Heat, Bubbles, Infrared Lights, Removable Massage Rollers, Removable Material Box
• Color: Bulewhite
• Manufacturer: caresvas

9. Warranty and Support

For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product packaging or visit the official caresvas website. For technical support, replacement parts, or any other inquiries, please contact caresvas customer service through the contact information provided on their official website or product packaging.
