Introduction
This manual provides instructions for the safe and efficient operation of your ELEHOT-Store ZH-019S 3L Ultrasonic Humidifier. Please read all instructions carefully before use and retain this manual for future reference.

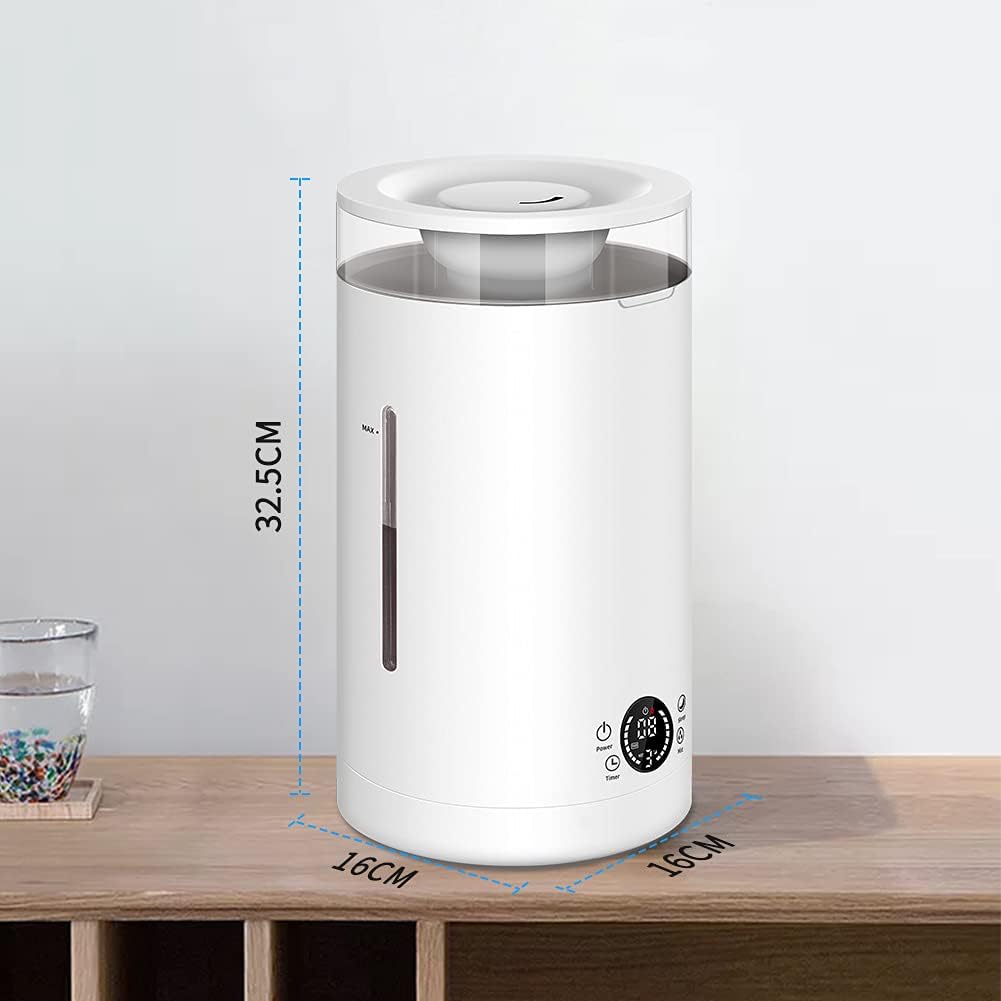

Image: The ELEHOT-Store ZH-019S 3L Ultrasonic Humidifier, a white cylindrical device with a clear top section and an LED display on the front.
Safety Instructions
- Always place the humidifier on a firm, flat, waterproof surface away from direct sunlight and heat sources.
- Do not place the humidifier near electronic devices or furniture that may be damaged by moisture.
- Unplug the humidifier from the power outlet before filling, cleaning, or moving it.
- Do not immerse the humidifier base in water or other liquids.
- Use only clean, cool tap water. Distilled or demineralized water is recommended to reduce mineral buildup.
- Do not add essential oils directly into the water tank. Use the designated aroma compartment.
- Keep out of reach of children and pets.
- Do not block the mist outlet or air intake vents.
- If the humidifier emits an unusual smell or sound, unplug it immediately and contact support.
Product Components
Familiarize yourself with the parts of your humidifier:
- Main Unit: Contains the motor, control panel, and water reservoir.
- 3L Water Tank: Transparent section for water storage.
- Top Cover/Mist Nozzle: Rotatable for mist direction.
- Aroma Compartment: Small tray for essential oils, located near the mist outlet.
- Control Panel: Features Power, Timer, Sleep, and Mist buttons, along with an LED display.
Image: Close-up of the humidifier's control panel, showing the Power, Timer, Sleep, and Mist buttons with their respective icons.
Setup
- Unpack: Carefully remove the humidifier from its packaging and place it on a stable, flat surface. Remove any protective films or packaging materials.
- Fill Water Tank: Remove the top cover. Pour clean, cool water directly into the water tank from the top opening. Do not exceed the 'MAX' fill line. The 3-liter capacity allows for extended operation.
- Add Essential Oils (Optional): Locate the aroma compartment (small tray) near the mist outlet. Add a few drops of your preferred essential oil to the aroma compartment. Do not add oils directly into the water tank.
- Replace Cover: Place the top cover back onto the humidifier securely.
- Connect Power: Plug the power cord into a suitable 220V electrical outlet.
Image: Illustration of the humidifier's top-fill design, showing water being poured directly into the top opening.
Image: A hand adding drops of essential oil into the designated aroma compartment of the humidifier.
Operating Instructions
- Power On/Off: Press the Power button (⏻) to turn the humidifier on or off. The LED display will illuminate when powered on.
- Adjust Mist Level: Press the Mist button (💧) repeatedly to cycle through the three mist output levels: Low, Medium, and High. The LED display will indicate the current mist level. The 3L tank provides approximately 23 hours on Low, 18 hours on Medium, and 14 hours on High mist settings.
- Set Timer: Press the Timer button (⏱) to set the operating time. Each press will increase the timer by 1 hour, from 1 to 12 hours. The humidifier will automatically turn off when the set time expires.
- Sleep Mode: Press the Sleep button (🌛) to turn off the LED display for undisturbed sleep. The humidifier will continue to operate according to its last settings.
- Rotate Nozzle: The mist nozzle on the top cover can be rotated 360 degrees to direct the mist in any desired direction.
- Low Water Protection: The humidifier is equipped with an automatic shut-off feature. If the water level becomes too low, the humidifier will stop producing mist, and a red water drop icon will appear on the LED display. The unit will enter standby mode until refilled.
Image: Three humidifiers demonstrating different mist output levels (1, 2, 3) and their respective runtimes (23, 18, 14 hours) with a 3-liter water tank.
Image: A close-up of the humidifier's top, illustrating the 360-degree rotation capability of the mist nozzle with directional arrows.
Maintenance
Regular cleaning is essential for optimal performance and hygiene.
Daily Maintenance:
- Empty any remaining water from the tank and base.
- Wipe the inside of the water tank and base with a clean, damp cloth.
- Refill with fresh water before each use.
Weekly Cleaning:
- Unplug: Ensure the humidifier is unplugged from the power outlet.
- Empty Water: Remove the top cover and empty all water from the tank and base.
- Clean Tank: Wipe the inside of the water tank with a soft brush or sponge. For mineral buildup, fill the tank with a mixture of equal parts white vinegar and water. Let it soak for 30 minutes, then rinse thoroughly.
- Clean Base: Gently wipe the ultrasonic transducer (the small disc in the base) and the heating element (if present) with a soft cloth or cotton swab. Do not scrape or use abrasive cleaners.
- Clean Aroma Compartment: Wipe out any residue from the aroma compartment.
- Rinse and Dry: Rinse all components thoroughly with clean water and allow them to air dry completely before reassembling or storing.
Image: A hand using a sponge to clean the interior of the humidifier's water tank, demonstrating ease of access for cleaning.
Storage:
When not in use for an extended period, clean the humidifier as described above, ensure all parts are dry, and store it in its original packaging in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist is produced. | Low water level. Humidifier not plugged in. Mist level set to 0. | Refill water tank. Ensure power cord is securely plugged in. Press the Mist button to select a mist level. |
| Unusual odor. | Dirty water tank or old water. Mineral buildup. | Clean the water tank and base thoroughly. Use fresh water daily. Descale if necessary. |
| Water leakage. | Top cover not properly seated. Overfilled water tank. | Ensure the top cover is securely in place. Do not fill water above the 'MAX' line. |
| Loud noise during operation. | Humidifier not on a flat surface. Water level too low. | Place the humidifier on a stable, flat surface. Refill water tank if low. |
Specifications
- Model: ZH-019S
- Brand: ELEHOT-Store
- Capacity: 3 Liters
- Voltage: 220 Volts
- Material: Plastic
- Operation Mode: Ultrasonic
- Features: Aroma Diffuser, 12-Hour Timer, 3 Mist Levels, Low Water Auto-Off, 360° Rotatable Nozzle, Quiet Operation (<36dB)
- Dimensions (L x W x H): 38.1 x 38.1 x 38.1 cm (approximately 15 x 15 x 15 inches)
- Weight: 1.52 Kilograms (approximately 3.35 lbs)
Warranty and Support
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact ELEHOT-Store customer service directly. Keep your purchase receipt as proof of purchase.
