TFCFL 41 Inch Hand Push Industrial Sweeper User Manual

1. Product Overview

The TFCFL 41 Inch Hand Push Industrial Sweeper is designed for efficient cleaning of hard surfaces in various environments, including sidewalks, patios, garages, workshops, and driveways. This human-powered sweeper offers a wide cleaning path and a large waste container for effective debris collection.

Figure 1: Front view of the TFCFL 41 Inch Hand Push Industrial Sweeper. The sweeper is yellow and black, featuring two large side brushes and a central collection unit with a handle.

2. Safety Instructions

Please read and understand all safety instructions before operating the sweeper to prevent injury and ensure proper function.

• Do not use the sweeper to pick up hazardous materials, liquids, or hot debris.
• Ensure all components are securely assembled before use.
• Keep hands and feet clear of rotating brushes during operation.
• Store the sweeper in a dry, safe place when not in use.
• This sweeper is designed for dry sweeping only. Do not use on wet surfaces or to sweep water.

3. Assembly and Setup

The TFCFL Hand Push Industrial Sweeper requires minimal assembly. Follow these steps to prepare your sweeper for use.

1. Handle Assembly: Attach the handle to the main body of the sweeper. Ensure the locking mechanisms are engaged to secure the handle firmly. The handle is designed for comfortable pushing and can be adjusted or folded for storage.
2. Brush Attachment: The side brushes are typically pre-installed or easily click into place. Verify they are securely attached and can rotate freely.
3. Waste Container: Ensure the 14.53-gallon waste container is correctly seated within the sweeper's main body. It should fit snugly to prevent debris from escaping.

Figure 2: Side view of the sweeper, illustrating the handle and wheel assembly. The handle can be adjusted for user comfort.

4. Operating Instructions

Operating your TFCFL sweeper is straightforward. Follow these guidelines for effective cleaning.

1. Preparation: Clear the area of any large objects that could damage the sweeper or brushes.
2. Starting Operation: Grip the handle firmly and push the sweeper forward at a steady walking pace. The rotating side brushes will sweep debris towards the central brush, which then deposits it into the waste container.
3. Sweeping Technique: For optimal results, overlap your sweeping paths slightly. The sweeper is designed to clean various hard surfaces such as concrete, asphalt, ceramic tile, marble, and linoleum.
4. Efficiency: This sweeper can cover approximately 39,611 square feet per hour, significantly faster than manual sweeping with a broom.

Figure 3: The TFCFL sweeper being used on an outdoor paved surface, demonstrating its application for clearing leaves and debris.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your sweeper.

• Emptying the Waste Container: The 14.53-gallon waste container can be quickly removed and emptied. Lift the container out of its housing and dispose of the collected debris. Reinsert the container securely after emptying. This process is designed to be hygienic, minimizing contact with dust.
• Brush Inspection: Periodically inspect the side and main brushes for wear or damage. Replace brushes if they become excessively worn to maintain sweeping efficiency.
• Cleaning: Wipe down the exterior of the sweeper with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: The sweeper features a foldable design for space-saving storage. Fold the handle down when not in use. Store in a dry, protected area.

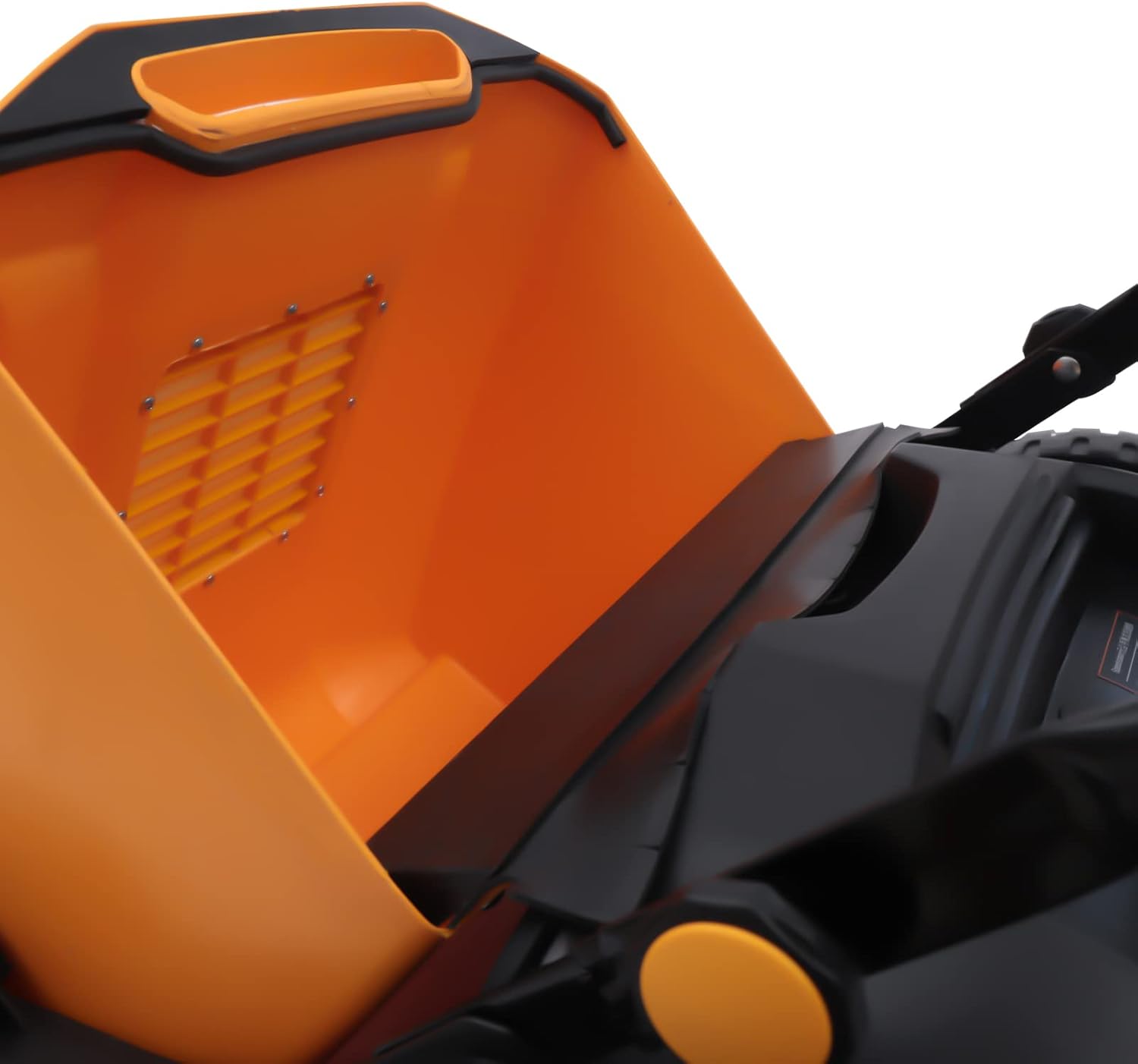

Figure 4: View of the sweeper with its waste container lid open, showing the interior collection area. This illustrates how debris is collected and the ease of emptying.

6. Troubleshooting

If you encounter issues with your sweeper, refer to the following common solutions:

• Sweeper not picking up debris effectively:
  • Check if the waste container is full and empty it if necessary.
  • Inspect brushes for wear or entanglement with large debris. Clean or replace brushes as needed.
  • Ensure the sweeper is being pushed at a consistent, appropriate speed.
• Difficulty pushing the sweeper:
  • Verify that the wheels are free of obstructions.
  • Ensure the handle is properly assembled and secured.

7. Specifications

Key technical specifications for the TFCFL 41 Inch Hand Push Industrial Sweeper:

Figure 5: Diagram illustrating the dimensions of the TFCFL sweeper, including height, length, and sweeping width.

8. Contact and Support

For further assistance or inquiries regarding your TFCFL 41 Inch Hand Push Industrial Sweeper, please refer to the seller's contact information provided at the point of purchase.

Note: The cost of replacement parts shall be borne by the user.
