1. Introduction
This manual provides essential information for the safe and effective operation of your BenQ GV30 Portable Projector. Please read this manual thoroughly before using the device and retain it for future reference.
Figure 1: BenQ GV30 Portable Projector
2. What's in the Box
Verify that all items listed below are included in your package:
- BenQ GV30 Portable Projector
- Power Cord
- Remote Control
- User Manual (this document)
- Warranty Card
- Android TV Dongle (QS01)
- Magnetic Base
- Carrying Case
3. Product Overview
3.1 Key Features
- Display: 720p HD Resolution, 300 ANSI Lumens.
- Audio: 2.1 Channel Bluetooth Speaker with Extra Bass (4W x 2 midrange tweeters & 8W woofer).
- Smart Features: Integrated Android TV, Chromecast, Airplay.
- Projection Flexibility: Adjustable 135-degree projection angle, Auto Focus, Vertical Keystone.
- Connectivity: HDMI, USB-C DisplayPort, 3.5mm Headphone Jack.
- Portability: Compact design with a leather loop for easy carrying, built-in battery.

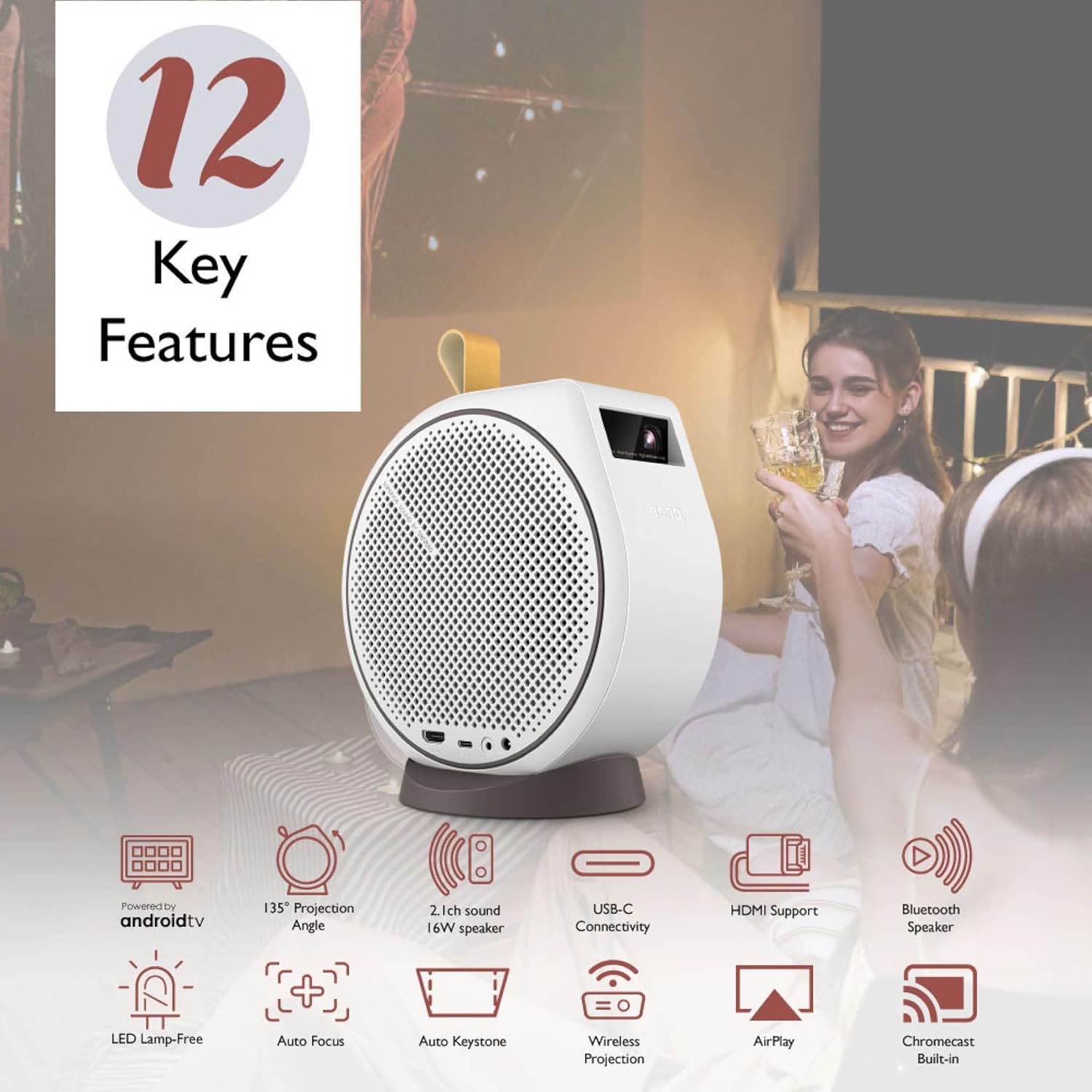

Figure 2: Overview of BenQ GV30 Key Features
3.2 Ports and Controls
The BenQ GV30 features various ports for connectivity and control buttons for easy operation.
- HDMI Port: For connecting external devices such as game consoles or Blu-ray players.
- USB-C DisplayPort: Supports data transmission, DisplayPort output (DP Alt Mode), and power delivery (PD inputs only, support 15V/3A).
- 3.5mm Headphone Jack: For connecting external audio devices or headphones.
- Power Input: For connecting the power adapter.
- Top Panel Controls: Power button, volume up/down, Bluetooth connection button.
Figure 3: Connectivity Ports
4. Setup
4.1 Installing the Android TV Dongle
- Carefully remove the side panel of the projector using the provided tool or a thin, non-abrasive object.
- Insert the BenQ QS01 Android TV dongle into the designated HDMI port inside the compartment.
- Connect the dongle's power cable to the internal USB port.
- Replace the side panel securely.
4.2 Initial Power On and Network Connection
- Connect the power cord to the projector and a power outlet.
- Press the power button on the projector or the remote control to turn on the device.
- Follow the on-screen prompts to connect to your Wi-Fi network.
- Log in with your Google account to access Android TV features and download streaming applications.
Figure 4: Android TV Interface
5. Operating Instructions
5.1 Flexible Projection
The BenQ GV30 offers versatile projection options:
- 135-Degree Projection Angle: The projector can be rotated on its magnetic base to project onto walls, ceilings, or any desired surface.
- Auto Focus & Vertical Keystone: The projector automatically adjusts focus and corrects image distortion to ensure a clear, rectangular picture regardless of the projection angle.
Figure 5: 135-Degree Projection Angle
5.2 Casting and Screen Mirroring
Utilize the built-in Chromecast and Airplay features to cast content from your mobile devices or computers.
- Chromecast: Cast videos, photos, and music from compatible Android devices or Chrome browser tabs.
- Airplay: Mirror your screen or stream content from Apple devices.
5.3 Bluetooth Speaker Mode
The GV30 can function as a standalone Bluetooth speaker:
- Press the Bluetooth button on the projector's top panel or remote control.
- Enable Bluetooth on your mobile device and select 'BenQ GV30' from the list of available devices to pair.
- Play audio from your device through the projector's 2.1 channel speaker system.
Video 1: Demonstrates how to set up a Bluetooth connection on the BenQ GV30 projector.
6. Image Quality
The BenQ GV30 delivers a clear and vibrant viewing experience:
- Resolution: Native 720p HD resolution provides sharp images for its class.
- Brightness: 300 ANSI Lumens are suitable for dark environments. For optimal viewing, ensure the room is as dark as possible.
- Color Accuracy: Optimized Picture Modes powered by CinematicColor and 98% Rec. 709 wide color gamut ensure true and vivid colors.
- Recommended Screen Size: Optimal image quality is achieved with screen sizes up to 100 inches. Larger sizes may result in pixelation.
Figure 6: Authentic Color Reproduction
7. Audio Features
Experience rich and clear audio with the integrated 2.1 channel speaker system:
- Powerful Sound: Dual 4W midrange tweeters and an 8W woofer provide balanced audio with enhanced bass.
- Clear Vocals: Voices are clear and easy to understand, making it suitable for movies and TV shows.
- External Audio: Connect external speakers or headphones via Bluetooth or the 3.5mm audio jack for a customized audio experience.
Figure 7: 2.1 Channel Audio System
8. Portability
The BenQ GV30 is designed for on-the-go entertainment:
- Compact and Lightweight: Weighing 3.53 pounds with dimensions of 7.3 x 4.7 x 7.7 inches, it is easy to transport.
- Built-in Battery: Provides approximately 2.5 hours of battery life under power-efficient settings (low brightness, low volume). Expect around 2 hours with medium brightness and average volume. It is recommended to carry the power cord for longer viewing sessions.
- Carrying Case: A dedicated carrying case is included to protect the projector and its accessories during transport.
Figure 8: Easy-to-Carry Design
Video 2: Showcases the casting features of the BenQ GV30 projector.
Video 3: Highlights the personal theater features of the BenQ GV30 projector.
Video 4: Demonstrates how to project content onto the ceiling using the BenQ GV30 projector.
9. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 7.3 x 4.7 x 7.7 inches |
| Item Weight | 3.53 pounds |
| Item Model Number | GV30 |
| Batteries | 2 AAA batteries required (included) |
| Display Resolution | 1280 x 720 (720p HD) |
| Connectivity Technology | HDMI, USB-C, Bluetooth, Wi-Fi |
| Special Feature | Built-In Speaker, Auto Focus, Vertical Keystone |
| Recommended Uses | Bedroom, Business, Education, Gaming, Home Cinema |
10. Troubleshooting
- Low Brightness: Ensure the projector is used in a dark environment for optimal viewing. Adjust power mode settings if necessary.
- Unstable Magnetic Base: The magnetic connection of the base is not extremely strong. Exercise caution when rotating the projector on its base to prevent it from slipping off. Avoid picking up the projector by the base.
- Streaming Stick Compatibility: The internal compartment for the Android TV dongle is specifically designed for the BenQ QS01. Other streaming sticks (e.g., Roku, Amazon Fire Stick) may not fit or receive adequate power due to size or power supply port placement.
- Fan Noise: The projector's fan noise is minimal and generally does not hinder the audio experience due to the quality of the built-in speakers.
11. Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the projector. For the lens, use a specialized lens cleaning cloth and solution.
- Storage: When not in use, store the projector in its provided carrying case in a cool, dry place away from direct sunlight.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the projector regularly, even if not in active use.
12. Warranty and Support
Your BenQ GV30 Portable Projector comes with a warranty. Please refer to the included Warranty Card for detailed terms and conditions. For technical support, product registration, or service inquiries, please visit the official BenQ website or contact their customer service.
