Introduction
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your HP 2021 15.6-inch Full HD Laptop. This device is equipped with an Intel Celeron N4020 Processor, 8GB DDR4 RAM, and a 256GB Solid State Drive, designed for everyday computing tasks.
What's in the Box
Carefully unpack your new HP laptop and ensure all components are present.
- HP 15 Laptop
- 45 W Smart AC power adapter
- Documentation (Setup poster)
Image: Contents of the HP laptop box, showing the laptop, AC adapter, and setup poster.
Setup
1. Initial Power On and Charging
Before first use, connect the AC power adapter to the laptop's power port and then to a wall outlet. Allow the battery to charge sufficiently before disconnecting the power adapter.
2. Windows 10 S Mode Setup
Follow the on-screen prompts to complete the initial Windows 10 S mode setup. This includes selecting your region, keyboard layout, connecting to a Wi-Fi network, and signing in with or creating a Microsoft account.
3. Activating Microsoft Office 365
Your laptop includes a 1-year subscription to Microsoft Office 365. To activate:
- Launch any Office application (e.g., Word, Excel).
- Start activation by signing in with your Microsoft account. Create one if you do not have one.
- Click "Activate Office."
- Sign in to your account and follow the prompts.
- Complete steps 1, 2, and 3 as indicated.
- Click "Refresh" once Office is ready.
- Open a document and accept the license agreement.
4. Switching Out of Windows 10 S Mode (Optional)
Windows 10 S mode is designed for security and performance, limiting app installations to the Microsoft Store. If you need to install apps from outside the Microsoft Store, you can switch to regular Windows 10 Home or Pro. This process is irreversible.
- On your PC running Windows 10 in S mode, open Settings > Update & Security > Activation.
- In the "Switch to Windows 10 Home" or "Switch to Windows 10 Pro" section, select Go to the Store. (Ensure you do not click a "Go to the Store" link in an "Upgrade your edition of Windows" section if present.)
- On the "Switch out of S mode" (or similar) page that appears in the Microsoft Store, select the Get button.
- After you see a confirmation message on the page, you will be able to install apps from outside of the Microsoft Store.
Image: Side view of the HP laptop highlighting the SuperSpeed USB Type-C, SuperSpeed USB Type-A, HDMI 1.4b, RJ-45 Ethernet port, headphone/microphone combo, and media card reader.
Operating Instructions
Keyboard and Touchpad
The laptop features a full-size keyboard with an integrated numeric keypad for enhanced productivity. The precision touchpad supports multi-touch gestures for intuitive navigation.
Connecting Peripherals
- USB Devices: Connect USB devices such as external drives, mice, or keyboards to the SuperSpeed USB Type-A or Type-C ports.
- External Display: Use the HDMI 1.4b port to connect an external monitor or projector.
- Network: Connect an Ethernet cable to the RJ-45 port for a wired network connection.
- Audio: Plug headphones or an external microphone into the headphone/microphone combo jack.
Webcam and Microphone
The integrated HP True Vision 720p HD camera and dual array digital microphones are ready for online meetings and video calls. Ensure appropriate privacy settings are configured in Windows.
Media Card Reader
Insert compatible SD media cards into the multi-format SD media card reader to access photos and files.
Image: The HP laptop's display area, highlighting the HP True Vision 720p HD Camera, rich 6.5 mm micro-edge Full HD IPS display, Intel UHD Graphics, and tuned stereo speakers.
Maintenance
Battery Care
To prolong battery life, avoid fully discharging the battery frequently. For optimal performance, use the provided HP 45W Smart AC power adapter. The laptop supports HP Fast Charge, allowing it to charge up to 50% in approximately 45 minutes when powered off.
Cleaning the Laptop
Use a soft, lint-free cloth slightly dampened with water or a screen cleaner to clean the display. For the keyboard and chassis, use a soft, dry cloth. Avoid harsh chemicals or abrasive materials.
Software Updates
Regularly check for and install Windows updates to ensure your system has the latest security patches and performance improvements. You can find these in Settings > Update & Security > Windows Update.
Troubleshooting
Laptop Not Powering On
- Ensure the AC adapter is securely connected to both the laptop and a working power outlet.
- Verify the power outlet is functional by plugging in another device.
- If the battery is completely drained, it may take a few minutes of charging before the laptop can power on.
Battery Not Holding Charge / Only Works When Plugged In
- Check the battery health status in Windows settings.
- Ensure all drivers, especially power management drivers, are up to date.
- If the issue persists, the battery may require service or replacement. Contact HP Support for assistance.
No Wi-Fi Connection
- Check if Wi-Fi is enabled in Windows settings.
- Restart your router and modem.
- Ensure Wi-Fi drivers are installed and up to date.
Display Issues
- If the screen is blank, try connecting an external monitor to determine if the issue is with the laptop's display or graphics card.
- Adjust display brightness using the function keys.
For more complex issues, refer to the HP support website or contact their customer service.
Specifications
Below are the key technical specifications for your HP 2021 15.6" FHD Laptop:
| Feature | Specification |
|---|---|
| Brand | HP |
| Model Name | HP 2021 |
| Screen Size | 15.6 Inches |
| Display Resolution | FHD (1920 x 1080) IPS, Anti-Glare |
| Processor | Intel Celeron N4020 (up to 2.8 GHz, 2 Cores, 4MB Cache) |
| RAM Memory | 8GB DDR4 SDRAM |
| Storage | 256GB SSD (Solid State Drive) |
| Graphics | Intel UHD Graphics |
| Operating System | Windows 10 S |
| Ports | 1x SuperSpeed USB Type-C, 2x SuperSpeed USB Type-A, 1x HDMI 1.4b, 1x RJ-45, 1x Headphone/Microphone Combo, 1x AC Smart Pin |
| Wireless Connectivity | 802.11a/b/g/n/ac Wi-Fi, Bluetooth |
| Webcam | HP True Vision 720p HD camera with integrated dual array digital microphones |
| Battery | 3-Cell, 41 WHr, Integrated Lithium Ion |
| Weight | 3.86 Pounds |
| Color | Black |

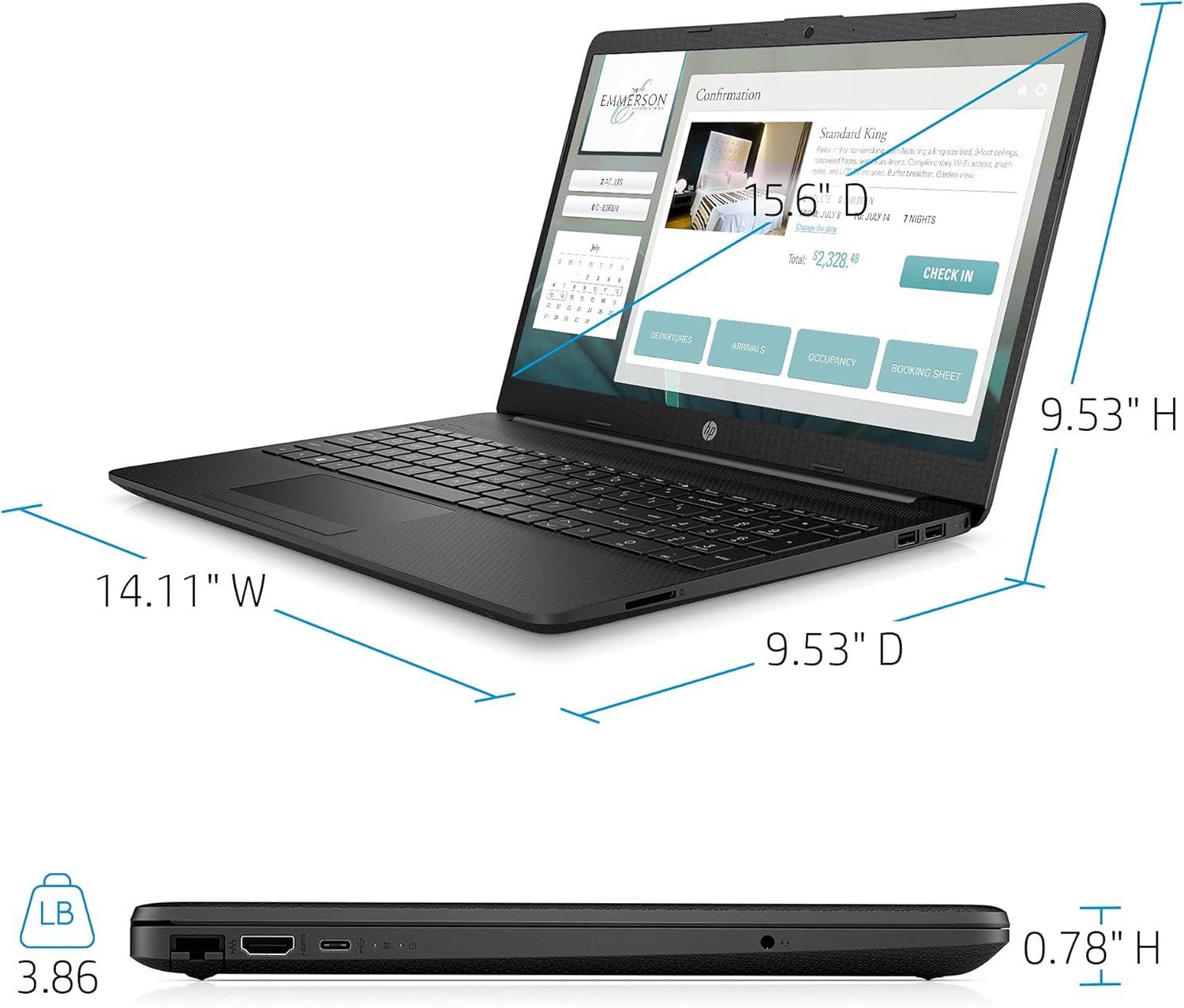

Image: Physical dimensions of the HP laptop (14.11" W x 9.53" D x 0.78" H) and weight (3.86 lbs).
Warranty Information
Your HP 2021 15.6" FHD Laptop comes with a limited manufacturer's warranty. Please refer to the documentation included in the box for specific terms, conditions, and duration of your warranty. Keep your proof of purchase for warranty claims.
Support
For further assistance, technical support, or service inquiries, please visit the official HP support website or contact HP customer service directly. You can find contact information and resources on the HP website:
