User Manual: ANBERNIC RG351M Retro Game Handheld Console

Introduction

The ANBERNIC RG351M is a portable retro game handheld console designed for an immersive gaming experience. Featuring a 3.5-inch IPS screen and powered by an RK3326 quad-core processor, it supports a wide range of classic game formats. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

Safety Information

• Do not expose the device to extreme temperatures, direct sunlight, or high humidity.
• Avoid dropping or subjecting the device to strong impacts.
• Use only the provided USB charging cable and a compatible power adapter (maximum load 2A) for charging.
• Do not attempt to disassemble or repair the device yourself. Refer to qualified service personnel.
• Keep the device away from water and other liquids.
• Ensure proper ventilation during use and charging.

Package Contents

Image: The ANBERNIC RG351M console, its retail packaging, and the included USB charging cable.

Please check the package contents upon unboxing to ensure all items are present:

• 1 x RG351M Game Console
• 1 x USB Cable
• 1 x User Manual (this document)
• 1 x 64GB TF Card (pre-installed with games)

Product Overview

Front View

Image: Front view of the RG351M console, highlighting the 3.5-inch IPS screen, D-pad, dual analog joysticks, and action buttons (A, B, X, Y), along with SELECT and START buttons.

• 3.5-inch IPS Screen: High-definition display for clear visuals.
• D-Pad: Directional pad for navigation and game control.
• Analog Joysticks: Dual 3D rocker sticks for precise movement.
• Action Buttons (A, B, X, Y): Standard gaming input buttons.
• SELECT Button: Used for various in-game functions and menu navigation.
• START Button: Used for pausing games, confirming selections, and menu navigation.

Top and Bottom Views (Ports and Controls)

Image: Top edge of the console, displaying the L1, L2, R1, R2 shoulder buttons, a Type-C OTG port, a 3.5mm earphone jack, and another Type-C port labeled OTG/DC for data transfer and charging.

Image: Bottom edge of the console, showing the TF card slot for expandable storage and the recessed Reset button.

• L1/L2/R1/R2 Buttons: Shoulder buttons for additional in-game controls.
• OTG 1 (Type-C): USB Type-C port for data transfer.
• 3.5mm Earphone Jack: For connecting headphones.
• OTG 2 (Type-C / Charging Port): USB Type-C port for data transfer and charging.
• TF Card Slot: For inserting the game TF card (supports up to 256GB).
• Reset Button: A small, recessed button to restart the device if it becomes unresponsive.
• Speakers: High-quality double horn stereo speakers.

Back View

Image: Back view of the RG351M console, displaying the ANBERNIC logo, model number (RG351M), and battery specifications (Li-Po 3500mAh).

Setup

1. Initial Charging

Before first use, fully charge the console. Connect the provided USB Type-C cable to the OTG 2 (charging) port on the top of the device and the other end to a compatible USB power adapter (not included, recommended 5V/1.3A to 2A). The charging indicator light will illuminate. A full charge typically takes about 4 hours.

2. Inserting the TF Card

The console comes with a 64GB TF card pre-installed with games. If you need to remove or insert the TF card, gently push it into the TF card slot on the bottom of the device until it clicks into place. To remove, push it again until it springs out.

Operating Instructions

Power On/Off

• To Power On: Press and hold the Power button (located on the left side) for a few seconds until the screen illuminates.
• To Power Off: Press and hold the Power button until a power-off menu appears on the screen. Select "Power Off" or "Shutdown". Alternatively, a quick press of the power button will put the device into sleep mode.

Navigating the System

The RG351M runs on an open-source Linux system. Use the D-pad or analog joysticks to navigate through menus and game lists. The 'A' button typically confirms selections, and the 'B' button typically goes back.

Playing Games

Select a game from the main menu. The console supports various game formats including PSP, N64, NDS, PS1, CPS1, CPS2, FBA, NEOGEO, GBA, GBC, GB, SFC, FC, MD, SMS, GG, MSX, PCE, WSC, and transplant games. Refer to specific emulator controls within the system for optimal gameplay.

Wi-Fi Connectivity

Image: The RG351M console showing a game in progress, with an overlay graphic indicating fast Wi-Fi connectivity (2.4GHz 802.11b/g/n).

The RG351M supports 2.4GHz Wi-Fi (802.11b/g/n) for online features, such as game updates or online multiplayer (where supported by the game/emulator).

• Navigate to the system settings menu.
• Select "Network" or "Wi-Fi settings".
• Enable Wi-Fi and select your desired network from the list.
• Enter the password if prompted.

Image: Two RG351M consoles held by hands, illustrating the capability for Wi-Fi online combat between players.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the console's exterior. For the screen, use a microfiber cloth specifically designed for electronics. Do not use liquid cleaners directly on the screen.
• Storage: When not in use for extended periods, store the console in a cool, dry place, away from direct sunlight.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use, to maintain battery health.
• Software Updates: Periodically check for system updates (if available through the open-source community) to ensure optimal performance and compatibility.

Troubleshooting

Specifications

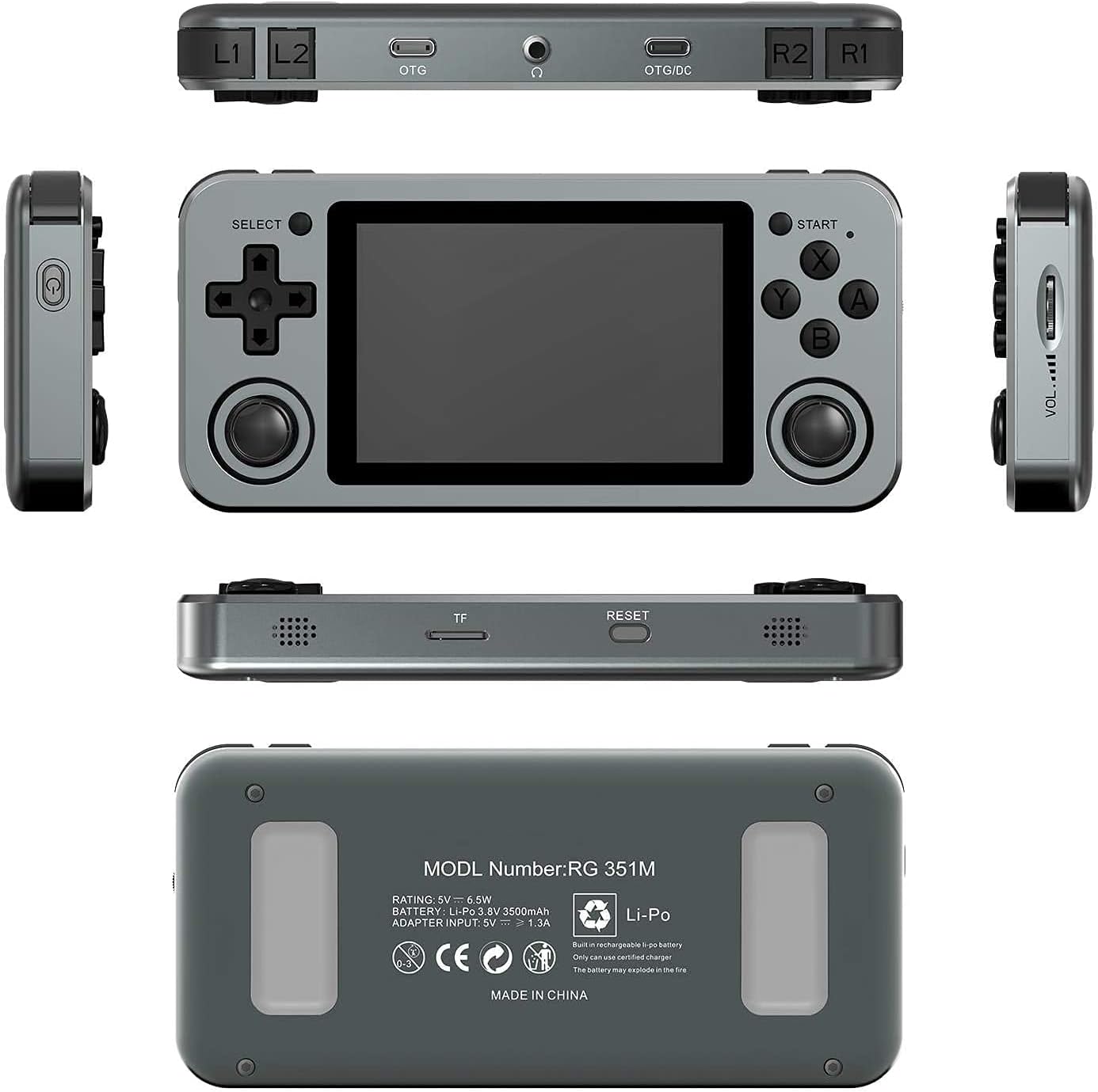

Image: A composite image showing the ANBERNIC RG351M from various angles, including front, top, bottom, sides, and back, providing a comprehensive view of its design and ports.

Warranty and Support

For warranty information and technical support, please refer to the retailer or the official ANBERNIC website. Keep your proof of purchase for warranty claims. This manual provides general guidance; specific software-related issues may require consulting community forums or official support channels.
