Introduction
The Hyper Tough 500-Lumen Rechargeable LED Headlamp is designed to provide hands-free illumination for various tasks, including heavy-duty projects, close-range work, and general lighting in garages or worksites. It features multiple light modes, a rechargeable lithium-ion battery, and a durable, water-resistant construction.
Image: The Hyper Tough 500-Lumen Rechargeable LED Headlamp.
Product Features
- 4 Light Modes: Spot High, Spot Low, Flood High, and Flood Low for versatile lighting needs.
- High Brightness: Up to 500 lumens in Spot High mode.
- Extended Run Time: Up to 28 hours in Flood Low mode.
- Adjustable Head Strap: Two-way fully adjustable for comfort and secure fit.
- Rechargeable Battery: Integrated Lithium-ion battery with included USB charging cable.
- Durable Construction: 1-meter impact-resistant and IPX4 water-resistant.
- Uniform Beam Pattern: Ideal for close-range work.
Package Contents
- Hyper Tough 500-Lumen Rechargeable LED Headlamp (Model 20887)
- Adjustable Head Strap (pre-attached)
- USB Charging Cable
Image: The Hyper Tough headlamp shown alongside its included USB charging cable.
Setup
- Adjusting the Head Strap: The headlamp comes with a two-way adjustable head strap. To adjust, locate the buckles on the sides and top of the strap. Slide the strap through the buckles to achieve a comfortable and secure fit around your head. Ensure the headlamp unit is centered on your forehead.
Image: A close-up view of the headlamp's adjustable strap mechanism.
- Initial Charge: Before first use, fully charge the headlamp. Connect the included USB charging cable to the headlamp's charging port and to a standard USB power source (e.g., computer, wall adapter). The charging indicator light will illuminate (typically red) during charging and change color (typically green or blue) when fully charged.
Image: The headlamp showing the USB charging port with a cable inserted.
Image: The headlamp displaying a green light, signifying that the battery is fully charged.
Operating Instructions
The headlamp features a single power button to cycle through its various light modes.
Image: A top-down view highlighting the location of the power button on the headlamp.
- Power On/Off: Press the power button once to turn the headlamp on. Press and hold the power button for approximately 2 seconds to turn it off from any mode.
- Cycling Through Modes: With the headlamp on, press the power button repeatedly to cycle through the following modes:
- Spot High Mode: Provides maximum focused brightness (500 lumens).
Image: The headlamp emitting a strong, concentrated beam in Spot High mode.
- Spot Low Mode: Reduced focused brightness (144 lumens) for longer run time.
- Flood High Mode: Wide, uniform beam (224 lumens) for close-range work.

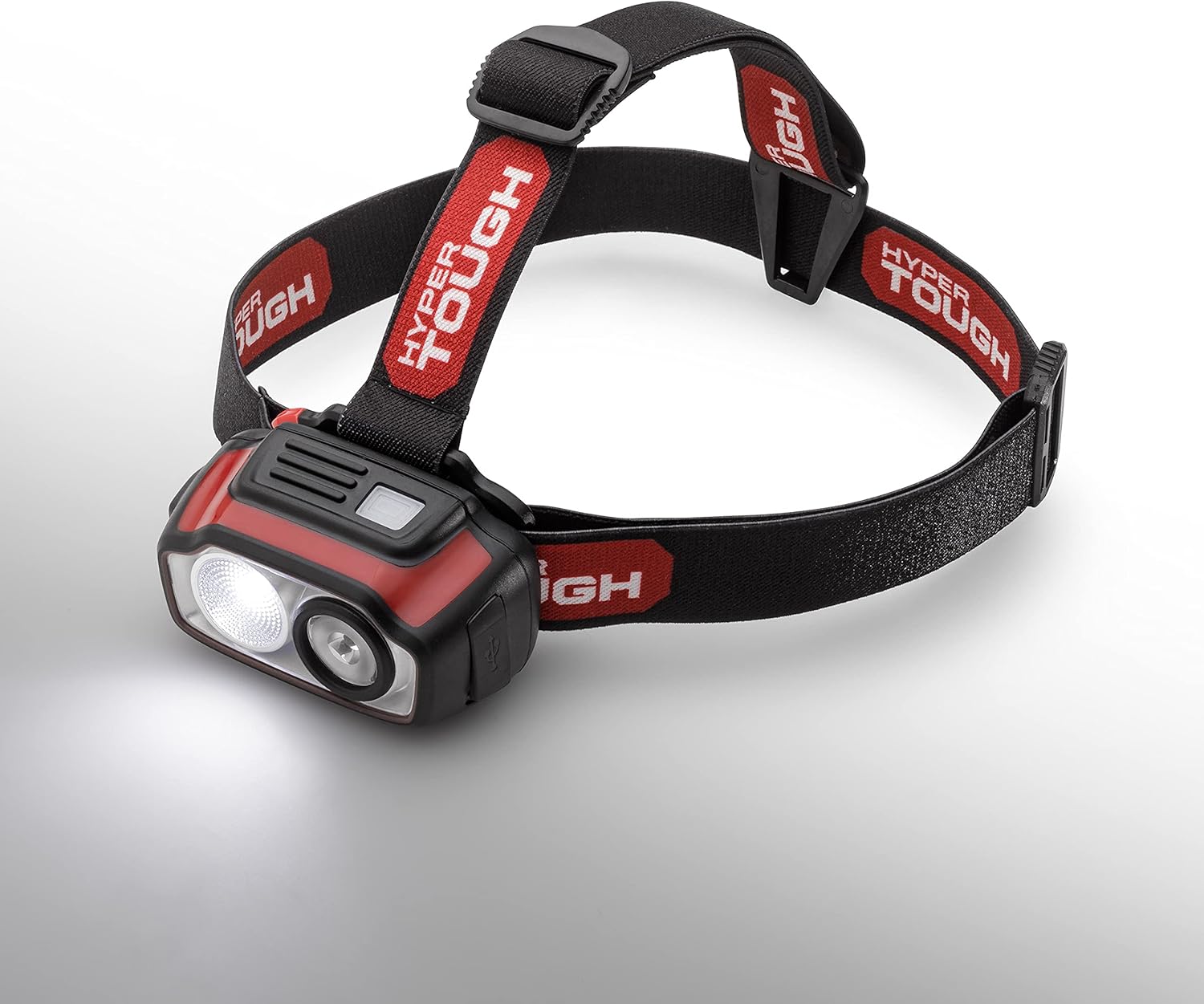

Image: The headlamp producing a broad, even light distribution in Flood High mode.
- Flood Low Mode: Lowest brightness (51 lumens) for extended run time and minimal glare.

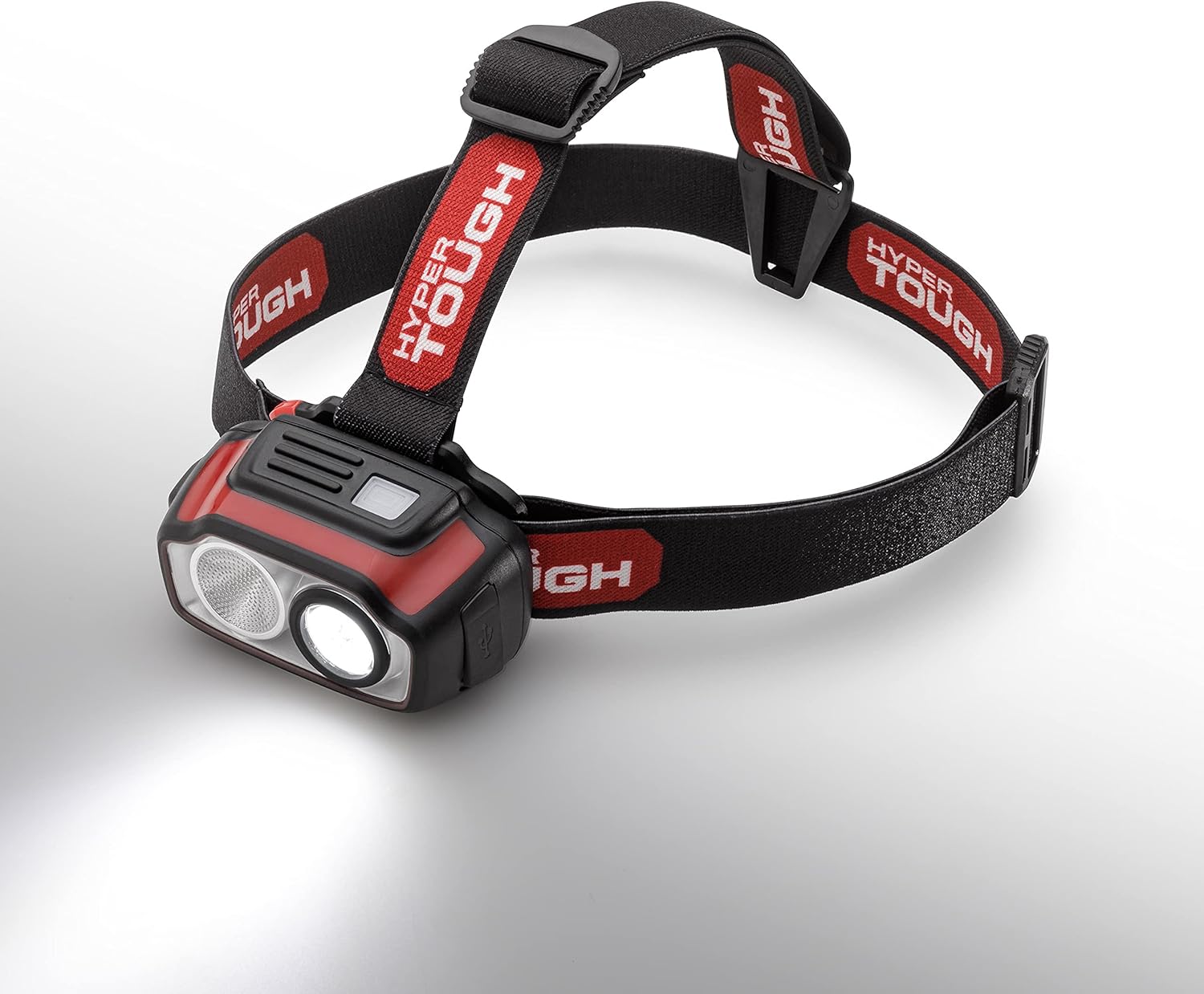

Image: The headlamp providing a gentle, wide illumination in Flood Low mode.
- Spot High Mode: Provides maximum focused brightness (500 lumens).
Charging Instructions
The Hyper Tough headlamp is equipped with a rechargeable Lithium-ion battery.
- Locate the USB charging port on the side of the headlamp.
- Insert the small end of the provided USB charging cable into the headlamp's port.
Image: The headlamp's USB charging port with the charging cable connected.
- Connect the larger end of the USB cable to a powered USB port (e.g., computer, USB wall adapter, power bank).
- The charging indicator light will show the charging status. A red light typically indicates charging, while a green or blue light indicates a full charge.
Image: The headlamp displaying a green light, signifying that the battery is fully charged.
- Once fully charged, disconnect the USB cable.
Maintenance
- Cleaning: Wipe the headlamp with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the headlamp in a cool, dry place away from direct sunlight when not in use for extended periods.
- Battery Care: To prolong battery life, avoid completely draining the battery frequently. Recharge the headlamp regularly, even if not used often.
- Water Resistance: The headlamp is IPX4 water-resistant, meaning it is protected against splashing water from any direction. It is not designed for submersion.
Troubleshooting
- Headlamp not turning on: Ensure the battery is charged. Connect to a USB power source and check the charging indicator.
- Dim light output: The battery may be low. Recharge the headlamp.
- Charging issues: Ensure the USB cable is securely connected to both the headlamp and the power source. Try a different USB cable or power source.
- Strap discomfort: Adjust the two-way head strap to find a more comfortable and secure fit.
Specifications
| Feature | Detail |
|---|---|
| Brand | Hyper Tough |
| Model Number | 20887 |
| Light Source Type | LED |
| White Brightness (Max) | 500 Lumens |
| Power Source | Battery Powered (Lithium-Ion) |
| Spot High Mode | 500 lumens, 6h run time, 75-meter beam distance |
| Spot Low Mode | 144 lumens, 12h 15min run time, 40-meter beam distance |
| Flood High Mode | 224 lumens, 6h run time, 22-meter beam distance |
| Flood Low Mode | 51 lumens, 28h run time, 11-meter beam distance |
| Water Resistance Level | IPX4 (Water Resistant) |
| Impact Resistance | 1-meter |
| Product Dimensions | 1.77"D x 3.13"W x 1.78"H |
| Item Weight | 7.4 ounces |
Warranty and Support
For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official Hyper Tough website. Keep your purchase receipt as proof of purchase.
