Hafele Loox5 LED 2068 Strip Light Instruction Manual

1. Introduction

The Hafele Loox5 LED 2068 Strip Light is designed for functional and accent lighting applications in various indoor settings such as closets, cabinets, and furniture. This 12V dimmable LED strip features 120 high-performance LEDs per meter, offering bright illumination with energy efficiency. Its high Color Rendering Index (CRI) of 90+ ensures accurate color representation. The strip is UL certified and Title 24 compliant, meeting safety and energy standards. It can be customized by cutting at 1-inch (25mm) intervals and features a self-adhesive backing for straightforward installation. This manual provides essential information for the safe and effective use of your LED strip light.

2. Safety Information

Please read all safety instructions carefully before installation and operation. Retain this manual for future reference.

Ensure the power supply is disconnected before any installation, maintenance, or troubleshooting.
This product is designed for indoor use only. Do not expose to moisture or extreme temperatures.
Only use with a compatible 12V Loox5 driver and connector lead (sold separately). Using an incompatible power source may damage the product and void the warranty.
Do not bend the LED strip sharply or apply excessive force, as this may damage the internal circuitry.
Only cut the LED strip at the designated cutting marks. Cutting elsewhere will damage the strip and prevent it from functioning.
Keep out of reach of children.
California Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

Hafele Loox5 LED 2068 Strip Light

Note: A 12V Loox5 driver and connector lead are required for operation and are sold separately.

4. Setup & Installation

Follow these steps for proper installation of your LED strip light:

Preparation: Ensure the mounting surface is clean, dry, and smooth. Measure the desired length for your installation.

An example installation of the Hafele LED strip light providing under-cabinet illumination in a kitchen setting, demonstrating its application for functional and accent lighting.
Cutting the LED Strip: If a shorter length is required, locate the designated cutting marks on the strip. These marks are typically indicated by a scissor icon or copper pads. Cut only at these points to avoid damaging the circuit.

This image displays a detailed view of the LED strip, highlighting the marked sections where the strip can be safely cut every 1 inch (25mm) for custom lengths.

A technical diagram illustrating the dimensions and connection points of the LED strip, including its width (8mm), thickness (1.3mm), and cutting intervals.
Applying the Strip: Peel off the protective backing from the self-adhesive tape on the back of the LED strip. Carefully press the strip onto the prepared surface, ensuring firm and even contact along its entire length.
Connecting to Power: Connect the LED strip to a compatible 12V Loox5 driver using a connector lead (both sold separately). Ensure the polarity is correct (positive to positive, negative to negative). Refer to the driver and connector lead manuals for specific connection instructions.
Final Check: Once connected, ensure all connections are secure before restoring power to the system.

5. Operating Instructions

The Hafele Loox5 LED 2068 Strip Light operates with a 12V Loox5 driver system. Operation typically involves:

Power On/Off: The LED strip will illuminate when power is supplied through the connected 12V Loox5 driver. Power can be controlled via the driver's switch or a connected wall switch.
Dimming: This LED strip is dimmable. To utilize the dimming feature, it must be connected to a compatible dimmable 12V Loox5 driver and a suitable dimmer switch or app control system. Refer to your driver and dimmer's instructions for specific dimming procedures.
App Control: If your 12V Loox5 driver system supports app control, you can manage the light's on/off function and dimming levels through the associated mobile application. Consult the app's user guide for pairing and control instructions.

6. Maintenance

The Hafele Loox5 LED 2068 Strip Light requires minimal maintenance to ensure long-lasting performance.

Cleaning: Ensure the power is off before cleaning. Gently wipe the surface of the LED strip with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or excessive moisture.
Inspection: Periodically inspect the strip for any signs of damage, such as cuts, cracks, or loose connections. If damage is found, disconnect power immediately and consult a qualified electrician or Hafele customer support.

7. Troubleshooting

If you encounter issues with your LED strip light, refer to the following common troubleshooting steps:

Problem	Possible Cause	Solution
LED strip does not light up.	No power to the driver. Loose connection. Incorrect polarity. Damaged strip or driver.	Check power outlet and circuit breaker. Ensure all connections are secure. Verify positive and negative connections. Inspect strip and driver for visible damage. Replace if necessary.
LED strip flickers or dims inconsistently.	Incompatible dimmer or driver. Loose connection. Overloaded driver.	Ensure driver and dimmer are compatible with 12V LED strips. Check all connections for tightness. Verify the total wattage of the LED strip does not exceed the driver's capacity.
Only a section of the strip lights up.	Damage to the strip beyond a cutting point. Faulty connection within the strip.	Inspect the non-illuminated section for physical damage. The damaged section may need to be replaced.

If these steps do not resolve the issue, please contact Hafele customer support.

8. Specifications

Key technical specifications for the Hafele Loox5 LED 2068 Strip Light:

Model: Loox5 LED 2068
Voltage: 12 Volts
Wattage: 9.6W per meter (48 watts for 5 meters)
LEDs per Meter: 120
Light Source Type: LED
Color Temperature: 4000 Kelvin (Cool White)
Special Feature: Dimmable
Color Rendering Index (CRI): 90+
Lifespan: L80/B10 >50,000 hours
Width: 5/16 inches (8mm)
Cuttable Interval: Every 1 inch (25mm)
Indoor/Outdoor Usage: Indoor
Certifications: UL Certified, Title 24 Compliant
Material: Vinyl, Metal, PCB
Control Method: App (with compatible driver)

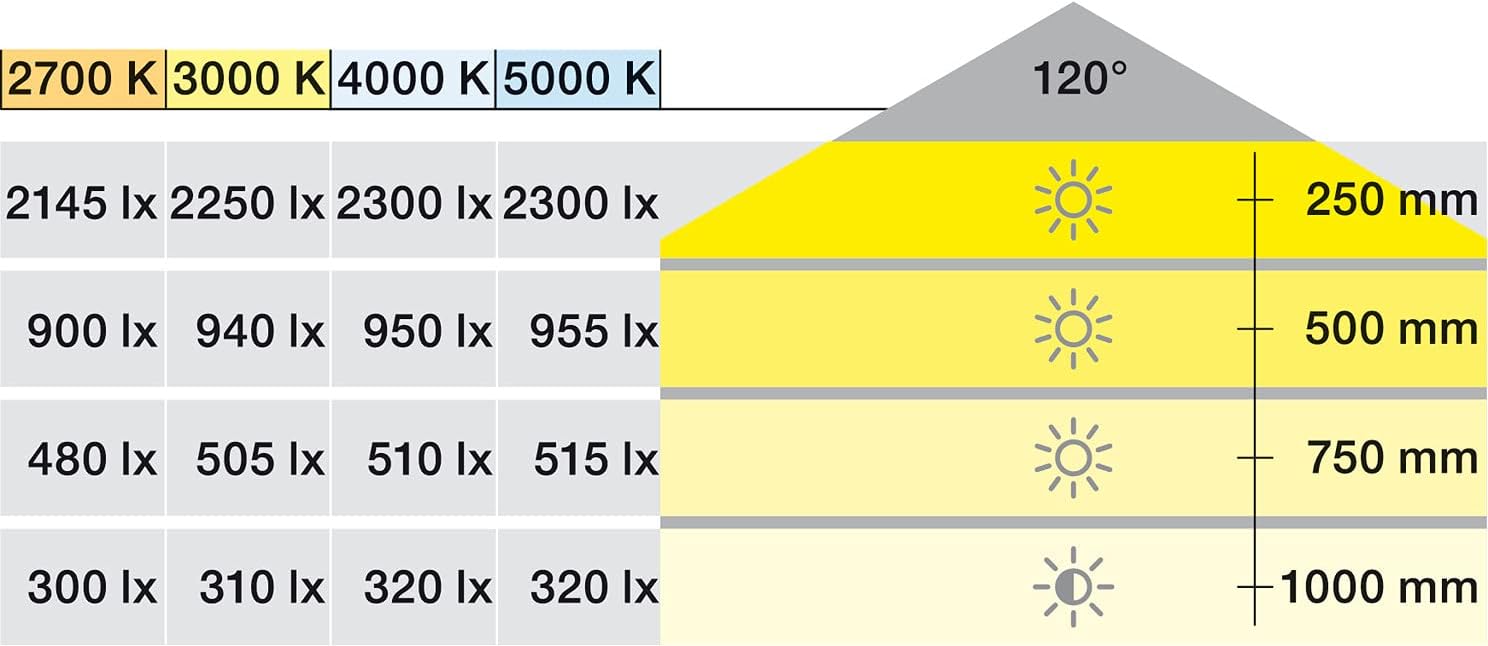

Light intensity chart for Hafele Loox5 LED 2068 Strip Light at various color temperatures and distances

This chart provides light intensity (lux) measurements for the LED strip at different color temperatures (2700K, 3000K, 4000K, 5000K) and distances (250mm, 500mm, 750mm, 1000mm), indicating a 120-degree beam angle.

9. Warranty Information

Hafele products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please refer to the official Hafele website or contact their customer support directly.

10. Customer Support

If you have any questions, require technical assistance, or need to report an issue with your Hafele Loox5 LED 2068 Strip Light, please contact Hafele customer support.

Website: Visit the official Hafele website for support resources, FAQs, and contact information.
Contact: Refer to the packaging or Hafele's website for regional contact details (phone number, email).
