ORIA Key Lock Box OUS-HA102B-OR Instruction Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your ORIA Key Lock Box (Model OUS-HA102B-OR). Please read this guide thoroughly before using the product to ensure proper function and security.

The ORIA Key Lock Box is designed to securely store keys for indoor and outdoor use. It features a 4-digit combination lock and a removable chain for flexible placement.

Product Features

• 4-Digit Combination: Offers up to 10,000 possible combinations for enhanced security. The combination is easy to set and reset.
• Large Storage Capacity: The inner dimensions are approximately 2.17 inches wide and 1.14 inches deep, capable of holding up to 5 standard house keys or 3 larger keys.
• Easy Installation: Designed for convenience, it requires no tools for installation. The removable shackle allows for versatile hanging options.
• Durable Construction: Made from high-strength zinc alloy and hardened steel shackles, providing resistance against cutting and sawing.

Image: Overview of the ORIA Key Lock Box highlighting its reinforced metal body, flexible shackle, and 4-digit combination mechanism.

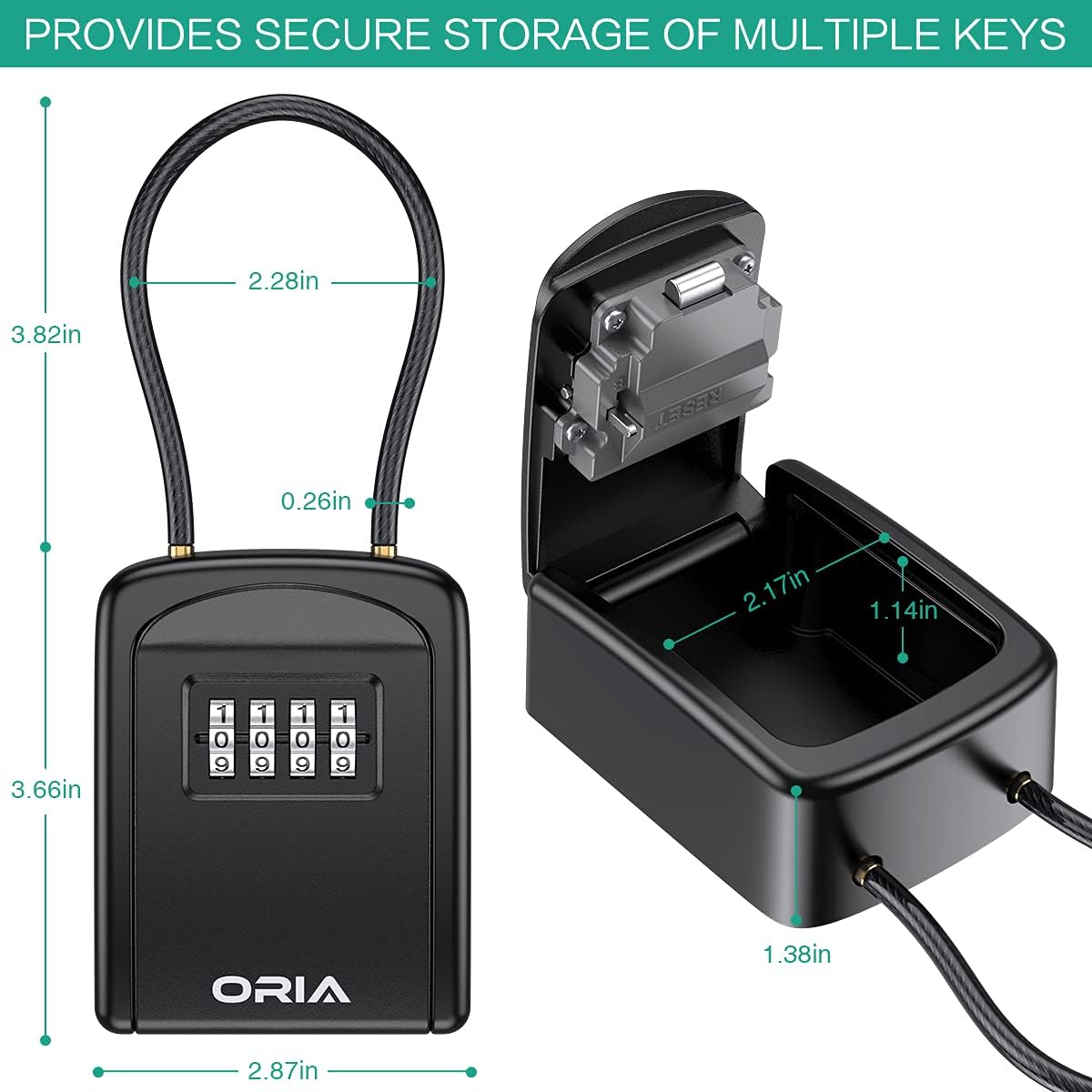

Image: Detailed dimensions of the ORIA Key Lock Box, showing its height, width, and depth for both the exterior and interior storage space.

Setup: Setting Your Combination

Follow these steps to set or reset the 4-digit combination for your ORIA Key Lock Box.

1. Open the Lock Box: Dial the default code (0-0-0-0) to open the key box.
2. Locate Reset Lever: Inside the lock box, on the back of the door, find the reset lever.
3. Move Lever to Position B: Push the RESET lever from position A to position B.
4. Set New Combination: With the lever in position B, scroll the numbers on the dials to your desired 4-digit combination.
5. Return Lever to Position A: Push the RESET lever back to position A. Your new combination is now set.
6. Important Reminder: After setting a new password, it is highly recommended to record it immediately, either by taking a photo or writing it down. Forgetting the combination will prevent you from unlocking the box.

Image: Visual instructions demonstrating the process of setting a new 4-digit combination for the key lock box.

Installation and Placement

The ORIA Key Lock Box is designed for flexible installation without the need for tools.

1. Remove Shackle: To attach or detach the shackle, push the button on the top of the lock box. While holding the button, pull up the shackle.
2. Hang Anywhere: The flexible shackle allows you to hang the key box on various fixtures such as doorknobs, car handles, railings, or fences.

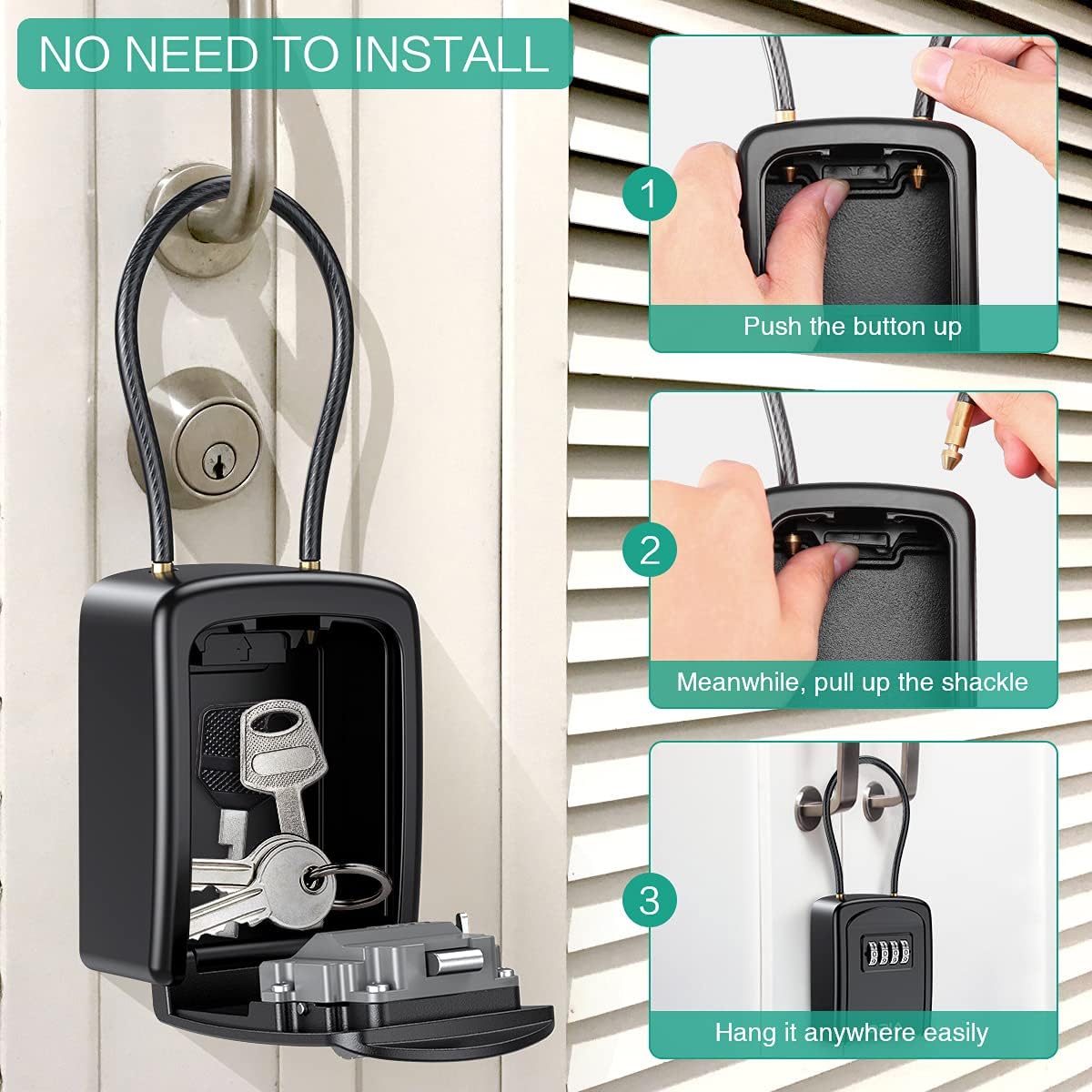

Image: Visual guide on how to easily hang the key lock box using its removable shackle, illustrating the button press and shackle removal.

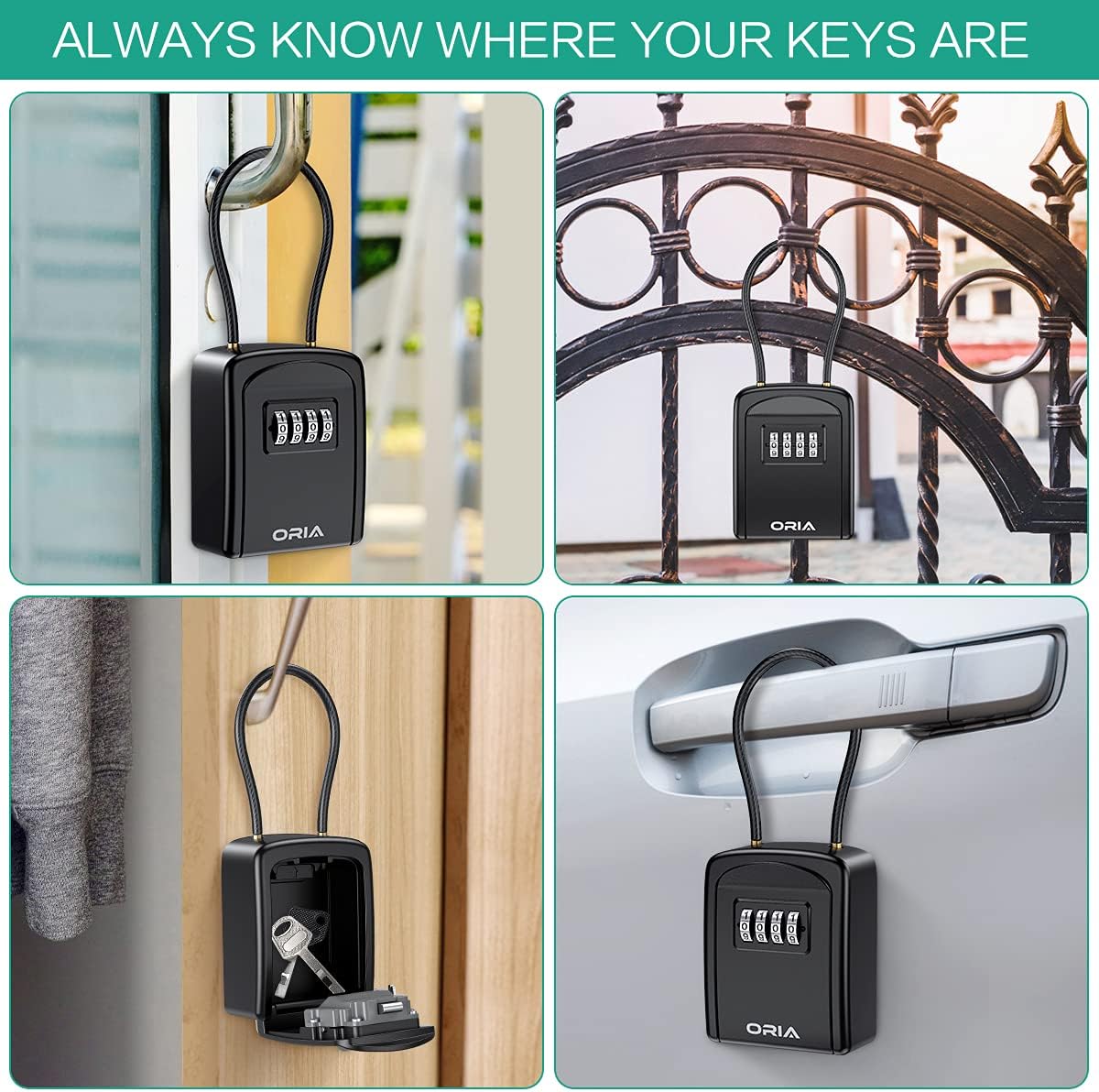

Image: Examples of the ORIA Key Lock Box in various common usage scenarios, demonstrating its versatility for key storage.

Operating the Lock Box

Opening the Lock Box

1. Ensure the shackle is securely attached if in use.
2. Rotate the dials to your set 4-digit combination.
3. Press the release button or pull the front cover down to open the compartment.

Closing the Lock Box

1. Place keys or other items inside the compartment.
2. Close the front cover firmly until it clicks shut.
3. Scramble the combination dials to secure the lock box.

Maintenance

To ensure the longevity and proper function of your ORIA Key Lock Box, consider the following maintenance tips:

• Cleaning: Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Lubrication: Periodically apply a small amount of graphite lubricant to the combination dials to ensure smooth operation, especially in outdoor environments.
• Environmental Exposure: While durable, the lock box is not water resistant. For outdoor use, consider placing it in a sheltered location to protect it from direct rain and extreme weather conditions, which can affect its internal mechanisms over time.

Troubleshooting

• Cannot Open with Correct Combination:
  • Ensure each dial is precisely aligned with the indicator mark.
  • Try rotating the dials a full turn past the combination and then back to the correct numbers.
  • Verify that the reset lever inside the box is fully in position A.
• Dials are Stiff:
  • Apply a small amount of graphite lubricant to the dials.
  • Clean any dirt or debris from around the dials.
• Forgot Combination:
  • Unfortunately, if the combination is forgotten and not recorded, there is no master key or backdoor to open the lock box. The only solution is to try all 10,000 combinations, which is time-consuming, or replace the unit. This highlights the importance of recording your combination as advised during setup.

Specifications

Warranty and Support

ORIA is committed to providing high-quality products and customer satisfaction. Your ORIA Key Lock Box comes with the following:

• 1-Year Warranty: Covers manufacturing defects.
• 90-Day Free Replacements: For eligible issues within 90 days of purchase.
• 30-Day Free Returns: Hassle-free returns within 30 days.
• 24/7 Customer Support: Assistance available around the clock.
• Lifetime Technical Support: Ongoing technical assistance for the product's lifespan.

For support, please visit the ORIA Store on Amazon or contact customer service directly.
