1. Introduction
Thank you for choosing the Moby-System Playpen. This instruction manual provides essential information for the safe assembly, operation, and maintenance of your playpen. Please read this manual thoroughly before use and retain it for future reference.
The Moby-System Playpen is designed to provide a large and secure activity space for children. Its dimensions are approximately 200 x 160 cm (inner dimensions), with an outer size of approximately 205 x 165 cm. The playpen features a non-slip surface, optimal height of approximately 68 cm, and is constructed from sturdy, tear-resistant, breathable, and waterproof 210D PVC fabric.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always ensure all parts are correctly assembled and securely fastened before placing a child in the playpen.
- Never leave a child unattended in the playpen. Constant supervision is required.
- Do not use the playpen if any parts are broken, torn, or missing. Contact Moby-System for replacement parts.
- Keep children away from the playpen during assembly and disassembly to prevent injury.
- Ensure the playpen is placed on a flat, stable, and level surface.
- Do not place the playpen near open flames, heaters, or other heat sources.
- Remove all packaging materials before use and dispose of them properly.
- The transparent fabric on all sides allows for visibility but does not replace direct supervision.
- The entrance zipper is designed to be closed from the outside to prevent children from opening it.
3. Package Contents
Verify that all components are present before beginning assembly:
- Playpen fabric enclosure (200 x 160 cm)
- Steel tube frame components (25mm diameter, 0.5mm thick)
- PP Connectors (various types for corners and joints)
- Non-slip suction cups (pre-attached to base connectors)
- Transport Bag
4. Setup Instructions
The Moby-System Playpen is designed for quick and tool-free assembly. It is recommended to assemble the playpen in its intended location due to its large size.
4.1 Unpacking
- Remove the playpen and all components from the transport bag.
- Lay out all parts on a clean, flat surface to identify them.
4.2 Frame Assembly
- Connect the steel tubes using the PP connectors to form the base frame. Ensure the connectors with suction cups are used for the bottom corners.

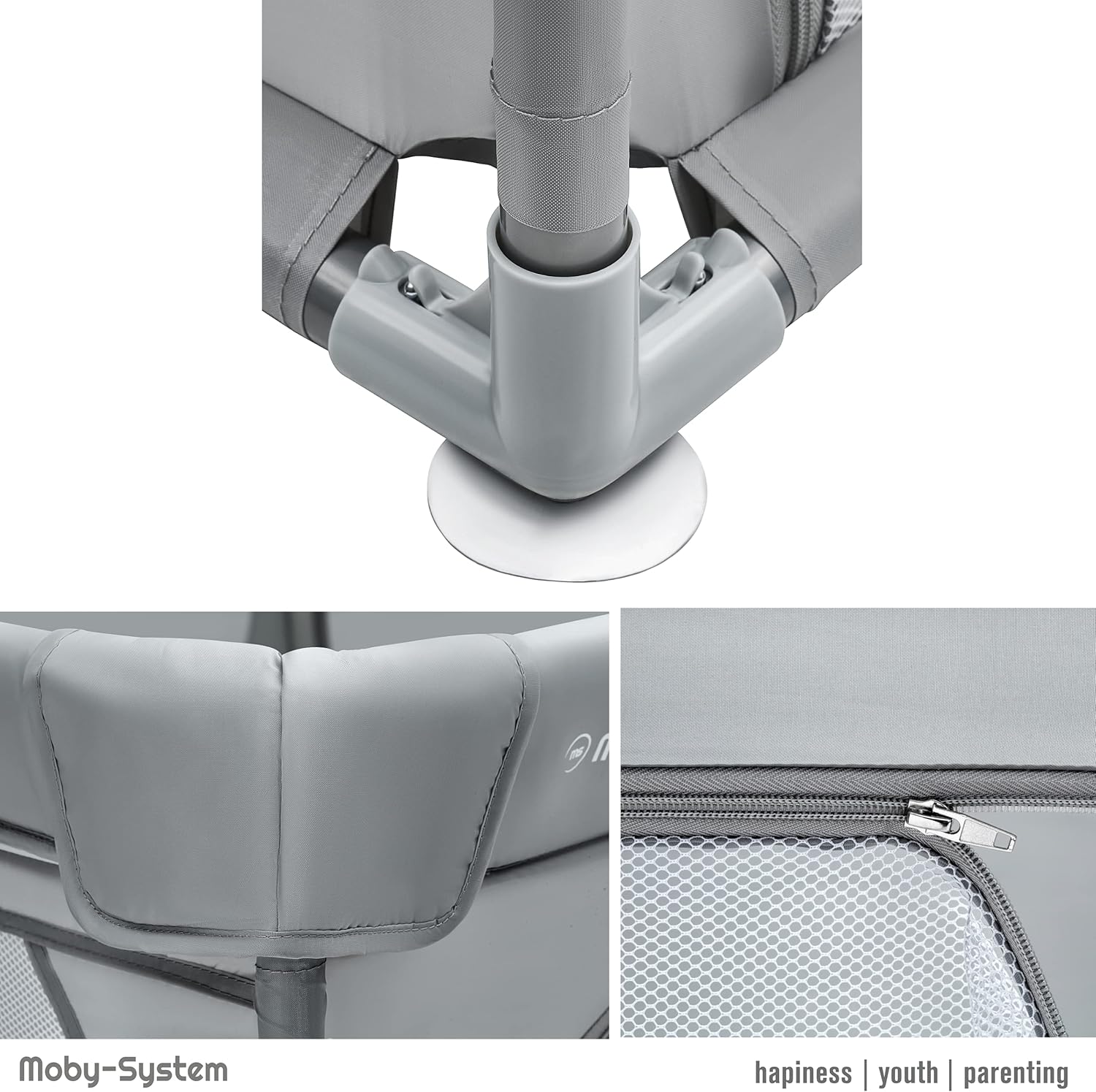

Image: Detail of a corner connector with a non-slip suction cup and the Moby-System branding on the fabric.
- Assemble the vertical support tubes and connect them to the base frame using the appropriate PP connectors.
Image: Various frame components, including steel tubes with 25mm diameter and 0.5mm thickness, and different types of PP connectors.
- Complete the top frame by connecting the remaining steel tubes and connectors.
- Ensure all connections are firm and secure.
4.3 Fabric Enclosure Installation
- Carefully slide the fabric enclosure over the assembled frame. The fabric is designed to fit snugly.
- Ensure the bottom of the fabric is properly aligned with the base frame and the top edges are secured over the top frame.
Image: The Moby-System playpen fully assembled, showing the zippered entrance panel open.
- Verify that the zippered entrance is positioned correctly and functions smoothly.
- Check all seams and connections for proper fit and security.
5. Operating Instructions
5.1 Using the Playpen
- Place the playpen on a stable, flat surface. The non-slip suction cups on the base will help secure it.
- To place a child inside, unzip the entrance from the outside. After the child is inside, ensure the zipper is fully closed and secured.
Image: A parent and child interacting inside the spacious Moby-System playpen, demonstrating its use as an activity center.
- The transparent mesh sides allow for easy visibility of the child and prevent a feeling of confinement.
- The large play surface (200 x 160 cm) accommodates multiple children or allows for ample space for a single child to play.
5.2 Folding and Transport
The playpen is designed for easy disassembly and transport.
- Remove the child and any toys from the playpen.
- Unzip the fabric enclosure and carefully remove it from the frame.
- Disassemble the steel tube frame by detaching the PP connectors.
- Fold the fabric enclosure neatly.
- Place all disassembled components and the folded fabric into the provided transport bag.

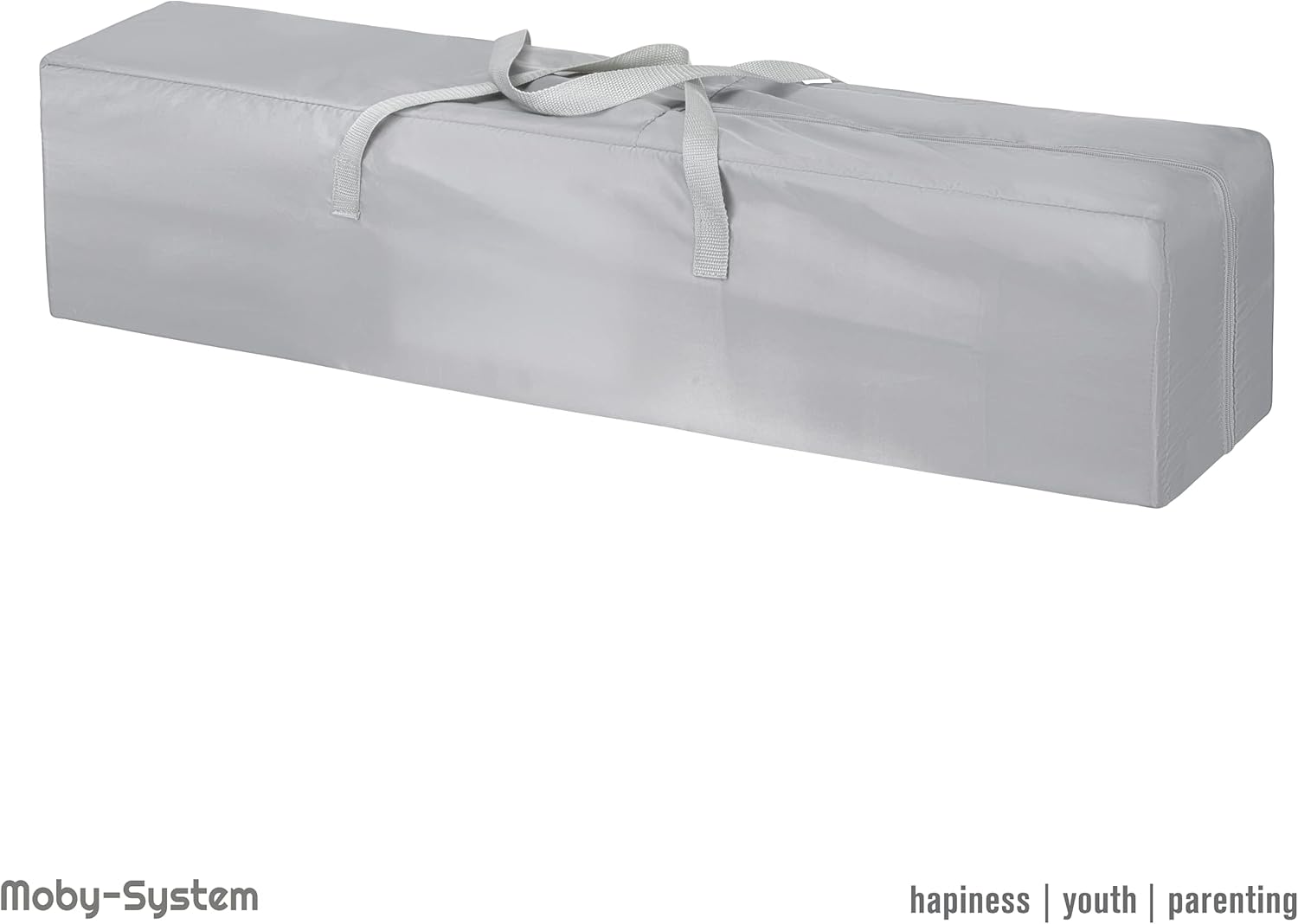

Image: The Moby-System playpen components neatly packed into its grey transport bag, ready for storage or travel.
- The folded size is approximately 100 x 25 x 20 cm, making it compact for storage and travel.
6. Maintenance and Cleaning
- Cleaning the Fabric: The 210D PVC fabric is waterproof and easy to clean. Wipe down with a damp cloth and mild soap. Rinse thoroughly with a clean damp cloth and allow to air dry completely before folding or storing. Do not machine wash or tumble dry.
- Frame Care: Wipe the steel tubes and plastic connectors with a damp cloth as needed. Ensure all parts are dry before reassembly or storage to prevent rust or mildew.
- Inspection: Regularly inspect the playpen for any signs of wear, tear, or damage to the fabric, frame, or connectors. Check that all connections are secure. Discontinue use if any damage is found and contact customer support for replacement parts.
- Storage: When not in use, store the playpen in its transport bag in a cool, dry place, away from direct sunlight and extreme temperatures.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Playpen feels unstable. | Frame not fully assembled or connections loose. Not on a level surface. | Ensure all steel tubes are fully inserted into connectors. Check that the playpen is on a flat, level surface. |
| Fabric does not fit the frame. | Incorrect orientation of fabric or frame. | Double-check the fabric orientation against the frame. Ensure the frame is assembled to the correct dimensions. |
| Zipper is stuck or difficult to operate. | Fabric caught in zipper. Zipper mechanism dirty. | Gently free any fabric caught in the zipper. Clean the zipper teeth with a small brush if necessary. Do not force the zipper. |
| Suction cups not adhering. | Surface is not clean or smooth. Suction cups are dirty. | Clean the floor surface and the suction cups. Ensure the playpen is placed on a smooth, non-textured floor. |
8. Specifications
- Model: KOJEC SZARY 1.6
- Brand: Moby-System
- Inner Dimensions: 200 cm (L) x 160 cm (W)
- Outer Dimensions: Approximately 205 cm (L) x 165 cm (W)
- Side Height: Approximately 68 cm
- Frame Material: Steel tubes (25mm diameter, 0.5mm thick)
- Connector Material: PP (Polypropylene)
- Fabric Material: 210D PVC (Waterproof, tear-resistant, breathable)
- Folded Dimensions (in transport bag): Approximately 100 cm (L) x 25 cm (W) x 20 cm (H)
- Item Weight: 9.42 kg
- Color: Grey
9. Warranty and Support
For warranty information, replacement parts, or customer support, please contact Moby-System directly through their official website or the retailer where the product was purchased. Please have your model number (KOJEC SZARY 1.6) and proof of purchase available when contacting support.
