Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your NUWATT 30W LED Flood Light. This commercial-grade floodlight features 3CCT selectable color temperatures (3000K, 4000K, 5000K), an IP65 waterproof rating, an adjustable knuckle mount, 0-10V dimming capability, and a universal voltage range of 120-277V. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image: The NUWATT 30W LED Flood Light, showing its rectangular light panel, adjustable knuckle mount, and exposed wiring for connection.
Safety Information
- Always disconnect power before installation or servicing.
- Installation should be performed by a qualified electrician in accordance with national and local electrical codes.
- Ensure the supply voltage is compatible with the fixture's operating voltage (120-277V).
- Do not operate the fixture with damaged wiring or housing.
- Avoid direct eye exposure to the light source when illuminated.
- This fixture is rated IP65 for outdoor use, protecting against dust and water jets.
Package Contents
- 1x NUWATT 30 Watt Bronze LED Floodlight
- Installation hardware (screws, washers, etc.)
- Instruction Manual (this document)
Specifications
| Brand | NUWATT |
| Model Number | NW-SFL-30W-3CT-KN |
| Wattage | 30 Watts |
| Brightness | 4200 Lumens |
| Color Temperature (CCT) | 3000K (Warm White), 4000K (Cool White), 5000K (Daylight) Selectable |
| Voltage | 120-277V |
| Dimmable | 0-10V Dimmable |
| IP Rating | IP65 Waterproof |
| Mounting Type | Adjustable Knuckle Mount (Surface Mount, Bracket Mount, Ceiling Mount, Deck Mount, Floor Mount, Pole Mount) |
| Material | Aluminum (Frame), Acrylic (Shade) |
| Dimensions (L x W x H) | 7.16" x 1.72" x 9.05" |
| Certifications | UL, cUL, DLC Listed |
| Beam Angle | 120 degrees |

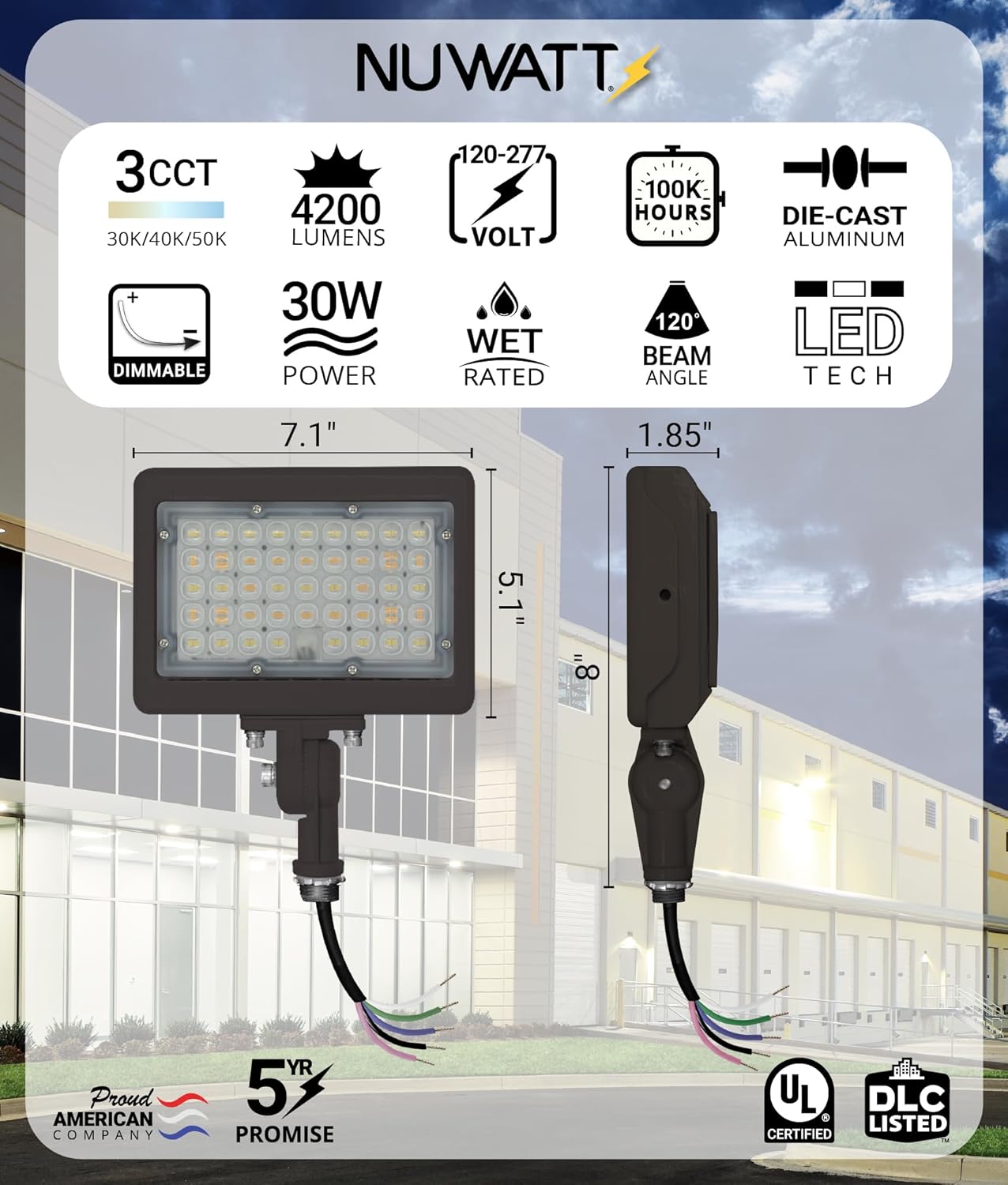

Image: Diagram illustrating the dimensions (7.1" length, 5.1" width, 1.85" depth, 8" total height with mount) and key features of the NUWATT flood light, including 3CCT, 4200 lumens, 30W power, 120-277V, 100k hours lifespan, die-cast aluminum, dimmable, wet rated, 120-degree beam angle, and LED technology. UL and DLC certifications are also shown.
Setup and Installation
The NUWATT LED Flood Light is designed for versatile mounting using its adjustable knuckle mount. Ensure power is disconnected before beginning installation.
- Prepare Mounting Surface: Identify a suitable junction box or mounting plate location. The knuckle mount allows for surface, bracket, ceiling, deck, floor, or pole mounting.
- Wire Connection:
- Insert the fixture's wiring into the mounting plate.
- Connect the wires according to local electrical codes. Typically, this involves connecting the black wire to live, white to neutral, and green to ground. For 0-10V dimming, connect the purple wire to the dimmer's positive control wire and the gray wire to the dimmer's negative control wire.
- Mounting the Plate: Securely attach the mounting plate to the junction box or desired surface using appropriate screws.
- Attach the Light Fixture: Mount the LED flood light fixture to the installed plate, ensuring it is firmly secured.
- Adjust Angle: Use the 180-degree adjustable knuckle mount to set the desired lighting angle and direction. Tighten the locking teeth to secure the position.
Image: A visual guide demonstrating the easy installation process of the flood light, showing wires being inserted into a mounting plate, connections being made, the plate mounted to a junction box on a wall, and the light fixture attached to the plate.
Image: An illustration of the flood light's versatile design, highlighting its 180-degree vertical and horizontal rotation capabilities when wall-mounted, allowing for precise beam direction.
Video: An overview of the NUWATT Commercial Outdoor LED Flood Light, demonstrating its features like the 3CCT switch, knuckle mount, waterproof design, and installation flexibility. The video shows the product being handled and installed in various outdoor settings.
Operating Instructions
Color Temperature Selection (3CCT)
Your NUWATT LED Flood Light features a selectable color temperature switch, allowing you to choose between three distinct light appearances: Warm White (3000K), Cool White (4000K), and Daylight (5000K).
- Locate the CCT switch on the side of the fixture. It is typically covered by a small plate.
- Open the plate and press the button to cycle through the available color temperatures.
- Select the desired color temperature for your application.
Image: The NUWATT flood light with an overlay indicating the three selectable color temperatures: 3000K (warm white), 4000K (cool white), and 5000K (daylight). The image also highlights 4200 lumens, 100k hours lifespan, wet rated, and 30W power.
0-10V Dimming
This flood light is compatible with 0-10V dimming systems, allowing for adjustable brightness from 10% to 100%.
- Ensure your electrical system includes a compatible 0-10V dimmer switch.
- Connect the purple and gray dimming wires from the fixture to the corresponding control wires of the 0-10V dimmer.
- Adjust the dimmer switch to achieve the desired light output.
Image: A visual demonstrating the flicker-free dimming capability of the NUWATT flood light, showing light output adjustable from 100% to 10%. The image also lists compatible 0-10V dimmers from brands like Leviton, Legrand, and Lutron.
Maintenance
- Cleaning: Periodically clean the fixture's lens and housing with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the wiring and mounting for any signs of wear, damage, or loose connections. Address any issues promptly.
- Heat Dissipation: Ensure the fixture's heat dissipation fins are not obstructed to maintain optimal performance and lifespan.
Image: An illustration highlighting the IP65 weatherproof rating and advanced heat dissipation features of the NUWATT flood light. Arrows indicate airflow for cooling, emphasizing the die-cast aluminum construction.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose wiring; faulty fixture. | Check power source and circuit breaker. Verify all wire connections are secure. If problem persists, contact customer support. |
| Light flickers or dims unexpectedly. | Incompatible dimmer; loose dimming wires; unstable power. | Ensure a compatible 0-10V dimmer is used. Check dimming wire connections. Consult an electrician for power stability issues. |
| Incorrect color temperature. | CCT switch set incorrectly. | Adjust the 3CCT switch to the desired setting (3000K, 4000K, or 5000K). |
| Water ingress or condensation inside fixture. | Improper installation; damaged seal. | Ensure all seals are properly seated and mounting is secure. If damage is present, contact customer support. |
Warranty and Support
NUWATT provides a comprehensive 5-year warranty for this LED Flood Light, ensuring quality and reliability. For any questions, technical assistance, or warranty claims, please contact NUWATT customer support.
- Customer Service Hours: 8 AM - 5 PM Pacific Standard Time
- Refer to the official NUWATT website or product packaging for specific contact details.
NUWATT is a US-based family business committed to providing high-quality lighting solutions and unwavering customer support.
