WEESTA Large Air Fryer Toaster Oven User Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.
• A fire may occur if the toaster-oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Extreme caution should be exercised when using containers constructed of other than metal or glass.
• Do not store any materials, other than manufacturer’s recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that can catch fire or melt.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

2. Product Overview

The WEESTA Large Air Fryer Toaster Oven is a versatile 7-in-1 appliance designed for family-sized meals. It combines the functions of an air fryer, toaster, convection oven, and more, offering efficient and healthy cooking options.

The WEESTA 24 QT Air Fryer Toaster Oven in use, showcasing its spacious interior and multiple racks for various dishes.

Key Features:

• Family-Sized Capacity: 24 Quart (23L) large capacity, suitable for preparing meals for up to 10 people. Can accommodate a 12-inch pizza.
• Multi-Functionality: Offers 7 versatile presets: Air Fry, Toast/Bake, Roast, Broil, Defrost, Convection Broil, and Grill.
• Healthy Cooking: Utilizes 360° hot air circulation, six heating elements, and thermal circulation fans for even cooking with minimal oil.
• Easy to Clean: Features non-stick surfaces and stainless steel accessories for simple cleanup.

Illustration of the 24-quart capacity and three-layer design for efficient cooking.

Visual representation of the 360-degree hot air circulation technology for even and fast cooking.

3. Components and Accessories

Your WEESTA Air Fryer Toaster Oven comes with the following standard accessories:

• Air Fryer Basket: Ideal for air frying foods like fries and chicken wings.
• Oven Rack: For baking, roasting, or placing dishes.
• Baking Pan: Suitable for baking cookies, pastries, or collecting drips.
• Oven Gripper: For safely handling hot accessories.
• Drip Tray: Collects crumbs and drips at the bottom of the oven for easy cleaning.
• E-Recipes: A collection of electronic recipes to help you get started.

Included accessories: Oven Rack, Baking Pan, Air Fry Basket, and Crumb Tray.

4. Control Panel and Functions

The WEESTA Air Fryer Toaster Oven features intuitive knob controls for easy operation. The control panel consists of four main knobs:

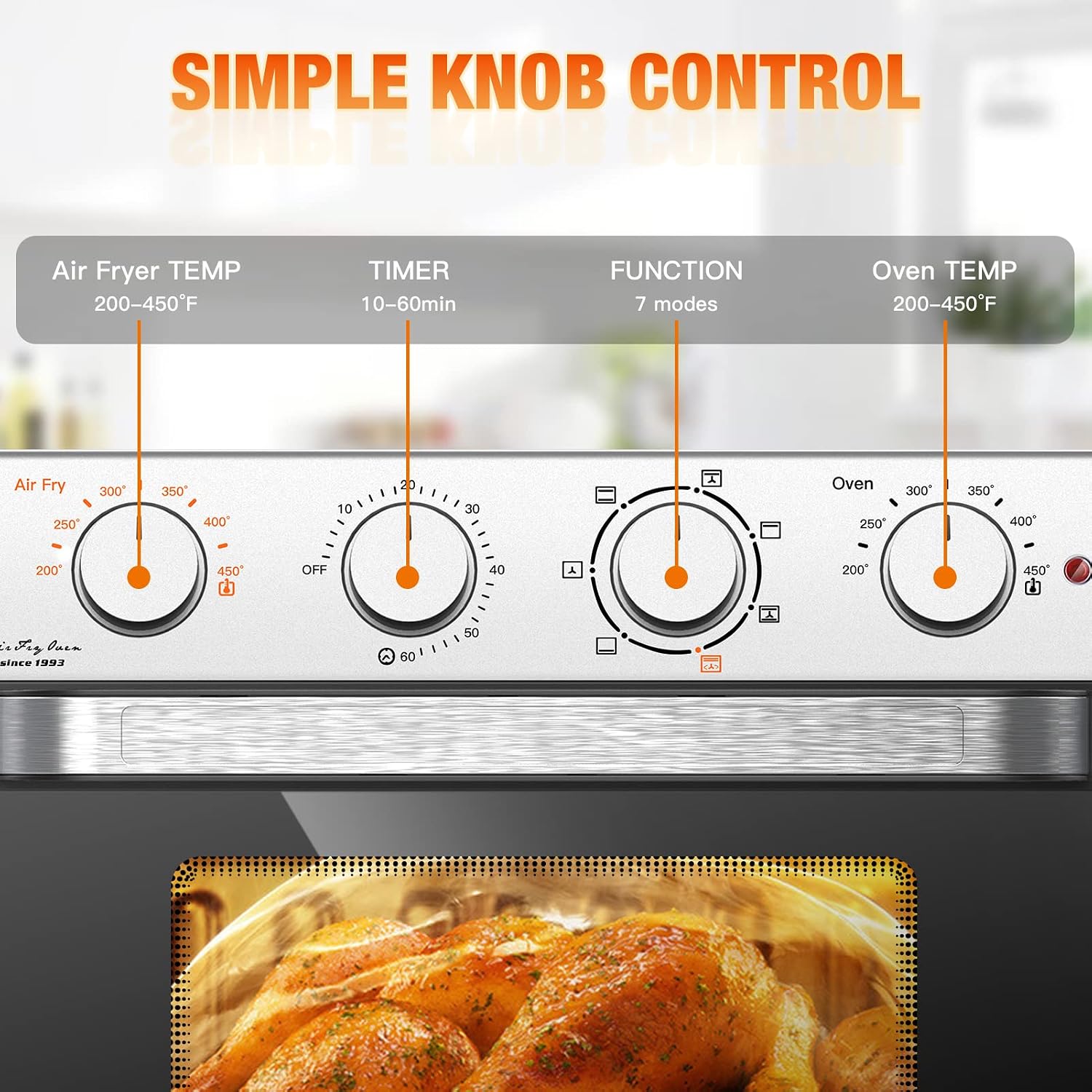

Detailed view of the simple knob controls for temperature, timer, and function selection.

1. Air Fryer Temperature Knob: Adjusts temperature for Air Fry mode (200-450°F).
2. Timer Knob: Sets cooking time (10-60 minutes).
3. Function Knob: Selects one of the 7 cooking modes: Air Fry, Toast/Bake, Roast, Broil, Defrost, Convection Broil, and Grill.
4. Oven Temperature Knob: Adjusts temperature for Oven modes (200-450°F).

To select a mode, rotate the function knob. For oil-less and crunchy food, rotate the knob to the orange font settings. For juicy and fatty food, rotate to the black font settings.

Diagram illustrating the various cooking modes and the oven's dimensions.

5. Operating Instructions

Before first use, clean all accessories and the interior of the oven. Place the oven on a stable, heat-resistant surface with adequate ventilation.

General Operation:

1. Place food on the appropriate accessory (baking pan, air fry basket, or oven rack).
2. Insert the accessory into the desired rack position inside the oven.
3. Close the oven door securely.
4. Select the desired cooking function using the Function Knob.
5. Set the temperature using the Air Fryer Temperature Knob or Oven Temperature Knob, depending on the selected function.
6. Set the cooking time using the Timer Knob. The oven will begin heating.
7. The oven will automatically turn off when the timer expires.

Cooking Examples:

The WEESTA Air Fryer Toaster Oven is capable of preparing a wide variety of dishes. Refer to the included E-Recipes for detailed cooking guides.

A visual guide to some of the 25+ dishes that can be prepared with the oven, including recommended temperatures and times.

6. Care and Maintenance

Proper care and maintenance will ensure the longevity and optimal performance of your WEESTA Air Fryer Toaster Oven.

Cleaning:

• Always unplug the oven and allow it to cool completely before cleaning.
• Interior: Wipe the interior with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. Do not use harsh abrasives or metal scouring pads.
• Exterior: Clean the exterior with a soft, damp cloth. Do not use abrasive cleaners or polishes.
• Accessories: The air fry basket, oven rack, baking pan, and drip tray are made of stainless steel and are easy to clean. Most accessories are dishwasher safe.
• Crumb Tray: Regularly remove and empty the crumb tray. Wash it with warm, soapy water and dry thoroughly before replacing.

Highlights of the oven's features, including easy cleaning and dishwasher-safe accessories.

7. Troubleshooting

If you encounter any issues with your WEESTA Air Fryer Toaster Oven, please refer to the following common troubleshooting tips:

• Appliance not turning on: Ensure the power cord is securely plugged into a working electrical outlet. Check your home's circuit breaker.
• Food not cooking evenly: Ensure the oven is preheated. Distribute food evenly on the cooking surface and avoid overcrowding the basket/pan. Utilize the convection function for better air circulation.
• Excessive smoke: This can be caused by food residue or grease buildup. Clean the interior and accessories thoroughly. Ensure the drip tray is clean.
• Timer not working: Ensure the timer knob is set correctly and wound past the 10-minute mark if it's a mechanical timer.
• Unusual odors: A slight odor may be present during initial use. If odors persist, ensure the oven is clean and free of food debris.

For issues not covered here, please contact customer support.

8. Technical Specifications

9. Warranty and Customer Support

WEASTA stands behind the quality of its products. Your WEESTA Air Fryer Toaster Oven comes with the following:

• 30 Days Return Policy: Returns are accepted within 30 days of purchase.
• One-Year Warranty: The product is covered by a one-year warranty from the date of purchase.
• 24-Hour After-Sale Service: For any assistance or inquiries, please feel free to contact our customer service team.

For support, please refer to the contact information provided in your product packaging or visit the official WEASTA website.
