Introduction
Thank you for choosing the Ibergrif Universal Sink Siphon. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new sink siphon. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
- Always turn off the main water supply to the sink before beginning any installation or maintenance work.
- Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Ensure all connections are securely tightened to prevent leaks. Do not overtighten, as this may damage components.
- If you are unsure about any part of the installation process, consult a qualified plumber.
Package Contents
Carefully unpack the box and ensure all components are present and undamaged. If any parts are missing or damaged, please contact Ibergrif customer support.
- 1 x Ibergrif Universal Sink Siphon (Model M20506)
- Gaskets and sealing rings (various sizes)
- Mounting nuts and connection pieces
Figure 1: Included components of the sink siphon. This image displays the main siphon body, extension tube, wall flange, and all necessary sealing gaskets and connection nuts.
Figure 2: Detailed view of mounting accessories, including gaskets and sealing rings, crucial for a leak-proof installation.
Setup and Installation
The Ibergrif Universal Sink Siphon is designed for easy installation, even for DIY enthusiasts. Follow these steps for a secure and leak-free setup.
- Prepare the Sink Drain: Ensure the sink drain opening is clean and free of debris. If replacing an old siphon, remove it completely.
- Assemble the Siphon Components: Connect the U-shaped bend to the vertical pipe. Ensure all gaskets are correctly seated between connections.
- Connect to Sink Drain: Attach the top part of the siphon (immersion tube) to the sink's drain fitting. The siphon features a standard 1 1/4" union nut for connection. Hand-tighten the slip joint connection initially.
- Adjust Height and Rotation: The siphon features an extendable immersion tube (100mm-130mm adjustment range) and a rotatable U-bend for flexible alignment with your wall pipe. Adjust these to fit your specific under-sink configuration.
- Connect to Wall Pipe: Attach the horizontal outlet of the siphon to the wall pipe, which typically has a diameter of 32 mm. Ensure a secure connection with the appropriate gasket.
- Final Tightening: Once aligned, hand-tighten all connections firmly. Avoid using excessive force to prevent damage.
- Test for Leaks: Turn on the water supply and run water into the sink. Carefully inspect all connections for any signs of leakage. If leaks occur, gently tighten the affected connection.
Figure 3: Key features for installation, including the slip joint connection for easy assembly and the U-shape design for odor and pest prevention.
Figure 4: Installation time comparison, highlighting the quick and tool-free assembly of the Ibergrif siphon.

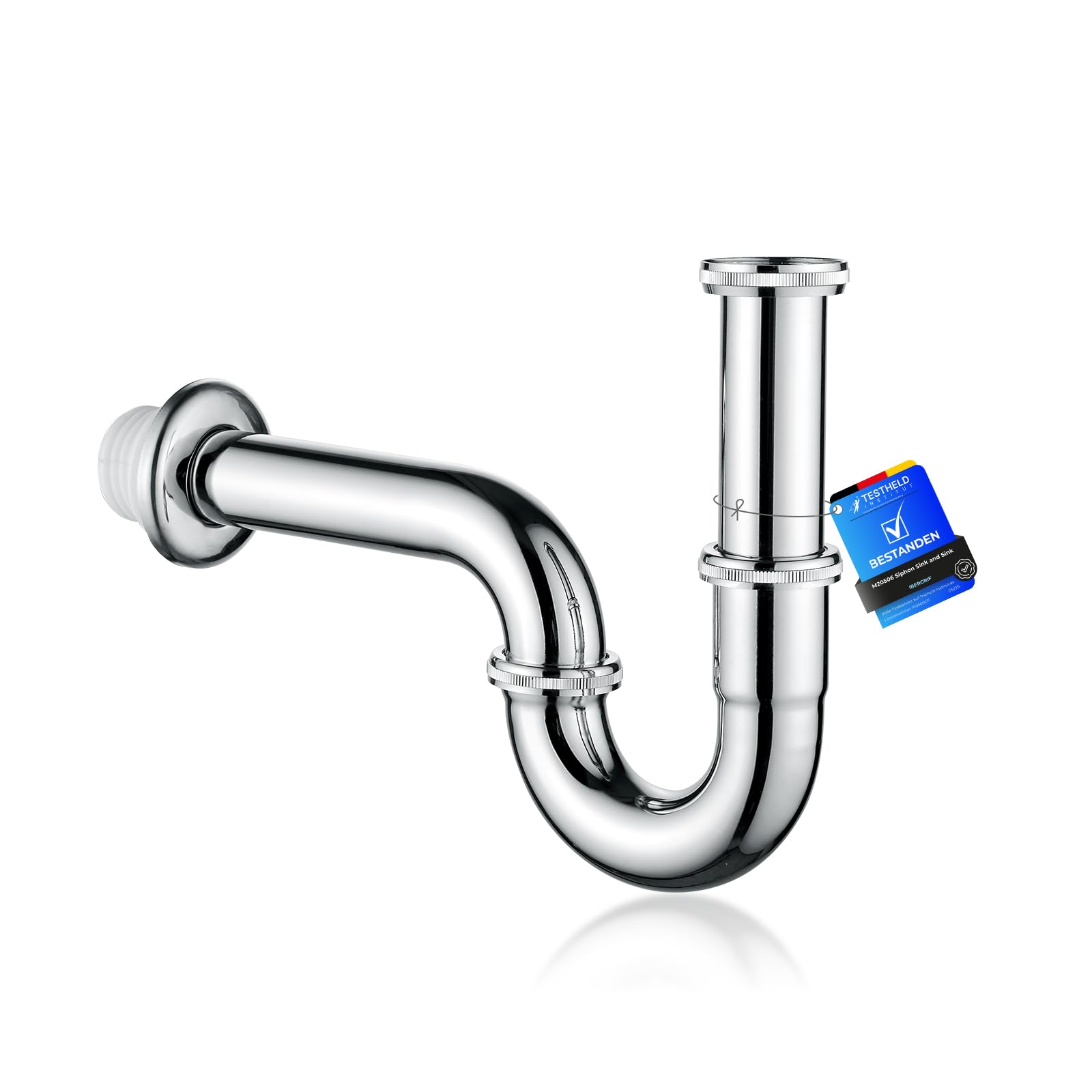

Figure 5: The siphon's adjustable features, including the extendable immersion tube and rotatable U-bend, allowing for flexible installation.
Operating Instructions
Once installed, the Ibergrif Universal Sink Siphon operates automatically as part of your sink's drainage system. Its primary function is to create a water seal that prevents sewer gases and insects from entering your living space.
- Ensure the U-bend always contains water to maintain the odor trap.
- Avoid pouring harsh chemicals down the drain that could damage the siphon's seals or finish.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your sink siphon. The design allows for quick and easy cleaning.
- Routine Cleaning: Periodically check the siphon for any signs of blockage or debris accumulation.
- Dismantling for Cleaning: The individual parts of the siphon can be easily dismantled for thorough cleaning. Simply unscrew the connection nuts, remove the U-bend, and clean any accumulated hair or debris.
- Reassembly: After cleaning, reassemble the siphon, ensuring all gaskets are correctly positioned and connections are hand-tightened to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose connections, improperly seated gaskets, damaged gasket. | Check and tighten all connection nuts. Ensure gaskets are correctly seated. Replace damaged gaskets if necessary. |
| Slow Drainage / Blockage | Accumulation of hair, soap scum, or debris in the U-bend. | Dismantle the U-bend and clean out any obstructions. Reassemble carefully. |
| Unpleasant Odors | Siphon dry (water seal broken), debris accumulation. | Run water into the sink to refill the U-bend. Clean the siphon if odors persist, indicating debris. |
Specifications
- Model Number: M20506
- Material: Chrome Stainless Steel
- Connection Size: G 1 1/4" (for sink drain)
- Wall Pipe Diameter: 32 mm
- Product Dimensions: Approximately 8.62 x 2.95 x 0.98 inches (219 x 75 x 25 mm)
- Item Weight: 13.7 ounces (388 grams)
- Adjustability: Extendable immersion tube (100mm-130mm), Rotatable U-bend
- Manufacturer: Ibergrif Griferias SL
Figure 6: Dimensional drawing of the Ibergrif sink siphon, indicating key measurements for installation planning.
Warranty Information
Ibergrif products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Ibergrif website. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance with installation, or need to report a problem with your Ibergrif Universal Sink Siphon, please contact Ibergrif customer support through their official website or the retailer from whom you purchased the product. Please have your model number (M20506) and purchase details ready.
