WMARK NG-202 Professional Finishing Machine User Manual

Introduction

The WMARK NG-202 Professional Finishing Machine is designed for precision grooming, offering a unique style and powerful performance. It features a durable ceramic blade that stays sharp longer and generates less heat compared to traditional metal blades. This machine is ideal for daily use and professional barbers, enhancing productivity and style. It is easy to clean, equipped with a powerful 5W motor delivering 6500 RPM, and offers cordless operation for maximum mobility.

The transparent body design provides a modern aesthetic, while its compact, lightweight, and ergonomic build ensures comfortable handling. With a 1400mAh battery, it provides up to 150 minutes of continuous use on a 2-hour charge, and supports convenient USB charging. This versatile tool is suitable for beard trimming, hair cutting, edging, detailing, fading, creating designs, and body hair removal.

Safety Information

Warning: Handle the finishing machine with care, avoiding direct contact with skin and eyes. Do not use in water or excessively humid environments. Always turn off the machine before cleaning or performing any maintenance. This product is not intended for use by children. For detailed handling and maintenance instructions, please refer to this user manual.

• Keep the device away from water and liquids.
• Do not disassemble or attempt to repair the device yourself.
• Ensure the charging cable is not damaged before use.
• Store in a dry place, out of reach of children.

Package Contents

Please check the box for the following items:

• 1x WMARK NG-202 Finishing Machine
• 1x USB Charging Cable + Adapter
• 1x Silicone Gripper (red with WMARK logo, anti-slip)
• 4x Limiter Combs (1mm, 1.5mm, 2mm, 3mm)
• 1x Cleaning Brush
• 1x User Manual

Image: WMARK NG-202 Finishing Machine shown with its complete set of accessories, including the USB charging cable, power adapter, red silicone gripper, four different sized guide combs (1mm, 1.5mm, 2mm, 3mm), and a small cleaning brush.

Product Overview

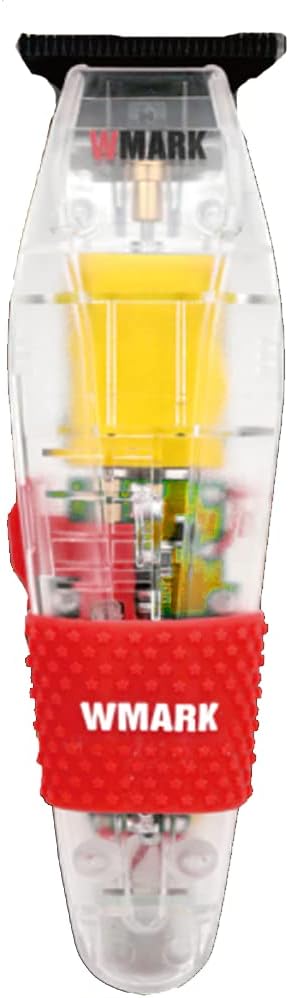

Image: A clear front view of the WMARK NG-202 Professional Finishing Machine. The transparent casing reveals the internal components, including the motor and circuit board, with a visible ceramic blade at the top.

The WMARK NG-202 features a transparent casing that highlights its modern design and internal engineering. It is equipped with a high-performance ceramic blade for precise and smooth cuts. The device is cordless, offering freedom of movement, and includes an LED indicator for charge status. The ergonomic design ensures a comfortable grip during extended use.

Setup

1. Initial Charge: Before first use, ensure the machine is fully charged. Connect the USB charging cable to the machine and a suitable power adapter. The LED indicator will show charging status. A full charge takes approximately 2 hours and provides up to 150 minutes of cordless operation.
2. Attach Limiter Comb: Select the appropriate limiter comb (1mm, 1.5mm, 2mm, or 3mm) for your desired hair length. Align the comb with the blade and push it firmly until it clicks into place.
3. Blade Adjustment: The blade can be adjusted for different cutting lengths. Refer to the markings on the blade for precise adjustment.

Operating Instructions

1. Power On/Off: Press the power button to turn the machine on or off.
2. Preparation: Ensure the machine is fully charged or connected to a power source. Clean the blade before each use.
3. Cutting Technique: Hold the machine at a comfortable angle against the skin. Move the machine slowly and steadily against the direction of hair growth for an even cut.
4. Sensitive Areas: Exercise extra caution when using the machine in sensitive areas, such as around the eyes or ears.
5. Versatile Use: This machine can be used for:
   • Trimming beards
   • Cutting hair
   • Creating precise edges and markings
   • Finishing and fading hairstyles
   • Creating hair designs
   • Removing body hair (chest, armpits, back, legs)

Maintenance

1. Cleaning the Blade: After each use, turn off the machine and detach the limiter comb. Use the provided cleaning brush to remove any hair clippings from the blade and the machine head.
2. Lubrication: Regularly apply a small amount of clipper oil (not included) to the blades to ensure smooth operation and prolong blade life. Apply oil while the machine is running for a few seconds, then wipe off excess.
3. Storage: Store the machine in a clean, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

Warranty and Support

Specific warranty information for the WMARK NG-202 Professional Finishing Machine is not provided in this manual. Please refer to your purchase documentation or contact the retailer for details regarding warranty coverage.

For technical support or inquiries, please contact WMARK customer service through their official website or the contact information provided with your product packaging.
