1. Introduction

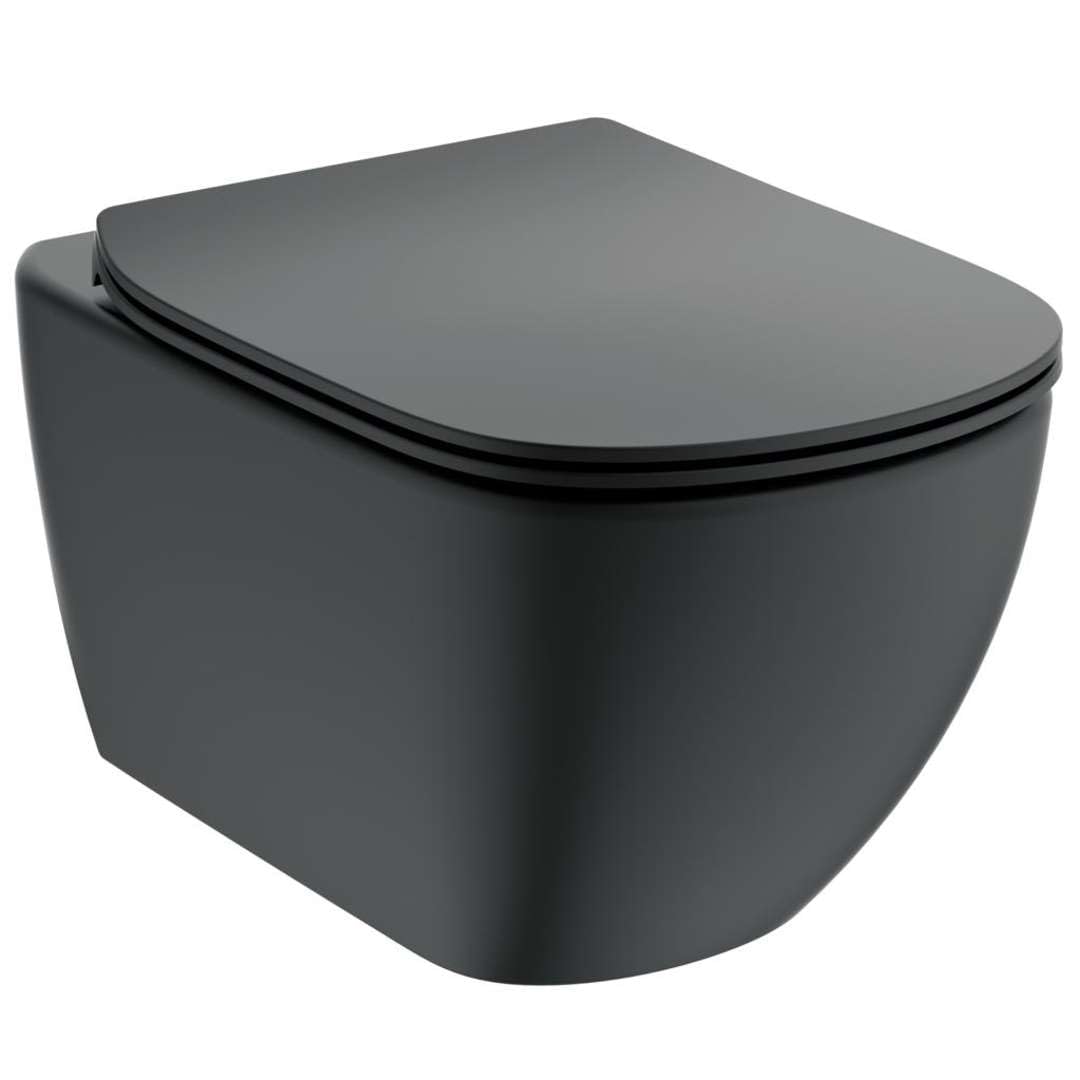

This manual provides essential information for the installation, operation, and maintenance of your Ideal Standard TESI Wall-Hung Toilet Pack, model T3546V3. This product features a matte black, rimless porcelain bowl with Aquablade flushing technology and an ultra-thin, soft-close seat. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
2. Safety Information
- Always ensure water supply is turned off before beginning any installation or maintenance.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
- If you are unsure about any step, consult a qualified plumber.
- Ensure all connections are watertight to prevent leaks.
- Do not use abrasive cleaners or tools that could damage the matte black finish or the seat material.
3. Package Contents
Verify that all components are present before starting installation:
- Wall-hung toilet bowl (matte black porcelain)
- Ultra-thin soft-close toilet seat (thermodur plastic)
- Fixing kit for wall mounting
- Installation instructions (this manual)
4. Setup and Installation
The Ideal Standard TESI Wall-Hung Toilet Pack is designed for easy installation with compatible wall-mounted support frames, such as the Prosys Ideal Standard range. The flush mechanism is pre-mounted for convenience.
4.1 Dimensions and Planning
Before installation, ensure your bathroom space and wall support system are compatible with the toilet's dimensions.
4.2 Mounting the Toilet Bowl
- Ensure the wall support frame is securely installed and level according to its own instructions.
- Connect the waste pipe and water supply to the toilet bowl. Ensure all seals are correctly seated and tightened to prevent leaks.
- Carefully lift the toilet bowl and align it with the mounting bolts on the wall frame.
- Secure the toilet bowl using the provided fixing kit. Tighten bolts evenly to avoid stressing the ceramic. Do not overtighten.
- Once secured, check for stability and levelness.
4.3 Installing the Toilet Seat
The ultra-thin soft-close seat is designed for easy top-fix installation and quick release for cleaning.
- Insert the seat hinges into the designated holes on the toilet bowl.
- Secure the hinges from above using the provided screws and washers.
- Attach the seat to the secured hinges. Ensure it clicks into place.
- Test the soft-close function by gently lowering the seat and lid. They should close slowly and silently.
5. Operating Instructions
5.1 Flushing Mechanism (Aquablade Technology)
Your TESI toilet features Ideal Standard's Aquablade technology, a rimless design that provides a powerful and efficient flush while maintaining superior hygiene.
- The toilet uses a dual-flush system (3/6 liters) for water conservation.
- Press the smaller button for a 3-liter flush (liquid waste).
- Press the larger button for a 6-liter flush (solid waste).
- The Aquablade system propels water from the top of the bowl, ensuring 100% of the bowl surface is cleaned with each flush. The absence of a rim reduces bacteria proliferation.
5.2 Soft-Close Seat
The toilet seat is equipped with a soft-close mechanism to prevent slamming and reduce noise. Simply push the seat or lid down gently, and it will close slowly on its own.
6. Maintenance and Cleaning
Regular cleaning will help maintain the appearance and hygiene of your TESI toilet.
- Toilet Bowl: Clean the matte black porcelain bowl with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or strong acids/alkalis, as these can damage the finish.
- Toilet Seat: The thermodur plastic seat can be cleaned with a soft cloth and mild soap and water. For thorough cleaning, the seat is easily detachable. Simply press the quick-release buttons (if applicable) or lift the seat straight up from the hinges to remove it.
- Aquablade System: The rimless design of the Aquablade system makes cleaning easier. Wipe down the inner surface of the bowl regularly to prevent limescale buildup.
- Water Economy: The dual-flush system helps conserve water. Ensure the flush buttons are not stuck or obstructed to maintain optimal water usage.
7. Troubleshooting
If you encounter issues with your TESI toilet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak or incomplete flush | Low water pressure; obstruction in flush mechanism; limescale buildup. | Check water supply valve; inspect flush mechanism for debris; descale the bowl and flush jets. |
| Toilet constantly runs | Faulty fill valve or flush valve seal. | Inspect and replace worn seals or the fill valve as needed. |
| Toilet seat does not soft-close | Hinges are dirty or damaged; seat not properly attached. | Clean hinges; re-attach seat securely; if damaged, contact support for replacement parts. |
| Leaks from connections | Loose connections; worn seals. | Tighten connections (do not overtighten); replace seals if necessary. |
If the problem persists after attempting these solutions, please contact Ideal Standard customer support.
8. Specifications
- Model Number: T3546V3
- Color: Matte Black
- Dimensions (D x W x H): 53.5 cm x 36.5 cm x 33.5 cm
- Toilet Bowl Material: Vitreous Porcelain Ceramic
- Toilet Seat Material: Thermodur Plastic (Urea)
- Installation Type: Wall-Mounted
- Weight: 22 Kilograms
- Flush System: Aquablade Rimless Technology, Dual Flush (3/6L)
- Seat Features: Ultra-thin, Soft-Close, Quick-Release
9. Warranty Information
This Ideal Standard TESI Wall-Hung Toilet Pack (Model T3546V3) comes with a manufacturer's warranty of 2 years. Please retain your proof of purchase for any warranty claims. Availability of spare parts in the EU is guaranteed for 10 years.
10. Support
For further assistance, technical support, or to inquire about spare parts, please contact Ideal Standard customer service through their official website or the retailer where you purchased the product. When contacting support, please have your model number (T3546V3) and proof of purchase readily available.
