Introduction
The Chillafish Bmxie² balance bike is designed to provide a fun and effective way for children aged 2 to 5 years to learn balance and coordination, essential skills for riding a bicycle. This manual provides detailed instructions for assembly, operation, maintenance, and safety to ensure a safe and enjoyable experience.
Figure 1: Chillafish Bmxie² Lightweight Balance Bike.
What's in the Box
Upon unboxing your Chillafish Bmxie² balance bike, please ensure all the following components are present:
- Balance bike frame with integrated footrest and footbrake
- Front fork
- Handlebar
- Front wheel (with airless Rubberskin tire)
- Rear wheel (with airless Rubberskin tire)
- Front Number Plate with Customizable Stickers
- Owner's manual/Assembly instructions
Figure 2: Packaging and included components of the Bmxie².
Setup and Assembly
The Chillafish Bmxie² balance bike is designed for quick and easy assembly. No complex tools are required for most adjustments.
- Unpack Components: Carefully remove all parts from the packaging.
- Attach Front Wheel: Insert the front wheel into the front fork. Ensure the plastic gliders (if separate) are in place before inserting the axle. Secure the axle.
- Install Front Fork: Slide the front fork assembly into the head tube of the main frame.
- Attach Handlebar: Insert the handlebar into the top of the front fork. Secure it with the provided bolt at the top.
- Adjust Seat Height: The seat height can be adjusted without tools. Simply turn the knob below the seat, pull or push the seat to the desired height (between 12.6-15.3 inches / 32-39 cm), and then lock it by turning the knob back. Markers are provided to indicate height settings.
Figure 3: Tool-free seat height adjustment mechanism.
Video 1: Quick overview of the Chillafish Bmxie² balance bike, including assembly and key features.
Key Features
Integrated Footrest and Footbrake
The Bmxie² features an integrated footrest that also functions as a footbrake. This design allows children to learn braking techniques naturally and safely. For advanced riders, it also enables fun skidding maneuvers.
Figure 4: Detail of the integrated footrest and footbrake.
Airless Rubberskin Tires
Equipped with 12-inch airless Rubberskin tires, the Bmxie² offers excellent grip and eliminates the need for inflation. This means no more flat tires, ensuring uninterrupted playtime.

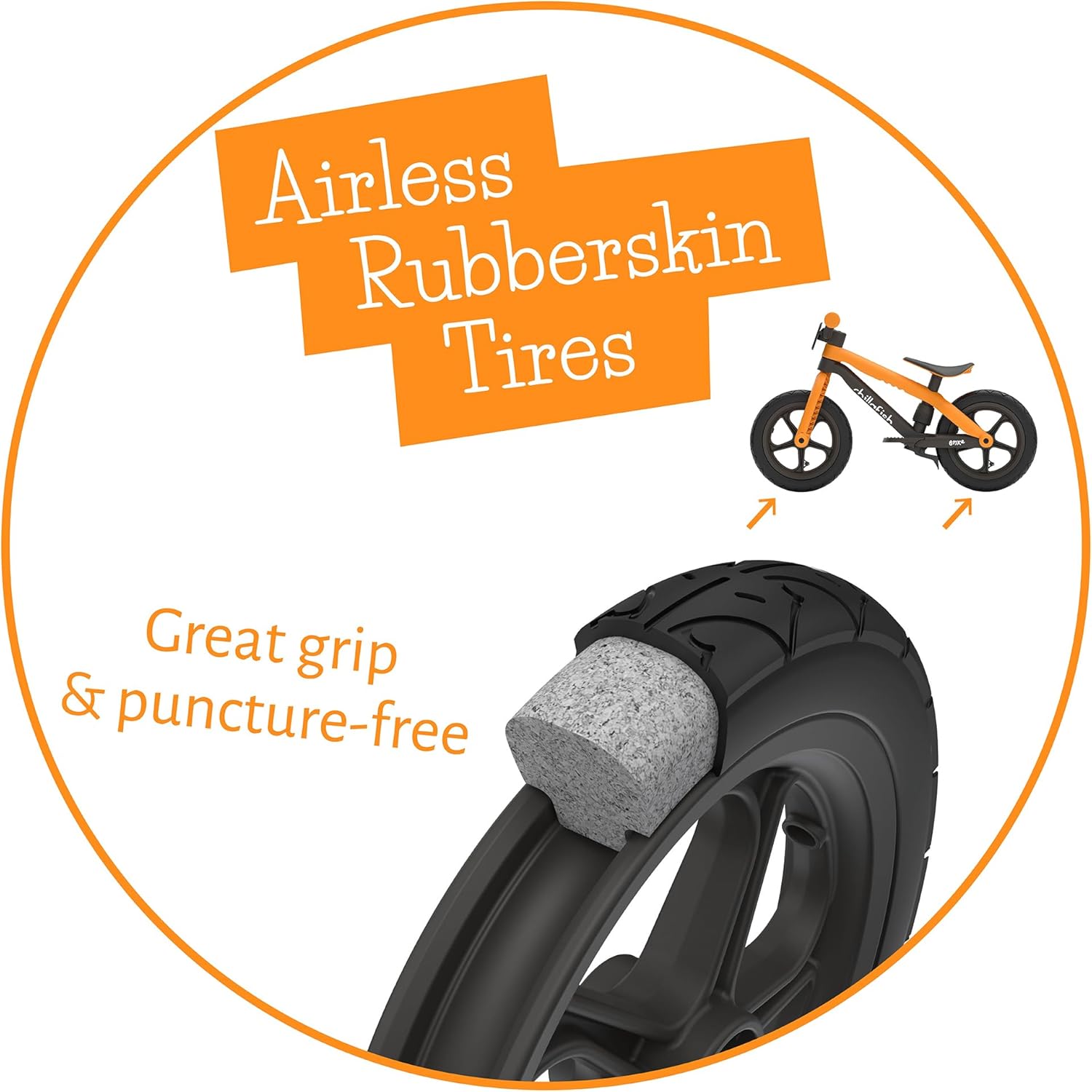

Figure 5: Airless Rubberskin tires provide great grip and are puncture-free.
Lightweight and Durable Frame
The bike's frame is constructed from reinforced plastics, making it exceptionally lightweight (approximately 8.4 lbs / 3.8 kg) yet highly durable. This lightweight design makes it easy for toddlers to maneuver and for parents to carry.

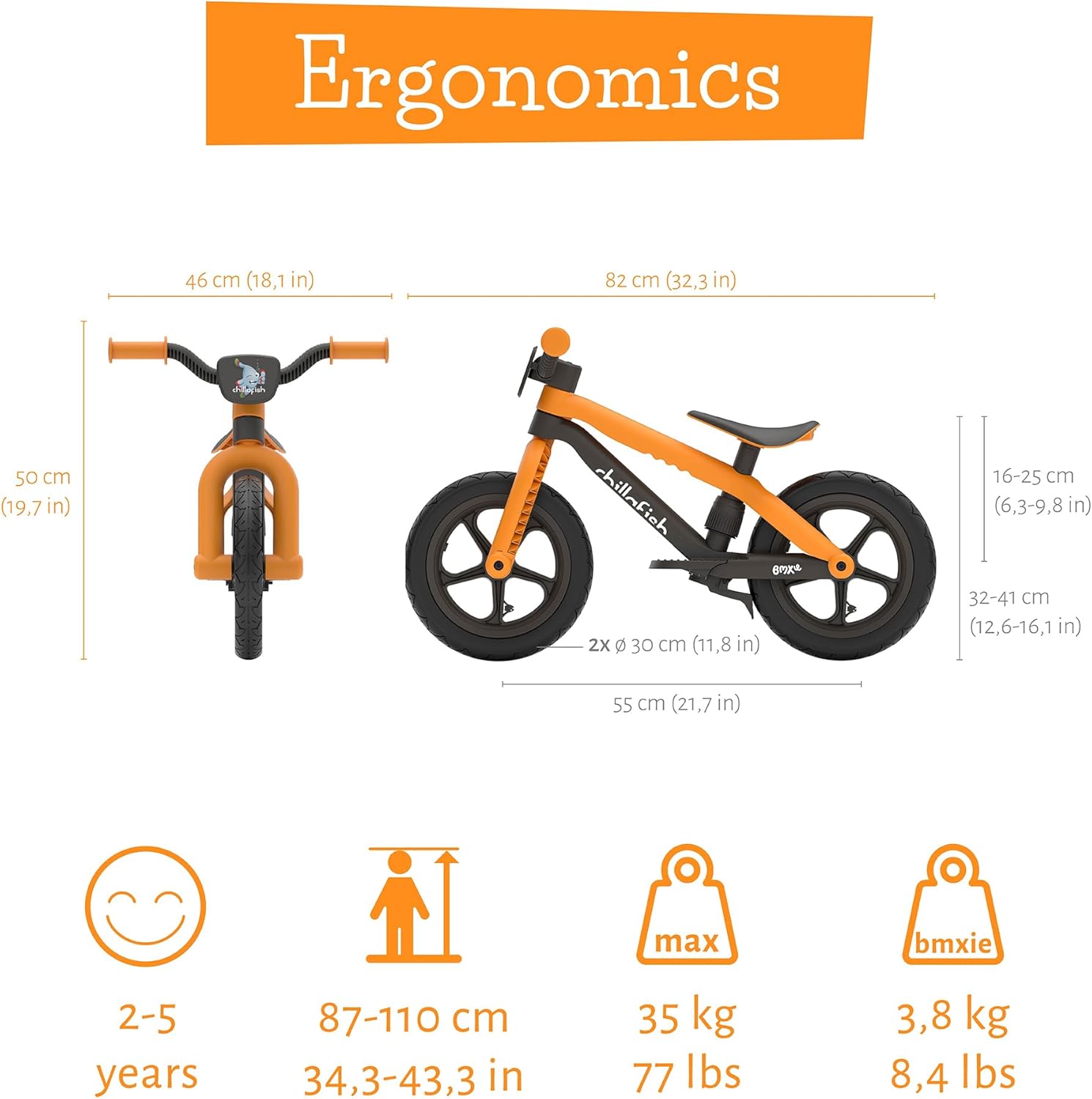

Figure 6: Ergonomic design and lightweight construction for easy handling.
Customizable Front Number Plate
The detachable front number plate comes with various stickers, allowing children to personalize their bike and express their unique style.
Video 2: Detailed lab session explaining the features and benefits of the Chillafish Bmxie².
Operating Instructions
The primary goal of the Bmxie² balance bike is to teach children balance and steering before introducing pedals. This simplifies the learning process for riding a traditional bicycle.
- Proper Fit: Ensure the child's feet can comfortably touch the ground while seated, with a slight bend in the knees. This allows them to push off and stop safely.
- Push and Glide: Encourage the child to push off the ground with their feet and glide. As they gain confidence, they will naturally lift their feet and balance for longer periods.
- Steering: Guide the child to use the handlebars to steer. The steel glider in the headset provides smooth and stable steering, making it easier for young riders to control direction.
- Braking: Teach the child to use the integrated footbrake by pressing down on it with their foot. This helps them learn to control their speed and stop effectively.
Figure 7: Child confidently riding the Bmxie² balance bike.
Figure 8: Learning balance and steering on the Bmxie².
Safety Information
Always ensure adult supervision when the child is using the balance bike. It is recommended that children wear appropriate safety gear, including a helmet, knee pads, and elbow pads, especially during initial learning phases.
Specifications
| Attribute | Value |
|---|---|
| Bike Type | Balance Bike, BMX Bike |
| Age Range (Recommended) | 24 months - 5 years |
| Wheel Size | 12 Inches |
| Frame Material | Lightweight Reinforced Plastic |
| Tire Type | Airless Rubberskin Tires |
| Adjustable Seat Height | 12.6-15.3 inches / 32-39 cm (tool-free) |
| Brake Style | Integrated Footbrake |
| Item Weight | 8.4 Pounds (3.8 kg) |
| Product Dimensions | 31.5 x 17.3 x 18.5 inches |
| Maximum Weight Recommendation | 77 Pounds |
Maintenance
- Cleaning: Wipe down the bike with a damp cloth and mild soap as needed. Avoid harsh chemicals.
- Inspection: Regularly check all bolts and connections to ensure they are secure.
- Brake Pad Replacement: The footbrake pad is replaceable. If it wears down, contact Chillafish support for a replacement and follow the instructions provided.
Troubleshooting
- Wobbly Wheel: Ensure the plastic gliders (if applicable) are correctly installed and the axle is tightened securely.
- Seat Slipping: Make sure the seat adjustment knob is fully tightened after setting the height.
- Brake Ineffective: Check the footbrake pad for wear. If worn, it may need replacement.
Warranty and Support
Every registered Chillafish product automatically extends the standard 2-year warranty to 5 years. Your 5-year extended warranty is valid if you register your product on chillafish.com within 3 months after purchase, or automatically when buying on the Chillafish webshop.
For support, replacement parts, or advice on any possible issue, please reach out to the Chillafish Talk team. Visit chillafish.com/talk for more information.
