1. Product Overview
The BAFANG BBS02B 48V 750W Mid Drive Kit is designed to convert standard bicycles into electric bikes. This kit is compatible with mountain bikes, road bikes, and other bicycle types, specifically fitting a standard 68-73mm (length) and 34-36mm (internal diameter) bottom bracket. The 750W motor provides up to 100-120 N.m of torque, assisting with climbing and reaching speeds over 25mph on flat terrain. The kit supports three riding modes: E-bike, Pedal Assisted Bicycle, and Pedal Bike. It includes essential accessories such as the mid-drive motor, brake levers, thumb throttle, chainring wheel, crank, LCD display, speed sensor, 1T4 wire, and nuts. Optional battery and charger, ebike headlight, install tool, extension cable, stickers, bolts, and gaskets for BB73mm are available separately.
Image 1.1: BAFANG BBS02B 48V 750W Mid Drive Motor highlighting rated power, weight, max torque, and max speed.
Image 1.2: BAFANG Mid Drive System installed on a bicycle, emphasizing its waterproof IPX5 rating and easy installation.
2. Setup and Installation
The BAFANG BBS02B mid-drive motor is designed for installation to convert your pedal bike into an electric bike. This kit is compatible with bicycles featuring a standard 68-73mm bottom bracket. If a 100mm bottom bracket is required, a different kit (ASIN: B08XQ1L4JK) should be used.
The kit includes brake levers that cut power to the motor. If your bicycle has hydraulic brakes and you wish to retain them, please contact customer support to request a brake sensor instead of the standard brake levers.
2.1 Packing List
Ensure all components listed below are present in your package:
- BAFANG central motor (with integrated controller)
- LCD display (optional)
- Brake lever (1 pair) or brake sensor
- Thumb throttle (1 set)
- Chain wheel (1 pc)
- Crank (1 pair)
- Speed sensor and magnets (1 set)
- 1 to 4 cables (1 pc)
- Nuts (1 set)
- Instruction manual
- Battery and charger (optional)
- Additional items: Ebike light, install tool, extension cable, stickers, bolt and gaskets for BB73mm (if applicable)
Image 2.1: Visual representation of the BAFANG BBS02B kit's packing list, including the motor, display, and various accessories.
2.2 Wiring Diagram
Refer to the wiring diagram for proper connection of all components. Ensure all connections are secure before operation.
Image 2.2: Comprehensive wiring diagram illustrating how to connect the motor, display, battery, and other accessories.
2.3 Installation Video
For a detailed visual guide on installation, please refer to the official installation video:
Video 2.1: Official BAFANG installation guide for the BBS mid-drive kit, demonstrating the setup process and key features.
3. Operating Instructions
The BAFANG BBS02B kit offers three distinct riding modes to suit various preferences and terrains:
- E-bike Mode: Provides full electric power, ideal for effortless long-distance travel or when maximum assistance is desired.
- Pedal Assisted Bicycle Mode: The motor provides assistance as you pedal, offering a balance of exercise and power. The level of assistance can be adjusted via the display.
- Pedal Bike Mode: The motor is disengaged, allowing you to ride the bicycle like a traditional pedal bike without any electric assistance.
3.1 P860ML LCD Display
The P860ML LCD display provides essential riding information and allows you to control various settings of your ebike kit. It typically features multiple assistance levels (e.g., 3/5/9 levels), speed display, battery indicator, error codes, and headlight indicator.

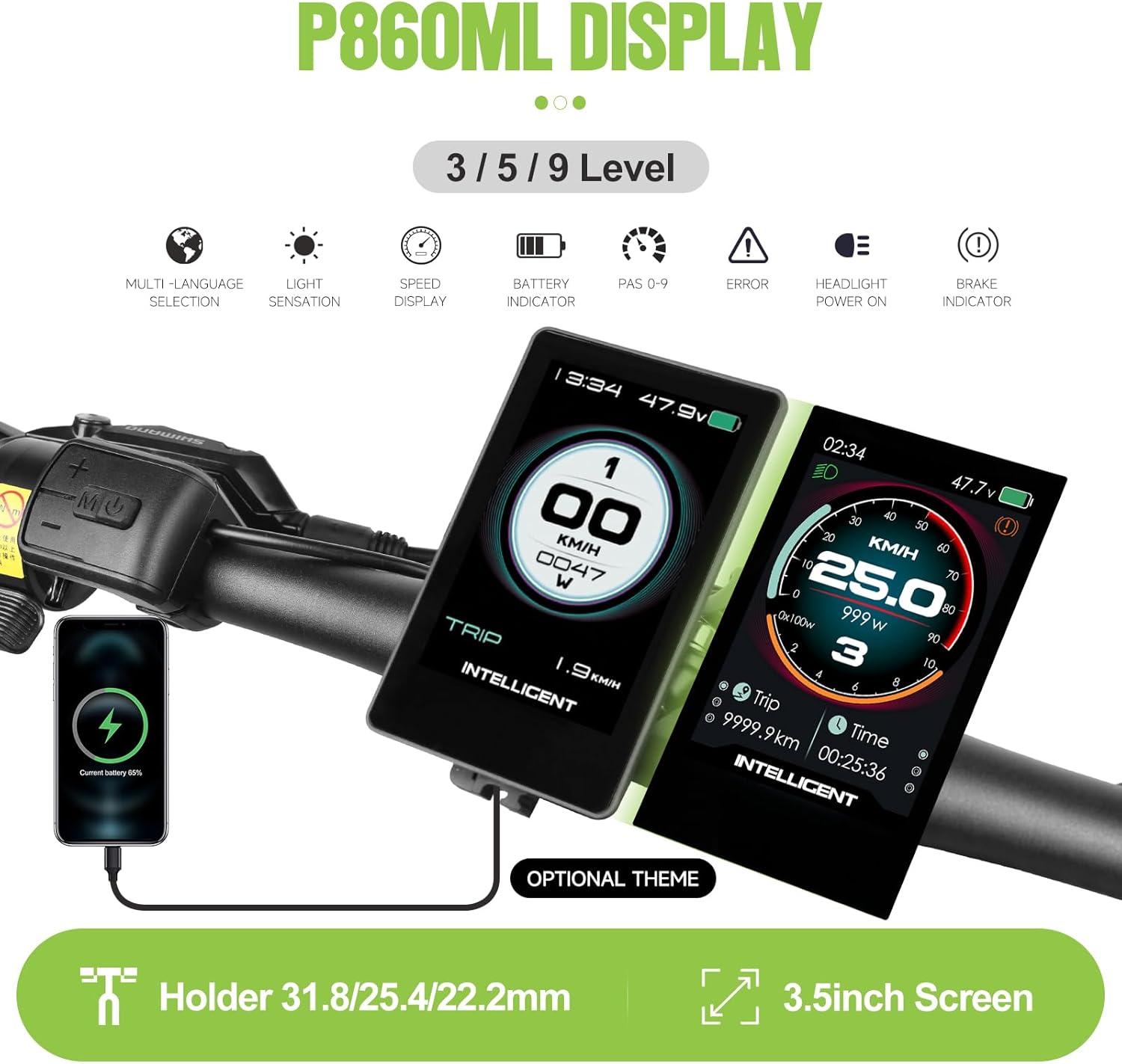

Image 3.1: The P860ML LCD Display, illustrating its multi-language selection, speed display, battery indicator, error codes, and headlight indicator.
Image 3.2: Examples of the three riding modes (E-bike, Pedal Assistance, Push Assistance) and suitable terrains like mountain roads, city roads, beach roads, and snow roads.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your BAFANG BBS02B kit and ebike. Key maintenance practices include:
- Cleaning: Keep the motor, battery, and electrical connections clean and free from dirt and debris. Use a damp cloth; avoid high-pressure washing directly on electrical components.
- Lubrication: Regularly lubricate the chain and other moving parts of your bicycle.
- Battery Care: Store the battery in a cool, dry place and charge it regularly, even when not in use, to maintain its health. Avoid fully discharging the battery.
- Inspections: Periodically check all bolts and connections for tightness. Inspect cables for any signs of wear or damage.
- Professional Service: For complex issues or annual checks, consider professional ebike service.
5. Troubleshooting
This section provides solutions to common issues you might encounter with your BAFANG BBS02B ebike kit.
- Motor Not Engaging: Check all electrical connections, especially the battery connection and motor cables. Ensure the display is powered on and showing no error codes. Verify the brake levers are not engaged, as they cut motor power.
- No Power on Display: Ensure the battery is charged and properly seated. Check the main power cable connection from the battery to the motor/controller.
- Inconsistent Pedal Assist: Check the speed sensor and magnet for proper alignment and ensure they are clean.
- Error Codes on Display: Refer to the P860ML display manual for specific error code meanings and troubleshooting steps. Common issues often relate to sensor connections or motor communication.
- Reduced Range: This can be due to low tire pressure, riding in high assist modes frequently, cold weather, or an aging battery. Ensure proper tire inflation and consider lower assist levels.
If issues persist after basic troubleshooting, contact customer support for further assistance.
6. Specifications
Detailed technical specifications for the BAFANG BBS02B 48V 750W Mid Drive Kit:
| Feature | Specification |
|---|---|
| Voltage | 48V |
| Wattage | 750W |
| Motor Type | Brushless Gear Motor |
| BAFANG Motor Model | BBS02B (MM G340.750) |
| Motor Position | Mid Crank |
| Controller | Integrated Inside the Motor (48V24A) |
| Display Options | EKD01/DZ40/C961/800S/850C/P850C/P860C/C18-5/C18-9/DPC181/500C/500C-H/DM03/B750C new version |
| Chainring Options | 44T/46T/48T/52T |
| Max Torque | 100-120 N.m |
| No Load Speed (RPM) | 140-160 |
| Load Speed (RPM) | 120-135 |
| PAS Sensor | Speed Sensor |
| Reduction Ratio | 1 : 21.9 |
| Net Motor Weight | About 4.24 kg |
| Bracket Bottom Length | 68mm/100mm (default 68-73mm) |
| Motor Operation Temperature | -20°C - 45°C |
| Waterproof Grade | IPX5 |
| Material | Aluminum |
| Parcel Dimensions | 31.24 x 26.92 x 24.13 cm; 6.69 kg |
Image 6.1: Technical specifications and dimensions of the BAFANG BBS02B motor, including power, voltage, and physical measurements.
7. Warranty and Support
BAFANG provides comprehensive customer support for its products. If any quality problem arises within one year of purchase, our North American after-sales service center is available to provide technical support and maintenance. We maintain inventory in US, UK, EU, CA, AU, and Russia warehouses to facilitate service.
For specific inquiries or to report an issue, please contact our customer service team. When contacting support, please have your product model (BBS02B) and purchase details ready.
