1. Introduction and Overview

Thank you for choosing the Mabe LMA70215WBAB0 Automatic Washer. This appliance is designed to provide efficient and effective laundry care with its 20 kg capacity and advanced features like Aqua Saver Green technology and a Sanitized cycle. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new washing machine.

Key Features:

• New design with metallic finishes for enhanced durability and aesthetics.
• User-friendly interface with updated graphics for easy operation.
• Sanitized cycle that eliminates 99.9% of bacteria, ensuring hygienic cleaning.
• Aqua Saver Green technology for optimized water consumption.

Image 1.1: Front view of the Mabe LMA70215WBAB0 Automatic Washer. This image displays the appliance's white exterior and the silver-toned control panel at the top.

2. Safety Information

Please read all safety instructions carefully before operating the appliance to prevent personal injury or property damage. Keep this manual for future reference.

General Safety Precautions:

• Ensure the washer is properly grounded to avoid electrical shock.
• Do not operate the washer if it is damaged or malfunctioning. Contact qualified service personnel.
• Keep children and pets away from the washer during operation.
• Do not wash items that have been soiled with flammable substances (e.g., gasoline, cooking oil).
• Always unplug the washer before performing any maintenance or cleaning.
• Do not reach into the washer while the tub is moving.
• Install the washer on a firm, level floor capable of supporting its weight.

3. Product Components and Features

Control Panel Overview:

Image 3.1: Close-up of the Mabe LMA70215WBAB0 washer control panel. This image shows the various dials and buttons for Centrifugado (Spin), Temperatura (Temperature), Programas Automáticos (Automatic Programs), Nivel de Carga (Load Level), and Opciones (Options).

The control panel features intuitive dials and buttons to select wash cycles, water temperature, load size, and additional options. Refer to the labels on the panel for specific functions.

Interior Drum and Dispenser:

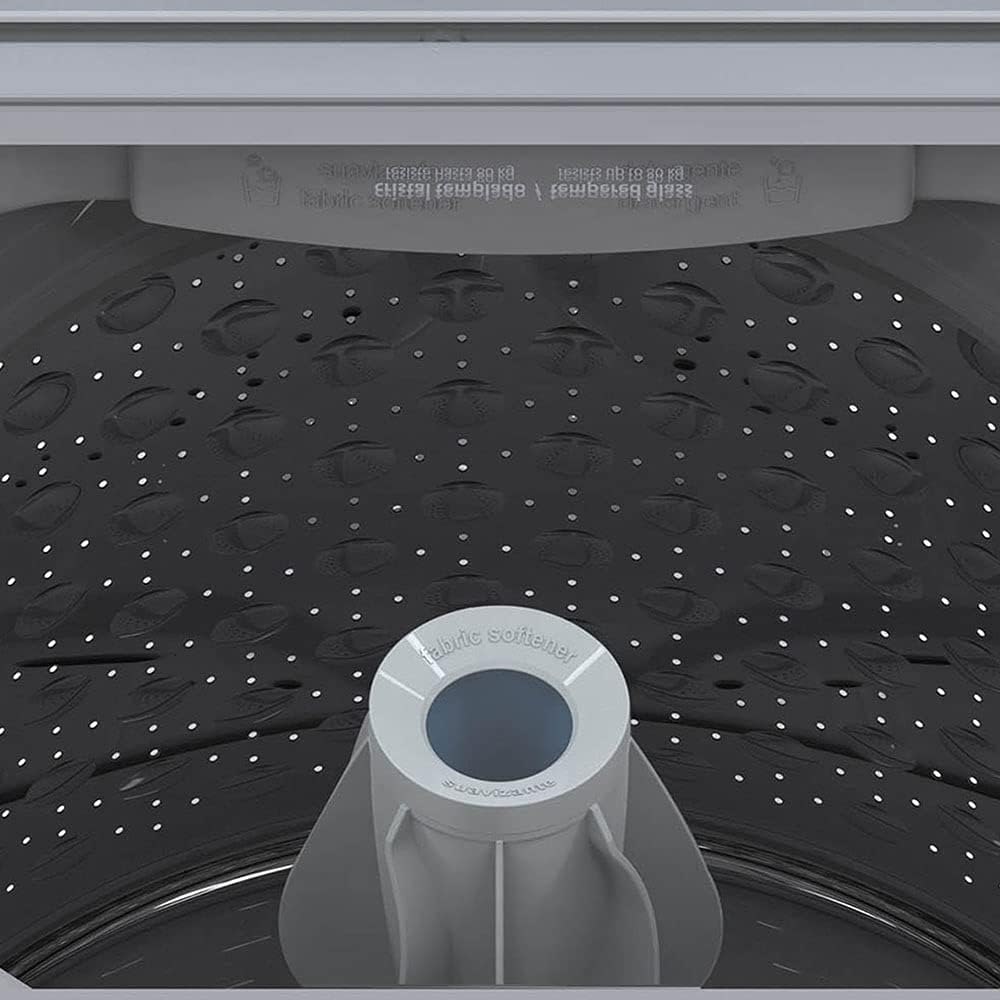

Image 3.2: Interior view of the Mabe LMA70215WBAB0 washer drum. This image highlights the central agitator and the integrated fabric softener dispenser, along with the perforated stainless steel drum.

The washer is equipped with a durable stainless steel drum and a central agitator for effective cleaning. The fabric softener dispenser is integrated into the agitator for convenient use.

4. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your washing machine. If you are unsure about any step, consult a qualified technician.

Unpacking:

• Remove all packaging materials, including the shipping base and any internal packing.
• Inspect the washer for any damage incurred during transit.

Location Requirements:

• Place the washer on a solid, level floor.
• Ensure there is adequate space around the washer for ventilation and access.
• Avoid locations where the washer might be exposed to freezing temperatures.

Dimensions:

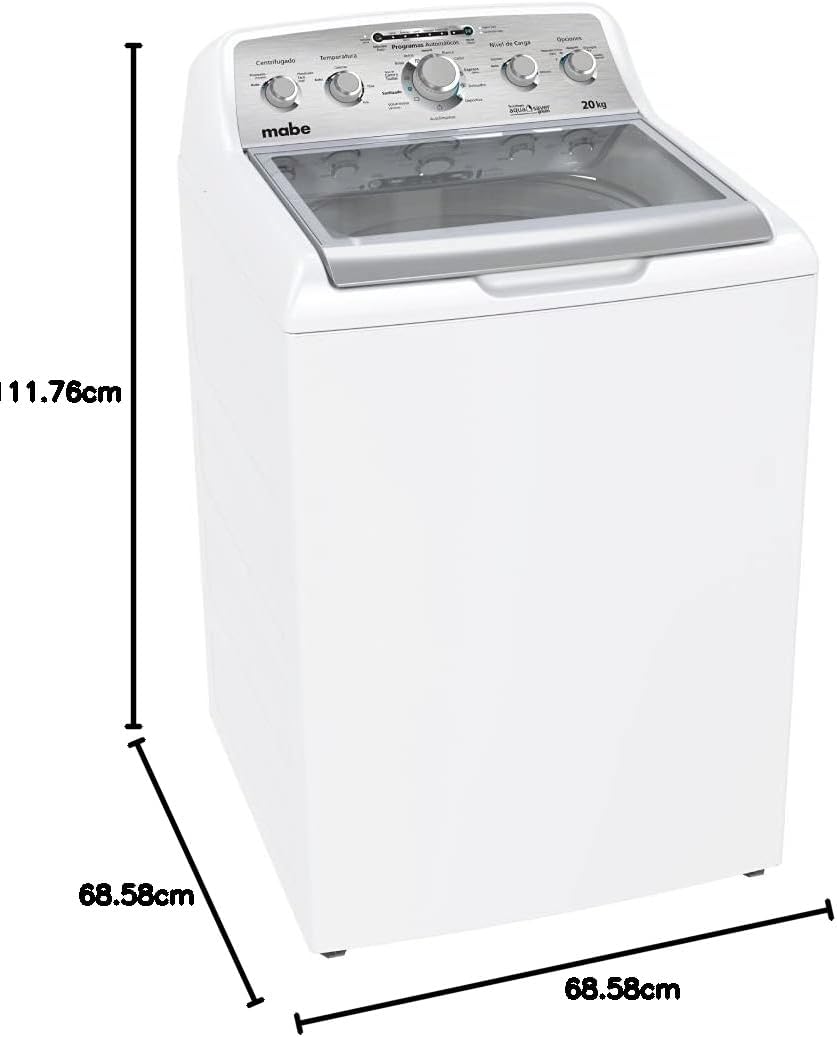

Image 4.1: Line drawing illustrating the dimensions of the Mabe LMA70215WBAB0 washer. The approximate dimensions are 68.0 cm (width), 67.8 cm (depth), and 111.6 cm (height).

Connecting Water and Drain Hoses:

• Connect the hot and cold water inlet hoses to the corresponding valves and to the washer. Ensure connections are tight to prevent leaks.
• Secure the drain hose to a standpipe or laundry tub, ensuring it is properly positioned to prevent siphoning.

Electrical Connection:

• Plug the washer into a grounded electrical outlet. Do not use extension cords.
• Verify that the electrical supply matches the requirements specified on the washer's rating plate.

Leveling the Washer:

• Use a level to ensure the washer is perfectly balanced.
• Adjust the leveling feet at the bottom of the washer as needed to eliminate wobbling.

5. Operating Instructions

Follow these steps for optimal washing performance.

Loading Laundry:

• Sort laundry by fabric type, color, and soil level.
• Load items loosely around the agitator, avoiding overloading the tub.

Adding Detergent and Fabric Softener:

• Add the recommended amount of high-efficiency (HE) detergent directly into the dispenser or drum, following detergent manufacturer instructions.
• Pour liquid fabric softener into the designated dispenser in the agitator before starting the wash cycle. Do not overfill.

Selecting a Wash Cycle:

Turn the 'Programas Automáticos' (Automatic Programs) dial to select the desired wash cycle. Available cycles may include:

• Sanitized: For deep cleaning and bacteria elimination.
• Blanca (White): For white garments.
• Color: For colored garments.
• Jeans: Specific cycle for denim.
• Delicados (Delicates): For fragile items.
• Voluminosa (Bulky): For large items like blankets or comforters.
• Deportiva (Sportswear): For athletic apparel.
• Auto Limpieza (Self-Clean): For cleaning the washer tub.

Adjusting Settings:

• Temperatura (Temperature): Select the appropriate water temperature (e.g., Hot, Warm, Cold) for your laundry.
• Nivel de Carga (Load Level): Choose the water level based on the size of your laundry load (e.g., Maximo, Medio, Minimo).
• Opciones (Options): Select additional options such as extra rinse or pre-soak if available and desired.

Starting a Wash Cycle:

Press the Start/Pause button to begin the selected wash cycle. The washer will automatically proceed through the wash, rinse, and spin phases.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your Mabe washer.

Cleaning the Washer Exterior:

• Wipe the exterior surfaces with a soft, damp cloth and mild soap.
• Avoid abrasive cleaners or solvents that could damage the finish.

Cleaning the Dispenser:

• Periodically remove and clean the fabric softener dispenser to prevent residue buildup. Rinse thoroughly with water.

Cleaning the Drum:

• Use the 'Auto Limpieza' (Self-Clean) cycle regularly to clean the interior of the wash tub.
• You may add a washing machine cleaner product during this cycle, following the product's instructions.

Winterizing (Storage):

• If the washer is to be stored in an area subject to freezing temperatures, drain all water from the hoses and pump to prevent damage.

7. Troubleshooting Guide

Before contacting customer service, refer to this guide for common issues and their solutions.

8. Technical Specifications

9. Warranty and Customer Support

Your Mabe LMA70215WBAB0 Automatic Washer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical assistance, service requests, or general inquiries, please contact Mabe customer support.

Image 9.1: Mabe Service contact information. This image provides details for installing, repairing, and maintaining Mabe products. Contact numbers are provided for telephone (461 471 7000) and WhatsApp (55 41635939).

You can also visit the official Mabe store for more information and support: Mabe Official Store
