Tenergy 9.6V NiMH 1600mAh Battery Pack and Charger Instruction Manual

1. Introduction

This manual provides instructions for the safe and effective use of your Tenergy 9.6V 1600mAh NiMH Rechargeable Butterfly Battery Pack and its compatible RC Battery Charger. This product is designed for use with Airsoft Electric Guns (AEGs) that utilize a Mini Tamiya connector. Please read this manual thoroughly before initial use to ensure proper operation and longevity of your product.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the product or property.

• Do not short circuit the battery terminals.
• Do not expose the battery or charger to extreme temperatures, direct sunlight, or moisture.
• Do not disassemble, puncture, or modify the battery or charger.
• Use only the provided or compatible Tenergy charger for this battery pack. Using an incompatible charger may cause damage or fire.
• Charge the battery in a well-ventilated area, away from flammable materials.
• Keep out of reach of children.
• If the battery shows signs of damage, swelling, or leakage, discontinue use immediately and dispose of it properly.

3. Package Contents

Your Tenergy product bundle includes the following items:

• 1 x Tenergy 9.6V 1600mAh NiMH Rechargeable Butterfly Battery Pack
• 1 x RC Battery Charger (compatible with 6V-12V NiMH batteries)
• 1 x Large Female to Mini Male Tamiya Connector (adapter)

4. Product Overview

The Tenergy 9.6V 1600mAh NiMH battery pack is designed to provide reliable power for your Airsoft Electric Gun. It features a butterfly configuration for flexible placement within various AEG battery compartments and comes equipped with a Mini Tamiya connector. The included charger is specifically designed to safely and efficiently charge NiMH battery packs ranging from 6V to 12V.

Image 4.1: Tenergy 9.6V 1600mAh NiMH Butterfly Battery Pack and Charger.

5. Setup

5.1 Battery Dimensions and Connector Compatibility

Before attempting to install the battery, confirm its compatibility with your AEG's battery compartment and connector type. The Tenergy 9.6V 1600mAh NiMH battery pack has a butterfly configuration, with each cell measuring approximately 20mm in diameter and 117mm in length. It is equipped with a Mini Tamiya connector. Use the provided adapter if your AEG requires a different Tamiya size.

Image 5.1: Visual guide for battery dimensions and Mini Tamiya connector. The battery cells are 117mm long and 20mm in diameter. The image also shows the Mini Tamiya connector and an adapter for a larger Tamiya connection.

5.2 Charger Compatibility

The included charger is designed for Tenergy NiMH battery packs. Ensure you are using a compatible charger to prevent damage to the battery or charger. Refer to the image below for examples of compatible Tenergy chargers.

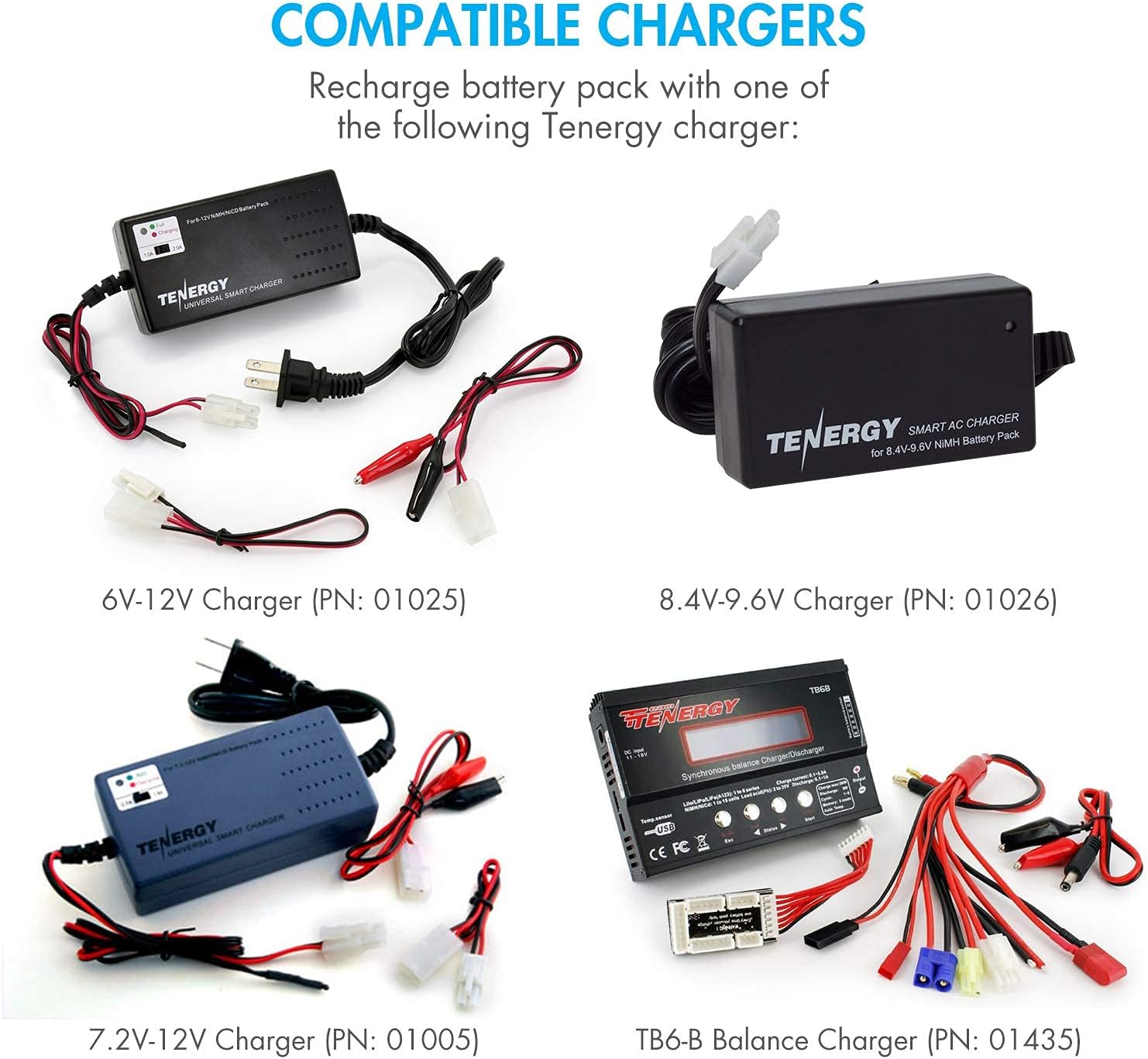

Image 5.2: Examples of compatible Tenergy chargers. These include the 6V-12V Charger (PN: 01025), 8.4V-9.6V Charger (PN: 01026), 7.2V-12V Charger (PN: 01005), and TB6-B Balance Charger (PN: 01435).

5.3 Connecting the Battery to the Charger

1. Ensure both the battery and charger connectors are clean and free of debris.
2. Align the Mini Tamiya connector from the battery with the corresponding connector on the charger. If necessary, use the provided adapter.
3. Gently push the connectors together until they are firmly seated. Do not force the connection.

6. Operating Instructions

6.1 Charging the Battery

1. Connect the battery to the charger as described in Section 5.3.
2. Plug the charger into a suitable power outlet.
3. Observe the charger's indicator lights (if any) to confirm charging has begun. Refer to your specific charger's manual for detailed indicator information.
4. Once charging is complete (indicated by the charger, typically a green light or automatic shut-off), disconnect the charger from the power outlet, then disconnect the battery from the charger.

6.2 Connecting the Battery to an AEG

1. Locate the battery compartment on your Airsoft Electric Gun. This is often in the stock, handguard, or receiver.
2. Carefully insert the Tenergy 9.6V 1600mAh battery pack into the compartment. The butterfly configuration allows for flexibility in fitting various spaces.
3. Connect the battery's Mini Tamiya connector to the AEG's corresponding connector. Ensure a secure connection.
4. Close the battery compartment securely.

6.3 Understanding Battery Voltage and Capacity

Battery voltage (V) and capacity (mAh) are crucial for AEG performance:

• Voltage (V): A higher voltage generally results in a faster motor speed and a higher rate of fire for your AEG. This 9.6V battery provides a good balance of power and compatibility for many AEGs. Always refer to your AEG's instruction manual for recommended voltage compatibility to avoid damage.
• Capacity (mAh): The milliampere-hour (mAh) rating indicates the battery's energy storage capacity. A higher mAh value means the battery can power your AEG for a longer duration before needing a recharge. This 1600mAh battery offers a long runtime for extended play.

Image 6.2: This image highlights the high capacity (1600mAh) and long runtime features of the Tenergy NiMH battery, indicating rapid charge capability.

Image 6.3: A compatibility guide showing various airsoft gun models and their compatibility with the Tenergy NiMH battery. Models like M249, M240B, G36, M14, RPK, PKM, L85, AUG, and G3 are marked as compatible.

7. Maintenance

7.1 Battery Care and Storage

• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid completely discharging the battery. Recharge it after each use.
• If storing for an extended period, charge the battery to approximately 50% capacity.
• Regularly inspect the battery for any signs of damage or wear.

7.2 Charger Care

• Keep the charger clean and dry.
• Do not expose the charger to liquids.
• Store the charger in a safe place when not in use.

8. Troubleshooting

• Battery Not Charging: Ensure the charger is properly plugged into a power outlet and the battery is securely connected to the charger. Check the charger's indicator lights. If the issue persists, try a different power outlet or contact support.
• Battery Not Fitting in AEG: Verify the dimensions of your AEG's battery compartment against the battery specifications (20mm diameter x 117mm length per cell). Some AEGs may require specific battery shapes or smaller sizes.
• Incompatible Connector: This battery uses a Mini Tamiya connector. If your AEG has a different connector type, ensure you are using the correct adapter (e.g., the included Large Female to Mini Male Tamiya connector) or that your AEG is compatible with Mini Tamiya.
• Reduced Performance: If your AEG's performance is lower than expected, ensure the battery is fully charged. Over time, battery capacity can degrade. Consider replacing older batteries.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the official Tenergy website or contact Tenergy customer service directly. Keep your purchase receipt as proof of purchase.
