MASTERCANOPY 2.7 x 2.7m Double Roof Gazebo Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Always assemble and disassemble the gazebo with care, following the provided instructions.
• Ensure the gazebo is securely anchored to the ground using stakes or weights to prevent overturning, especially in windy conditions.
• Regularly inspect the gazebo for any signs of wear, damage, or loose connections. Perform necessary maintenance to ensure its safety and longevity.
• Do not use the gazebo in severe weather conditions, including heavy winds, storms, or snow. Disassemble and store the gazebo during such conditions.
• Keep all flame and heat sources away from the gazebo fabric.

2. Product Overview

The MASTERCANOPY 2.7 x 2.7m Double Roof Gazebo is designed to provide a comfortable and shaded outdoor space. It features a robust construction and thoughtful design elements for enhanced usability and durability.

Image 2.1: Overview of the MASTERCANOPY Double Roof Gazebo.

Key Features:

• Ventilated Double Roof: Features a small, vented roof for improved air circulation and heat dissipation.
• Drainage Holes: 8 drainage holes on the roof edge prevent water accumulation.
• Mesh Walls: Includes 4 elegant mesh walls with removable hooks and smooth zippers for easy opening and closing, providing protection from insects.
• Sturdy Hook: A hook attached to the upper frame is ideal for hanging lights, plants, or other decorations.
• Robust Iron Frame: Reinforced iron frame with a rust-proof coating to prevent chipping, flaking, rusting, and corrosion, ensuring long-term durability.
• Thickened Leg Poles: Provides enhanced security and stability.
• 500D Polyester Fabric: Water-repellent, windproof, and UPF 50+ rated, blocking 99% of harmful UV rays.
• Stainless Steel Coated Zippers: Ensures smooth operation and resistance to corrosion.

3. Package Contents

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• 1 x Gazebo Roof Canopy
• 4 x Mesh Walls
• 1 x Main Frame Structure (various poles and connectors)
• 8 x Ground Stakes
• 44 x Hooks (for mesh walls)
• 1 x Detailed Installation Manual (this document)

4. Setup Instructions

Assembly typically requires two people. Follow the steps carefully for safe and correct installation.

4.1 Site Selection

• Choose a flat, level surface for assembly and placement.
• Ensure adequate clearance around the gazebo for assembly and to prevent obstruction.
• Avoid placing near overhead power lines or trees that could drop branches.

4.2 Frame Assembly

1. Unpack all frame components and lay them out. Identify all poles and connectors according to the included parts diagram.
2. Begin by assembling the base frame. Connect the horizontal base poles to the corner connectors.
3. Attach the thickened leg poles to the base frame. Ensure all connections are secure.
4. Assemble the upper frame structure, connecting the roof support poles and central hub.
5. Carefully lift the upper frame and connect it to the top of the leg poles. Secure all bolts or locking mechanisms.

Image 4.1: Illustration of the rust-proof frame components during assembly.

Image 4.2: Detail of a thick leg pole, contributing to gazebo stability.

4.3 Canopy and Mesh Wall Installation

1. Drape the main roof canopy over the assembled frame. Ensure the vented double roof section is correctly oriented.
2. Secure the canopy to the frame using the provided fasteners, straps, or ties. Ensure the canopy is taut to prevent water pooling.
3. Attach the 4 mesh walls to the frame using the provided hooks. The mesh walls feature zippers for easy access.
4. Utilize the 8 ground stakes to anchor the gazebo legs firmly into the ground. For additional stability, consider using sandbags or other weights (not included).

Image 4.3: The ventilated double-roof design for improved air circulation.

Image 4.4: Close-up of the high-density netting, designed to keep insects out.

5. Operating Instructions

5.1 General Use

• The gazebo provides 7.29 square meters of shade, comfortably accommodating 6-7 people.
• Use the central hook to hang lightweight items such as decorative lights or small plants. Do not exceed the weight limit specified in the full manual (if available).

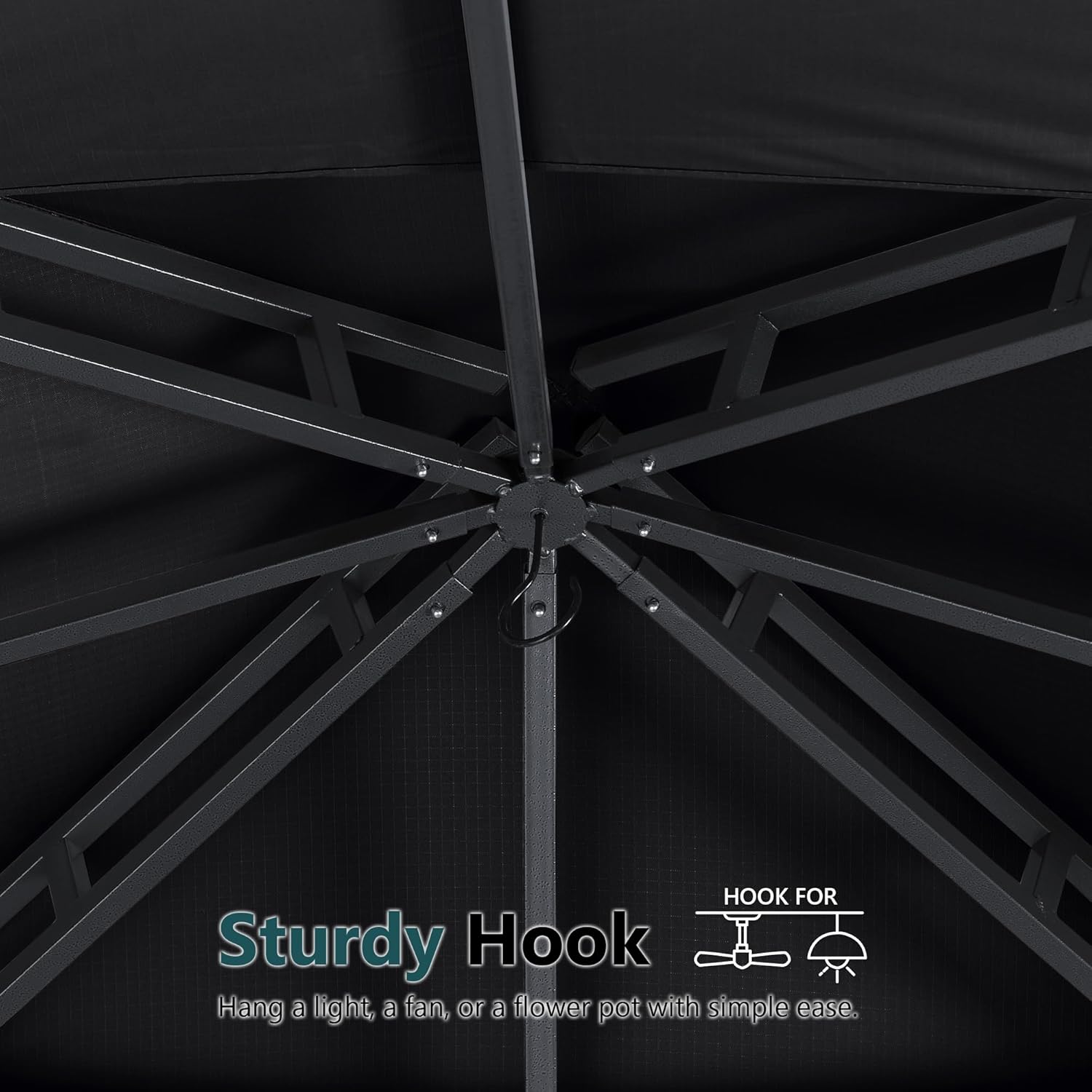

Image 5.1: The sturdy hook located at the center of the gazebo's roof structure.

5.2 Mesh Walls

• The mesh walls can be opened and closed using the smooth zippers.
• When not in use, the mesh walls can be tied back to the gazebo legs using the integrated ties.
• For full insect protection, ensure all mesh walls are zipped closed.

6. Maintenance

Proper maintenance will extend the life of your gazebo and ensure its continued performance.

• Cleaning: Clean the canopy and mesh walls with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
• Frame Inspection: Periodically check all frame connections for tightness. Tighten any loose bolts or screws. Inspect the frame for rust or damage; touch up any scratches on the rust-proof coating to prevent corrosion.
• Fabric Inspection: Regularly check the canopy and mesh for tears, holes, or excessive wear. Small tears can often be repaired with a fabric repair kit.
• Drainage: Ensure the 8 drainage holes on the roof are clear of debris to prevent water accumulation.
• Storage: When not in use for extended periods or during severe weather, disassemble the gazebo and store all components in a dry, protected area. Ensure all fabric parts are completely dry before folding and storing to prevent mold and mildew.

Image 6.1: Detail of the upgraded rip-lock fabric and water leakage holes for effective drainage.

7. Troubleshooting

This section addresses common issues you might encounter.

• Gazebo feels unstable: Ensure all frame connections are fully engaged and tightened. Verify that the leg poles are securely anchored to the ground with stakes or additional weights. Check that the ground surface is level.
• Water pooling on the roof: Ensure the canopy is taut and properly secured to the frame. Check that the drainage holes are clear of any debris. If the issue persists, re-adjust the canopy tension.
• Mesh walls not closing smoothly: Check for any obstructions in the zipper path. Ensure the fabric is not caught in the zipper. Apply a silicone-based lubricant to the zipper teeth if they are stiff.
• Difficulty with assembly: Refer back to the setup instructions and diagrams. Ensure all parts are correctly identified and oriented. Do not force connections; if parts do not fit, re-check the instructions for proper alignment. Assembly is easier with two people.

8. Specifications

Image 8.1: Detailed dimensions of the 2.7 x 2.7m gazebo.

9. Warranty Information

Specific warranty details for the MASTERCANOPY 2.7 x 2.7m Double Roof Gazebo are not provided in the product description. Please refer to the warranty card included with your purchase or contact MasterCanopy customer support for detailed warranty terms and conditions.

10. Customer Support

For further assistance, missing parts, or technical support, please contact MasterCanopy customer service. Contact information can typically be found on the product packaging, the manufacturer's website, or your purchase receipt.

When contacting support, please have your product model number (0909DP-NT) and purchase date available.
