1. Overview
This manual provides instructions for the AR-PRO 10-inch Flat-Free Solid Tire and Wheel, Model GCT-10NF-2. These tires are designed as a durable, maintenance-free replacement for pneumatic tires on various utility equipment. They feature a solid polyurethane foam construction, eliminating the need for air pressure and preventing punctures.
Image 1.1: AR-PRO 10-inch Flat-Free Solid Tire and Wheel (2-Pack) with washers.
2. Product Features
- Flat-Free Design: Constructed from anti-puncture polyurethane foam, these tires eliminate the need for air pressure checks and repairs, ensuring continuous operation.
- Precision Engineering: Each wheel measures 10 inches in diameter and 3 inches in width, featuring a 5/8-inch axle bore hole and a 2.1-inch offset hub. Rubber-sealed carbon bearings resist dust and water contamination.
- Robust Load Capacity: Designed for reliability, each tire and wheel assembly can support up to 300 pounds of distributed weight, making them suitable for heavy-duty applications.
- Versatile Application: Compatible with a wide range of equipment including dual-wheel wheelbarrows, garden wagon carts, garden dump carts, hand trucks, generators, and yard trailers.
- Enhanced Traction: The tire pattern is designed to provide improved traction and maneuverability compared to standard tires.
Image 2.1: Solid polyurethane tire construction.
Image 2.2: Detailed view of the tire pattern and its characteristics.
3. Specifications
| Attribute | Value |
|---|---|
| Model Number | GCT-10NF-2 |
| Tire Type | Flat-Free Solid Polyurethane |
| Outer Diameter | 10 inches |
| Tire Width | 3 inches |
| Axle Bore Hole | 5/8 inches |
| Offset Hub Length | 2.1 inches |
| Maximum Load Capacity (per wheel) | 300 pounds |
| Bearings | Rubber-sealed carbon bearings |
| Rim Material | Steel |
| Compatible Equipment | Wheelbarrows, Garden Carts, Hand Trucks, Yard Trailers, Generators |
Image 3.1: Key dimensions of the AR-PRO 10-inch Flat-Free Tire.
4. Setup & Installation
These AR-PRO flat-free tires are designed for straightforward replacement of existing wheels on compatible equipment. Ensure the dimensions of your equipment's axle and hub match the specifications provided before installation.
4.1 Pre-Installation Check
- Verify that your equipment's axle diameter is 5/8 inches.
- Confirm that the hub length and offset are compatible with the 2.1-inch offset hub of the AR-PRO wheels.
- Gather necessary tools: wrench, possibly a jack or support for your equipment.
4.2 Installation Steps
- Prepare Equipment: Safely lift and secure your wheelbarrow, cart, or other equipment to allow easy access to the wheels.
- Remove Old Wheels: Loosen and remove the nuts or cotter pins securing the old wheels to the axle. Carefully slide the old wheels off.
- Install New Wheels: Slide the AR-PRO flat-free wheels onto the axle. Ensure the hub is correctly oriented for your equipment's design.
- Use Washers: The package includes extra metal washers (8 pieces for a 2-pack). Use these washers as spacers to achieve a snug fit and prevent excessive lateral movement of the wheel on the axle. Distribute them evenly on both sides of the wheel if needed.
- Secure Wheels: Reinstall the nuts or cotter pins, tightening them securely but without overtightening, which could impede wheel rotation.
- Test: Lower the equipment and test the wheels for smooth rotation and stability.
Image 4.1: AR-PRO wheels and included metal washers for installation.
Image 4.2: Included metal washers.
5. Operation
Once installed, the AR-PRO flat-free solid tires operate similarly to traditional pneumatic tires but without the risk of flats. They are designed for use on various terrains, including turf, natural grass, gravel, and sand.
- Load Capacity: Do not exceed the maximum load capacity of 300 pounds per wheel. Distribute weight evenly across the equipment to prevent undue stress on individual wheels.
- Terrain: These tires provide stability and minimize disturbance on sensitive surfaces while offering reliable performance on uneven or loose ground.
- Movement: The solid construction may result in a slightly firmer ride compared to air-filled tires.

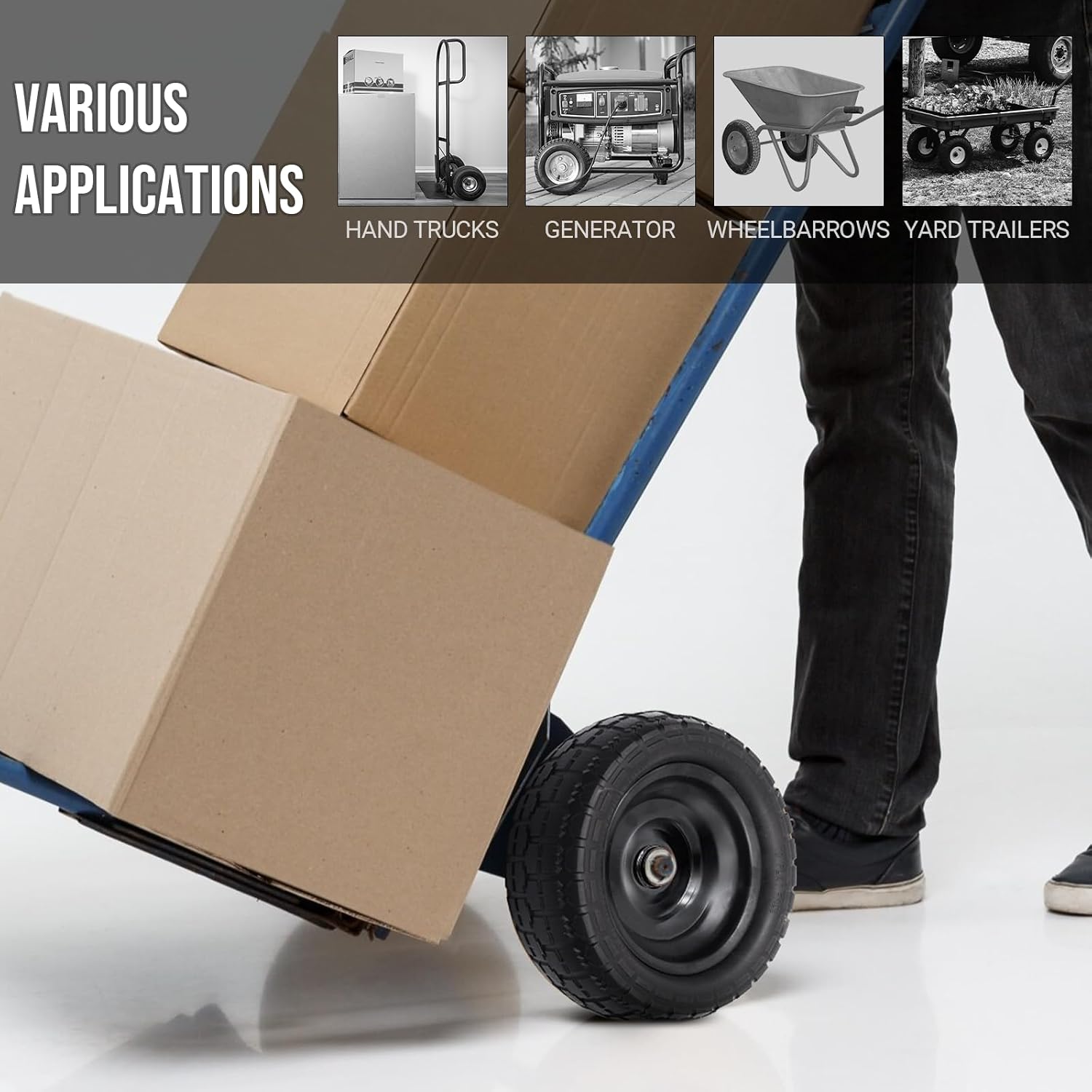

Image 5.1: Examples of equipment compatible with AR-PRO flat-free tires.
6. Maintenance
The AR-PRO flat-free solid tires require minimal maintenance due to their design.
- Cleaning: Periodically clean the tires and wheel hubs to remove dirt, debris, and grime. A damp cloth or mild soap and water can be used.
- Inspection: Regularly inspect the tires for any signs of damage, such as deep cuts or tears, although they are designed to be highly resistant. Check the axle and bearings for smooth operation and ensure all fasteners remain tight.
- No Air Pressure: As these are flat-free tires, there is no need to check or maintain air pressure.
7. Troubleshooting
- Issue: Wheel does not fit on axle.
- Solution: Verify that your equipment's axle diameter is 5/8 inches. These wheels are designed for this specific axle size. Also, check the hub offset for compatibility.
- Issue: Wheel wobbles or has excessive play.
- Solution: Ensure all nuts or cotter pins are securely tightened. Use the included metal washers as spacers to reduce play between the wheel and the equipment frame or axle collars.
- Issue: Equipment feels too bouncy or rigid.
- Solution: Solid tires inherently provide a firmer ride than pneumatic tires. This is normal for flat-free designs. Ensure the load is within the specified capacity.
- Issue: Tire appears to flatten under heavy load.
- Solution: While designed for durability, exceeding the 300-pound per wheel load capacity can cause temporary deformation. Ensure the total weight on the equipment is distributed appropriately and does not exceed the combined capacity of all wheels.
8. Customer Support
For any questions, concerns, or assistance with your AR-PRO 10-inch Flat-Free Solid Tires, please contact our customer service team. Refer to your purchase documentation for specific contact information.
