Introduction
Thank you for choosing Linkind StarRay RGB Solar Garden Lights. This manual provides essential information for the safe and efficient use of your new solar lights. Please read these instructions carefully before installation and retain them for future reference.
Image: Linkind StarRay RGB Solar Garden Lights illuminating a house and garden at night with various colors.
Product Features
- Multiple Color Options: Offers 8 fixed colors (Red, Green, Blue, Lemon Yellow, Purple, Cyan, Rainbow, White) and an automatic color-cycling mode.
- Extended Operation: High-capacity rechargeable lithium batteries provide up to 12 hours of illumination in fixed color mode, or 6-12 hours in color cycle mode depending on brightness.
- Durable and Weatherproof: IP67 waterproof rating, heat-resistant, and frost-resistant design with UV-resistant ABS material.
- Efficient Solar Charging: Large solar panel with up to 20% photoelectric conversion rate for faster charging.
- Flexible Panel Adjustment: Solar panel can be adjusted 90 degrees vertically and 180 degrees horizontally for optimal sun exposure.
- 2-in-1 Installation: Can be installed as a landscape light using the included ground stake or as a wall light with screws and a wall mount.

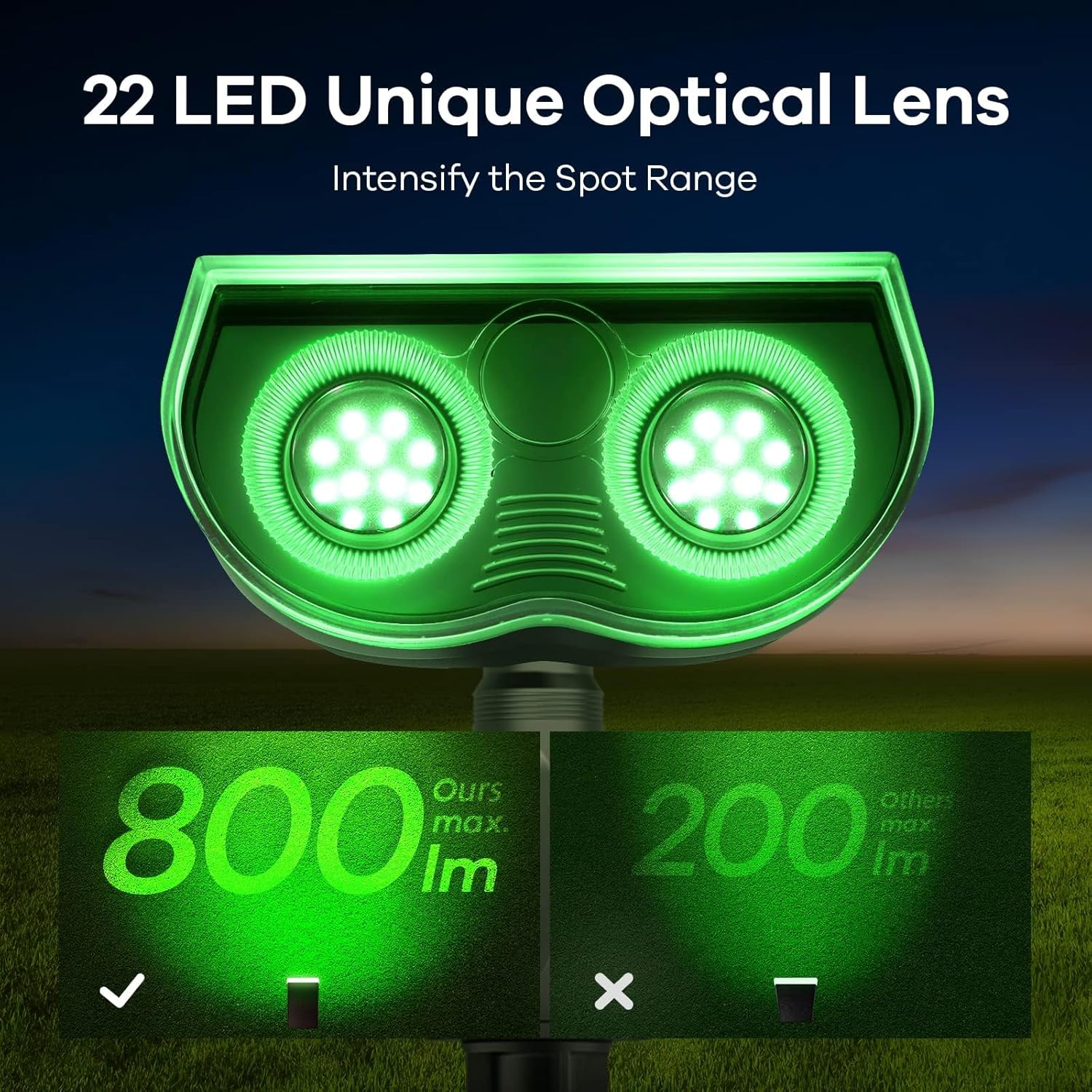

Image: Close-up of Linkind StarRay light showing 22 LED unique optical lenses and comparing 800lm output to 200lm of other lights.
Image: Linkind StarRay light being splashed with water, illustrating its IP67 waterproof, heat-resistant, and frost-resistant features.
Setup and Installation
Your Linkind StarRay solar lights offer two installation options: ground insertion or wall mounting.
Package Contents:
- Solar Spotlights (4 units)
- Ground Stakes
- Wall Mount Brackets
- Screws and Wall Anchors
Image: Diagram showing the components of the solar light: turn-knob, plastic rod, gecko screw, screws, and plastic anchor.
Ground Insertion:
- Attach the ground stake to the bottom of the solar light unit.
- Choose a location in your garden or pathway that receives direct sunlight for at least 6-8 hours daily.
- Firmly insert the assembled light into the ground.
- Adjust the solar panel to face the sun for optimal charging (can be adjusted 90 degrees vertically and 180 degrees horizontally).
Wall Mounting:
- Attach the wall mount bracket to the solar light unit.
- Select a wall location that receives ample direct sunlight.
- Mark the desired drilling points on the wall using the bracket as a guide.
- Drill holes, insert wall anchors if necessary, and secure the light to the wall using the provided screws.
- Adjust the solar panel to face the sun for optimal charging.
Image: Two installation options: wall-mounted and ground-inserted.
Image: Solar panel adjustment for optimal sun exposure.
Operating Instructions
The Linkind StarRay solar lights feature an integrated light sensor, automatically turning on at dusk and off at dawn. You can select between fixed color modes or a dynamic color cycling mode.
Image: Control button functions for color selection.
1. Fixed Color Mode:
- Short press the button on the back of the light to cycle through 8 fixed colors: Red, Green, Blue, Lemon Yellow, Purple, Cyan, Rainbow (a mix of red, green, and blue), and Cool White.
- The light will remain in the selected fixed color until changed.
- Maximum working time in fixed color mode: 12 hours.
2. Color Cycling Mode:
- From any fixed color mode, long press the button for 2 seconds to enter dynamic color cycling mode.
- The light will progressively change colors (Red, Orange, Yellow, Green, Cyan, Blue, Purple) in a low brightness cycle.
- Maximum working time in low brightness color cycle mode: 12 hours.
- While in color cycling mode, short press the button to switch to high brightness.
- Maximum working time in high brightness color cycle mode: 6 hours.
- To exit color cycling mode and return to fixed color mode, long press the button for 2 seconds again.
Memory Function: The Linkind StarRay solar lights have a memory function. They will activate in the same mode (fixed color or color cycling) that was set the previous night.

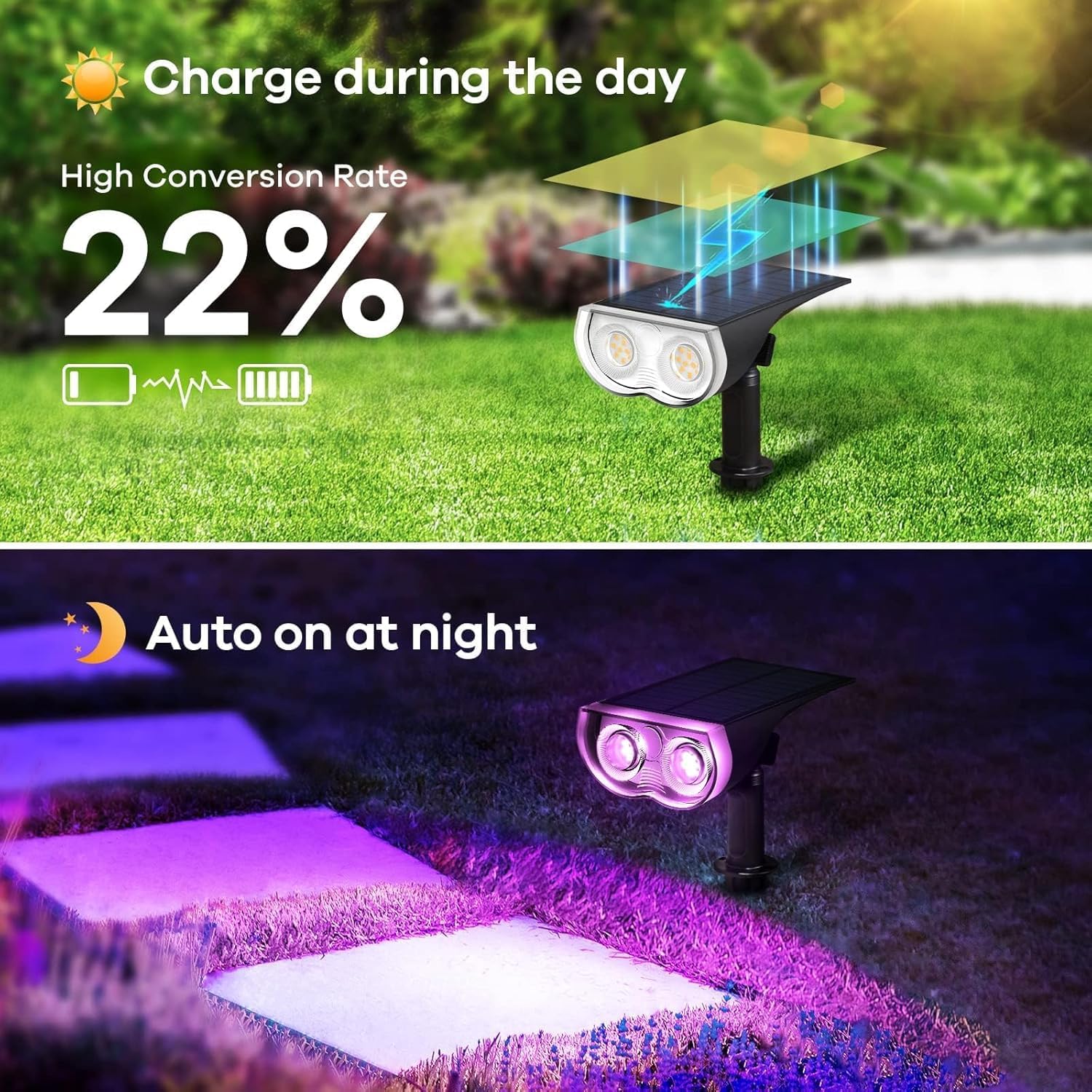

Image: Automatic day charging and night illumination.
Maintenance
- Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dirt, dust, or debris. A clean panel ensures optimal charging efficiency.
- Clear Obstructions: Ensure no trees, bushes, or structures block direct sunlight from reaching the solar panel throughout the day.
- Battery Care: While the lights use rechargeable lithium-ion batteries, prolonged periods of low light or storage may reduce battery life. If storing for an extended time, fully charge the lights and store them in a cool, dry place.
- Inspect for Damage: Periodically check the lights for any physical damage, loose connections, or signs of wear.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | Insufficient sunlight for charging. | Relocate the light to an area that receives 6-8 hours of direct sunlight daily. Ensure the solar panel is clean. |
| Light duration is shorter than expected. | Partial charge, cloudy weather, or solar panel obstruction. | Ensure the solar panel is clean and receives full sun. Allow several sunny days for a full charge. Consider switching to low brightness mode if available. |
| Light flickers or is dim. | Low battery charge or dirty solar panel. | Clean the solar panel. Ensure the light is placed in direct sunlight for a full day to charge. |
| Color changing mode not working. | Incorrect mode selection. | Long press the control button for 2 seconds to activate color cycling mode. |
Specifications
| Brand | Linkind |
| Model Number | LL18002-SP001U_RGBW-EU-4 |
| Power Source | Solar Powered |
| Battery Type | 1 Lithium-ion (included) |
| Light Source Type | LED (22 bulbs) |
| Light Color | Multiple Colors (RGB) |
| Wattage | 4 Watts |
| Luminous Efficacy | 650 lm (Max) |
| Waterproof Rating | IP67 |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Dimensions (L x W x H) | 15.2 x 10.2 x 15.2 cm (6 x 4 x 6 inches) |
| Item Weight | 1.14 Kilograms (for the pack of 4) |
| Control Method | Tactile (Button-push) |
| Installation Type | Ground Inserted, Wall Mounted |
Warranty Information
For detailed warranty information, please refer to the official Linkind website or contact their customer support directly. Warranty terms and conditions may vary by region and purchase date.
Customer Support
If you encounter any issues or have questions regarding your Linkind StarRay RGB Solar Garden Lights, please visit the Linkind official website for support resources, FAQs, and contact information. You may also refer to your purchase platform for seller contact details.
