EASWEL Metal Sewing Machine Bobbin Case User Manual

1. Product Overview

The EASWEL Metal Sewing Machine Bobbin Case is a durable and reliable accessory designed for various sewing machines. It is specifically crafted for zig-zag and straight stitch machines, ensuring stable performance during sewing operations. This bobbin case is an essential component for proper thread tension and bobbin function.

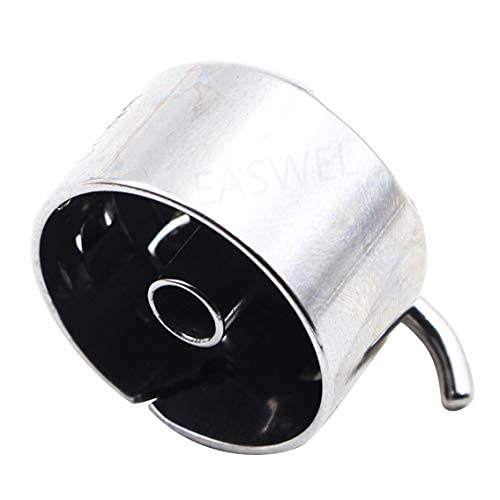

Image 1: The EASWEL Metal Sewing Machine Bobbin Case. This image displays the metal construction and general shape of the bobbin case.

2. Compatibility

This bobbin case is compatible with a wide range of sewing machine brands and models. It is suitable for many Brother, Janome, Elna, Bernina, Singer, Kenmore, Babylock, and White sewing machines, including specific Brother models like PX200, PX300, and VX1010. Please verify your machine's bobbin case type and dimensions for optimal fit.

3. Installation and Setup

Proper installation of the bobbin case is crucial for smooth sewing. Follow these general steps:

1. Power Off: Ensure your sewing machine is turned off and unplugged from the power source before handling any internal components.
2. Access Bobbin Area: Open the bobbin compartment of your sewing machine. This is typically located under the needle plate or in a front-loading mechanism.
3. Remove Old Bobbin Case (if applicable): If replacing an existing bobbin case, carefully remove it. Note its orientation for reference.
4. Insert Bobbin: Place a wound bobbin into the EASWEL bobbin case. Ensure the thread unwinds in the correct direction as specified by your sewing machine's manual (usually clockwise or counter-clockwise).
5. Thread Bobbin Case: Guide the bobbin thread through the tension spring and slot on the bobbin case. Pull gently to ensure the thread moves freely and has appropriate tension.
6. Insert Bobbin Case: Carefully insert the loaded bobbin case into its designated position within the sewing machine. It should click or lock securely into place. Refer to your sewing machine's specific manual for precise insertion instructions.
7. Close Compartment: Close the bobbin compartment cover.

4. Operating Instructions

Once installed, the bobbin case functions as part of your sewing machine's lower threading system. Its primary role is to hold the bobbin and provide consistent lower thread tension.

• Thread Tension: The tension spring on the bobbin case is pre-set for general use. If you experience issues with stitch quality (e.g., loops on the top or bottom of the fabric), you may need to adjust the upper thread tension on your sewing machine. Minor adjustments to the bobbin case tension screw are rarely needed and should only be performed if specifically instructed by your sewing machine's manual or by an experienced technician.
• Bobbin Winding: The bobbin case is not directly involved in the bobbin winding process. Always wind bobbins according to your sewing machine's instructions, ensuring they are evenly wound and not overfilled.
• Regular Checks: Periodically check the bobbin case for any lint buildup or thread fragments that could impede its function.

5. Care and Maintenance

To ensure the longevity and optimal performance of your EASWEL Metal Bobbin Case, follow these maintenance guidelines:

• Cleaning: Regularly remove the bobbin case from your machine and use a small brush or lint roller to clear any accumulated lint, dust, or thread bits from the case and the surrounding bobbin area of your machine. Avoid using harsh chemicals or abrasive materials.
• Inspection: Periodically inspect the bobbin case for any signs of wear, damage, or deformation, especially the tension spring. A damaged bobbin case can lead to poor stitch quality.
• Storage: When not in use, store the bobbin case in a clean, dry place, preferably within your sewing machine or a dedicated sewing accessory box, to prevent dust accumulation and damage.

6. Troubleshooting

If you encounter issues related to the bobbin or lower thread, consider the following:

• Thread Jamming/Tangles:

  Possible Cause: Incorrect bobbin insertion, improper threading of the bobbin case, lint buildup, or a damaged bobbin.

  Solution: Remove the bobbin case, clear any tangled threads or lint. Re-insert the bobbin and thread the case carefully, ensuring the thread passes correctly through the tension spring. Check the bobbin for damage or uneven winding.
• Uneven Stitches/Loopy Stitches:

  Possible Cause: Incorrect bobbin thread tension or upper thread tension. While the bobbin case provides lower tension, upper tension is often the primary adjustment.

  Solution: First, adjust the upper thread tension on your sewing machine. If the problem persists, ensure the bobbin thread is correctly seated in the bobbin case tension spring. Avoid adjusting the bobbin case tension screw unless absolutely necessary and with reference to your machine's manual.

• Bobbin Case Not Fitting:

  Possible Cause: Incompatibility with your specific sewing machine model.

  Solution: Double-check the compatibility list and your sewing machine's model number. Compare the dimensions of this bobbin case (see specifications) with your original bobbin case or machine requirements.

7. Specifications

8. Warranty and Support

EASWEL stands behind the quality of its products. This bobbin case comes with the following guarantees:

• 30 Days Money Back Guarantee: If you are not satisfied with your purchase, you may return it within 30 days for a full refund.
• 180 Days Free Exchange: For any manufacturing defects or performance issues within 180 days of purchase, a free exchange will be provided.

For any questions, concerns, or support needs, please contact EASWEL customer service. We are committed to resolving any issues to your satisfaction.
