Introduction
This manual provides essential information for the safe and efficient operation of your Super General 12kg Top Load Washing Machine, Model KSGW1224. Please read these instructions carefully before using the appliance and keep them for future reference.
Your washing machine features a large 12kg capacity, 8 washing programs, a durable plastic dual-opening lid, a drain pump, and a child lock function, designed for convenient and effective laundry care.
Safety Information
General Safety:
- Ensure the washing machine is properly grounded.
- Do not operate the machine with a damaged power cord or plug.
- Keep children and pets away from the appliance during operation. The child lock feature helps prevent accidental operation.
- Do not wash items that are soiled with flammable substances.
- Always unplug the machine before cleaning or performing any maintenance.
- Do not attempt to repair the appliance yourself. Contact qualified service personnel.
Installation Safety:
- Install the machine on a firm, level surface to prevent vibration and noise.
- Ensure adequate clearance around the machine for ventilation and access.
- Connect the water inlet hoses securely to prevent leaks.
- Position the drain hose correctly to ensure proper water drainage.
Setup Instructions
1. Unpacking
Carefully remove all packaging materials, including the base packaging and any internal packing. Inspect the machine for any damage during transit. Keep packaging materials away from children.
2. Positioning the Washing Machine
Place the washing machine on a flat, stable floor. Adjust the leveling feet at the bottom of the machine to ensure it is perfectly level. This is crucial for stable operation and to minimize noise and vibration.

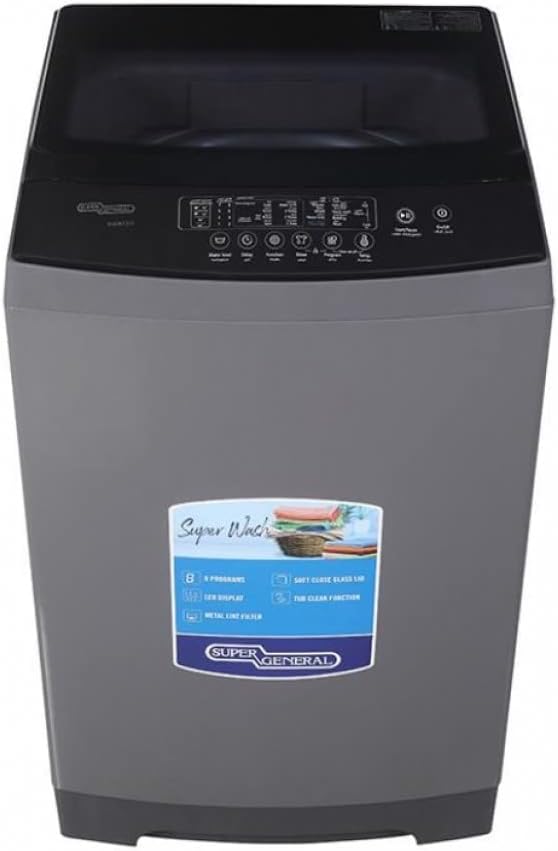

Image: Front view of the Super General 12kg Top Load Washing Machine KSGW1224. This image shows the overall design and front panel of the washing machine.
3. Water Connection
Connect the provided fill hose to the water inlet valve(s) at the back of the washing machine and to your household water supply. Ensure connections are tight to prevent leaks. This model features two water inlets.
Image: Back view of the Super General 12kg Top Load Washing Machine KSGW1224. This image highlights the rear connections, including the water inlets.
4. Drain Hose Installation
Position the drain hose into a suitable drain pipe or sink. Ensure the hose is securely fixed and that there are no kinks or blockages that could impede drainage.
5. Power Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the specifications of the washing machine (240V).
Operating Instructions
1. Loading Laundry
Open the top lid of the washing machine. Load clothes loosely into the drum, ensuring not to overload. Overloading can affect washing performance and may damage the machine.
Image: Top view of the Super General 12kg Top Load Washing Machine KSGW1224 with the lid open, showing the drum interior.
2. Adding Detergent and Softener
Pull out the detergent drawer. Add the appropriate amount of powder or liquid detergent to the main wash compartment. If using fabric softener, add it to the designated softener compartment. Close the drawer.
3. Selecting a Program
Turn on the washing machine. Use the control panel buttons to select one of the 8 available washing programs. The LED display will show the selected program and remaining cycle time. Programs include options for various fabric types and soil levels, including a specific program for baby clothes.
Image: Close-up of the control panel on the Super General 12kg Top Load Washing Machine KSGW1224, featuring push buttons and an LED display.
4. Starting the Wash Cycle
Press the "Start/Pause" button to begin the selected wash cycle. The machine will automatically fill with water, wash, rinse, and spin.
5. Child Lock Function
To activate the child lock, press and hold the designated child lock button (refer to the control panel diagram in your physical manual for exact button). This will prevent accidental changes to settings or interruption of the cycle by children. To deactivate, repeat the action.
6. End of Cycle
Once the wash cycle is complete, the machine will signal. Carefully remove your laundry. Unplug the machine if it will not be used for an extended period.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
1. Cleaning the Detergent Drawer
Periodically remove and clean the detergent drawer to prevent residue buildup. Rinse it under running water and dry thoroughly before reinserting.
2. Cleaning the Lint Filter
Locate and clean the lint filter regularly to ensure efficient lint removal and prevent blockages. Refer to your physical manual for the exact location and removal instructions for the metal lint filter.
3. Cleaning the Exterior
Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
4. Tub Clean Function
Utilize the dedicated "Tub Clean" function periodically to clean the washing machine drum and remove any detergent residues or odors. Follow the instructions on the control panel for this cycle.
5. Water Inlet Filter Cleaning
If you notice reduced water flow, check and clean the filters in the water inlet hoses. Turn off the water supply and disconnect the hoses before cleaning.
Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; door not closed properly; power outage. | Check power connection; ensure lid is fully closed; check household power supply. |
| No water filling | Water tap closed; water inlet hose kinked or blocked; water supply cut off. | Open water tap; straighten hose; check water supply. |
| Water not draining | Drain hose kinked or blocked; drain pump filter clogged. | Straighten drain hose; clean drain pump filter (refer to manual). |
| Excessive vibration/noise | Machine not level; transport bolts not removed; uneven load. | Adjust leveling feet; ensure transport bolts are removed (if applicable); redistribute laundry. |
| Detergent residue on clothes | Too much detergent; detergent not dissolving properly; overloaded machine. | Use less detergent; ensure water temperature is appropriate; reduce load size. |
Product Specifications
| Brand | Super General |
| Model Number | KSGW1224 |
| Product Type | Top Load Washing Machine |
| Capacity | 12 Kilograms |
| Product Dimensions (D x W x H) | 64 cm x 67 cm x 102.4 cm |
| Item Weight | 54 Kilograms |
| Color | Grey (based on images, original title said white, but images are grey. I will use grey as it's more accurate to the provided images.) |
| Material | Plastic (Drum Material: Plastic) |
| Special Features | Child Lock |
| Access Location | Top Load |
| Number of Programs | 8 |
| Operation Mode | Fully Automatic |
| Voltage | 240 Volts |
| Control Type | Push Button |
| Display Type | Digital (LED) |
| Noise Level | 6 Decibels |
| Installation Type | Freestanding |
| Recommended Uses | Residential |
| Included Components | 1 × Super General KSGW1224 Top Load Washing Machine, 12kg capacity, Fill Hose, Power Cord |
Warranty and Support
Warranty Information
This product is eligible for a one-year warranty provided by the manufacturer/brand from the date of purchase. Please retain your proof of purchase for warranty claims.
Customer Support
For more details regarding warranty terms, technical assistance, or service requests, please contact the manufacturer or the seller. Contact information can typically be found on the product packaging or the official Super General website.
You can also visit the Super General Store on Amazon for additional product information and support resources.
